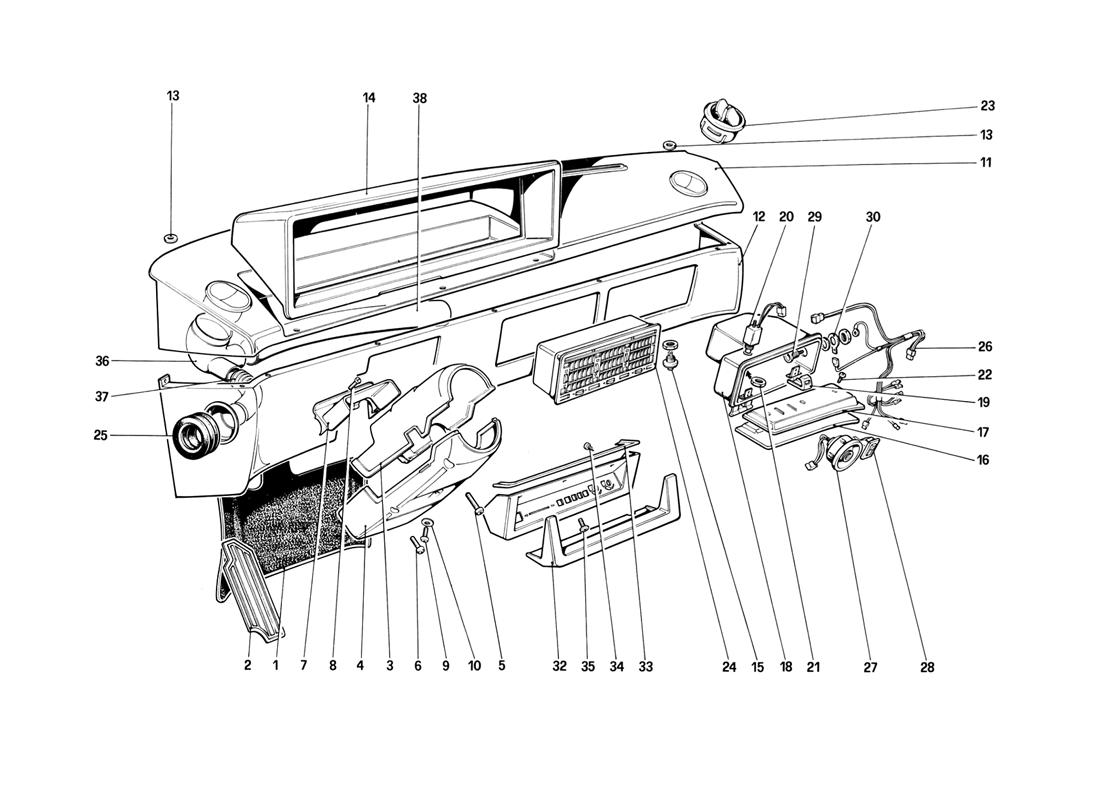

INSTRUMENT PANEL

Go to Split View

INSTRUMENT PANEL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60781600 *Qty: 1 Tappeto sottopedaliera
Per GD vale 60784700
Call
Location: 2 Prev | Next Part: 60723400 *Qty: 1 Protezione piede Sx. pilota
Per GD vale 60771000
$15.40
Location: 3 Prev | Next Part: 60654400 *Qty: 1 Copripiantone superiors guida Superseded
Location: 3 Prev | Next Part: 60654300 *Qty: 1 Copripiantone guida completo Superseded
Location: 4 Prev | Next Part: 60654500 *Qty: 1 Copripiantone inferiore guida Superseded
Location: 5 Prev | Next Part: 15687708 *Qty: 2 Vite fiss/copripiaritone superiore Call
Location: 6 Prev | Next Part: 15688208 *Qty: 2 Vite fiss. Copripiantone inferiore $1.10
Location: 7 Prev | Next Part: 60698000 *Qty: 1 Copripiantone inferiore $19.81
Location: 8 Prev | Next Part: 60698100 *Qty: 1 Vite fiss. Copripiantone inferiore $1.23
Location: 9 Prev | Next Part: 60702800 *Qty: 1 Vite $1.33
Location: 10 Prev | Next Part: 60702900 *Qty: 1 Rondella $1.25
Location: 11 Prev | Next Part: 60655100 *Qty: 1 Plancia superiore completa
Per GD vale 60753800
Superseded
Location: 12 Prev | Next Part: 60654900 *Qty: 1 Plancia inferiore completa
Per GD vale 60753500
$751.77
Location: 12 Prev | Next Part: 60655900 *Qty: 1 Rivestimento plancia inferiore Call
Location: 13 Prev | Next Part: 60657600 *Qty: 2 Rondella in gomma fiss. plancia $2.09
Location: 14 Prev | Next Part: 60861400 *Qty: 1 Cupolotto porta strumenti
Per GD vale 60861600
$852.16
Location: 15 Prev | Next Part: 60591600 *Qty: 1 Pulsante apertura cassette plancia $56.96
Location: 16 Prev | Next Part: 60656000 *Qty: 1 Rivestimento sportello plancia $62.80
Location: 16 Prev | Next Part: 60655200 *Qty: 1 Sportello plancia
Per GD vale 60734600
$180.71
Location: 17 Prev | Next Part: 60655400 *Qty: 1 Ricoprimento interno sportello
Per GD vale 60734800
$32.00
Location: 18 Prev | Next Part: 60555700 *Qty: 1 Cassette plancia
Per GD vale 60734900
Call
Location: 19 Prev | Next Part: 60675600 *Qty: 1 Scontrino serratura cassette $1.96
Location: 20 Prev | Next Part: 80662100 *Qty: 1 Magnete
Fino ad esaurimento
$1,377.25
Location: 20 Prev | Next Part: 60868600 *Qty: 1 Magnete
Dopo esaurimento 60662100
$573.63
Location: 21 Prev | Next Part: 60538800 *Qty: 1 Ghiera fiss. magnete $10.23
Location: 22 Prev | Next Part: 60675900 *Qty: 4 Vite fiss. scontrino ed interno $1.01
Location: 23 Prev | Next Part: 60656500 *Qty: 2 Bocchetta laterale plancia Call
Location: 24 Prev | Next Part: 60657100 *Qty: 1 Bocchetta centrale $540.00
Location: 25 Prev | Next Part: 60657400 *Qty: 2 Guarnizione di tenuta aria $14.54
Location: 26 Prev | Next Part: 116367 *Qty: 1 Cavi collegamento cassetto $30.46
Location: 27 Prev | Next Part: 60743100 *Qty: 1 Plafoniera cassette plancia $60.47
Location: 28 Prev | Next Part: 60743000 *Qty: 1 Interruttore comando plafoniera $5.61
Location: 29 Prev | Next Part: 60701500 *Qty: 1 Presa di corrente $39.46
Location: 30 Prev | Next Part: 60701400 *Qty: 1 Terminale negative per presa $5.95
Location: 31 Prev | Next Part: - *Qty: 1 Lampada per plafoniera 12v - 5w Call
Location: 32 Prev | Next Part: 60805100 *Qty: 1 Rivestimento modanatura $80.54
Location: 32 Prev | Next Part: 60804900 *Qty: 1 Modanatura comandi condizionatore $241.64
Location: 33 Prev | Next Part: 60813100 *Qty: 1 Guarnizione $32.92
Location: 34 Prev | Next Part: 15687901 *Qty: 4 Vite autofilettante Superseded
Location: 35 Prev | Next Part: 20288908 *Qty: 3 Vite fissaggio supporto $1.94
Location: 36 Prev | Next Part: 60656800 *Qty: 1 Raccordo per bocchetta Sx.
Per GD vale 60754000
$31.87
Location: 36 Prev | Next Part: 60656700 *Qty: 1 Raccordo per bocchetta Dx.
Per GD vale 60753900
$31.87
Location: 37 Prev | Next Part: 60657300 *Qty: 2 Tubo per aria su porta $22.42
Location: 38 Prev | Next Part: 60656900 *Qty: 1 Tubo da condizionatore a bocchetta Dx $71.67
Location: 38 Prev | Next Part: 60657000 *Qty: 1 Tubo da condizionatore a bocchetta Sx $109.25

* Quantity shown indicates the number of pieces used in the diagram.
