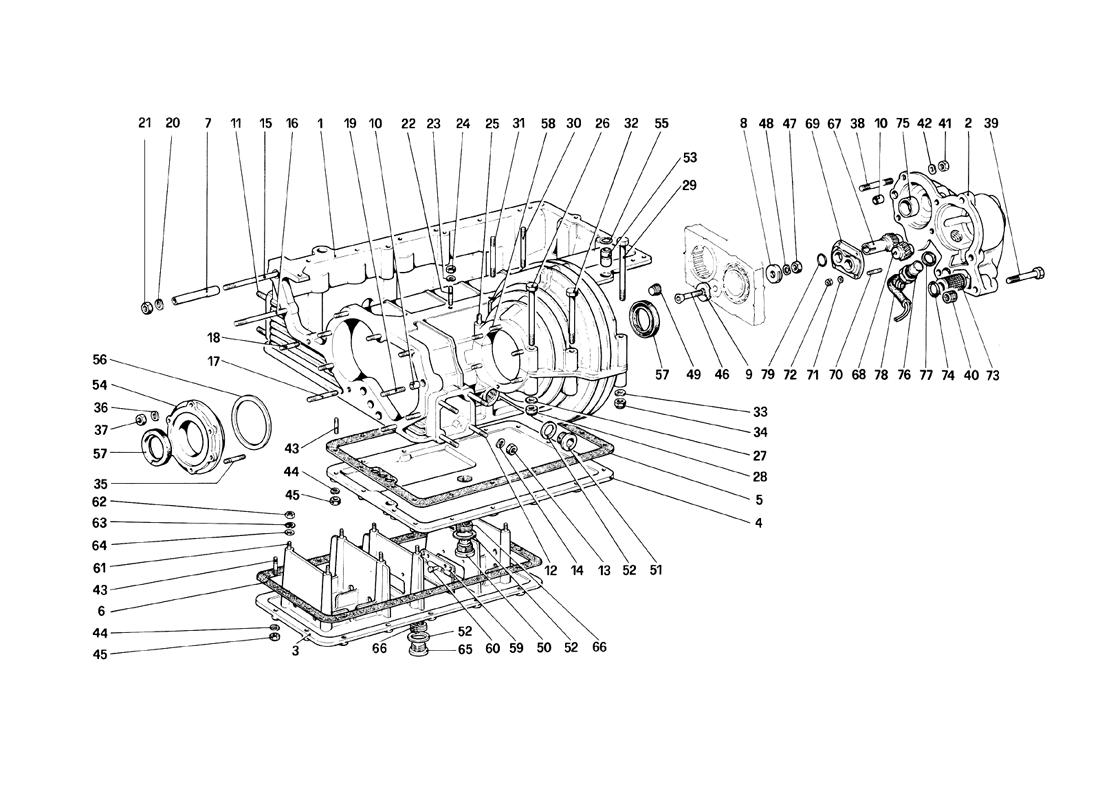

GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 115569 *Qty: 1 Cambio complete di ruotismi, differenziale e supporti Superseded
Location: 1 Prev | Next Part: 113072 *Qty: 1 Scatola cambio differenziale e coppa olio
Col complessivo n. 115179
Call
Location: 1 Prev | Next Part: 115179 *Qty: 1 Scatola cambio completa $6,556.99
Location: 2 Prev | Next Part: 113073 *Qty: 1 Coperchio posteriore
Col complessivo n. 115179
$714.43
Location: 3 Prev | Next Part: 104192 *Qty: 1 Coperchio coppa olio Superseded
Location: 3 Prev | Next Part: 107875 *Qty: 1 Coperchio coppa olio complete Superseded
Location: 4 Prev | Next Part: 115353 *Qty: 1 Coperchio inferiore Call
Location: 5 Prev | Next Part: 104196 *Qty: 1 Guarnizione Superseded
Location: 6 Prev | Next Part: 104197 *Qty: 1 Guarnizione Superseded
Location: 7 Prev | Next Part: 104033 *Qty: 1 Grano di centraggio $31.05
Location: 8 Prev | Next Part: 104198 *Qty: 1 Rondella tenuta cuscinetti $11.43
Location: 9 Prev | Next Part: 104199 *Qty: 1 Rondella tenuta cuscinetti $6.77
Location: 10 Prev | Next Part: 102704 *Qty: 2 Grano di centraggio $19.74
Location: 11 Prev | Next Part: 13549321 *Qty: 8 Prigioniero per tamponi anteriori Call
Location: 12 Prev | Next Part: 13450021 *Qty: 8 Prigioniero per tamponi posteriori $0.90
Location: 13 Prev | Next Part: 12164711 *Qty: 16 Dado Superseded
Location: 14 Prev | Next Part: 10516871 *Qty: 16 Rondella $0.90
Location: 15 Prev | Next Part: 13952821 *Qty: 1 THREADED STUD $1.29
Location: 16 Prev | Next Part: 13518721 *Qty: 1 THREADED STUD $4.31
Location: 17 Prev | Next Part: 13517421 *Qty: 1 THREADED STUD $41.97
Location: 18 Prev | Next Part: 13517221 *Qty: 8 THREADED STUD Superseded
Location: 19 Prev | Next Part: 13517321 *Qty: 1 THREADED STUD Superseded
Location: 20 Prev | Next Part: 11194071 *Qty: 12 Rondella $0.90
Location: 21 Prev | Next Part: 16100811 *Qty: 12 Dado Superseded
Location: 22 Prev | Next Part: 108966 *Qty: 4 Prigioniero fissaggio basamento $14.24
Location: 23 Prev | Next Part: 11194071 *Qty: 4 Rondella $0.90
Location: 24 Prev | Next Part: 16100811 *Qty: 4 Dado Superseded
Location: 25 Prev | Next Part: 13450421 *Qty: 2 THREADED STUD $0.90
Location: 26 Prev | Next Part: 15972021 *Qty: 2 Bullone $1.36
Location: 27 Prev | Next Part: 12638601 *Qty: 4 Rondella $0.90
Location: 28 Prev | Next Part: 12574511 *Qty: 4 Dado autobloccante Superseded
Location: 29 Prev | Next Part: 104189 *Qty: 1 Bullone $11.05
Location: 30 Prev | Next Part: 13518021 *Qty: 2 THREADED STUD $5.67
Location: 31 Prev | Next Part: 13517821 *Qty: 1 THREADED STUD Superseded
Location: 32 Prev | Next Part: 107711 *Qty: 1 Bullone $7.01
Location: 33 Prev | Next Part: 10519601 *Qty: 5 Rondella Superseded
Location: 34 Prev | Next Part: 16104111 *Qty: 5 Dado autobloccante Superseded
Location: 35 Prev | Next Part: 12429721 *Qty: 5 THREADED STUD $0.90
Location: 36 Prev | Next Part: 12601371 *Qty: 6 Rondella elastica Superseded
Location: 37 Prev | Next Part: 16104111 *Qty: 6 Dado Superseded
Location: 38 Prev | Next Part: 13517221 *Qty: 5 THREADED STUD Superseded
Location: 39 Prev | Next Part: 16044221 *Qty: 1 Vite fiss. coperchio e massa gruppo propulsore Call
Location: 39 Prev | Next Part: 16044121 *Qty: 2 Vite $0.90
Location: 40 Prev | Next Part: 13525770 *Qty: 3 Heli - coil $1.11
Location: 41 Prev | Next Part: 16100811 *Qty: 5 Dado Superseded
Location: 42 Prev | Next Part: 11194071 *Qty: 8 Rondella $0.90
Location: 43 Prev | Next Part: 13541121 *Qty: 30 THREADED STUD Superseded
Location: 44 Prev | Next Part: 11197771 *Qty: 30 Rondella Superseded
Location: 45 Prev | Next Part: 15896211 *Qty: 30 Dado Superseded
Location: 46 Prev | Next Part: 104218 *Qty: 1 Vite $1.51
Location: 47 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 48 Prev | Next Part: 10516670 *Qty: 1 Rondella $0.90
Location: 49 Prev | Next Part: 10269650 *Qty: 1 Tappo $2.05
Location: 50 Prev | Next Part: 104280 *Qty: 1 Tappo $10.09
Location: 51 Prev | Next Part: 10275001 *Qty: 1 Tappo Superseded
Location: 52 Prev | Next Part: 10263460 *Qty: 3 Guarnizione Superseded
Location: 53 Prev | Next Part: 103838 *Qty: 2 Grano $3.15
Location: 54 Prev | Next Part: 108226 *Qty: 1 Coperchio laterale differenziale
Con l''assieme n. 1 1 51 79
$168.80
Location: 55 Prev | Next Part: 103839 *Qty: 2 Anellino $9.76
Location: 56 Prev | Next Part: 103422 *Qty: 1 Idem spessore mm. 2, 40 $70.23
Location: 56 Prev | Next Part: 103426 *Qty: 1 Idem spessore mm. 3, 20 $149.66
Location: 56 Prev | Next Part: 103231 *Qty: 1 Distanziale per cuscinetti differenziale, spessore mm. 2, 862 (di eventuale montaggio) Superseded
Location: 56 Prev | Next Part: 103423 *Qty: 1 Idem spessore mm. 2, 60 Call
Location: 56 Prev | Next Part: 103425 *Qty: 1 Idem spessore mm. 3, 00 $70.23
Location: 56 Prev | Next Part: 109145 *Qty: 1 Idem spessore mm. 4, 3 $38.75
Location: 56 Prev | Next Part: 103424 *Qty: 1 Idem spessore mm. 2,80 $70.23
Location: 57 Prev | Next Part: 104300 *Qty: 2 Anello di tenuta
In alternativa.al n. 108157
Superseded
Location: 58 Prev | Next Part: 13543421 *Qty: 1 THREADED STUD Superseded
Location: 59 Prev | Next Part: 107589 *Qty: 2 Paratia verticale $22.89
Location: 60 Prev | Next Part: 100033 *Qty: 4 Ribattino $0.90
Location: 61 Prev | Next Part: 13539021 *Qty: 8 Prigioniero per paratia inferiore Superseded
Location: 62 Prev | Next Part: 15896411 *Qty: 8 Dado Superseded
Location: 63 Prev | Next Part: 11195471 *Qty: 8 Rondella elastica Superseded
Location: 64 Prev | Next Part: 12638101 *Qty: 8 Rondella Superseded
Location: 65 Prev | Next Part: 10275040 *Qty: 1 Tappo Superseded
Location: 66 Prev | Next Part: 112254 *Qty: 2 Heli - coil $5.94
Location: 67 Prev | Next Part: 116953 *Qty: 1 Ingranaggio conduttore pompa olio
Dalla vettura n. 35199
$379.39
Location: 67 Prev | Next Part: 113081 *Qty: 1 Ingranaggio conduttore pompa olio
Fino alla vettura n. 35197
$438.92
Location: 68 Prev | Next Part: 113082 *Qty: 1 Ingranaggio condotto pompa olio $324.53
Location: 69 Prev | Next Part: 113086 *Qty: 1 Coperchio pompa olio $118.23
Location: 70 Prev | Next Part: 11000921 *Qty: 4 THREADED STUD Call
Location: 71 Prev | Next Part: 12601171 *Qty: 4 Rondella Superseded
Location: 72 Prev | Next Part: 15896411 *Qty: 4 Dado Superseded
Location: 73 Prev | Next Part: 115538 *Qty: 1 Filtro pompa olio $5.93
Location: 74 Prev | Next Part: 101034 *Qty: 1 Anello di tenuta $1.78
Location: 75 Prev | Next Part: 113088 *Qty: 1 Sede $143.99
Location: 76 Prev | Next Part: 113962 *Qty: 1 Generatore d''impulsi
Fino alla vettura n. 35197
Superseded
Location: 76 Prev | Next Part: 116987 *Qty: 1 Generatore d''impulsi
Dalla vettura n. 35199
$281.01
Location: 77 Prev | Next Part: 10263460 *Qty: 1 Guarnizione Superseded
Location: 78 Prev | Next Part: 114460 *Qty: 1 Cappuccio $28.72
Location: 79 Prev | Next Part: 101032 *Qty: 1 Anello di tenuta $1.23

* Quantity shown indicates the number of pieces used in the diagram.
