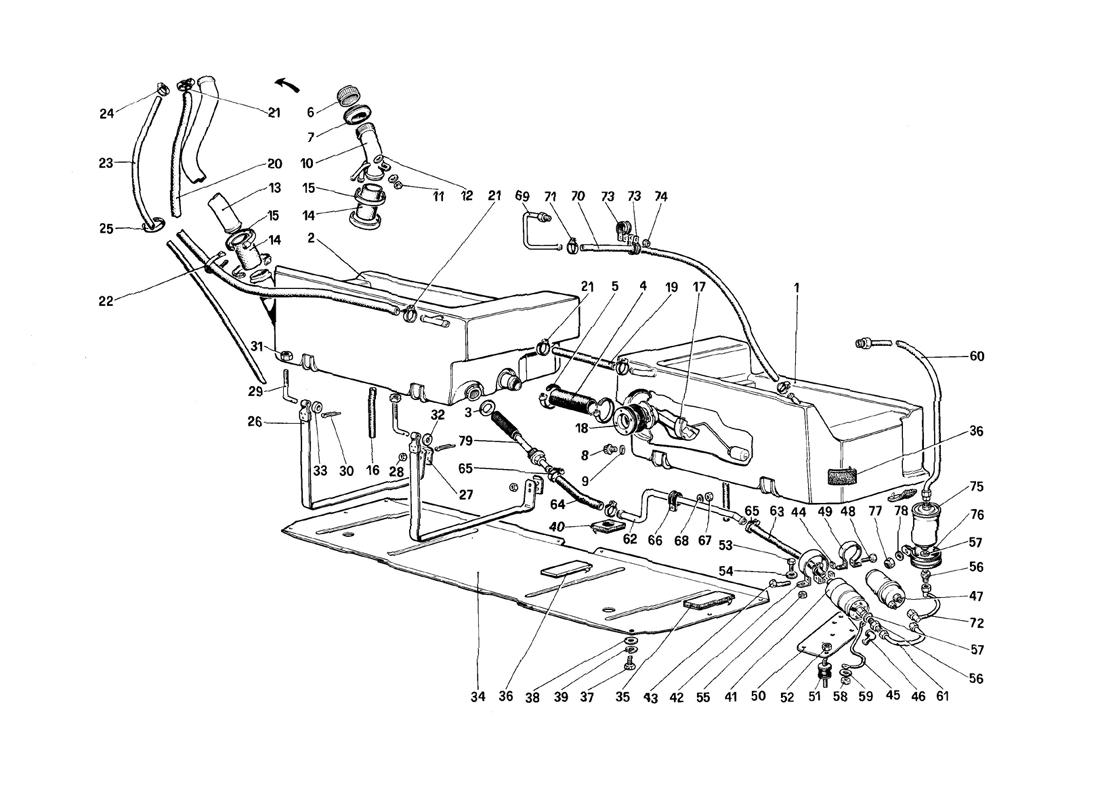

FUEL PUMP AND PIPES

Go to Split View

FUEL PUMP AND PIPES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 115663 *Qty: 1 Serbatoio carburante Dx. $1,716.75
Location: 2 Prev | Next Part: 115664 *Qty: 1 Serbatoio carburante Sx. Call
Location: 3 Prev | Next Part: 102645 *Qty: 1 Guarnizione filtro carburante $4.57
Location: 4 Prev | Next Part: 116270 *Qty: 1 Manicotto collegamento serbatoi $69.51
Location: 5 Prev | Next Part: 108785 *Qty: 2 Fascetta per manicotto $5.50
Location: 6 Prev | Next Part: 113401 *Qty: 1 Tappo per bocchettone Call
Location: 7 Prev | Next Part: 101465 *Qty: 1 Guarnizione per bocchettone Call
Location: 8 Prev | Next Part: 10300771 *Qty: 1 Tappo scarico carburante $17.00
Location: 9 Prev | Next Part: 10278650 *Qty: 1 Guarnizione tappo scarico $0.90
Location: 10 Prev | Next Part: 116406 *Qty: 1 Bocchettone di scarico serbatoi $641.83
Location: 11 Prev | Next Part: 12574221 *Qty: 1 Dado autobloccante Superseded
Location: 12 Prev | Next Part: 109684 *Qty: 2 Rondella Superseded
Location: 13 Prev | Next Part: 116405 *Qty: 1 Tubo collegamento bocchettone a serbatoio $155.07
Location: 14 Prev | Next Part: 114278 *Qty: 2 Manicotto $73.68
Location: 15 Prev | Next Part: 12174790 *Qty: 4 Fascetta $1.45
Location: 16 Prev | Next Part: 116587 *Qty: 2 Tubo scolo acqua Call
Location: 17 Prev | Next Part: 116045 *Qty: 1 Comando indicatore livello carburante Call
Location: 18 Prev | Next Part: 116012 *Qty: 1 Ghiera fissaggio comando $71.76
Location: 19 Prev | Next Part: 114916 *Qty: 1 Tubo collegamento sfiato serbatoi Superseded
Location: 20 Prev | Next Part: 116852 *Qty: 1 Tubo sfiato da serbatoio a bocchettone $75.17
Location: 21 Prev | Next Part: 100507 *Qty: 4 Fascetta Call
Location: 22 Prev | Next Part: 105550 *Qty: 1 Fascetta $1.42
Location: 23 Prev | Next Part: 116851 *Qty: 1 Tubo sfiato bocchettone $39.90
Location: 24 Prev | Next Part: 102721 *Qty: 1 Fascetta Call
Location: 25 Prev | Next Part: 40135402 *Qty: 5 Fascetta Superseded
Location: 26 Prev | Next Part: 115732 *Qty: 4 Nastro fiss. serbatoi Call
Location: 27 Prev | Next Part: 115734 *Qty: 4 Piastrina fiss. nastro $2.71
Location: 28 Prev | Next Part: 12575411 *Qty: 8 Dado autobloccante Superseded
Location: 29 Prev | Next Part: 12311271 *Qty: 4 Tirante per nastro Superseded
Location: 30 Prev | Next Part: 10796401 *Qty: 4 Copiglia Superseded
Location: 31 Prev | Next Part: 16104121 *Qty: 4 Dado autobloccante Superseded
Location: 32 Prev | Next Part: 10519601 *Qty: 2 Rondella Superseded
Location: 33 Prev | Next Part: 13605911 *Qty: 2 Distanziale $3.97
Location: 34 Prev | Next Part: 116565 *Qty: 1 Paratia protezione serbatoi $421.10
Location: 35 Prev | Next Part: 116566 *Qty: 4 Spessore esterno $10.65
Location: 36 Prev | Next Part: 115330 *Qty: 18 Spessore interno e sui serbatoi $10.81
Location: 37 Prev | Next Part: 10902121 *Qty: 13 Vite Superseded
Location: 38 Prev | Next Part: 12643701 *Qty: 13 Rondella tranciata Superseded
Location: 39 Prev | Next Part: 106850 *Qty: 13 Rondella elastica Superseded
Location: 40 Prev | Next Part: 116585 *Qty: 2 Guarnizione $6.33
Location: 41 Prev | Next Part: 113976 *Qty: 1 Pompa benzina Superseded
Location: 42 Prev | Next Part: 113673 *Qty: 1 Fascetta tenuta pompa benzina Superseded
Location: 43 Prev | Next Part: 10377311 *Qty: 1 Vite registro tensione fascetta $0.90
Location: 44 Prev | Next Part: 14089311 *Qty: 2 Dado quadro $0.90
Location: 45 Prev | Next Part: 115153 *Qty: 1 Cavetto massa $1.62
Location: 46 Prev | Next Part: 107003 *Qty: 2 Cappuccetto protezione rnorsetti $6.91
Location: 47 Prev | Next Part: 113978 *Qty: 1 Accumulatore $199.00
Location: 48 Prev | Next Part: 10376111 *Qty: 1 Vite registro tensione fascetta $0.90
Location: 49 Prev | Next Part: 113674 *Qty: 1 Fascetta tenuta accumulatore Call
Location: 50 Prev | Next Part: 115547 *Qty: 1 Supporto pompa benzina accumulatore $23.99
Location: 51 Prev | Next Part: 102947 *Qty: 3 Tassello elastico $18.79
Location: 52 Prev | Next Part: 12574221 *Qty: 3 Dado autobloccante Superseded
Location: 53 Prev | Next Part: 10902121 *Qty: 4 Vite fissaggio fascette Superseded
Location: 54 Prev | Next Part: 10519421 *Qty: 2 Rondella Superseded
Location: 55 Prev | Next Part: 12574221 *Qty: 4 Dado autojaloccante Superseded
Location: 56 Prev | Next Part: 109797 *Qty: 2 Raccordo $45.03
Location: 57 Prev | Next Part: 113910 *Qty: 2 Guarnizione Superseded
Location: 58 Prev | Next Part: 15896221 *Qty: 1 Dado fissaggio massa Superseded
Location: 59 Prev | Next Part: 10571570 *Qty: 1 Rondella elastica $0.90
Location: 60 Prev | Next Part: 115529 *Qty: 1 Tubo benzina dal filtro al dosatore $151.24
Location: 61 Prev | Next Part: 115532 *Qty: 1 Tubo benzina pompa ad accumulatore Call
Location: 62 Prev | Next Part: 116539 *Qty: 1 Tubo benzina dal filtro alla pompa $30.11
Location: 63 Prev | Next Part: 116777 *Qty: 1 Manicotto lato pompa $37.49
Location: 64 Prev | Next Part: 116776 *Qty: 1 Manicotto lato filtro $12.92
Location: 65 Prev | Next Part: 12179590 *Qty: 4 Fascetta Superseded
Location: 66 Prev | Next Part: 10441590 *Qty: 2 Fascetta $0.90
Location: 67 Prev | Next Part: 12574211 *Qty: 2 Dado autobloccante Superseded
Location: 68 Prev | Next Part: 10519401 *Qty: 2 Rondella Superseded
Location: 69 Prev | Next Part: 115543 *Qty: 1 Tubo riflusso benzina $88.97
Location: 70 Prev | Next Part: 116767 *Qty: 1 Tubo in gomma riflusso benzina $5.41
Location: 71 Prev | Next Part: 104879 *Qty: 2 Fascetta Superseded
Location: 72 Prev | Next Part: 115548 *Qty: 1 Tubo dall''accumulatore al filtro $67.94
Location: 73 Prev | Next Part: 10441190 *Qty: 4 Fascetta $0.90
Location: 74 Prev | Next Part: 12574211 *Qty: 2 Dado autobloccante Superseded
Location: 75 Prev | Next Part: 115738 *Qty: 1 Filtro carburante Superseded
Location: 75 Prev | Next Part: 178647 *Qty: 2 Fuel Filter
Use on Exhaustion of 115738
Call
Location: 76 Prev | Next Part: 115140 *Qty: 1 Staffa con guaina fissaggio filtro $13.13
Location: 77 Prev | Next Part: 16104121 *Qty: 1 Dado autobloccante Superseded
Location: 78 Prev | Next Part: 13550301 *Qty: 1 Rondella tranciata $21.25
Location: 79 Prev | Next Part: 116404 *Qty: 1 Filtro carburante Superseded

* Quantity shown indicates the number of pieces used in the diagram.
