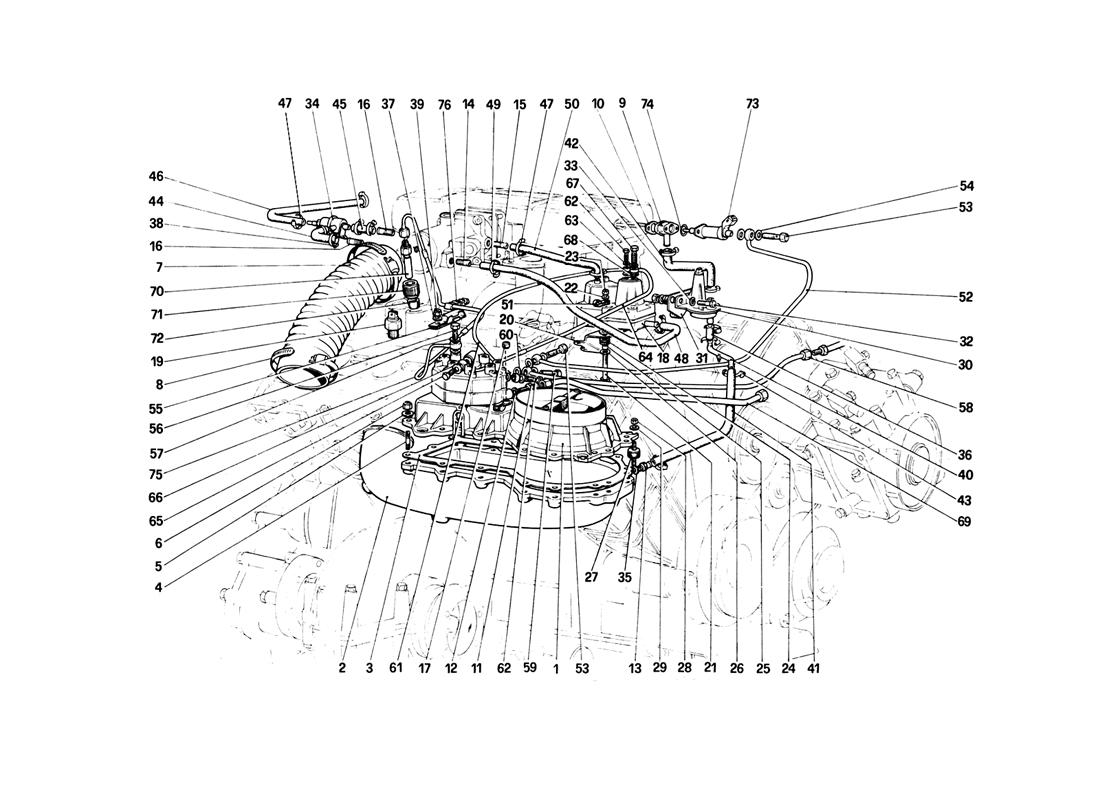

FUEL INJECTION SYSTEM - FUEL DISTRIBUTORS, LINES

Go to Split View

FUEL INJECTION SYSTEM - FUEL DISTRIBUTORS, LINES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 115329 *Qty: 1 Dosatore Superseded
Location: 2 Prev | Next Part: 115219 *Qty: 1 Supporto dosatore
Col complessivo n. 118070
Call
Location: 2 Prev | Next Part: 118070 *Qty: 1 Supporto dosatore completo $424.91
Location: 3 Prev | Next Part: 115011 *Qty: 1 Guarnizione Superseded
Location: 4 Prev | Next Part: 13541121 *Qty: 15 THREADED STUD Superseded
Location: 5 Prev | Next Part: 12601271 *Qty: 15 Rondella Superseded
Location: 6 Prev | Next Part: 12574221 *Qty: 15 Dado Superseded
Location: 7 Prev | Next Part: 115211 *Qty: 1 Tubo dal supporto al corpo farfalla Call
Location: 8 Prev | Next Part: 12174990 *Qty: 2 Fascetta $1.17
Location: 9 Prev | Next Part: 115004 *Qty: 1 Raccordo Call
Location: 10 Prev | Next Part: 115005 *Qty: 1 Guarnizione Superseded
Location: 11 Prev | Next Part: 115498 *Qty: 1 Raccordo con filtro $54.30
Location: 12 Prev | Next Part: 11270160 *Qty: 1 Rondella $2.08
Location: 13 Prev | Next Part: 116860 *Qty: 1 Raccordo filettato $26.39
Location: 14 Prev | Next Part: 113637 *Qty: 1 Raccordo filettato $3.15
Location: 15 Prev | Next Part: 113652 *Qty: 1 Raccordo filettato Call
Location: 16 Prev | Next Part: 112030 *Qty: 2 Raccordo per by - pass $9.26
Location: 17 Prev | Next Part: 115650 *Qty: 1 Cappuccio inviolabilita Superseded
Location: 18 Prev | Next Part: 113973 *Qty: 1 Regolatore fase riscaldamerito Call
Location: 19 Prev | Next Part: 113980 *Qty: 1 Interruttore termico a tempo $746.03
Location: 20 Prev | Next Part: 115731 *Qty: 1 Supporto $18.45
Location: 21 Prev | Next Part: 10903821 *Qty: 2 Vite $0.90
Location: 22 Prev | Next Part: 12604271 *Qty: 2 Rondella Call
Location: 23 Prev | Next Part: 12574221 *Qty: 4 Dado Superseded
Location: 24 Prev | Next Part: 103549 *Qty: 4 Tassello in gomma $0.42
Location: 25 Prev | Next Part: 103550 *Qty: 4 Distanziale $2.55
Location: 26 Prev | Next Part: 12643721 *Qty: 6 Rondella $1.19
Location: 27 Prev | Next Part: 102947 *Qty: 3 Supporto antivibrante $18.79
Location: 28 Prev | Next Part: 12575411 *Qty: 3 Dado Superseded
Location: 29 Prev | Next Part: 12640601 *Qty: 1 Rondella Superseded
Location: 29 Prev | Next Part: 12601271 *Qty: 2 Rondella Superseded
Location: 30 Prev | Next Part: 115223 *Qty: 1 Valvola aria supplementare Call
Location: 31 Prev | Next Part: 115224 *Qty: 1 Supporto $10.98
Location: 32 Prev | Next Part: 10902621 *Qty: 2 Vite Superseded
Location: 33 Prev | Next Part: 12601271 *Qty: 2 Rondella Superseded
Location: 34 Prev | Next Part: 115741 *Qty: 1 Valvola per by - pass $282.15
Location: 35 Prev | Next Part: 10280060 *Qty: 1 Guarnizione $0.90
Location: 36 Prev | Next Part: 115407 *Qty: 2 Tubo $7.01
Location: 37 Prev | Next Part: 11197771 *Qty: 1 Rondella Superseded
Location: 38 Prev | Next Part: 100507 *Qty: 12 Fascetta Call
Location: 39 Prev | Next Part: 12575411 *Qty: 1 Dado Superseded
Location: 40 Prev | Next Part: 116307 *Qty: 1 Tubo $75.19
Location: 41 Prev | Next Part: 116306 *Qty: 1 Tubo Call
Location: 42 Prev | Next Part: 115226 *Qty: 1 Tubo $35.78
Location: 43 Prev | Next Part: 100507 *Qty: 6 Fascetta Call
Location: 44 Prev | Next Part: 115230 *Qty: 1 Tubo $21.49
Location: 45 Prev | Next Part: 115227 *Qty: 1 Tubo $30.29
Location: 46 Prev | Next Part: 115412 *Qty: 1 Tubo $4.84
Location: 47 Prev | Next Part: 102721 *Qty: 2 Fascetta Call
Location: 48 Prev | Next Part: 115228 *Qty: 1 Tubo $4.64
Location: 49 Prev | Next Part: 102604 *Qty: 2 Fascetta Superseded
Location: 50 Prev | Next Part: 115676 *Qty: 1 Tubo $10.92
Location: 51 Prev | Next Part: 10418300 *Qty: 1 Fascetta sostegno tubo $1.17
Location: 52 Prev | Next Part: 115735 *Qty: 1 Tubo dosatore - iniettore avviamento Call
Location: 53 Prev | Next Part: 113664 *Qty: 2 Bocchettone $17.52
Location: 54 Prev | Next Part: 14330260 *Qty: 4 Rondella in rame $0.90
Location: 55 Prev | Next Part: 115417 *Qty: 1 Staffa reggi - morsetto Call
Location: 56 Prev | Next Part: 113670 *Qty: 8 Bocchettone $80.32
Location: 57 Prev | Next Part: 10260160 *Qty: 16 Guarnizione $1.15
Location: 58 Prev | Next Part: 115511 *Qty: 1 Tubo riflusso $190.05
Location: 59 Prev | Next Part: 111644 *Qty: 1 Bocchettone Call
Location: 60 Prev | Next Part: 113910 *Qty: 2 Guarnizione Superseded
Location: 61 Prev | Next Part: 115505 *Qty: 1 Tubo riflusso dal regolatore $182.11
Location: 62 Prev | Next Part: 113664 *Qty: 2 Bocchettone $17.52
Location: 63 Prev | Next Part: 14330260 *Qty: 4 Guarnizione $0.90
Location: 64 Prev | Next Part: 115507 *Qty: 1 Tubo mandata dal regolatore $225.90
Location: 65 Prev | Next Part: 113664 *Qty: 1 Bocchettone $17.52
Location: 66 Prev | Next Part: 14330260 *Qty: 2 Guarnizione $0.90
Location: 67 Prev | Next Part: 113670 *Qty: 1 Bocchettone $80.32
Location: 68 Prev | Next Part: 10260160 *Qty: 2 Guarnizione $1.15
Location: 69 Prev | Next Part: 115526 *Qty: 1 Tubo arrive carburante $173.25
Location: 70 Prev | Next Part: 113975 *Qty: 8 Iniettore $86.26
Location: 71 Prev | Next Part: 114660 *Qty: 8 Bussola $80.03
Location: 72 Prev | Next Part: 114661 *Qty: 8 Gommino $16.87
Location: 73 Prev | Next Part: 115739 *Qty: 1 Iniettore avviamento $362.74
Location: 74 Prev | Next Part: 103039 *Qty: 1 Anello tenuta $1.18
Location: 75 Prev | Next Part: 115320 *Qty: 1 Tubo dal dosatore al cilindro n. 1 Call
Location: 75 Prev | Next Part: 115321 *Qty: 1 Tubo dal dosatore al cilindro n. 2 Call
Location: 75 Prev | Next Part: 115322 *Qty: 1 Tubo dal dosatore al cilindro n. 3 Call
Location: 75 Prev | Next Part: 115323 *Qty: 1 Tubo dal dosatore al cilindro n. 4 Call
Location: 75 Prev | Next Part: 115324 *Qty: 1 Tubo dal dosatore al cilindro n. 5 Call
Location: 75 Prev | Next Part: 115325 *Qty: 1 Tubo dal dosatore al cilindro n. 6 Call
Location: 75 Prev | Next Part: 115326 *Qty: 1 Tubo dal dosatore al cilindro n. 7 Call
Location: 75 Prev | Next Part: 115327 *Qty: 1 Tubo dal dosatore al cilindro n. 8 Call
Location: 76 Prev | Next Part: 117279 *Qty: 2 Morsetto sostegno Superseded
Location: 76 Prev | Next Part: 113896 *Qty: 1 Morsetto sostegno (3 tubi) $5.12
Location: 76 Prev | Next Part: 115595 *Qty: 1 Morsetto sostegno (4 tubi) Call
Location: 76 Prev | Next Part: 115418 *Qty: 3 Morsetto sostegno (4 tubi) Call

* Quantity shown indicates the number of pieces used in the diagram.
