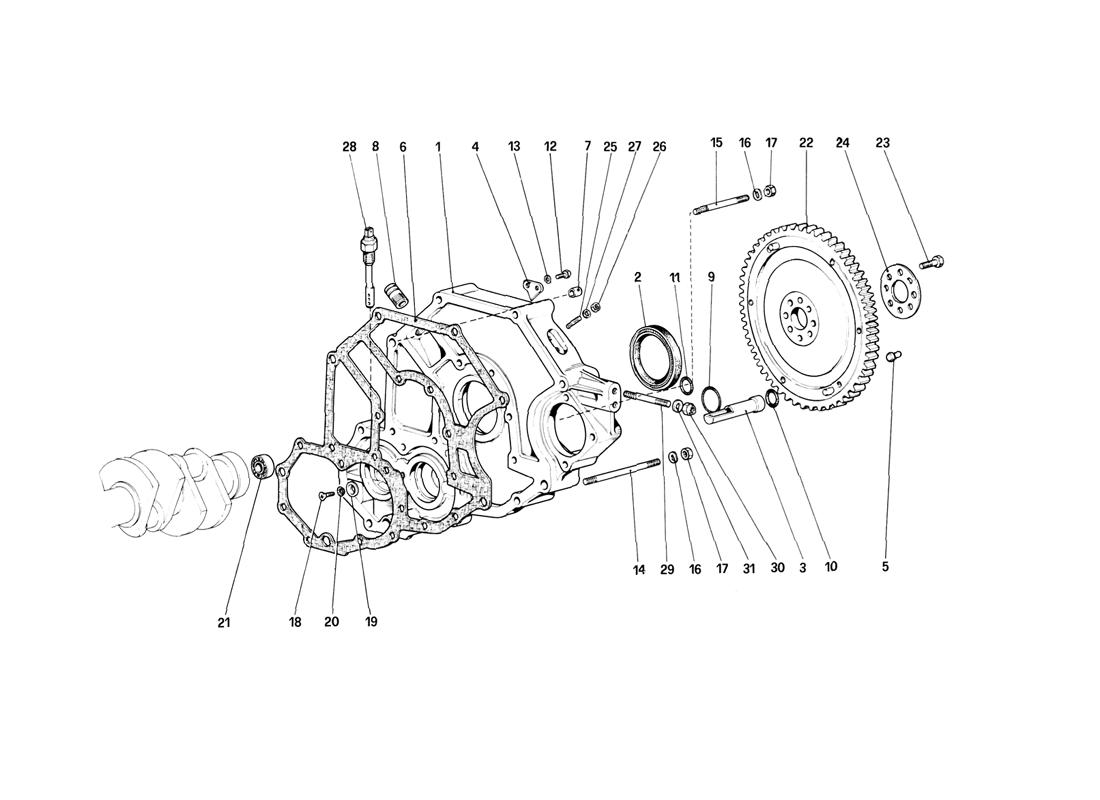

FLYWHEEL AND CLUTCH HOUSING SPACER

Go to Split View

FLYWHEEL AND CLUTCH HOUSING SPACER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 112392 *Qty: 1 Corpo intermedio
Col complessivo n. 118073
Call
Location: 1 Prev | Next Part: 118073 *Qty: 1 Corpo intermedio completo Superseded
Location: 2 Prev | Next Part: 106244 *Qty: 1 Anello di tenuta
In alternativa n. 40000230
Call
Location: 3 Prev | Next Part: 104035 *Qty: 1 Tubo passaggio olio $43.24
Location: 4 Prev | Next Part: 114603 *Qty: 1 Piastrina riferimento fasatura $14.11
Location: 5 Prev | Next Part: 101535 *Qty: 3 Grano $29.67
Location: 6 Prev | Next Part: 104202 *Qty: 1 Guarnizione Superseded
Location: 7 Prev | Next Part: 102692 *Qty: 1 Grano $6.45
Location: 8 Prev | Next Part: 102705 *Qty: 1 Raccordo $32.94
Location: 9 Prev | Next Part: 114947 *Qty: 1 Anello di tenuta $2.81
Location: 10 Prev | Next Part: 103775 *Qty: 1 Anello di tenuta
.
$2.11
Location: 11 Prev | Next Part: 104214 *Qty: 1 Anello di tenuta $3.04
Location: 12 Prev | Next Part: 10977621 *Qty: 2 Vite Superseded
Location: 13 Prev | Next Part: 11195473 *Qty: 2 Rondella elastica Superseded
Location: 14 Prev | Next Part: 104217 *Qty: 1 Prigioniero lungo Call
Location: 15 Prev | Next Part: 13952421 *Qty: 1 Prigioniero corto $1.18
Location: 16 Prev | Next Part: 11194071 *Qty: 2 Rondella $0.90
Location: 17 Prev | Next Part: 16100811 *Qty: 2 Dado Superseded
Location: 18 Prev | Next Part: 111213 *Qty: 1 Vite $0.90
Location: 19 Prev | Next Part: 108039 *Qty: 1 Rondella $4.08
Location: 20 Prev | Next Part: 108041 *Qty: 1 Rondella $0.90
Location: 21 Prev | Next Part: 103877 *Qty: 1 Cuscinetto $33.34
Location: 22 Prev | Next Part: 115154 *Qty: 1 Volano motore $1,284.08
Location: 23 Prev | Next Part: 103875 *Qty: 8 Bullone Superseded
Location: 24 Prev | Next Part: 103876 *Qty: 1 Rondella $12.53
Location: 25 Prev | Next Part: 13539021 *Qty: 6 Prigioniero fissaggio sensori Superseded
Location: 26 Prev | Next Part: 15896411 *Qty: 6 Dado Superseded
Location: 27 Prev | Next Part: 11195471 *Qty: 6 Rondella Superseded
Location: 28 Prev | Next Part: 116053 *Qty: 1 Sensore livello olio cambio $37.56
Location: 29 Prev | Next Part: 13543321 *Qty: 2 THREADED STUD Superseded
Location: 30 Prev | Next Part: 16104111 *Qty: 2 Dado autobloccante Superseded
Location: 31 Prev | Next Part: 12601371 *Qty: 2 Rondella Superseded

* Quantity shown indicates the number of pieces used in the diagram.
