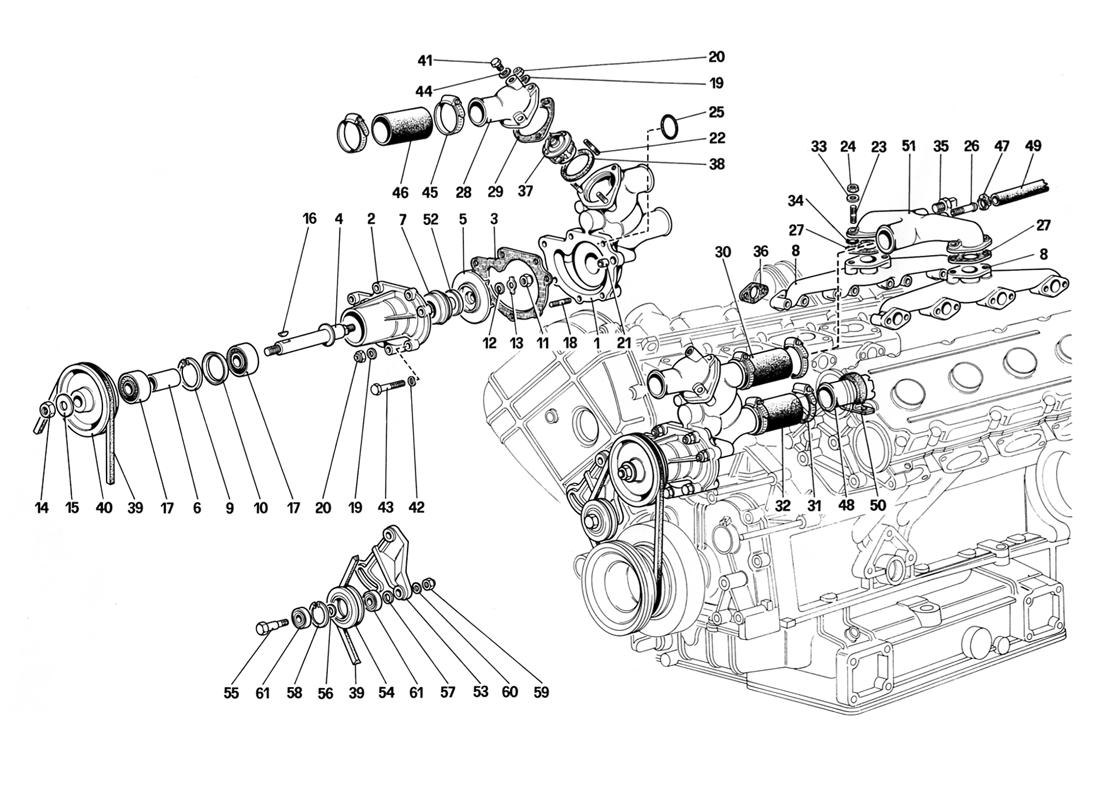

WATER PUMP AND PIPING

Go to Split View

WATER PUMP AND PIPING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 121255 *Qty: 1 Water pump complete (Front) $399.00
Location: 1 Prev | Next Part: 115471 *Qty: 1 Water pump body, complete Call
Location: 1 Prev | Next Part: 121290 *Qty: 1 Water pump complete Call
Location: 1 Prev | Next Part: 115470 *Qty: 1 Water pump body
With assembly no. 115471
Call
Location: 2 Prev | Next Part: 121252 *Qty: 1 Pump cover
With assembly no. 121255
Superseded
Location: 3 Prev | Next Part: 103952 *Qty: 1 Gasket
Not for C8
Superseded
Location: 3 Prev | Next Part: 135121 *Qty: 1 Gasket
For C8
$6.22
Location: 4 Prev | Next Part: 121253 *Qty: 1 Spindle for pulley Call
Location: 5 Prev | Next Part: 121254 *Qty: 1 Impeller $167.55
Location: 6 Prev | Next Part: 116157 *Qty: 1 Spacer $90.50
Location: 7 Prev | Next Part: 120948 *Qty: 1 Sealing ring Superseded
Location: 8 Prev | Next Part: 116967 *Qty: 2 Manifold of output waterto the heads Call
Location: 9 Prev | Next Part: 11060076 *Qty: 1 Seeger ring $0.90
Location: 10 Prev | Next Part: 116158 *Qty: 1 Washer $6.80
Location: 11 Prev | Next Part: 100436 *Qty: 1 Cap nut $12.90
Location: 12 Prev | Next Part: 10730301 *Qty: 1 Washer Superseded
Location: 13 Prev | Next Part: 100434 *Qty: 1 Plate $9.49
Location: 14 Prev | Next Part: 16101521 *Qty: 1 Nut $0.90
Location: 15 Prev | Next Part: 11198671 *Qty: 1 Conic washer Superseded
Location: 16 Prev | Next Part: 10205820 *Qty: 1 Tongue $1.60
Location: 17 Prev | Next Part: 116159 *Qty: 2 Bearing Call
Location: 18 Prev | Next Part: 11500721 *Qty: 3 Stud $1.63
Location: 19 Prev | Next Part: 12601271 *Qty: 6 Corrugated washer Superseded
Location: 20 Prev | Next Part: 12574211 *Qty: 6 Nut Superseded
Location: 21 Prev | Next Part: 102704 *Qty: 2 Dowel $2.18
Location: 22 Prev | Next Part: 11500421 *Qty: 3 Stud Superseded
Location: 23 Prev | Next Part: 13516821 *Qty: 4 Stud $1.10
Location: 24 Prev | Next Part: 16100811 *Qty: 4 Nut Superseded
Location: 25 Prev | Next Part: 105196 *Qty: 1 Sealing ring $3.76
Location: 26 Prev | Next Part: 106241 *Qty: 1 Union $40.00
Location: 27 Prev | Next Part: 111481 *Qty: 1 Gasket
Not for C8
Superseded
Location: 27 Prev | Next Part: 132981 *Qty: 1 Gasket
For C8
$4.66
Location: 28 Prev | Next Part: 105165 *Qty: 1 Water outlet union $171.36
Location: 29 Prev | Next Part: 105189 *Qty: 1 Gasket $4.66
Location: 30 Prev | Next Part: 121258 *Qty: 1 Sleeve $25.15
Location: 31 Prev | Next Part: 12177090 *Qty: 2 Clamp Superseded
Location: 32 Prev | Next Part: 122817 *Qty: 1 Sleeve
For Cabriolet use no. 122231
$28.47
Location: 33 Prev | Next Part: 11198071 *Qty: 4 Washer Superseded
Location: 34 Prev | Next Part: 103039 *Qty: 4 Sealing ring $1.16
Location: 35 Prev | Next Part: 104628 *Qty: 1 Thermistor $76.14
Location: 36 Prev | Next Part: 111480 *Qty: 8 Gasket Superseded
Location: 37 Prev | Next Part: 128991 *Qty: 1 Thermostat $191.66
Location: 38 Prev | Next Part: 132980 *Qty: 1 Gasket
For C8
$1.97
Location: 38 Prev | Next Part: 105192 *Qty: 1 Gasket
Not for C8
$20.76
Location: 39 Prev | Next Part: 121655 *Qty: 1 Control belt for water pump $34.34
Location: 40 Prev | Next Part: 121654 *Qty: 1 Pulley $138.00
Location: 41 Prev | Next Part: 16042940 *Qty: 1 Screw $1.55
Location: 42 Prev | Next Part: 12601371 *Qty: 4 Washer Superseded
Location: 43 Prev | Next Part: 16044421 *Qty: 4 Fixing screw for pump Call
Location: 44 Prev | Next Part: 10260060 *Qty: 1 Gasket $0.95
Location: 45 Prev | Next Part: 12177090 *Qty: 2 Clamp Superseded
Location: 46 Prev | Next Part: 105190 *Qty: 1 Sleeve $21.76
Location: 47 Prev | Next Part: 12179490 *Qty: 2 Clamp Superseded
Location: 48 Prev | Next Part: 122857 *Qty: 1 Tube $92.82
Location: 49 Prev | Next Part: 122219 *Qty: 1 Breather pipe $25.94
Location: 50 Prev | Next Part: 61712600 *Qty: 1 Clamp for pipe $2.15
Location: 51 Prev | Next Part: 116968 *Qty: 1 Joint piping to manifolds of output water
Not for C8
Superseded
Location: 51 Prev | Next Part: 134863 *Qty: 1 Joint piping to manifolds of output water
For C8
Call
Location: 52 Prev | Next Part: 121553 *Qty: 1 Backplate for ring Superseded
Location: 53 Prev | Next Part: 121658 *Qty: 1 Support $217.36
Location: 54 Prev | Next Part: 121659 *Qty: 1 Pulley $89.00
Location: 55 Prev | Next Part: 105048 *Qty: 1 Pin $23.55
Location: 56 Prev | Next Part: 107841 *Qty: 1 Spacer Call
Location: 57 Prev | Next Part: 107842 *Qty: 1 Spacer $15.61
Location: 58 Prev | Next Part: 11059076 *Qty: 1 Seeger Superseded
Location: 59 Prev | Next Part: 16105121 *Qty: 1 Nut Superseded
Location: 60 Prev | Next Part: 103025 *Qty: 1 Washer Call
Location: 61 Prev | Next Part: 105038 *Qty: 2 Bearing $12.83

* Quantity shown indicates the number of pieces used in the diagram.
