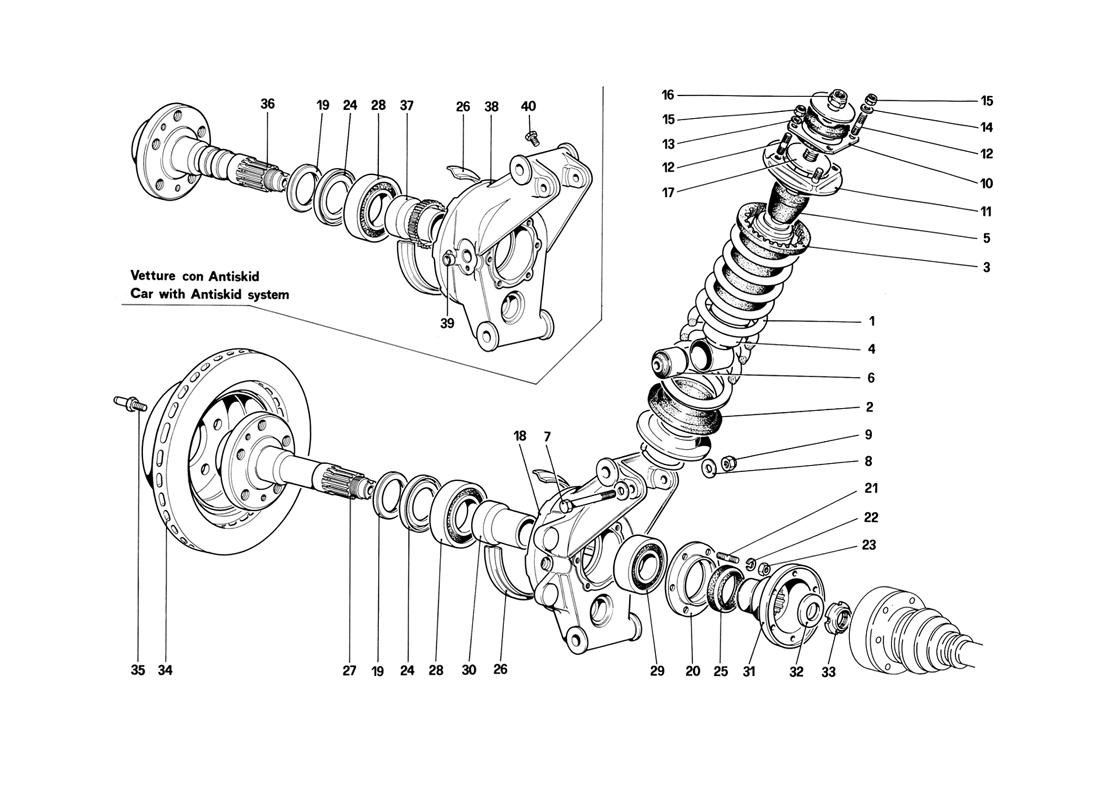

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 123837 *Qty: 1 Suspension spring
Not for Cabriolet - US and C7
$374.48
Location: 1 Prev | Next Part: 121664 *Qty: 1 Suspension spring
For Cabriolet - US and C7
$258.08
Location: 1 Prev | Next Part: 118125 *Qty: 1 Suspension spring
For US and C7
$263.76
Location: 1 Prev | Next Part: 116410 *Qty: 1 Suspension spring
Not for US and C7
$357.03
Location: 2 Prev | Next Part: 113581 *Qty: 2 Lower spacer $12.86
Location: 3 Prev | Next Part: 113582 *Qty: 2 Upper spacer $114.97
Location: 4 Prev | Next Part: 114335 *Qty: 2 Shock absorber
In alternative no. 126623 - For Cabriolet use no. 122028
Call
Location: 5 Prev | Next Part: 116358 *Qty: 2 Pad $58.94
Location: 6 Prev | Next Part: 100809 *Qty: 2 Estendblock $19.46
Location: 7 Prev | Next Part: 112441 *Qty: 2 Bolt $110.02
Location: 8 Prev | Next Part: 106616 *Qty: 4 Washer $1.72
Location: 9 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 10 Prev | Next Part: 114812 *Qty: 2 Hyperblock $136.09
Location: 11 Prev | Next Part: 114809 *Qty: 2 Cap, spring retainer Superseded
Location: 12 Prev | Next Part: 13543521 *Qty: 8 Stud Superseded
Location: 13 Prev | Next Part: 12646721 *Qty: 6 Washer Superseded
Location: 14 Prev | Next Part: 113113 *Qty: 2 Washer $1.71
Location: 15 Prev | Next Part: 16104121 *Qty: 8 Nut Superseded
Location: 16 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 17 Prev | Next Part: 114815 *Qty: 4 Washer $1.87
Location: 18 Prev | Next Part: 129314 *Qty: 2 Hub holder
After exhaustion use no. 136271 (R.H.) - 136272 (L.H.)
$859.16
Location: 19 Prev | Next Part: 124965 *Qty: 2 Spacer $52.53
Location: 20 Prev | Next Part: 125976 *Qty: 2 Flange for bearing $64.52
Location: 21 Prev | Next Part: 13543321 *Qty: 12 Stud Superseded
Location: 22 Prev | Next Part: 127496 *Qty: 12 (A) Washer $0.90
Location: 22 Prev | Next Part: 106852 *Qty: 12 (B) Washer Superseded
Location: 23 Prev | Next Part: 16100811 *Qty: 12 Nut Superseded
Location: 24 Prev | Next Part: 124966 *Qty: 2 Centrifugal ring $36.46
Location: 25 Prev | Next Part: 115968 *Qty: 1 Sealing ring $127.13
Location: 26 Prev | Next Part: 103117 *Qty: 2 Splash guard $16.45
Location: 27 Prev | Next Part: 124964 *Qty: 2 Shaft with rear hub $2,246.25
Location: 28 Prev | Next Part: 125935 *Qty: 2 Outer bearing Superseded
Location: 29 Prev | Next Part: 125934 *Qty: 2 Inner bearing Superseded
Location: 30 Prev | Next Part: 120876 *Qty: 2 Spacer $114.55
Location: 31 Prev | Next Part: 119372 *Qty: 2 Flange, connection axle shafts $203.10
Location: 32 Prev | Next Part: 105511 *Qty: 2 Washer $14.28
Location: 33 Prev | Next Part: 102289 *Qty: 2 Ring nut $40.00
Location: 34 Prev | Next Part: 117186 *Qty: 2 Brake disc $481.52
Location: 35 Prev | Next Part: 104370 *Qty: 4 Centering screw $0.90
Location: 36 Prev | Next Part: 132408 *Qty: 2 Shaft with rear hub Superseded
Location: 37 Prev | Next Part: 132409 *Qty: 2 Spacer with toothed wheel Superseded
Location: 38 Prev | Next Part: 130309 *Qty: 1 Hub holder, right $1,753.42
Location: 38 Prev | Next Part: 130310 *Qty: 1 Hub holder, left $1,762.49
Location: 39 Prev | Next Part: 14328601 *Qty: 2 (B) Plug $1.12
Location: 40 Prev | Next Part: 10979421 *Qty: 2 (B) Screw $0.90

* Quantity shown indicates the number of pieces used in the diagram.
