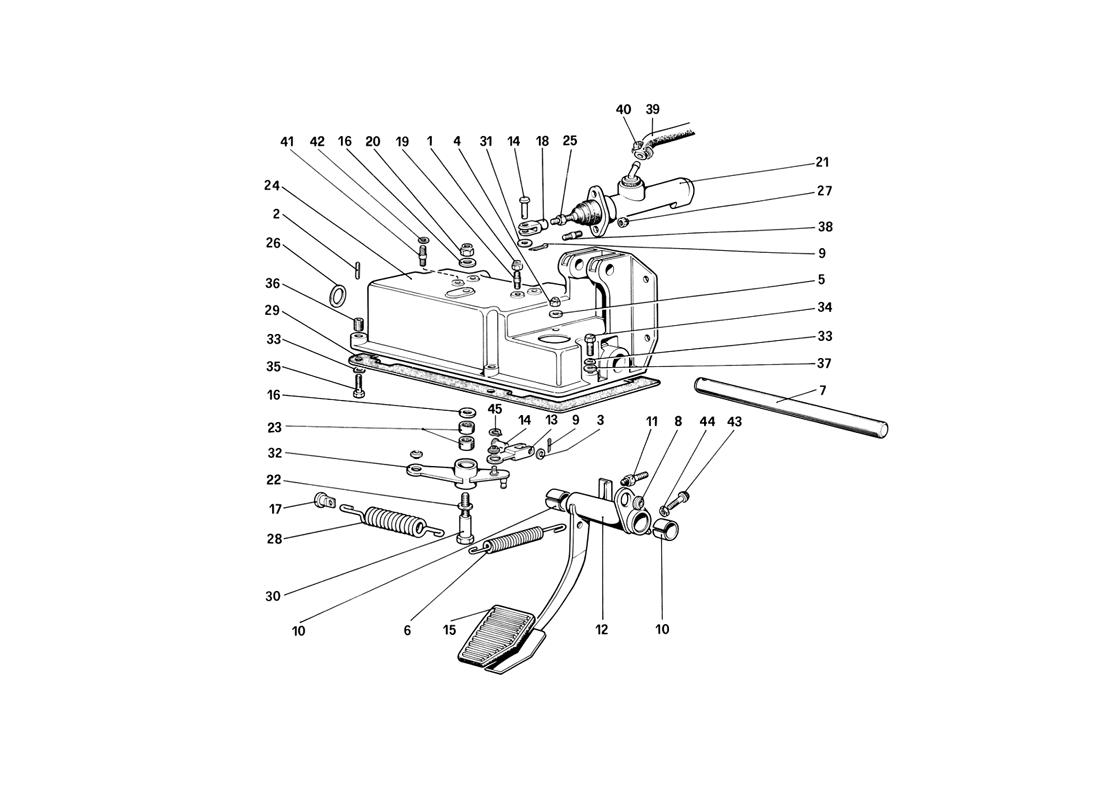

PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITHOUT A

Go to Split View

PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITHOUT A

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 12574121 *Qty: 4 Nut Superseded
Location: 2 Prev | Next Part: 13942870 *Qty: 1 Plug $0.90
Location: 3 Prev | Next Part: 10519601 *Qty: 2 Washer Superseded
Location: 4 Prev | Next Part: 16100821 *Qty: 1 Nut $3.46
Location: 5 Prev | Next Part: 12601371 *Qty: 1 Washer Superseded
Location: 6 Prev | Next Part: 104895 *Qty: 1 Return spring $9.14
Location: 7 Prev | Next Part: 113831 *Qty: 1 Pin $159.80
Location: 8 Prev | Next Part: 109407 *Qty: 3 Ball joint $27.56
Location: 9 Prev | Next Part: 10734201 *Qty: 3 Split pin Call
Location: 10 Prev | Next Part: 103163 *Qty: 2 Bush $3.80
Location: 11 Prev | Next Part: 114825 *Qty: 1 Stop push rod $52.83
Location: 12 Prev | Next Part: 121244 *Qty: 1 Clutch pedal $261.49
Location: 13 Prev | Next Part: 121209 *Qty: 1 Fork Superseded
Location: 14 Prev | Next Part: 10050810 *Qty: 2 Pin Superseded
Location: 15 Prev | Next Part: 106949 *Qty: 1 Pedal cover $11.11
Location: 16 Prev | Next Part: 113500 *Qty: 2 Washer $14.11
Location: 17 Prev | Next Part: 114828 *Qty: 1 Pin $54.66
Location: 18 Prev | Next Part: 10007871 *Qty: 1 Fork $19.79
Location: 19 Prev | Next Part: 11000921 *Qty: 3 Stud Call
Location: 20 Prev | Next Part: 16105121 *Qty: 1 Selflocking nut Superseded
Location: 21 Prev | Next Part: 108419 *Qty: 1 Master cylinder Superseded
Location: 22 Prev | Next Part: 112126 *Qty: 1 Shim $0.90
Location: 23 Prev | Next Part: 115430 *Qty: 2 Roller cage $17.31
Location: 24 Prev | Next Part: 119379 *Qty: 1 Support $1,978.68
Location: 25 Prev | Next Part: 16102311 *Qty: 1 Lock nut Superseded
Location: 26 Prev | Next Part: 106083 *Qty: 1 Shim, 1,0 mm.
Possible fitting
$0.90
Location: 26 Prev | Next Part: 113836 *Qty: 1 Shim, 1 ,4 mm.
Possible fitting
$1.14
Location: 26 Prev | Next Part: 113833 *Qty: 1 Shim, 1,1 mm.
Possible fitting
$3.22
Location: 26 Prev | Next Part: 113834 *Qty: 1 Shim, 1,2mm.
Possible fitting
$3.22
Location: 26 Prev | Next Part: 113835 *Qty: 1 Shim, 1 ,3 mm.
Possible fitting
$0.90
Location: 27 Prev | Next Part: 16104111 *Qty: 2 Nut Superseded
Location: 28 Prev | Next Part: 114826 *Qty: 1 Helper spring $62.13
Location: 29 Prev | Next Part: 119331 *Qty: 1 Gasket $11.04
Location: 30 Prev | Next Part: 114830 *Qty: 1 Pin for return lever $15.27
Location: 31 Prev | Next Part: 12642701 *Qty: 1 Washer $0.90
Location: 32 Prev | Next Part: 121243 *Qty: 1 Lever $185.18
Location: 33 Prev | Next Part: 106852 *Qty: 5 Washer Superseded
Location: 34 Prev | Next Part: 16043821 *Qty: 3 Screw Superseded
Location: 35 Prev | Next Part: 16043421 *Qty: 2 Screw Superseded
Location: 36 Prev | Next Part: 13525870 *Qty: 2 Heli-coil $3.43
Location: 37 Prev | Next Part: 10519620 *Qty: 3 Washer Superseded
Location: 38 Prev | Next Part: 13543321 *Qty: 2 Stud Superseded
Location: 39 Prev | Next Part: 123265 *Qty: 1 Feed pipe for clutch master cylinder $5.73
Location: 40 Prev | Next Part: 12179190 *Qty: 2 Clamp Superseded
Location: 41 Prev | Next Part: 12637801 *Qty: 1 Stud Superseded
Location: 42 Prev | Next Part: 121209 *Qty: 4 Washer Superseded
Location: 43 Prev | Next Part: 123961 *Qty: 1 Stop push rod $4.02
Location: 44 Prev | Next Part: 16102311 *Qty: 1 Nut Superseded
Location: 45 Prev | Next Part: 11065676 *Qty: 1 Seeger ring $0.90

* Quantity shown indicates the number of pieces used in the diagram.
