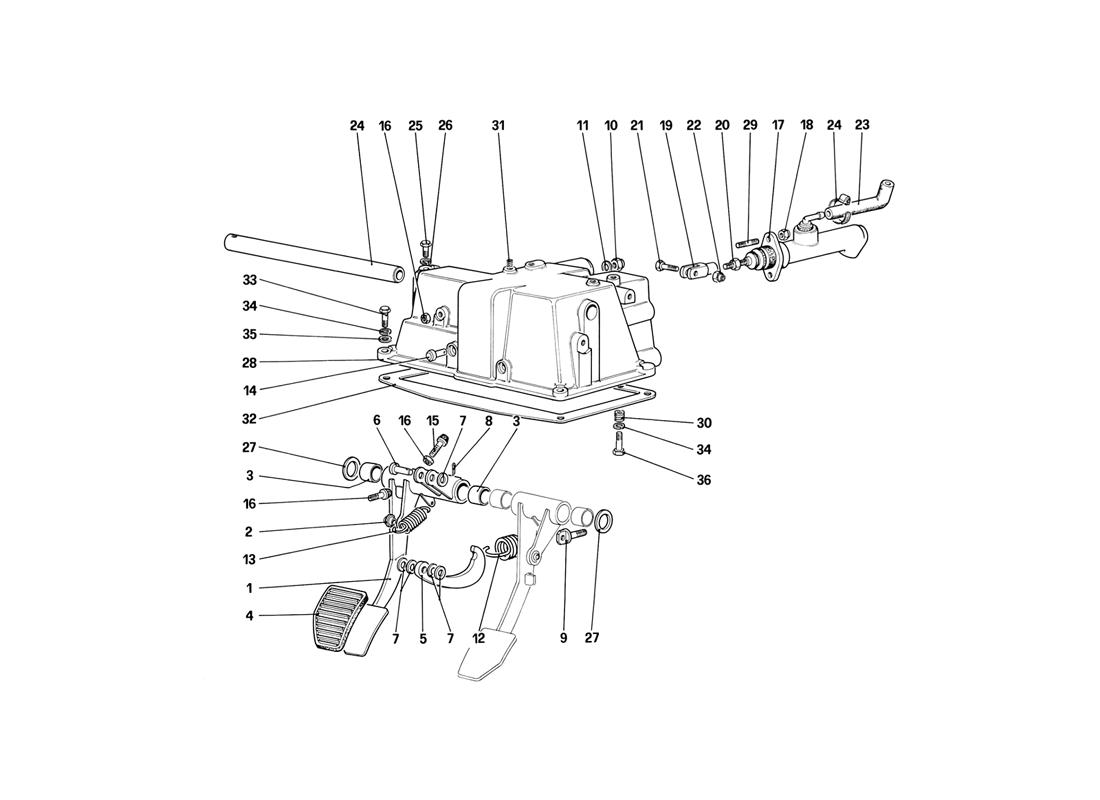

PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITH ANTI

Go to Split View

PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITH ANTI

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 131282 *Qty: 1 Clutch pedal $415.42
Location: 2 Prev | Next Part: 109407 *Qty: 1 Ball joint $27.57
Location: 3 Prev | Next Part: 101363 *Qty: 2 Bush $27.39
Location: 4 Prev | Next Part: 106949 *Qty: 1 Pedal cover $11.10
Location: 5 Prev | Next Part: 129628 *Qty: 1 Return lever $63.85
Location: 6 Prev | Next Part: 117092 *Qty: 1 Pin $16.98
Location: 7 Prev | Next Part: 102901 *Qty: 5 Washer $0.90
Location: 8 Prev | Next Part: 10796401 *Qty: 1 Spit pin Superseded
Location: 9 Prev | Next Part: 129629 *Qty: 1 Pin for spring $40.52
Location: 10 Prev | Next Part: 16104121 *Qty: 1 Selflocking nut Superseded
Location: 11 Prev | Next Part: 12601371 *Qty: 1 Washer Superseded
Location: 12 Prev | Next Part: 117091 *Qty: 1 Spring $39.40
Location: 13 Prev | Next Part: 101305 *Qty: 1 Return spring $5.99
Location: 14 Prev | Next Part: 129612 *Qty: 1 Pin $3.06
Location: 15 Prev | Next Part: 123961 *Qty: 2 Stop push rod $4.02
Location: 16 Prev | Next Part: 16102311 *Qty: 2 Nut Superseded
Location: 17 Prev | Next Part: 129630 *Qty: 1 Master cylinder Superseded
Location: 18 Prev | Next Part: 16104111 *Qty: 2 Selflocking nut Superseded
Location: 19 Prev | Next Part: 10248271 *Qty: 1 Fork $18.58
Location: 20 Prev | Next Part: 16102311 *Qty: 1 Lock nut Superseded
Location: 21 Prev | Next Part: 130926 *Qty: 1 Screw $9.03
Location: 22 Prev | Next Part: 16104411 *Qty: 1 Selflocking nut $0.90
Location: 23 Prev | Next Part: 134903 *Qty: 1 Pipe $4.38
Location: 24 Prev | Next Part: 131319 *Qty: 1 Pin $147.90
Location: 24 Prev | Next Part: 12179190 *Qty: 2 Clamp Superseded
Location: 25 Prev | Next Part: 10902221 *Qty: 1 Screw $1.27
Location: 26 Prev | Next Part: 12601271 *Qty: 1 Washer Superseded
Location: 27 Prev | Next Part: 113835 *Qty: 2 Shim, 1,3 mm.
Possible fitting
$0.90
Location: 27 Prev | Next Part: 106083 *Qty: 2 Shim, 1 mm.
Possible fitting
$0.90
Location: 27 Prev | Next Part: 113834 *Qty: 2 Shim, 1,2 mm.
Possible fitting
$3.22
Location: 27 Prev | Next Part: 113836 *Qty: 2 Shim, 1,4 mm.
Possible fitting
$1.14
Location: 27 Prev | Next Part: 113833 *Qty: 2 Shim, 1,1 mm.
Possible fitting
$3.22
Location: 28 Prev | Next Part: 131284 *Qty: 1 Pedal case $1,807.75
Location: 29 Prev | Next Part: 13516821 *Qty: 2 Stud $1.08
Location: 30 Prev | Next Part: 13525770 *Qty: 1 Heli-coil $0.90
Location: 31 Prev | Next Part: 13525170 *Qty: 4 Heli-coil $0.90
Location: 32 Prev | Next Part: 129615 *Qty: 1 Gasket $16.35
Location: 33 Prev | Next Part: 16043621 *Qty: 3 Screw $0.90
Location: 34 Prev | Next Part: 127496 *Qty: 4 Washer $0.90
Location: 35 Prev | Next Part: 10519601 *Qty: 3 Washer Superseded
Location: 36 Prev | Next Part: 16043321 *Qty: 1 Screw $0.90

* Quantity shown indicates the number of pieces used in the diagram.
