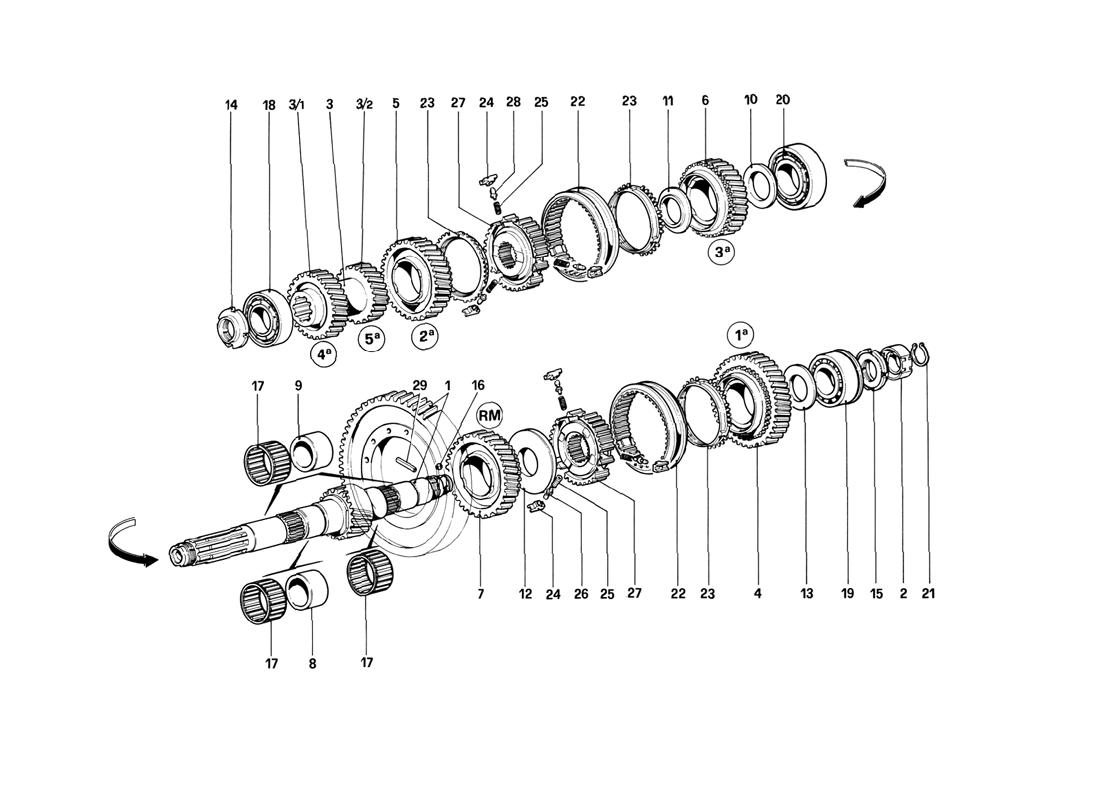

LAY SHAFT GEARS

Go to Split View

LAY SHAFT GEARS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 119741 *Qty: 1 Layshaft
With assembly no. 119748
Call
Location: 1 Prev | Next Part: 119761 *Qty: 1 Layshaft
With assembly no. 119763
Call
Location: 1 Prev | Next Part: 119706 *Qty: 1 Layshaft
With assembly no. 119725
Call
Location: 1 Prev | Next Part: 128990 *Qty: 1 Layshaft
With assembly no. 132471
Call
Location: 1 Prev | Next Part: 119748 *Qty: 1 Crown and pinion, complete
For C6
$2,275.39
Location: 1 Prev | Next Part: 119725 *Qty: 1 Crown and pinion, complete
For US
$8,095.89
Location: 1 Prev | Next Part: 132471 *Qty: 1 Crown and pinion complete
For C7 and C8
$2,243.56
Location: 1 Prev | Next Part: 119763 *Qty: 1 Crown and pinion, complete
Not for US - C6 - C7 and C8
$2,213.02
Location: 2 Prev | Next Part: 116352 *Qty: 1 Disc for pulse generator $29.54
Location: 3 Prev | Next Part: 129835 *Qty: 1 Gear, 4th speed
3/1 on Picture - After exhaustion use no. 11 9707
Superseded
Location: 3 Prev | Next Part: 119707 *Qty: 1 Gear, 4th - 5th speeds $324.02
Location: 3 Prev | Next Part: 129836 *Qty: 1 Gear, 5th speed
3/2 on Picture - After exhaustion use no. 119707
Superseded
Location: 4 Prev | Next Part: 119715 *Qty: 1 Gear, 1st speed
Until gearbox no. 674-177 CH
$1,614.20
Location: 4 Prev | Next Part: 132823 *Qty: 1 Gear, 1st speed
Starting from gearbox no. 675-178 CH
$910.10
Location: 5 Prev | Next Part: 132824 *Qty: 1 Gear, 2nd speed
Starting from gearbox no. 675-178 CH
$1,027.83
Location: 5 Prev | Next Part: 119716 *Qty: 1 Gear, 2nd speed
Until gearbox no. 674-177 CH
$2,490.35
Location: 6 Prev | Next Part: 119717 *Qty: 1 Gear, 3rd speed
Until gearbox no. 674-177 CH
$3,590.67
Location: 6 Prev | Next Part: 132825 *Qty: 1 Gear, 3rd speed
Starting from gearbox no. 675-1 78 CH
$910.10
Location: 7 Prev | Next Part: 132828 *Qty: 1 Gear, reverse
Starting from gearbox no. 675-178 CH
$689.37
Location: 7 Prev | Next Part: 119720 *Qty: 1 Gear, reverse
Until gearbox no. 674-177 CH
Call
Location: 8 Prev | Next Part: 113083 *Qty: 1 Bearing race, 3rd speed $61.57
Location: 9 Prev | Next Part: 113084 *Qty: 1 Bearing race, 1st - 2nd speeds $61.57
Location: 10 Prev | Next Part: 104245 *Qty: 1 Spacer $82.17
Location: 11 Prev | Next Part: 104246 *Qty: 1 Spacer $91.46
Location: 12 Prev | Next Part: 104247 *Qty: 1 Spacer $128.81
Location: 13 Prev | Next Part: 104248 *Qty: 1 Spacer $69.06
Location: 14 Prev | Next Part: 104252 *Qty: 1 Ring nut $40.00
Location: 15 Prev | Next Part: 104253 *Qty: 1 Ring nut $40.00
Location: 16 Prev | Next Part: 101611 *Qty: 1 Ball for worm screw $0.90
Location: 17 Prev | Next Part: 104254 *Qty: 4 Roller cage for 1st, 2nd, 3rd speeds and reverse $16.96
Location: 18 Prev | Next Part: 108656 *Qty: 1 Bearing, clutch side $624.24
Location: 19 Prev | Next Part: 103042 *Qty: 1 Bearing $242.28
Location: 20 Prev | Next Part: 108657 *Qty: 1 Central bearing $179.41
Location: 21 Prev | Next Part: 11067376 *Qty: 1 Spring ring $2.21
Location: 22 Prev | Next Part: 131804 *Qty: 2 Sleeve for synchronizer
Starting from gearbox no. 675-178 CH
$1,397.60
Location: 22 Prev | Next Part: 106038 *Qty: 2 Sleeve for synchronizer
Unit gearbox no. 674-177CH
Superseded
Location: 23 Prev | Next Part: 106040 *Qty: 3 Synchromesh ring $634.31
Location: 24 Prev | Next Part: 106042 *Qty: 6 Pad $91.21
Location: 25 Prev | Next Part: 106043 *Qty: 6 Spring for pin $12.11
Location: 26 Prev | Next Part: 106044 *Qty: 3 Pin $80.83
Location: 27 Prev | Next Part: 106050 *Qty: 2 Synchronizer body $461.84
Location: 28 Prev | Next Part: 113412 *Qty: 3 Pin $25.83
Location: 29 Prev | Next Part: 13907570 *Qty: 1 Plug $0.90

* Quantity shown indicates the number of pieces used in the diagram.
