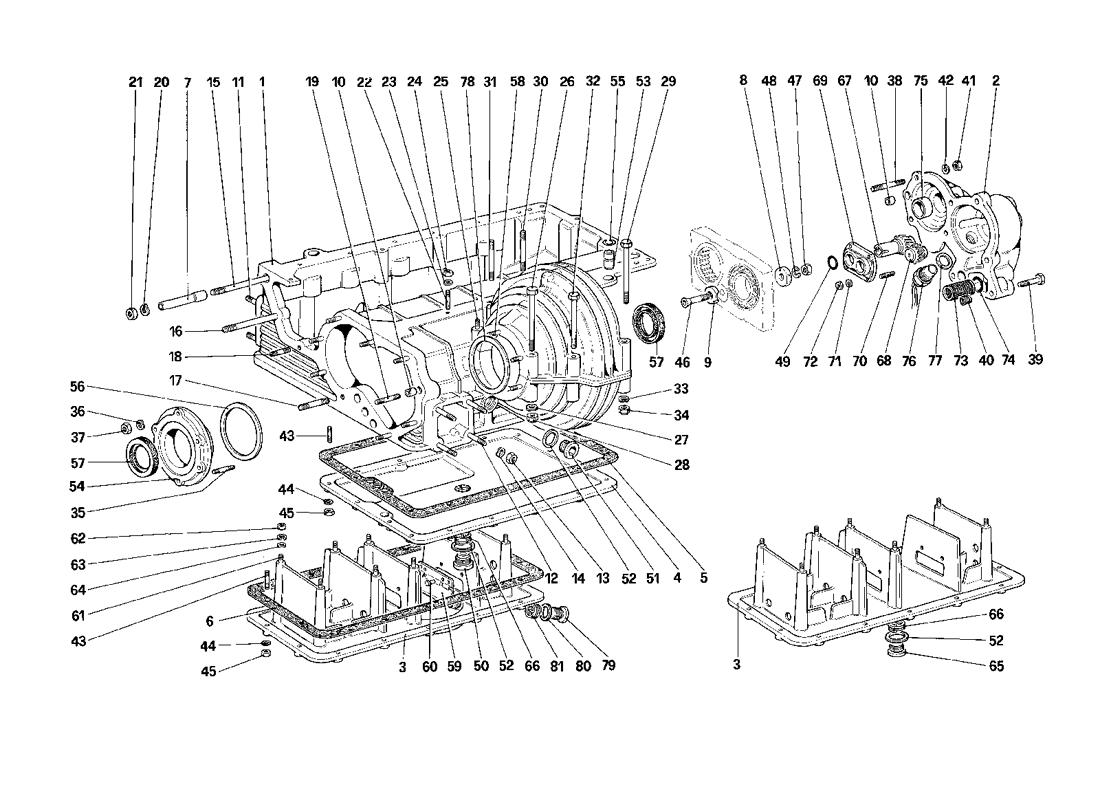

GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP

Go to Split View

GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 115179 *Qty: 1 Complete gearbox $6,358.30
Location: 1 Prev | Next Part: 131176 *Qty: 1 Gearbox differential and oil sump
For US M.Y. 87
Superseded
Location: 1 Prev | Next Part: 118341 *Qty: 1 Gearbox differential and oil sump
With assembly no. 115179
Call
Location: 2 Prev | Next Part: 113073 *Qty: 1 Rear cover - With assembly no. 115179 $692.78
Location: 3 Prev | Next Part: 104192 *Qty: 1 Oil sump cover - With assembly no. 107875 Superseded
Location: 3 Prev | Next Part: 130919 *Qty: 1 Oil sump cover, complete
From engine no. 1392 EUR. - 686 USA
Call
Location: 3 Prev | Next Part: 107875 *Qty: 1 Oil sump cover, compllete
Up to engine no. 1391 EUR. - 685 US
Superseded
Location: 3 Prev | Next Part: 129553 *Qty: 1 Oil sump cover - With assembly no. 130919 Call
Location: 4 Prev | Next Part: 115353 *Qty: 1 Lower cover Call
Location: 5 Prev | Next Part: 104196 *Qty: 1 Gasket Superseded
Location: 6 Prev | Next Part: 104197 *Qty: 1 Gasket Superseded
Location: 7 Prev | Next Part: 134480 *Qty: 1 Centering dowel - From car no. 71799 $5.44
Location: 7 Prev | Next Part: 104033 *Qty: 1 Centering dowel - Until car no. 71797 $30.11
Location: 8 Prev | Next Part: 104198 *Qty: 1 Washer $11.08
Location: 9 Prev | Next Part: 104199 *Qty: 1 Washer $6.57
Location: 10 Prev | Next Part: 102704 *Qty: 2 Centering dowel $2.18
Location: 11 Prev | Next Part: 13449321 *Qty: 8 Stud for front pads $1.32
Location: 12 Prev | Next Part: 13450021 *Qty: 8 Stud for rear pads $0.90
Location: 13 Prev | Next Part: 12164711 *Qty: 16 Nut Superseded
Location: 14 Prev | Next Part: 106853 *Qty: 16 Washer Superseded
Location: 15 Prev | Next Part: 13952821 *Qty: 1 Stud $1.26
Location: 16 Prev | Next Part: 13952621 *Qty: 1 Stud $1.28
Location: 17 Prev | Next Part: 13517421 *Qty: 1 Stud $41.97
Location: 18 Prev | Next Part: 13517221 *Qty: 8 Stud Superseded
Location: 19 Prev | Next Part: 13517321 *Qty: 1 Stud Superseded
Location: 20 Prev | Next Part: 11198071 *Qty: 12 Washer Superseded
Location: 21 Prev | Next Part: 16100811 *Qty: 12 Nut Superseded
Location: 22 Prev | Next Part: 108966 *Qty: 4 Stud for crankcase $13.80
Location: 23 Prev | Next Part: 11198071 *Qty: 4 Washer Superseded
Location: 24 Prev | Next Part: 16100811 *Qty: 4 Nut Superseded
Location: 25 Prev | Next Part: 13450421 *Qty: 4 Stud $0.90
Location: 26 Prev | Next Part: 15972021 *Qty: 2 Bolt $1.32
Location: 27 Prev | Next Part: 12638601 *Qty: 2 Washer $0.90
Location: 28 Prev | Next Part: 12574511 *Qty: 4 Selflocking nut Superseded
Location: 29 Prev | Next Part: 104189 *Qty: 4 Bolt $10.71
Location: 30 Prev | Next Part: 13518021 *Qty: 1 Stud $5.68
Location: 31 Prev | Next Part: 13517821 *Qty: 2 Stud Superseded
Location: 32 Prev | Next Part: 107711 *Qty: 1 Bolt $6.80
Location: 33 Prev | Next Part: 10519601 *Qty: 1 Washer Superseded
Location: 34 Prev | Next Part: 16104111 *Qty: 5 Selflocking nut Superseded
Location: 35 Prev | Next Part: 12429721 *Qty: 5 Stud $0.90
Location: 36 Prev | Next Part: 12601371 *Qty: 6 Spring washer Superseded
Location: 37 Prev | Next Part: 16104111 *Qty: 6 Nut Superseded
Location: 38 Prev | Next Part: 13517221 *Qty: 5 Stud Superseded
Location: 39 Prev | Next Part: 16044121 *Qty: 2 Screw $0.90
Location: 39 Prev | Next Part: 16044221 *Qty: 1 Screw for cover and propelling unit earth Call
Location: 40 Prev | Next Part: 13525770 *Qty: 3 Heli-coil $0.90
Location: 41 Prev | Next Part: 16100811 *Qty: 5 Nut Superseded
Location: 42 Prev | Next Part: 11198071 *Qty: 8 Washer Superseded
Location: 43 Prev | Next Part: 13541121 *Qty: 30 Stud Superseded
Location: 44 Prev | Next Part: 11197771 *Qty: 30 Washer Superseded
Location: 45 Prev | Next Part: 15896211 *Qty: 30 Nut Superseded
Location: 46 Prev | Next Part: 104218 *Qty: 1 Screw $1.46
Location: 47 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 48 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 49 Prev | Next Part: 101032 *Qty: 1 Sealing ring $1.18
Location: 50 Prev | Next Part: 104280 *Qty: 1 Plug $6.54
Location: 51 Prev | Next Part: 10275001 *Qty: 1 Plug Superseded
Location: 52 Prev | Next Part: 10263460 *Qty: 3 Gasket Superseded
Location: 53 Prev | Next Part: 103838 *Qty: 1 Dowel $3.06
Location: 54 Prev | Next Part: 108226 *Qty: 1 Differential side code
With assembly no. 115179
$163.68
Location: 55 Prev | Next Part: 103839 *Qty: 1 Ring
Spacer for L.H. bearing, thickness
$9.47
Location: 56 Prev | Next Part: 132929 *Qty: 1 Ditto thickness mm. 2,85 $116.80
Location: 56 Prev | Next Part: 132931 *Qty: 1 Ditto thickness mm. 2,95 $69.30
Location: 56 Prev | Next Part: 103426 *Qty: 1 Ditto thickness mm. 3,20 $145.12
Location: 56 Prev | Next Part: 132930 *Qty: 1 Ditto thickness mm. 2,90 $68.09
Location: 56 Prev | Next Part: 103422 *Qty: 1 Ring $68.09
Location: 56 Prev | Next Part: 103424 *Qty: 1 Ditto thickness mm. 2,80 $68.09
Location: 56 Prev | Next Part: 132927 *Qty: 1 Ditto thickness mm. 2,70 $69.30
Location: 56 Prev | Next Part: 103423 *Qty: 1 Ditto thickness mm. 2,60 Call
Location: 56 Prev | Next Part: 132923 *Qty: 1 Ditto thickness mm. 2,45 $68.09
Location: 56 Prev | Next Part: 132924 *Qty: 1 Ditto thickness mm. 2,50 $69.30
Location: 56 Prev | Next Part: 132925 *Qty: 1 Ditto thickness mm. 2,55 $68.09
Location: 56 Prev | Next Part: 103425 *Qty: 1 Ditto thickness mm. 3,00 $68.09
Location: 56 Prev | Next Part: 132926 *Qty: 1 Ditto thickness mm. 2,65 $69.30
Location: 56 Prev | Next Part: 109145 *Qty: 1 Ditto thickness mm. 4,20 $37.57
Location: 56 Prev | Next Part: 132928 *Qty: 1 Ditto thickness mm. 2,75 $68.09
Location: 57 Prev | Next Part: 125078 *Qty: 1 Sealing ring $19.11
Location: 58 Prev | Next Part: 13543421 *Qty: 1 Stud Superseded
Location: 59 Prev | Next Part: 107589 *Qty: 2 Vertical protection $22.20
Location: 60 Prev | Next Part: 100033 *Qty: 4 Rivet $0.90
Location: 61 Prev | Next Part: 13539021 *Qty: 8 Stud for lower Superseded
Location: 62 Prev | Next Part: 15896411 *Qty: 8 Nut Superseded
Location: 63 Prev | Next Part: 106849 *Qty: 8 Spring washer Superseded
Location: 64 Prev | Next Part: 12638101 *Qty: 8 Washer Superseded
Location: 65 Prev | Next Part: 10275040 *Qty: 1 Plug - For cover no. 107875 Superseded
Location: 66 Prev | Next Part: 112254 *Qty: 2 Heli-coil $5.06
Location: 67 Prev | Next Part: 116953 *Qty: 1 Oil pump drive gear $367.90
Location: 68 Prev | Next Part: 113082 *Qty: 1 Oil pump driven gear $314.69
Location: 69 Prev | Next Part: 113086 *Qty: 1 Oil pump cover $118.23
Location: 70 Prev | Next Part: 11000921 *Qty: 4 Stud Call
Location: 71 Prev | Next Part: 12601171 *Qty: 4 Washer Superseded
Location: 72 Prev | Next Part: 15896411 *Qty: 4 Nut Superseded
Location: 73 Prev | Next Part: 115538 *Qty: 1 Oil pump filter Call
Location: 74 Prev | Next Part: 101034 *Qty: 1 Sealing ring $1.72
Location: 75 Prev | Next Part: 113088 *Qty: 1 Seat $139.62
Location: 76 Prev | Next Part: 116987 *Qty: 1 Pulse generator $272.49
Location: 77 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 78 Prev | Next Part: 103424 *Qty: 1 Space for R.H. bearing $68.09
Location: 79 Prev | Next Part: 103974 *Qty: 1 Plug
With cover no. 129553
$33.62
Location: 80 Prev | Next Part: 10257060 *Qty: 1 Gasket
With cover no. 129554
$0.90
Location: 81 Prev | Next Part: 111352 *Qty: 1 Heli-coil
With cover no. 129555
$192.83

* Quantity shown indicates the number of pieces used in the diagram.
