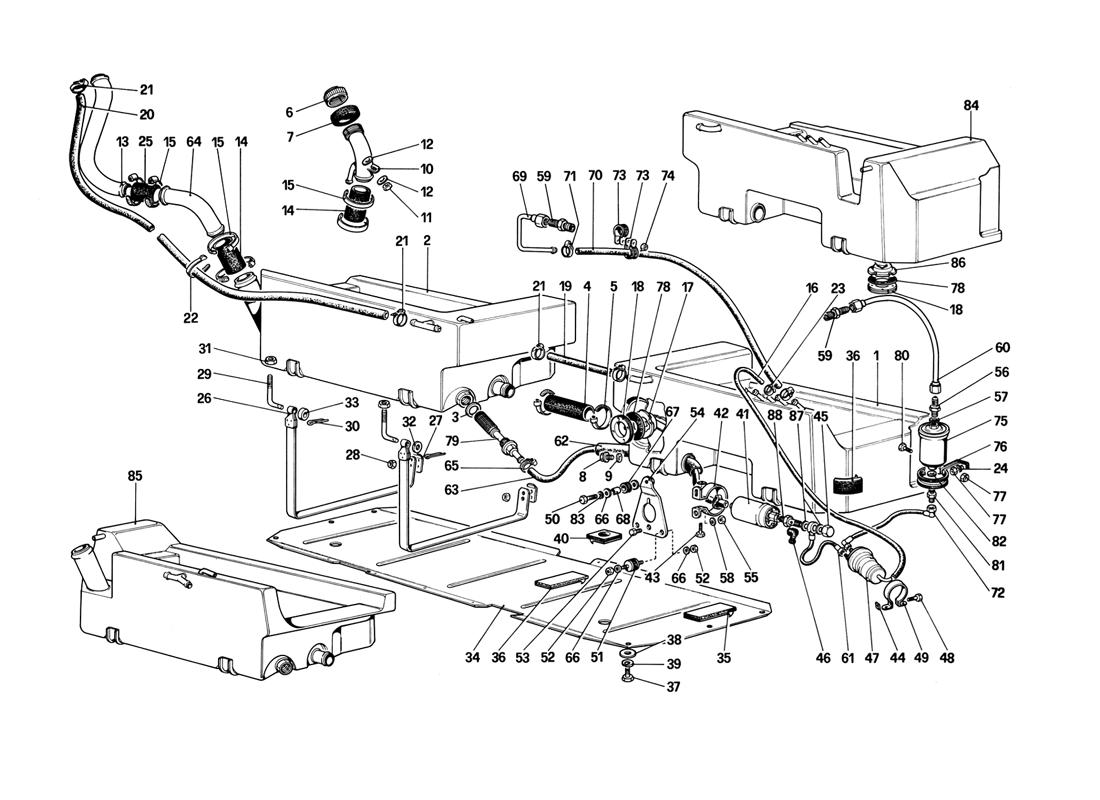

FUEL PUMP AND PIPES (FOR US VERSION)

Go to Split View

FUEL PUMP AND PIPES (FOR US VERSION)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 119086 *Qty: 1 Right fuel tank $2,152.60
Location: 2 Prev | Next Part: 119087 *Qty: 1 Leftfuel tank $2,173.61
Location: 3 Prev | Next Part: 117884 *Qty: 1 Gasket for fuel filter $23.58
Location: 4 Prev | Next Part: 116270 *Qty: 1 Tank connecting sleeve $71.68
Location: 5 Prev | Next Part: 12173890 *Qty: 2 Sleeve clamp $2.63
Location: 6 Prev | Next Part: 113401 *Qty: 1 Cap for filler Call
Location: 7 Prev | Next Part: 101465 *Qty: 1 Gasket for filler Call
Location: 8 Prev | Next Part: 10300771 *Qty: 1 Plug forfuel drain $17.00
Location: 9 Prev | Next Part: 10278650 *Qty: 1 Gasket for drain plug $0.90
Location: 10 Prev | Next Part: 116986 *Qty: 1 Tank filler
For SA use no. 119318 - For Cabriolet use no. 121481 - For Cabriolet SA use no. 130066
$250.98
Location: 11 Prev | Next Part: 12574221 *Qty: 1 Selfocking nut Superseded
Location: 12 Prev | Next Part: 109684 *Qty: 2 Washer Superseded
Location: 13 Prev | Next Part: 117816 *Qty: 1 Pipe
For Cabriolet use no. 121485
$105.07
Location: 14 Prev | Next Part: 114278 *Qty: 2 Sleeve $75.98
Location: 15 Prev | Next Part: 12174790 *Qty: 6 Clamp $1.45
Location: 16 Prev | Next Part: 117163 *Qty: 1 Fuel recovery pipe
For Cabriolet use no. 116758
$17.28
Location: 17 Prev | Next Part: 116045 *Qty: 1 Control forfuel level gauge Call
Location: 18 Prev | Next Part: 121435 *Qty: 1 Ring nut fixing control of fuel level gauge $156.51
Location: 19 Prev | Next Part: 114916 *Qty: 1 Tank breather pipe
For Cabriolet use no. 120457
Superseded
Location: 20 Prev | Next Part: 116852 *Qty: 1 Tank breather pipe
For Cabriolet use no. 120469
$77.52
Location: 21 Prev | Next Part: 12179590 *Qty: 4 Clamp Superseded
Location: 22 Prev | Next Part: 105550 *Qty: 1 Clamp $1.45
Location: 23 Prev | Next Part: 12179490 *Qty: 2 Clamp Superseded
Location: 24 Prev | Next Part: 13550301 *Qty: 1 Washer $19.34
Location: 25 Prev | Next Part: 117618 *Qty: 1 Sleeve $38.41
Location: 26 Prev | Next Part: 115732 *Qty: 4 Strap securing fuel tank Call
Location: 27 Prev | Next Part: 115734 *Qty: 4 Plate, securing strap $2.80
Location: 28 Prev | Next Part: 12575411 *Qty: 8 Selflocking nut Superseded
Location: 29 Prev | Next Part: 12311271 *Qty: 4 Tie rod for strap Superseded
Location: 30 Prev | Next Part: 10796401 *Qty: 4 Split pin Superseded
Location: 31 Prev | Next Part: 16104121 *Qty: 4 Selflocking nut Superseded
Location: 32 Prev | Next Part: 10519601 *Qty: 2 Washer Superseded
Location: 33 Prev | Next Part: 13605911 *Qty: 2 Spacer $3.97
Location: 34 Prev | Next Part: 119182 *Qty: 1 Protective plate for tanks $333.87
Location: 35 Prev | Next Part: 116566 *Qty: 4 Outer shim $23.34
Location: 36 Prev | Next Part: 115330 *Qty: 18 Inner shim and on tanks $11.14
Location: 37 Prev | Next Part: 10902121 *Qty: 13 Screw Superseded
Location: 38 Prev | Next Part: 12643701 *Qty: 13 Sheared washer Superseded
Location: 39 Prev | Next Part: 106850 *Qty: 13 Spring washer Superseded
Location: 40 Prev | Next Part: 116585 *Qty: 2 Gasket $6.54
Location: 41 Prev | Next Part: 121727 *Qty: 1 Fuel pump $395.00
Location: 42 Prev | Next Part: 113673 *Qty: 1 Seal clamp forfuel pump Superseded
Location: 43 Prev | Next Part: 10377311 *Qty: 1 Adjust screwfor clamp tension $0.90
Location: 44 Prev | Next Part: 14089311 *Qty: 2 Square nut $0.90
Location: 45 Prev | Next Part: 10183217 *Qty: 1 Plug Superseded
Location: 46 Prev | Next Part: 107003 *Qty: 2 Protective cap for terminals $7.12
Location: 47 Prev | Next Part: 113978 *Qty: 1 Accumulator $199.00
Location: 48 Prev | Next Part: 10376111 *Qty: 1 Adjusting screw for clamp tension $0.90
Location: 49 Prev | Next Part: 113674 *Qty: 1 Seal clamp for accumulator Call
Location: 50 Prev | Next Part: 10902621 *Qty: 1 Screw Superseded
Location: 51 Prev | Next Part: 102947 *Qty: 2 Small block $18.79
Location: 52 Prev | Next Part: 12574211 *Qty: 4 Selflocking nut Superseded
Location: 53 Prev | Next Part: 10902221 *Qty: 4 Fixing screw for clamp $1.31
Location: 54 Prev | Next Part: 119178 *Qty: 1 Support $35.73
Location: 55 Prev | Next Part: 12574211 *Qty: 4 Selflocking nut Superseded
Location: 56 Prev | Next Part: 127756 *Qty: 1 Union piece $14.80
Location: 57 Prev | Next Part: 10298460 *Qty: 1 Gasket $0.90
Location: 58 Prev | Next Part: 10519421 *Qty: 2 Washer Superseded
Location: 59 Prev | Next Part: 125215 *Qty: 2 Union $40.63
Location: 60 Prev | Next Part: 128474 *Qty: 1 Pipe from filter to metering device
Not for C8
$59.31
Location: 60 Prev | Next Part: 128469 *Qty: 1 Pipe from filter to metering device
For C8 - For Cabriolet no. 128481
$59.31
Location: 61 Prev | Next Part: 123022 *Qty: 1 Pipe from pump to accumulator
Not for C8 - For Cabriolet no. 123028 - Not for C8
Call
Location: 61 Prev | Next Part: 118393 *Qty: 1 Pipe from pump to accumulator
For C8 - For Cabriolet no. 136213 - For C8
Call
Location: 62 Prev | Next Part: 119183 *Qty: 1 Protection pipe $13.31
Location: 63 Prev | Next Part: 119184 *Qty: 1 Sleeve, pump side $23.82
Location: 64 Prev | Next Part: 117817 *Qty: 1 Pipe
For Cabriolet no. 121486
$87.31
Location: 65 Prev | Next Part: 12179590 *Qty: 2 Clamp Superseded
Location: 66 Prev | Next Part: 12643701 *Qty: 6 Washer Superseded
Location: 67 Prev | Next Part: 103549 *Qty: 1 Small block $0.42
Location: 68 Prev | Next Part: 103550 *Qty: 1 Spacer $2.55
Location: 69 Prev | Next Part: 128471 *Qty: 1 Fuel reflux pipe
For Cabriolet use no. 128483
$45.07
Location: 70 Prev | Next Part: 114881 *Qty: 1 Fuel reflux pipe
For Cabriolet use no. 118283
$12.15
Location: 71 Prev | Next Part: 12179490 *Qty: 2 Clamp Superseded
Location: 72 Prev | Next Part: 136306 *Qty: 1 Pipe from accumulator to filter
For C8 - For Cabriolet use no. 136228 - For C8
$118.14
Location: 72 Prev | Next Part: 117952 *Qty: 1 Pipe from accumulator to filter
Not for C8 - For Cabriolet use no. 121156 - Not for C8
Call
Location: 73 Prev | Next Part: 10441190 *Qty: 4 Clamp $0.90
Location: 74 Prev | Next Part: 12574211 *Qty: 2 Selflocking nut Superseded
Location: 75 Prev | Next Part: 117792 *Qty: 1 Fuel filter $28.00
Location: 76 Prev | Next Part: 117791 *Qty: 1 (2) Sheathed bracker to filter $20.06
Location: 76 Prev | Next Part: 117954 *Qty: 1 (1) Sheathed bracker to filter $64.90
Location: 77 Prev | Next Part: 16104121 *Qty: 2 Selflocking nut Superseded
Location: 78 Prev | Next Part: 132132 *Qty: 1 Gasket
Only for 132133
Superseded
Location: 78 Prev | Next Part: 116792 *Qty: 1 Gasket
Only for 116045 and 121934
Superseded
Location: 79 Prev | Next Part: 116404 *Qty: 1 Filter on tank Superseded
Location: 80 Prev | Next Part: 16043221 *Qty: 1 Bolt $0.90
Location: 81 Prev | Next Part: 109889 *Qty: 1 Union piece Call
Location: 82 Prev | Next Part: 10280060 *Qty: 1 Gasket $0.90
Location: 83 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 84 Prev | Next Part: 127177 *Qty: 1 (2) Right fuel tank $2,738.83
Location: 85 Prev | Next Part: 127178 *Qty: 1 (2) Leftfuel tank $2,738.83
Location: 86 Prev | Next Part: 132133 *Qty: 1 (2) Control for fuel level gauge
From car no. 67853
Call
Location: 86 Prev | Next Part: 121934 *Qty: 1 (2) Control forfuel level gauge
Until car no. 67851
Superseded
Location: 87 Prev | Next Part: 11270160 *Qty: 2 Gasket $2.08
Location: 88 Prev | Next Part: 120098 *Qty: 1 Check valve $168.79

* Quantity shown indicates the number of pieces used in the diagram.
