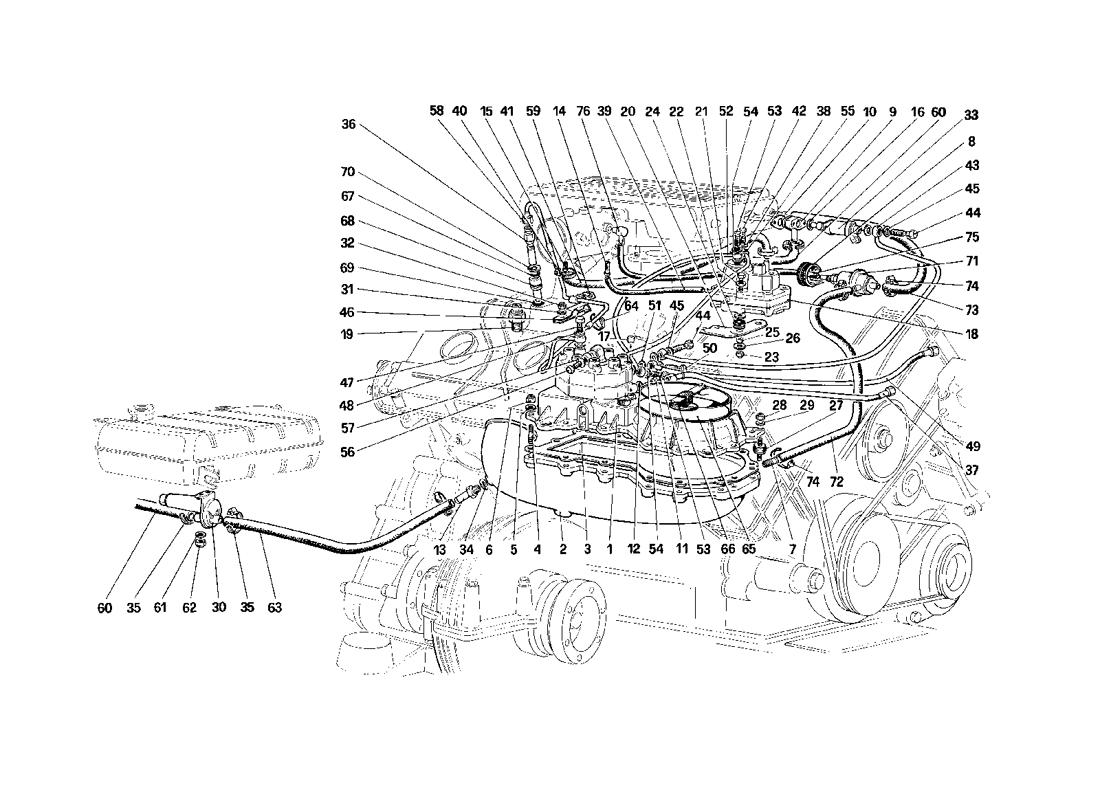

FUEL DISTRIBUTORS LINES (NOT FOR US AND CH87 VERSION)

Go to Split View

FUEL DISTRIBUTORS LINES (NOT FOR US AND CH87 VERSION)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 121745 *Qty: 1 Metering device Call
Location: 2 Prev | Next Part: 127159 *Qty: 1 Support for metering device, complete $348.56
Location: 2 Prev | Next Part: 127157 *Qty: 1 Support for metering device
With unit no. 127159
Call
Location: 2 Prev | Next Part: 129645 *Qty: 1 Support for metering device, complete
For CH
$487.34
Location: 2 Prev | Next Part: 129644 *Qty: 1 Support for metering device
With unit no. 129645
Call
Location: 3 Prev | Next Part: 115011 *Qty: 1 Gasket Superseded
Location: 4 Prev | Next Part: 13541121 *Qty: 15 Stud Superseded
Location: 5 Prev | Next Part: 12601271 *Qty: 15 Washer Superseded
Location: 6 Prev | Next Part: 12574211 *Qty: 15 Nut Superseded
Location: 7 Prev | Next Part: 112030 *Qty: 1 Union $9.26
Location: 8 Prev | Next Part: 117437 *Qty: 2 Clamp $4.21
Location: 9 Prev | Next Part: 115005 *Qty: 1 Gasket Superseded
Location: 9 Prev | Next Part: 121056 *Qty: 1 Union
For CH use no. 115004
$47.12
Location: 11 Prev | Next Part: 115498 *Qty: 1 Union with filter $54.30
Location: 12 Prev | Next Part: 11270160 *Qty: 1 Gasket $2.08
Location: 13 Prev | Next Part: 116860 *Qty: 1 Threaded union
For CH use no. 130860
$26.39
Location: 14 Prev | Next Part: 113637 *Qty: 1 Threaded union $3.15
Location: 15 Prev | Next Part: 113652 *Qty: 1 Threaded union Call
Location: 16 Prev | Next Part: 103039 *Qty: 1 Sealing ring $1.18
Location: 17 Prev | Next Part: 115650 *Qty: 1 Inviolability cap Superseded
Location: 18 Prev | Next Part: 119825 *Qty: 1 Warm up regulator $2,488.20
Location: 19 Prev | Next Part: 113980 *Qty: 1 Time termal switch
For CH use no. 118790
$746.03
Location: 20 Prev | Next Part: 118291 *Qty: 1 Support $12.38
Location: 21 Prev | Next Part: 10903821 *Qty: 2 Screw $0.90
Location: 22 Prev | Next Part: 12604271 *Qty: 2 Washer Call
Location: 23 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 24 Prev | Next Part: 103549 *Qty: 2 Grommet $0.90
Location: 25 Prev | Next Part: 103550 *Qty: 2 Spacer $2.55
Location: 26 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 27 Prev | Next Part: 102947 *Qty: 3 Vibration damping support $18.79
Location: 28 Prev | Next Part: 12575411 *Qty: 3 Nut Superseded
Location: 29 Prev | Next Part: 12640601 *Qty: 1 Washer Superseded
Location: 29 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 30 Prev | Next Part: 120222 *Qty: 1 Additional air valve
For CH use no. 121744
Call
Location: 31 Prev | Next Part: 11197771 *Qty: 1 Washer Superseded
Location: 32 Prev | Next Part: 12575490 *Qty: 1 Nut Call
Location: 33 Prev | Next Part: 115739 *Qty: 1 Auxiliary starting assembly $362.74
Location: 34 Prev | Next Part: 10280060 *Qty: 1 Gasket
For CH use no. 10259960
$0.90
Location: 35 Prev | Next Part: 12179590 *Qty: 4 Clamp
For CH use no. 12180290
Superseded
Location: 36 Prev | Next Part: 113975 *Qty: 8 Injector $86.26
Location: 37 Prev | Next Part: 118401 *Qty: 1 Pipe from fuel tank Call
Location: 38 Prev | Next Part: 10260160 *Qty: 2 Gasket $1.15
Location: 39 Prev | Next Part: 115002 *Qty: 1 Pipe $4.54
Location: 40 Prev | Next Part: 12179190 *Qty: 2 Clamp Superseded
Location: 41 Prev | Next Part: 118293 *Qty: 1 Pipe Call
Location: 42 Prev | Next Part: 113670 *Qty: 1 Union $80.32
Location: 43 Prev | Next Part: 118410 *Qty: 1 Pipe $24.98
Location: 44 Prev | Next Part: 113664 *Qty: 2 Union $17.52
Location: 45 Prev | Next Part: 14330260 *Qty: 4 Washer $0.90
Location: 46 Prev | Next Part: 115417 *Qty: 1 Bracket for clamp Call
Location: 47 Prev | Next Part: 113670 *Qty: 8 Union $80.32
Location: 48 Prev | Next Part: 10260160 *Qty: 16 Gasket $1.15
Location: 49 Prev | Next Part: 118393 *Qty: 1 Return pipe Call
Location: 50 Prev | Next Part: 111644 *Qty: 1 Union Call
Location: 51 Prev | Next Part: 113910 *Qty: 2 Gasket Superseded
Location: 52 Prev | Next Part: 118398 *Qty: 1 Return pipe from regulator Call
Location: 53 Prev | Next Part: 113664 *Qty: 2 Union $17.52
Location: 54 Prev | Next Part: 14330260 *Qty: 4 Gasket $0.90
Location: 55 Prev | Next Part: 118397 *Qty: 1 Delivery pipe to regulator $116.98
Location: 56 Prev | Next Part: 113664 *Qty: 1 Union $17.52
Location: 57 Prev | Next Part: 14330260 *Qty: 1 Gasket $0.90
Location: 58 Prev | Next Part: 118567 *Qty: 1 Pipe from metering device to cylinder 1 Call
Location: 58 Prev | Next Part: 118568 *Qty: 1 Pipe from metering device to cylinder 2 Call
Location: 58 Prev | Next Part: 118570 *Qty: 1 Pipe from metering device to cylinder 4 Call
Location: 58 Prev | Next Part: 118572 *Qty: 1 Pipe from metering device to cylinder 6 $87.31
Location: 58 Prev | Next Part: 118574 *Qty: 1 Pipe from metering device to cylinder 8 $133.83
Location: 58 Prev | Next Part: 118573 *Qty: 1 Pipe from metering device to cylinder 7 $133.83
Location: 58 Prev | Next Part: 118569 *Qty: 1 Pipe from metering device to cylinder 3 Call
Location: 58 Prev | Next Part: 118571 *Qty: 1 Pipe from metering device to cylinder 5 $87.31
Location: 59 Prev | Next Part: 117279 *Qty: 2 Support clamp Superseded
Location: 59 Prev | Next Part: 113896 *Qty: 1 Support clamp (3 pipes) $5.12
Location: 59 Prev | Next Part: 115595 *Qty: 1 Support clamp (4 pipes) Call
Location: 59 Prev | Next Part: 115418 *Qty: 1 Support clamp (4 pipes) Call
Location: 60 Prev | Next Part: 128204 *Qty: 1 Pipe
For CH use no. 135117
$64.21
Location: 61 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 62 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 63 Prev | Next Part: 124442 *Qty: 1 Pipe
For CH use no. 135118
$29.88
Location: 64 Prev | Next Part: 110381 *Qty: 2 Clamp $0.90
Location: 64 Prev | Next Part: 111193 *Qty: 2 Clamp Superseded
Location: 65 Prev | Next Part: 120812 *Qty: 1 Air sensor plate Superseded
Location: 66 Prev | Next Part: 120809 *Qty: 1 Washer $36.42
Location: 67 Prev | Next Part: 113570 *Qty: 8 Sealing ring $4.73
Location: 68 Prev | Next Part: 113309 *Qty: 8 Bushing Call
Location: 69 Prev | Next Part: 101031 *Qty: 8 Sealing ring $4.77
Location: 70 Prev | Next Part: 103326 *Qty: 8 Seeger ring $0.90
Location: 71 Prev | Next Part: 115741 *Qty: 1 Valve for by - pass $282.15
Location: 72 Prev | Next Part: 121823 *Qty: 1 Hose from valve to support $25.67
Location: 73 Prev | Next Part: 128309 *Qty: 1 Pipe to valve from air delivery $9.82
Location: 74 Prev | Next Part: 12179490 *Qty: 4 Clamp Superseded
Location: 75 Prev | Next Part: 124790 *Qty: 1 Pipe $6.36
Location: 76 Prev | Next Part: 127164 *Qty: 1 Union $24.27
Location: 77 Prev | Next Part: 123478 *Qty: 1 Clamp $6.30

* Quantity shown indicates the number of pieces used in the diagram.
