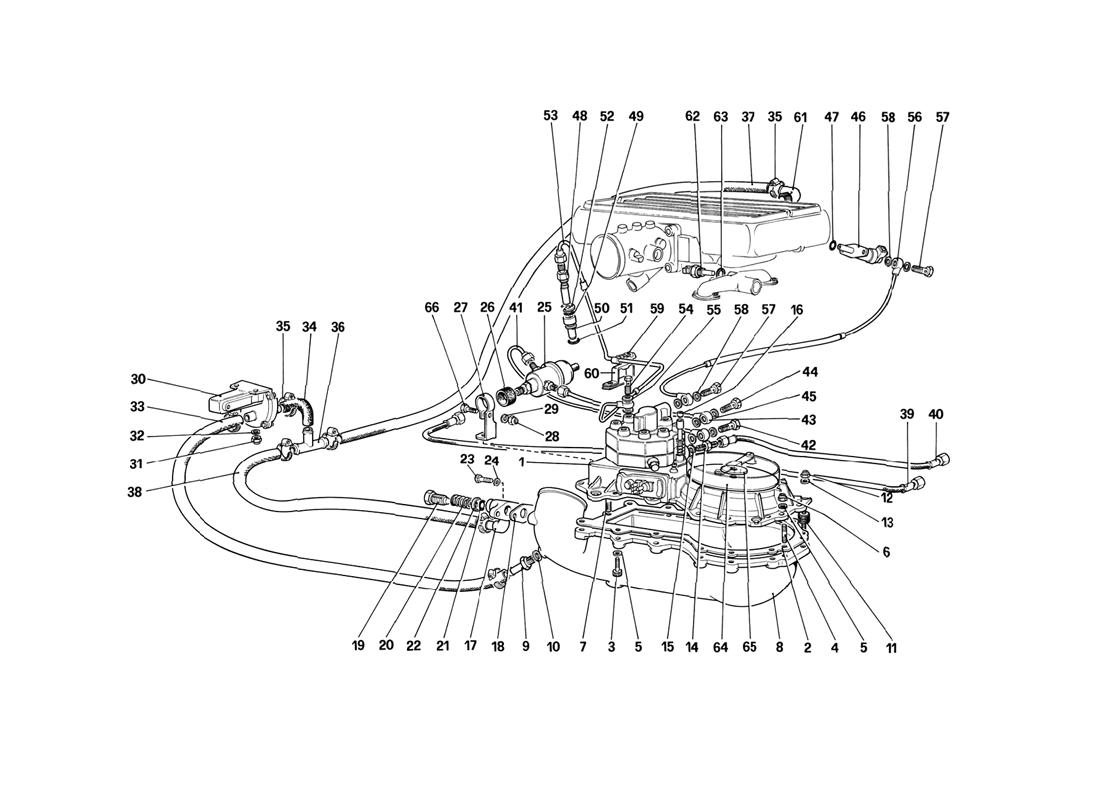

FUEL DISTRIBUTORS LINES (FOR CH87 VERSION)

Go to Split View

FUEL DISTRIBUTORS LINES (FOR CH87 VERSION)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 127237 *Qty: 1 Metering device Call
Location: 2 Prev | Next Part: 135096 *Qty: 1 Gasket $29.32
Location: 3 Prev | Next Part: 14305321 *Qty: 3 Screw $0.90
Location: 4 Prev | Next Part: 13541121 *Qty: 11 Stud Superseded
Location: 5 Prev | Next Part: 12601279 *Qty: 15 Washer Superseded
Location: 6 Prev | Next Part: 12574211 *Qty: 12 Nut Superseded
Location: 7 Prev | Next Part: 13541221 *Qty: 1 Stud Superseded
Location: 8 Prev | Next Part: 134886 *Qty: 1 Support for metering device Call
Location: 8 Prev | Next Part: 134993 *Qty: 1 Supporfor metering device, complete $641.83
Location: 9 Prev | Next Part: 115751 *Qty: 1 Union $28.30
Location: 10 Prev | Next Part: 10259960 *Qty: 1 Gasket $0.90
Location: 11 Prev | Next Part: 102947 *Qty: 3 Vibration damping support $18.79
Location: 12 Prev | Next Part: 12575411 *Qty: 4 Selflocking nut Superseded
Location: 13 Prev | Next Part: 12601279 *Qty: 4 Washer Superseded
Location: 14 Prev | Next Part: 115498 *Qty: 1 Union with filter $52.65
Location: 15 Prev | Next Part: 11270160 *Qty: 1 Gasket $2.02
Location: 16 Prev | Next Part: 121571 *Qty: 1 Inviolability plug $15.40
Location: 17 Prev | Next Part: 128158 *Qty: 1 Housing for air by-pass adjusting $185.64
Location: 18 Prev | Next Part: 135095 *Qty: 1 Gasket $1.18
Location: 19 Prev | Next Part: 119308 *Qty: 1 Air adjusting screw $3.06
Location: 20 Prev | Next Part: 113571 *Qty: 1 Spring Call
Location: 21 Prev | Next Part: 114919 *Qty: 1 Sealing ring $1.22
Location: 22 Prev | Next Part: 115204 *Qty: 1 Plate $13.47
Location: 23 Prev | Next Part: 14305221 *Qty: 2 Screw $0.90
Location: 24 Prev | Next Part: 12604271 *Qty: 2 Washer Call
Location: 25 Prev | Next Part: 128972 *Qty: 1 Pressure regulator $453.91
Location: 26 Prev | Next Part: 125825 *Qty: 1 Anti-vibration bush $2.05
Location: 27 Prev | Next Part: 125770 *Qty: 1 Support $7.45
Location: 28 Prev | Next Part: 12574211 *Qty: 1 Selflocking nut Superseded
Location: 29 Prev | Next Part: 12604271 *Qty: 1 Washer Call
Location: 30 Prev | Next Part: 121744 *Qty: 1 Additional air valve . $358.72
Location: 31 Prev | Next Part: 12574211 *Qty: 2 Selflocking nut Superseded
Location: 32 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 33 Prev | Next Part: 135118 *Qty: 1 Pipe from valve to support Call
Location: 34 Prev | Next Part: 123860 *Qty: 8 Sleeve Call
Location: 35 Prev | Next Part: 12180290 *Qty: 1 Clamp Call
Location: 36 Prev | Next Part: 109887 *Qty: 1 3 way union $304.79
Location: 37 Prev | Next Part: 136287 *Qty: 1 Pipe from 3 way to body air delivery $40.76
Location: 38 Prev | Next Part: 135119 *Qty: 1 Pipe from 3 way to housing for air by-pass adjusting Call
Location: 39 Prev | Next Part: 136288 *Qty: 1 Return pipe to regulator $31.47
Location: 40 Prev | Next Part: 136290 *Qty: 1 Delivery pipe to metering device Call
Location: 41 Prev | Next Part: 135069 *Qty: 1 Pipe from regulator to metering device $68.82
Location: 42 Prev | Next Part: 113670 *Qty: 1 Union $77.88
Location: 43 Prev | Next Part: 135067 *Qty: 1 Pipe from metering device to regulator $71.76
Location: 44 Prev | Next Part: 111644 *Qty: 1 Union Call
Location: 45 Prev | Next Part: 10296160 *Qty: 1 Gasket $0.90
Location: 46 Prev | Next Part: 128968 *Qty: 1 Auxiliary starting assembly $91.70
Location: 47 Prev | Next Part: 103039 *Qty: 1 Sealing ring $1.15
Location: 48 Prev | Next Part: 129036 *Qty: 8 Injector $59.36
Location: 49 Prev | Next Part: 113570 *Qty: 8 Sealing ring $4.59
Location: 50 Prev | Next Part: 113309 *Qty: 8 Bush Call
Location: 51 Prev | Next Part: 101031 *Qty: 8 Sealing ring $4.63
Location: 52 Prev | Next Part: 103326 *Qty: 8 Seeger ring $0.90
Location: 53 Prev | Next Part: 135049 *Qty: 1 Pipe from metering device to cylinder 3 $99.17
Location: 53 Prev | Next Part: 135050 *Qty: 1 Pipe from metering device to cylinder 4 $105.05
Location: 53 Prev | Next Part: 135051 *Qty: 1 Pipe from metering device to cylinder 5 $105.05
Location: 53 Prev | Next Part: 135053 *Qty: 1 Pipe from metering device to cylinder 7 $105.05
Location: 53 Prev | Next Part: 135054 *Qty: 1 Pipe from metering device to cylinder 8 $95.09
Location: 53 Prev | Next Part: 135048 *Qty: 1 Pipe from metering device to cylinder 2 $99.17
Location: 53 Prev | Next Part: 135052 *Qty: 1 Pipe from metering device to cylinder 6 $105.05
Location: 53 Prev | Next Part: 135046 *Qty: 1 Pipe from metering device to cylinder 1 $99.17
Location: 54 Prev | Next Part: 113670 *Qty: 8 Union $77.88
Location: 55 Prev | Next Part: 10260160 *Qty: 16 Gasket $1.11
Location: 56 Prev | Next Part: 135059 *Qty: 1 Pipe metering device to auxiliary starting assembly $108.22
Location: 57 Prev | Next Part: 113664 *Qty: 2 Union $16.98
Location: 58 Prev | Next Part: 14330260 *Qty: 4 Gasket $0.90
Location: 59 Prev | Next Part: 113896 *Qty: 2 Support clamp $4.97
Location: 60 Prev | Next Part: 135079 *Qty: 2 Bracket $7.93
Location: 61 Prev | Next Part: 134493 *Qty: 1 Union $29.66
Location: 62 Prev | Next Part: 125769 *Qty: 1 Watertemperature sensor $31.55
Location: 63 Prev | Next Part: 10298460 *Qty: 1 Gasket $0.90
Location: 64 Prev | Next Part: 120810 *Qty: 1 Air sensor plate $83.32
Location: 65 Prev | Next Part: 120809 *Qty: 1 Washer $35.32
Location: 66 Prev | Next Part: 10902421 *Qty: 1 Screw Superseded

* Quantity shown indicates the number of pieces used in the diagram.
