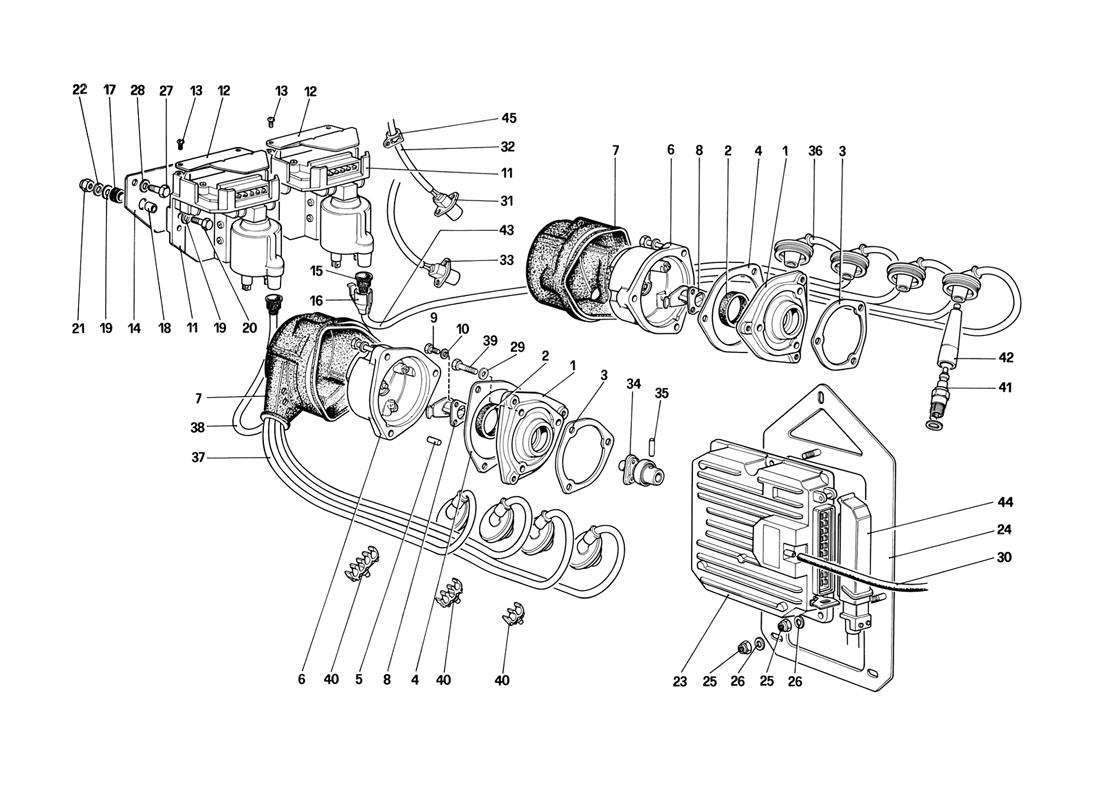

ENGINE IGNITION

Go to Split View

ENGINE IGNITION

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: HT021 *Qty: 1 Complete HT Leads Set Call
Location: 1 Prev | Next Part: 133100 *Qty: 2 Cap distributor support $142.82
Location: 2 Prev | Next Part: 132453 *Qty: 2 Sealing ring $16.68
Location: 3 Prev | Next Part: 134956 *Qty: 2 Gasket- For C8 Superseded
Location: 3 Prev | Next Part: 117261 *Qty: 2 Gasket - Not for C8 Superseded
Location: 4 Prev | Next Part: 119409 *Qty: 2 Gasket $5.32
Location: 5 Prev | Next Part: 10331111 *Qty: 2 Dowel $0.90
Location: 6 Prev | Next Part: 115518 *Qty: 2 Distributor cap Call
Location: 7 Prev | Next Part: 118889 *Qty: 2 Distributor boot $42.74
Location: 8 Prev | Next Part: 126139 *Qty: 2 Rotor arm $99.96
Location: 9 Prev | Next Part: 10444521 *Qty: 6 Screw $0.90
Location: 10 Prev | Next Part: 12544071 *Qty: 6 Washer $0.90
Location: 11 Prev | Next Part: 127134 *Qty: 2 Coil
After exhaustion use no. 124273
Superseded
Location: 12 Prev | Next Part: 128169 *Qty: 2 Protection $187.34
Location: 13 Prev | Next Part: 15921807 *Qty: 4 Screw Call
Location: 14 Prev | Next Part: 127387 *Qty: 1 Coil support
For Cabriolet use no. 128409
$18.21
Location: 15 Prev | Next Part: 122970 *Qty: 2 Cover $27.85
Location: 16 Prev | Next Part: 129620 *Qty: 2 Protection Call
Location: 17 Prev | Next Part: 103549 *Qty: 4 Bush vibration damping $0.42
Location: 18 Prev | Next Part: 103550 *Qty: 4 Spacer $2.55
Location: 19 Prev | Next Part: 12643701 *Qty: 8 Washer Superseded
Location: 20 Prev | Next Part: 10902821 *Qty: 4 Screw Superseded
Location: 21 Prev | Next Part: 12574211 *Qty: 4 Nut Superseded
Location: 22 Prev | Next Part: 14496401 *Qty: 4 Washer Superseded
Location: 23 Prev | Next Part: 127422 *Qty: 1 Eletronic ignition module Call
Location: 24 Prev | Next Part: 127364 *Qty: 1 Plate
For Cabriolet use no. 128419
$43.19
Location: 25 Prev | Next Part: 12574211 *Qty: 6 Nut Superseded
Location: 26 Prev | Next Part: 14496401 *Qty: 6 Washer Superseded
Location: 27 Prev | Next Part: 10902111 *Qty: 3 Screw Superseded
Location: 28 Prev | Next Part: 14496401 *Qty: 3 Washer Superseded
Location: 29 Prev | Next Part: 11197771 *Qty: 2 Washer Superseded
Location: 30 Prev | Next Part: 117170 *Qty: 1 Pipe - For Cabriolet use no. 121177 Call
Location: 31 Prev | Next Part: 128364 *Qty: 1 TDC sensor Superseded
Location: 32 Prev | Next Part: 128365 *Qty: 1 Black pipe Call
Location: 33 Prev | Next Part: 119052 *Qty: 1 Angolar speed sensor $145.00
Location: 34 Prev | Next Part: 133063 *Qty: 1 Coupling
From car no. 71931
$846.44
Location: 34 Prev | Next Part: 126166 *Qty: 2 Coupling
Until car no. 71929
$175.53
Location: 35 Prev | Next Part: 132355 *Qty: 2 Pin $61.42
Location: 36 Prev | Next Part: 118826 *Qty: 1 Cables, left spark plugs $325.95
Location: 37 Prev | Next Part: 118827 *Qty: 1 Cables, right spark plugs $325.95
Location: 38 Prev | Next Part: 119356 *Qty: 1 Right coil - distributor $56.81
Location: 38 Prev | Next Part: 121174 *Qty: 1 Cable, distributor-coil cyl 1?4
For Cabriolet
$18.45
Location: 39 Prev | Next Part: 10902321 *Qty: 2 Screw Superseded
Location: 40 Prev | Next Part: 121789 *Qty: 2 Small clip for cable support $7.42
Location: 40 Prev | Next Part: 121790 *Qty: 2 Small clip for cable support $11.57
Location: 40 Prev | Next Part: 121788 *Qty: 4 Small clip for cable support $11.24
Location: 41 Prev | Next Part: 130965 *Qty: 8 Spark plug (BOSCH)
In alternative
Superseded
Location: 41 Prev | Next Part: 124274 *Qty: 8 Spark plug (CHAMPION)
After exhaustion use no. 131922
Superseded
Location: 42 Prev | Next Part: 126699 *Qty: 8 Extension $30.00
Location: 43 Prev | Next Part: 121175 *Qty: 1 Cable, distributor-coil cyl 5?8
For Cabriolet
Call
Location: 43 Prev | Next Part: 128166 *Qty: 1 Left cable coil-distributor $50.70
Location: 44 Prev | Next Part: 61916900 *Qty: 11 25 way connector $39.42
Location: 45 Prev | Next Part: 129544 *Qty: 1 Clamp
From car no. 63027
$2.39

* Quantity shown indicates the number of pieces used in the diagram.
