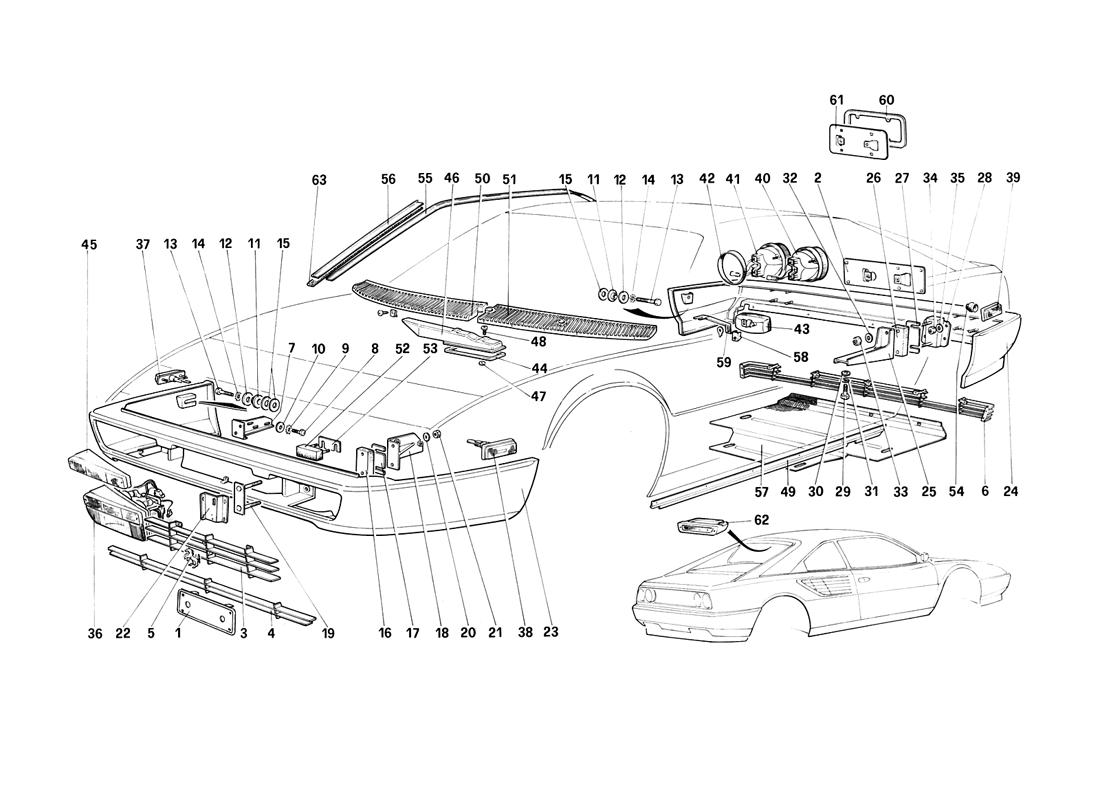

BUMPERS AND MOLDINGS

Go to Split View

BUMPERS AND MOLDINGS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61721400 *Qty: 1 Support
Not for US - SA - RHD
Call
Location: 2 Prev | Next Part: 60810200 *Qty: 1 Support
Not for US - SA - RHD
$38.04
Location: 3 Prev | Next Part: 61722700 *Qty: 1 Grill Call
Location: 4 Prev | Next Part: 61800500 *Qty: 1 Lower grill Call
Location: 5 Prev | Next Part: 61739400 *Qty: 1 Horse Superseded
Location: 6 Prev | Next Part: 61969400 *Qty: 1 Rear grill - C7 - C8 Call
Location: 6 Prev | Next Part: 61716600 *Qty: 1 Rear grill
Not for US - SA - C7 - AUS - C8
$961.90
Location: 6 Prev | Next Part: 61729300 *Qty: 1 Rear grill - US - SA - AUS $1,143.29
Location: 7 Prev | Next Part: 60572500 *Qty: 1 L.H. bracket
Not for US - SA
$275.07
Location: 7 Prev | Next Part: 60572400 *Qty: 1 R.H. bracket
Not for US - SA
$275.07
Location: 8 Prev | Next Part: 16043211 *Qty: 1 Screw
Not for US - SA
$0.90
Location: 9 Prev | Next Part: 10615671 *Qty: 1 Washer
Not for US - SA
$0.90
Location: 10 Prev | Next Part: 12646701 *Qty: 1 Washer
Not for US - SA
Superseded
Location: 11 Prev | Next Part: 61693400 *Qty: 4 Bush
After exhaustion use no. 62428800
Superseded
Location: 12 Prev | Next Part: 12646201 *Qty: 4 Washer $0.90
Location: 13 Prev | Next Part: 16043821 *Qty: 4 Screw Superseded
Location: 14 Prev | Next Part: 10615670 *Qty: 4 Washer $0.90
Location: 15 Prev | Next Part: 61802800 *Qty: 6 Spacer $2.88
Location: 16 Prev | Next Part: 61934800 *Qty: 2 Buffer
For US - SA (without n. 52 - 53)
$57.39
Location: 16 Prev | Next Part: 61263600 *Qty: 2 Buffer
For US - SA (without n. 52 - 53)
$21.04
Location: 17 Prev | Next Part: 60909400 *Qty: 2 Spacer
For US - SA (without n. 52 - 53)
$18.34
Location: 17 Prev | Next Part: 61934700 *Qty: 2 Spacer
For US - SA (without n. 52 - 53)
$6.45
Location: 18 Prev | Next Part: 61934900 *Qty: 1 R.H. bracket
For US - SA (without n. 52 - 53)
$44.67
Location: 18 Prev | Next Part: 61734700 *Qty: 1 R.H. bracket
For US - SA (without n. 52 - 53)
$104.61
Location: 18 Prev | Next Part: 61935000 *Qty: 1 L.H. bracket
For US - SA (without n. 52 - 53)
$46.36
Location: 18 Prev | Next Part: 61734800 *Qty: 1 L.H. bracket
For US - SA (without n. 52 - 53)
$104.61
Location: 19 Prev | Next Part: 61734900 *Qty: 2 Bracket - US - SA $61.47
Location: 20 Prev | Next Part: 14496609 *Qty: 4 Washer - US -SA $0.90
Location: 21 Prev | Next Part: 12575621 *Qty: 4 Nut - US - SA Superseded
Location: 22 Prev | Next Part: 61735200 *Qty: 1 R.H. bracket - US - SA $75.39
Location: 22 Prev | Next Part: 61735300 *Qty: 1 L.H. bracket - US - SA $129.23
Location: 23 Prev | Next Part: 61729500 *Qty: 1 Front bumper - US - SA Superseded
Location: 23 Prev | Next Part: 61704600 *Qty: 1 Front bumper
Not for US - SA
Call
Location: 24 Prev | Next Part: 62348700 *Qty: 1 Bumper - C7- C8 Call
Location: 24 Prev | Next Part: 61704700 *Qty: 1 Bumper
Not for US - SA - AUS - C7- C8
Call
Location: 24 Prev | Next Part: 61729600 *Qty: 1 Bumper - US - SA - AUS Superseded
Location: 25 Prev | Next Part: 61969600 *Qty: 1 L.H. bracket - C7 - C8 $550.13
Location: 25 Prev | Next Part: 61729700 *Qty: 1 L.H. bracket - US - SA - AUS $451.67
Location: 25 Prev | Next Part: 61969500 *Qty: 1 R.H. bracket - C7 - C8 $550.13
Location: 25 Prev | Next Part: 61761700 *Qty: 1 R.H. bracket - US - SA - AUS $451.67
Location: 26 Prev | Next Part: 61952500 *Qty: 2 Buffer - US - SA - AUS $33.80
Location: 27 Prev | Next Part: 61757000 *Qty: 2 Spacer - US - SA - AUS $4.24
Location: 28 Prev | Next Part: 61729900 *Qty: 2 Bracket - US - SA - AUS $55.89
Location: 28 Prev | Next Part: 61970200 *Qty: 2 Bracket - C7 - C8 $132.66
Location: 29 Prev | Next Part: 13006931 *Qty: 4 Screw - C7 - C8 Call
Location: 29 Prev | Next Part: 15970931 *Qty: 4 Screw - US - SA - AUS Call
Location: 30 Prev | Next Part: 12646801 *Qty: 4 Washer - C7 - C8 $1.65
Location: 30 Prev | Next Part: 14496601 *Qty: 4 Washer - US - SA - AUS Superseded
Location: 31 Prev | Next Part: 106853 *Qty: 4 Washer - US - SA - AUS - C7 - C8 Superseded
Location: 32 Prev | Next Part: 12638601 *Qty: 4 Washer - US - SA - AUS - C7 $0.90
Location: 33 Prev | Next Part: 12575611 *Qty: 4 Nut - US - SA - AUS - C7 Superseded
Location: 34 Prev | Next Part: 16104121 *Qty: 8 Nut - US - SA - AUS - C7 - C8 Superseded
Location: 35 Prev | Next Part: 10519601 *Qty: 8 Washer - US - SA - AUS - C7 - C8 Superseded
Location: 36 Prev | Next Part: 61732700 *Qty: 1 R.H. light
Not for US - F - RHD - D
Call
Location: 37 Prev | Next Part: 61732800 *Qty: 1 L.H. light
Not for US - F- RHD - D
Call
Location: 37 Prev | Next Part: 60669900 *Qty: 2 Side light - Not for US $88.42
Location: 38 Prev | Next Part: 61879900 *Qty: 1 R.H. light - RHD - D Call
Location: 38 Prev | Next Part: 60780300 *Qty: 2 Front side market - US Call
Location: 39 Prev | Next Part: 60780400 *Qty: 2 Rear side market - US Call
Location: 39 Prev | Next Part: 61880000 *Qty: 1 L.H. light - RHD - D Call
Location: 40 Prev | Next Part: 60669800 *Qty: 2 Rear light position
Not for US
Call
Location: 40 Prev | Next Part: 61902100 *Qty: 1 R.H. light - F Call
Location: 40 Prev | Next Part: 60868500 *Qty: 2 Rear light position - US Call
Location: 41 Prev | Next Part: 60170206 *Qty: 2 Rear light direction
Not for US
$215.11
Location: 41 Prev | Next Part: 61902200 *Qty: 1 L.H. light - F Call
Location: 41 Prev | Next Part: 60170404 *Qty: 2 Rear light direction - US Call
Location: 42 Prev | Next Part: 61797900 *Qty: 1 R.H. light - US Call
Location: 42 Prev | Next Part: 60592100 *Qty: 4 Gasket Call
Location: 43 Prev | Next Part: 60670000 *Qty: 2 Rear fog
Not for US - SA - ASU
Call
Location: 43 Prev | Next Part: 61798000 *Qty: 1 L.H. light - US Call
Location: 44 Prev | Next Part: 61088600 *Qty: 2 Gasket $10.37
Location: 45 Prev | Next Part: 61943000 *Qty: 1 L.H. lens - white - orange $262.49
Location: 45 Prev | Next Part: 61942900 *Qty: 1 R.H. lens - white - orange Call
Location: 45 Prev | Next Part: 61943100 *Qty: 1 R.H. lens orange $89.13
Location: 45 Prev | Next Part: 61943200 *Qty: 1 L.H. lens orange $82.37
Location: 46 Prev | Next Part: 61109900 *Qty: 1 Air conveyor - RHD $162.85
Location: 46 Prev | Next Part: 61088500 *Qty: 1 Air conveyor - LHD $53.99
Location: 47 Prev | Next Part: 60674600 *Qty: 2 Gasket $1.46
Location: 48 Prev | Next Part: 20286209 *Qty: 2 Screw Call
Location: 49 Prev | Next Part: 61682300 *Qty: 1 (2) L.H. moulding $193.55
Location: 49 Prev | Next Part: 61682200 *Qty: 1 (2) R.H. moulding Call
Location: 50 Prev | Next Part: 60587700 *Qty: 1 R.H. grill - RHD $139.46
Location: 50 Prev | Next Part: 60587500 *Qty: 1 R.H. grill - LHD $161.19
Location: 51 Prev | Next Part: 60587800 *Qty: 1 L.H. grill - RHD $139.46
Location: 51 Prev | Next Part: 60587600 *Qty: 1 L.H. grill - LHD $161.19
Location: 52 Prev | Next Part: 61935100 *Qty: 2 Buffer - US - SA $57.39
Location: 53 Prev | Next Part: 61935200 *Qty: 6 Spacer - US - SA $25.66
Location: 54 Prev | Next Part: 108333 *Qty: 2 (2) Protection - US $14.22
Location: 55 Prev | Next Part: 60967400 *Qty: 1 (1) L.H. roof gutter $143.64
Location: 55 Prev | Next Part: 60967300 *Qty: 1 (1) R.H. roof gutter $143.64
Location: 56 Prev | Next Part: 61758200 *Qty: 1 (2) L.H. roof gutter $184.22
Location: 56 Prev | Next Part: 61758100 *Qty: 1 (2) R.H. roof gutter $295.45
Location: 57 Prev | Next Part: 61880100 *Qty: 1 Protection - US - C7 - AUS - C8 $835.40
Location: 58 Prev | Next Part: 61722400 *Qty: 2 Bracket
Not for US - SA - AUS
$23.43
Location: 59 Prev | Next Part: 60862200 *Qty: 2 Bracket
Not for US - SA - AUS - F
$27.84
Location: 60 Prev | Next Part: 60987900 *Qty: 2 Front and rear plate frame - US $20.95
Location: 61 Prev | Next Part: 60960600 *Qty: 1 Rear support number plate - US $35.50
Location: 62 Prev | Next Part: 61880300 *Qty: 1 (1) Stop lamp - US $83.87
Location: 63 Prev | Next Part: 61758300 *Qty: 1 (2) Gasket $22.40

* Quantity shown indicates the number of pieces used in the diagram.
