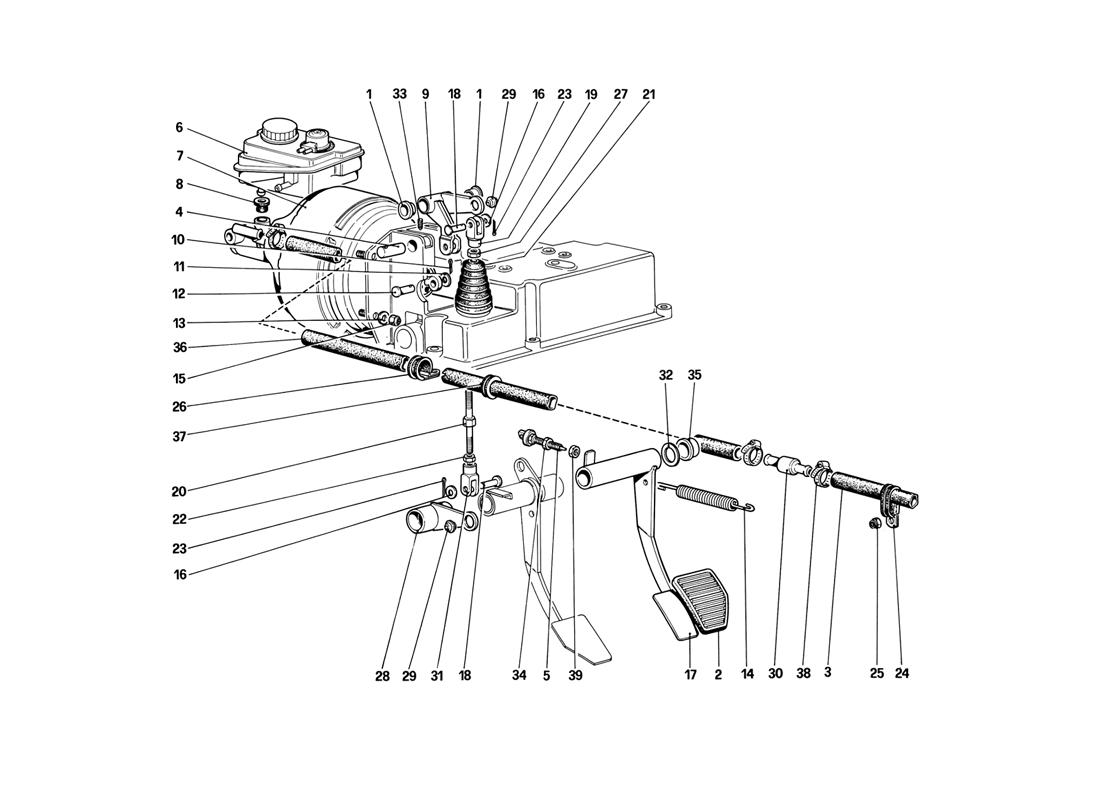

BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM)

Go to Split View

BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 124586 *Qty: 2 Bushing $5.09
Location: 2 Prev | Next Part: 106950 *Qty: 1 Pedal cover $31.47
Location: 3 Prev | Next Part: 120232 *Qty: 1 Pipe from valve to 3 way
For Cabriolet US use no. 111023
Call
Location: 4 Prev | Next Part: 124714 *Qty: 1 Pin for return lever $130.59
Location: 5 Prev | Next Part: 119439 *Qty: 1 Stop light switch $76.53
Location: 6 Prev | Next Part: 133579 *Qty: 1 Brake and clutch fluid reservoir
With brake booster no. 133576
Call
Location: 6 Prev | Next Part: 119566 *Qty: 1 Brake and clutch fluid reservoir
With brake booster no. 124514
Superseded
Location: 7 Prev | Next Part: 124514 *Qty: 1 Brake booster
Until car no. 71699
Superseded
Location: 7 Prev | Next Part: 133576 *Qty: 1 Brake booster
From car no. 71701
Call
Location: 8 Prev | Next Part: 106625 *Qty: 1 Sealing ring Superseded
Location: 9 Prev | Next Part: 121219 *Qty: 1 Brake booster lever $62.83
Location: 10 Prev | Next Part: 10796401 *Qty: 1 Split pin Superseded
Location: 11 Prev | Next Part: 10730521 *Qty: 1 Washer $2.92
Location: 12 Prev | Next Part: 10033411 *Qty: 1 Pin Superseded
Location: 13 Prev | Next Part: 12601371 *Qty: 4 Washer Superseded
Location: 14 Prev | Next Part: 104895 *Qty: 1 Pedal return spring $9.15
Location: 15 Prev | Next Part: 16104411 *Qty: 4 Nut $0.90
Location: 16 Prev | Next Part: 103167 *Qty: 2 Washer $4.92
Location: 17 Prev | Next Part: 121215 *Qty: 1 Brake pedal $314.69
Location: 18 Prev | Next Part: 10033411 *Qty: 2 Pin Superseded
Location: 19 Prev | Next Part: 104910 *Qty: 1 Fork, right thread $10.53
Location: 20 Prev | Next Part: 119164 *Qty: 1 Tie rod $128.89
Location: 21 Prev | Next Part: 112157 *Qty: 1 Bellows $12.74
Location: 22 Prev | Next Part: 11690911 *Qty: 1 Nut, left thread $4.32
Location: 23 Prev | Next Part: 10796401 *Qty: 2 Split pin Superseded
Location: 24 Prev | Next Part: 61712600 *Qty: 1 Clamp $2.09
Location: 25 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 26 Prev | Next Part: 10450790 *Qty: 1 Clamp $0.90
Location: 27 Prev | Next Part: 10788711 *Qty: 1 Nut, right thread $1.52
Location: 28 Prev | Next Part: 121217 *Qty: 1 Brake lever $63.01
Location: 29 Prev | Next Part: 100424 *Qty: 2 Ball joint Call
Location: 30 Prev | Next Part: 101538 *Qty: 1 Non return valve
After exhaustion use no. 128435
Superseded
Location: 31 Prev | Next Part: 104911 *Qty: 1 Fork, left thread $25.81
Location: 32 Prev | Next Part: 112127 *Qty: 2 Shim, 0,9 mm.
Possible fitting
$0.90
Location: 32 Prev | Next Part: 112128 *Qty: 2 Shim, 1,0 mm.
Possible fitting
$0.90
Location: 32 Prev | Next Part: 112130 *Qty: 2 Shim, 1,2 mm.
Possible fitting
$0.97
Location: 32 Prev | Next Part: 112129 *Qty: 2 Shim, 1,1 mm.
Possible fitting
$0.90
Location: 32 Prev | Next Part: 112131 *Qty: 2 Shim, 1,3 mm.
Possible fitting
$0.90
Location: 33 Prev | Next Part: 13736911 *Qty: 1 Screw $0.90
Location: 34 Prev | Next Part: 10791211 *Qty: 1 Adjust nut $0.90
Location: 35 Prev | Next Part: 124686 *Qty: 1 Bush $6.21
Location: 36 Prev | Next Part: 120233 *Qty: 1 Hose from brake booster to valve
For Cabriolet US use no. 108951
Call
Location: 37 Prev | Next Part: 10396880 *Qty: 1 Fair-lead $2.62
Location: 38 Prev | Next Part: 12179590 *Qty: 4 Clamp Superseded
Location: 39 Prev | Next Part: 101662 *Qty: 1 Nut $3.63

* Quantity shown indicates the number of pieces used in the diagram.
