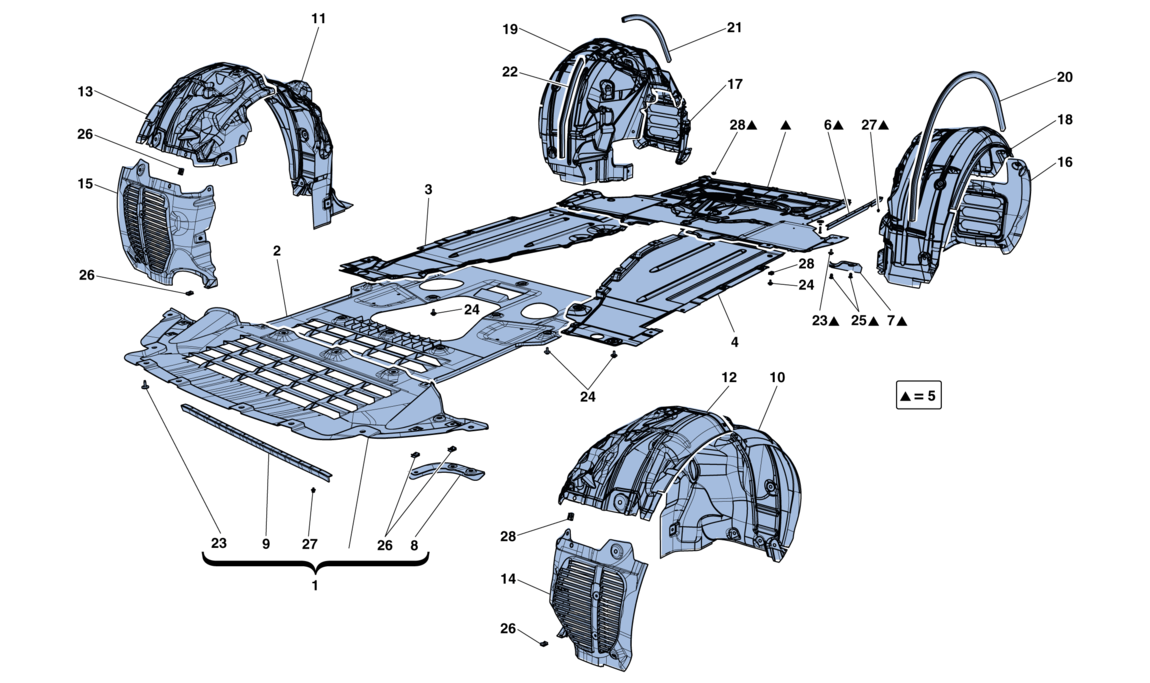

FLAT UNDERTRAY AND WHEELHOUSES

Location Part # Quantity* Description Price Add To Cart
1 86097900 1 FRONT SECTION OF FRONT FLAT UNDERTRAY Unavailable
2 85083500 1 CENTRAL SECTION OF FRONT FLAT UNDERTRAY Unavailable
3 83948500 1 RH REAR PART OF FRONT SECTION OF FLAT UNDERTRAY Unavailable
4 83948400 1 LH REAR PART OF FRONT SECTION OF FLAT UNDERTRAY $276.34
5 86574100 1 REAR FLAT UNDERTRAY SECTION $549.07
6 86588500 1 LH REAR DAM $222.43
6 86574200 1 RH REAR DAM $222.43
7 81464700 1 LH REAR AIR DEFLECTOR $18.67
7 81464800 1 RH REAR AIR DEFLECTOR $18.67
8 84357900 1 LH FRONT DAM $205.13
8 84357800 1 RH FRONT DAM $218.81
9 86148500 1 CENTRAL FRONT DAM $254.17
10 85151800 1 REAR GRAVEL GUARD FOR FRONT LH WHEELHOUSE $307.78
11 85152000 1 REAR GRAVEL GUARD FOR FRONT RH WHEELHOUSE $307.78
12 85151700 1 FRONT GRAVEL GUARD FOR FRONT LH WHEELHOUSE $298.68
13 85151900 1 FRONT GRAVEL GUARD FOR FRONT RH WHEELHOUSE $314.73
14 85944600 1 FRONT LH GRILLE $77.53
15 85944700 1 FRONT RH GRILLE $77.53
16 85402200 1 REAR GRAVEL GUARD FOR REAR LH WHEELHOUSE $423.20
17 85402300 1 REAR GRAVEL GUARD FOR REAR RH WHEELHOUSE $423.20
18 85152200 1 FRONT GRAVEL GUARD FOR REAR LH WHEELHOUSE $423.20
19 85152100 1 FRONT GRAVEL GUARD FOR REAR RH WHEELHOUSE $423.20
20 81952700 1 LH REAR WHEELHOUSE SEAL $42.29
21 81952900 1 REAR SEAL, RH REAR WHEELHOUSE $19.88
22 81952800 1 FRONT SEAL, RH REAR WHEELHOUSE $19.88
23 83442900 42 SCREW Unavailable
24 81290900 53 SCREW Unavailable
25 82531200 4 FASTENER BUTTON Unavailable
26 80874300 8 CLIP $1.32
27 14295696 22 RIVET Unavailable
28 14189071 11 BRACKET FOR SCREWS $0.90

* Quantity shown indicates the number of pieces used in the diagram.
