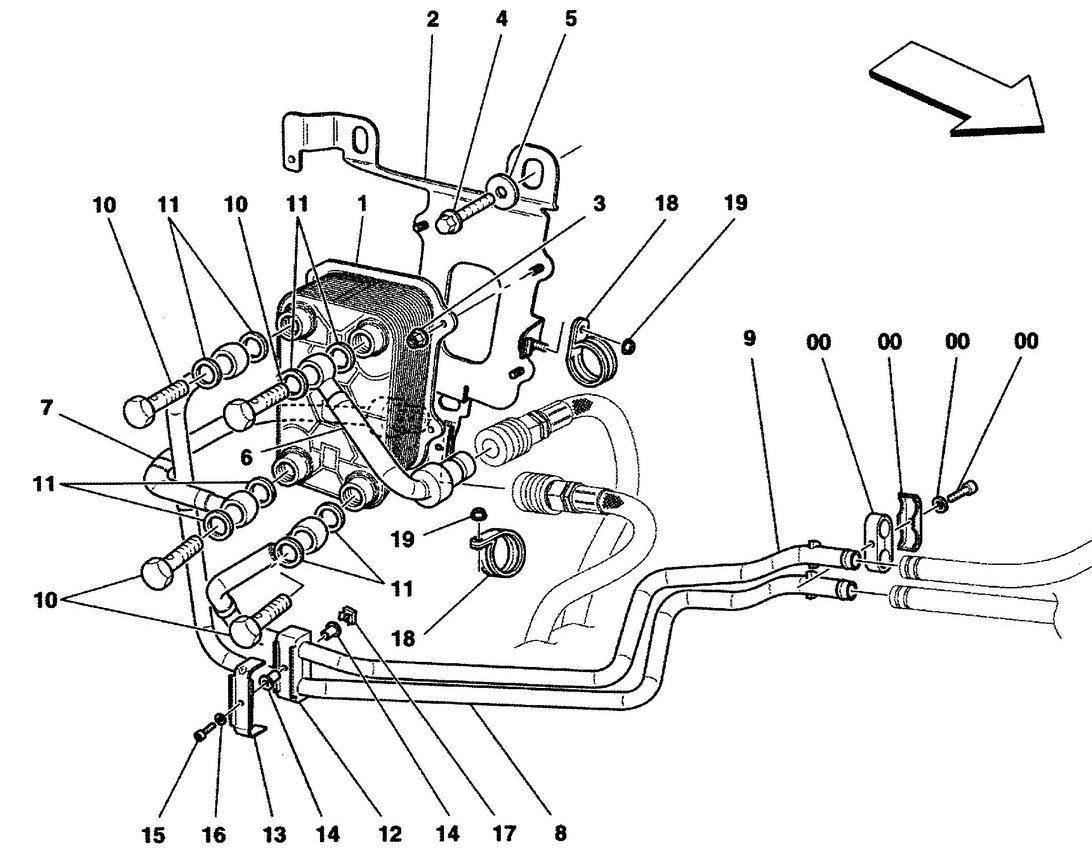

LUBRICATION AND GEARBOX OIL COOLING-2

Location Part # Quantity* Description Price Add To Cart
1 240632 1 OIL HEAT EXCHANGER $408.31
2 252331 1 OIL EXCHANGER BRACKET -Not for RHD- $141.33
2 253645 1 OIL EXCHANGER BRACKET -Valid forRHD- $246.32
3 14059214 4 NUT Unavailable
4 16287224 3 SCREW Superseded
5 12642024 3 WASHER Unavailable
6 254872 1 GEARBOX OIL DELIVERY TUBE -Not for RHD- -Not as spare part- -Replaced by 254872- $431.56
6 254872 1 GEARBOX OIL DELIVERY TUBE -Not for RHD- $431.56
6 253646 1 GEARBOX OIL DELIVERY TUBE -Valid for RHD- Unavailable
7 254873 1 GEARBOX OIL RETURN TUBE -Not for RHD- -Not as spare part- -Replaced by 254873- $430.20
7 254873 1 GEARBOX OIL RETURN TUBE -Not for RHD- $430.20
7 253647 1 GEARBOX OIL RETURN TUBE -Valid for RHD- Unavailable
8 243934 1 WATER DELIVERY PIPE $494.93
9 243935 1 WATER RETURN TUBE $241.94
10 184727 4 UNION $6.62
11 145192 8 GASKET Unavailable
12 243396 1 SUPPORT $25.19
13 243398 1 SMALL PLATE $13.70
14 243399 2 BUSHING Unavailable
15 14305834 1 SCREW Unavailable
16 11181874 1 WASHER Unavailable
17 60758600 1 NUT WITH CAGE Unavailable
18 10441590 2 BRACKET WITH SHEATH Unavailable
19 14059214 2 NUT Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
