TIMING -TAPPETS

Go to Split View

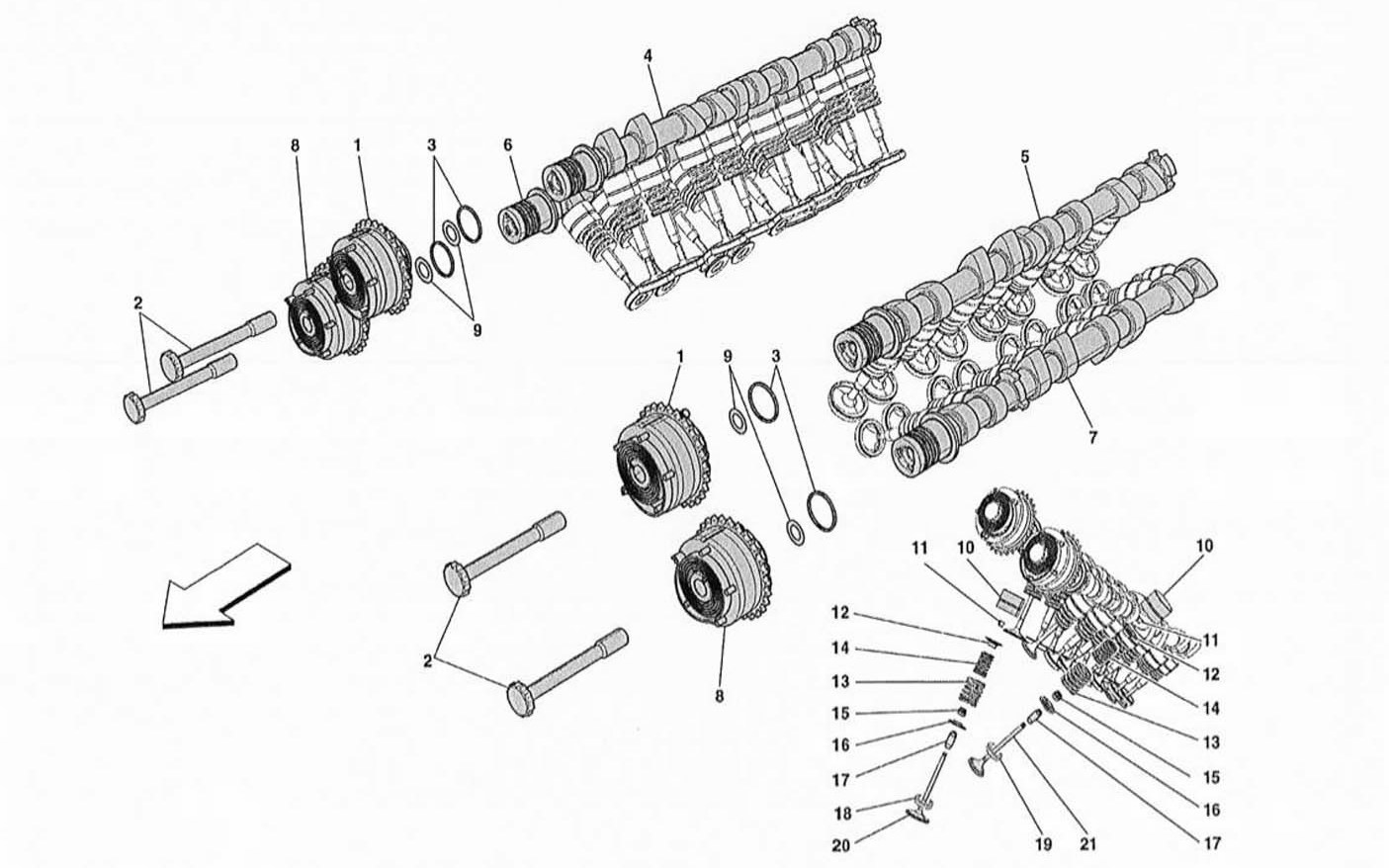

TIMING -TAPPETS

Location Part # Quantity* Description Price Add To Cart
1 241906 2 VARIABLE VALVE TIMING ADJUSTER $494.75
2 254892 4 SCREW $16.54
3 246965 12 SEAL RING $12.26
4 259156 1 RH INTAKE CAMSHAFT $461.11
5 259157 1 LH INTAKE CAMSHAFT $461.11
6 259158 1 RH EXHAUST CAMSHAFT $461.11
7 259159 1 LH EXHAUST CAMSHAFT $461.11
8 248020 2 VARIABLE VALVE TIMING ADJUSTER $496.88
9 240559 4 DIAMOND COATED WASHER $11.27
10 255431 32 HYDRAULIC TAPPET $47.95
11 179763 64 VALVE SPRING HALF-CONE Unavailable
12 237390 32 UPPER VALVE SPRING CAP $9.85
13 238640 32 EXTERNAL VALVE RETURN SPRING $12.50
14 238641 32 INTERNAL VALVE RETURN SPRING $8.91
15 221473 32 OIL SEAL $1.75
16 242574 32 LOWER STOP CAP $11.00
17 6213498 32 INTAKE AND EXHAUST VALVE GUIDE Unavailable
18 6222847 16 INTAKE VALVE SEAT $9.38
19 6222848 16 EXHAUST VALVE SEAT $10.07
20 198581 16 INTAKE VALVE $16.02
21 198582 16 EXHAUST VALVE $38.41

* Quantity shown indicates the number of pieces used in the diagram.
