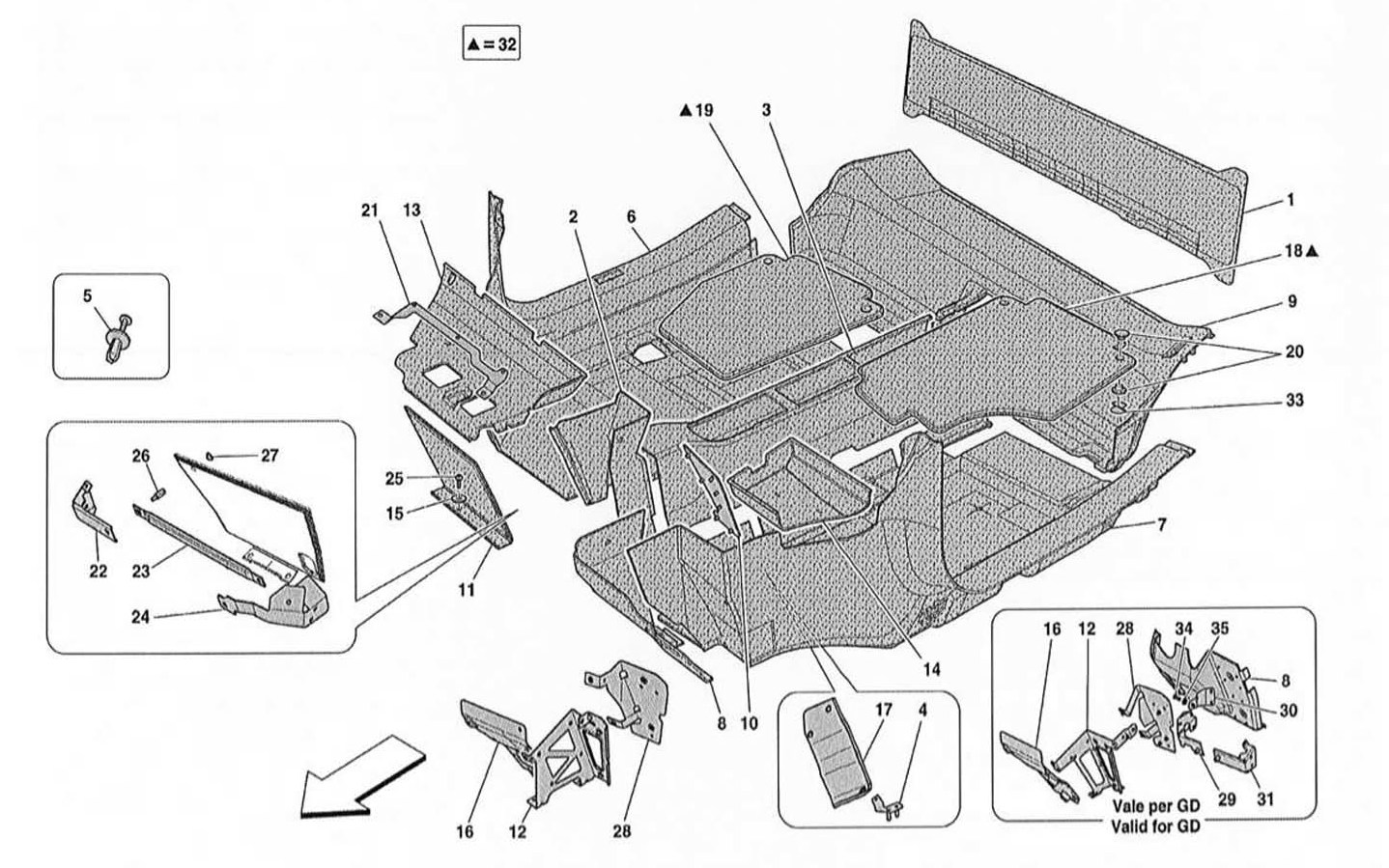

PASSENGERS COMPARTMENT CARPETS

Go to Split View

PASSENGERS COMPARTMENT CARPETS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 831873 *Qty: 1 VERTICAL REAR BENCH MAT -Mat- -Not for USA Call
Location: 1 Prev | Next Part: 843822 *Qty: 1 VERTICAL REAR BENCH MAT -Mat- -Applicable for USA Call
Location: 1 Prev | Next Part: 840044 *Qty: 1 VERTICAL REAR BENCH MAT -Alcantara- -Not for USA Call
Location: 1 Prev | Next Part: 843821 *Qty: 1 VERT ICAL REAR BENCH MAT -Alcantara- -Applicable for USA Call
Location: 1 Prev | Next Part: 840043 *Qty: 1 VERT ICAL REAR BENCH MAT -Leather- -Not for USA Superseded
Location: 1 Prev | Next Part: 843820 *Qty: 1 VERTICAL REAR BENCH MAT -Leather- -Applicable for USA Call
Location: 2 Prev | Next Part: 842592 *Qty: 1 FRONT TUNNEL TRIM -Mat- -Not for RHD- Call
Location: 2 Prev | Next Part: 827934 *Qty: 1 FRONT TUNNEL TRIM -Mat- -Applicable for RHD- Call
Location: 2 Prev | Next Part: 831190 *Qty: 1 FRONT TUNNEL TRIM -Alcantara- -Not for RHD- Call
Location: 2 Prev | Next Part: 831227 *Qty: 1 FRONT TUNNEL TRIM -Alcantara- -Applicable for RHD- Call
Location: 2 Prev | Next Part: 834890 *Qty: 1 FRONT TUNNEL TRIM -Leather- -Not for RHD- Call
Location: 2 Prev | Next Part: 834891 *Qty: 1 FRONT TUNNEL TRIM -Leather- -Applicable for RHD- Call
Location: 3 Prev | Next Part: 829062 *Qty: 1 REAR TUNNEL TRIM -Mat- Call
Location: 3 Prev | Next Part: 831191 *Qty: 1 REAR TUNNEL TRIM -Alcantara- Call
Location: 4 Prev | Next Part: 82925800 *Qty: 1 LH COSMETIC COVER FASTENER BRACKET $13.95
Location: 5 Prev | Next Part: 68808600 *Qty: 6 BUTTON $1.58
Location: 6 Prev | Next Part: 830078 *Qty: 11 RH FLOOR MAT -Mat- -Not for RHD- Call
Location: 6 Prev | Next Part: 827929 *Qty: 1 RH FLOOR MAT -Mat- -Applicable for RHD- Call
Location: 6 Prev | Next Part: 831197 *Qty: 1 RH FLOOR MAT -Alcantara- -STC1- -STC2- -Not for RHD- Call
Location: 6 Prev | Next Part: 831234 *Qty: 1 RH FLOOR MAT -Alcantara- -STC1- -STC2- -Applicable for RHD- Call
Location: 6 Prev | Next Part: 830639 *Qty: 1 RH FLOOR MAT -Mat- -Version with fire extinguisher- -Not for RHD- Call
Location: 6 Prev | Next Part: 831192 *Qty: 1 RH FLOOR MAT -Alcantara- -Version with fire extinguisher- -STC1- -STC2- -Not for RHD- Call
Location: 7 Prev | Next Part: 829031 *Qty: 1 LH FLOOR MAT -Mat- -Not for RHD- Call
Location: 7 Prev | Next Part: 827942 *Qty: 1 LH FLOOR MAT -Mat- -Applicable for RHD- Call
Location: 7 Prev | Next Part: 831199 *Qty: 1 LH FLOOR MAT -Alcantara- -STC1- -STC2- -Not for RHD- Call
Location: 7 Prev | Next Part: 831236 *Qty: 1 LH FLOOR MAT -Alcantara- -STC1- -STC2- -Applicable for RHD- Call
Location: 7 Prev | Next Part: 831231 *Qty: 1 LH FLOOR MAT -Mat- -Version with fire extinguisher- -Applicable for RHD- Call
Location: 7 Prev | Next Part: 831232 *Qty: 1 LH FLOOR MAT -Alcantara- -Version with fire extinguisher- -STC1- -STC2- -Applicable for RHD- Call
Location: 8 Prev | Next Part: 830594 *Qty: 1 ACCELERATOR PEDAL GUARD -Mat- -Not for RHD- Call
Location: 8 Prev | Next Part: 827927 *Qty: 1 ACCELERATOR PEDAL GUARD -Mat- -Applicable for RHD- Call
Location: 8 Prev | Next Part: 831200 *Qty: 1 ACCELERATOR PEDAL GUARD -Alcantara- -Not for RHD- Call
Location: 8 Prev | Next Part: 831226 *Qty: 1 ACCELERATOR PEDAL GUARD -Alcantara- -Applicable for RHD- Call
Location: 9 Prev | Next Part: 829032 *Qty: 1 REAR BENCH MAT -Mat- Call
Location: 9 Prev | Next Part: 831201 *Qty: 1 REAR BENCH MAT -Alcantara- Call
Location: 9 Prev | Next Part: 834838 *Qty: 1 REAR BENCH MAT -Leather- Call
Location: 10 Prev | Next Part: 82759900 *Qty: 1 DRIVER SIDE FOOTREST -Rubber- $29.98
Location: 11 Prev | Next Part: 842591 *Qty: 1 PASSENGER SIDE FOOTREST -Mat- -Not for RHD- Call
Location: 11 Prev | Next Part: 821364 *Qty: 1 PASSENGER SIDE FOOTREST -Mat- -Applicable for RHD- Call
Location: 11 Prev | Next Part: 831202 *Qty: 1 PASSENGER SIDE FOOTREST -Alcantara- -Not for RHD- Call
Location: 11 Prev | Next Part: 831294 *Qty: 1 PASSENGER SIDE FOOTREST -Alcantara- -Applicable for RHD- Call
Location: 12 Prev | Next Part: 82303400 *Qty: 1 BRACKET -Not for RHD- Call
Location: 12 Prev | Next Part: 84293500 *Qty: 1 BRACKET -Applicable for RHD- Call
Location: 13 Prev | Next Part: 830081 *Qty: 1 RH UNDERDASHBOARD SHIELD -Mat- -Not for RHD- Call
Location: 13 Prev | Next Part: 827935 *Qty: 1 RH UNDERDASHBOARD SHIELD -Mat- -Applicable for RHD- Call
Location: 13 Prev | Next Part: 831204 *Qty: 1 RH UNDERDASHBOARD SHIELD -Alcantara- -Not for RHD- Call
Location: 13 Prev | Next Part: 831230 *Qty: 1 RH UNDERDASHBOARD SHIELD -Alcantara- -Applicable for RHD- Call
Location: 14 Prev | Next Part: 821210 *Qty: 1 LH UNDERDASHBOARD SHIELD -Mat- -Not for RHD- Call
Location: 14 Prev | Next Part: 827939 *Qty: 1 LH UNDERDASHBOARD SHIELD -Mat- -Applicable for RHD- Call
Location: 14 Prev | Next Part: 831205 *Qty: 1 LH UNDERDASHBOARD SHIELD -Alcantara- -Not for RHD- Call
Location: 14 Prev | Next Part: 831229 *Qty: 1 LH UNDERDASHBOARD SHIELD -Alcantara- -Applicable for RHD- Call
Location: 15 Prev | Next Part: 12647727 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 83868700 *Qty: 1 REINFORCEMENT PLATE Call
Location: 17 Prev | Next Part: 82679200 *Qty: 1 LH STAINLESS STEEL COSMETIC COVER $23.87
Location: 17 Prev | Next Part: 83029100 *Qty: 1 LH STAINLESS STEEL COSMETIC COVER $58.75
Location: 17 Prev | Next Part: 82679300 *Qty: 1 RH STAINLESS STEEL COSMETIC COVER $33.72
Location: 17 Prev | Next Part: 83029100 *Qty: 2 STAINLESS STEEL COSMETIC COVER $58.75
Location: 18 Prev | Next Part: 830553 *Qty: 1 DRIVER SIDE REMOVABLE MAT -Mat- -Provided as kit- -Not for RHD- -Applicable until depletion- Call
Location: 18 Prev | Next Part: 836517 *Qty: 1 DRIVER SIDE REMOVABLE MAT -Mat- -Provided as kit- -Applicable for RHD- -Applicable until depletion- Call
Location: 18 Prev | Next Part: 831750 *Qty: 1 DRIVER SIDE REMOVABLE MAT -Alcantara- -Provided as kit- -Not for RHD- -Applicable until depletion- Call
Location: 18 Prev | Next Part: 836519 *Qty: 1 DRIVER SIDE REMOVABLE MAT -Alcantara- -Provided as kit- -Applicable for RHD- -Applicable until depletion- Call
Location: 19 Prev | Next Part: 830554 *Qty: 1 PASSENGER SIDE REMOVABLE MAT -Mat- -Provided as kit- -Not for RHD- -Applicable until depletion- Call
Location: 19 Prev | Next Part: 836518 *Qty: 1 PASSENGER SIDE REMOVABLE MAT -Mat- -Provided as kit- -Applicable for RHD- -Applicable until depletion- Call
Location: 19 Prev | Next Part: 832354 *Qty: 1 PASSENGER SIDE REMOVABLE MAT -Mat- -Fire extinguisher- -Provided as kit- -Not for RHD- -No longer supplied- Call
Location: 19 Prev | Next Part: 839140 *Qty: 1 PASSENGER SIDE REMOVABLE MAT -Mat- -Fire extinguisher- -Provided as kit- -Applicable for RHD--No longer supplied- Call
Location: 19 Prev | Next Part: 831752 *Qty: 1 PASSENGER SIDE REMOVABLE MAT -Alcantara- -Provided as kit- -Not for RHD- -Applicable until depletion- Call
Location: 19 Prev | Next Part: 836520 *Qty: 1 PASSENGER SIDE REMOVABLE MAT -Alcantara- -Provided as kit- -Applicable for RHD- -No longer supplied- Call
Location: 19 Prev | Next Part: 832355 *Qty: 1 PASSENGER SIDE REMOVABLE MAT -Alcantara- -Fire extinguisher- -Provided as kit- -Not for RHD--No longer supplied- Call
Location: 19 Prev | Next Part: 839141 *Qty: 1 PASSENGER SIDE REMOVABLE MAT -Alcantara- -Fire extinguisher- -Provided as kit- -Applicable for RHD- -Applicable until depletion- Call
Location: 20 Prev | Next Part: 83402500 *Qty: 4 FASTENER BUTTON $7.50
Location: 21 Prev | Next Part: 83581800 *Qty: 2 BRACKET $14.40
Location: 22 Prev | Next Part: 83216100 *Qty: 1 RH TUBE FASTENER BRACKET $51.41
Location: 23 Prev | Next Part: 82953800 *Qty: 1 FRONT FOOTREST MOUNTING TUBE $20.23
Location: 24 Prev | Next Part: 83216200 *Qty: 1 LH TUBE FASTENER BRACKET $79.31
Location: 25 Prev | Next Part: 64830600 *Qty: 2 SCREW $2.23
Location: 26 Prev | Next Part: 212519 *Qty: 1 STUD BOLT $7.97
Location: 27 Prev | Next Part: 65970500 *Qty: 1 BUTTON $5.08
Location: 28 Prev | Next Part: 84293300 *Qty: 1 DRIVER SIDE FOOTREST MOUNTING BRACKET -Not for RHD- Call
Location: 28 Prev | Next Part: 84293400 *Qty: 1 DRIVER SIDE FOOTREST MOUNTING BRACKET -Applicable for RHD- Call
Location: 29 Prev | Next Part: 83216300 *Qty: 1 RH TUBE FASTENER BRACKET -Applicable for RHD- Call
Location: 30 Prev | Next Part: 82991400 *Qty: 1 SUPPORT BRACKET CONNECTOR -Applicable for RHD- Call
Location: 31 Prev | Next Part: 83216400 *Qty: 1 LH TUBE FASTENER BRACKET -Applicable for RHD- Call
Location: 32 Prev | Next Part: 832360 *Qty: 1 REMOVABLE MAT KIT -Mat- -Not for RHD- Call
Location: 32 Prev | Next Part: 836347 *Qty: 1 REMOVABLE MAT KIT -Mat- -Applicable for RHD- Call
Location: 32 Prev | Next Part: 832361 *Qty: 1 REMOVABLE MAT KIT -Alcantara- -Not for RHD- Call
Location: 32 Prev | Next Part: 836348 *Qty: 1 REMOVABLE MAT KIT -Alcantara- -Applicable for RHD- Call
Location: 32 Prev | Next Part: 832363 *Qty: 1 REMOVABLE MAT KIT -Mat- -Version with extinguisher- -Not for RHD- Call
Location: 32 Prev | Next Part: 839131 *Qty: 1 REMOVABLE MAT KIT -Mat- -Version with extinguisher- -Applicable for RHD- Call
Location: 32 Prev | Next Part: 832364 *Qty: 1 REMOVABLE MAT KIT -Alcantara- -Version with extinguisher- -Not for RHD- Call
Location: 32 Prev | Next Part: 839132 *Qty: 1 REMOVABLE MAT KIT -Alcantara- -Version with extinguisher- -Applicable for RHD- Call
Location: 33 Prev | Next Part: 84932000 *Qty: 4 CLIP $30.85
Location: 34 Prev | Next Part: 14304624 *Qty: 1 SCREW $0.90
Location: 35 Prev | Next Part: 12638124 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
