INSULATIONS

Go to Split View

INSULATIONS

in cart

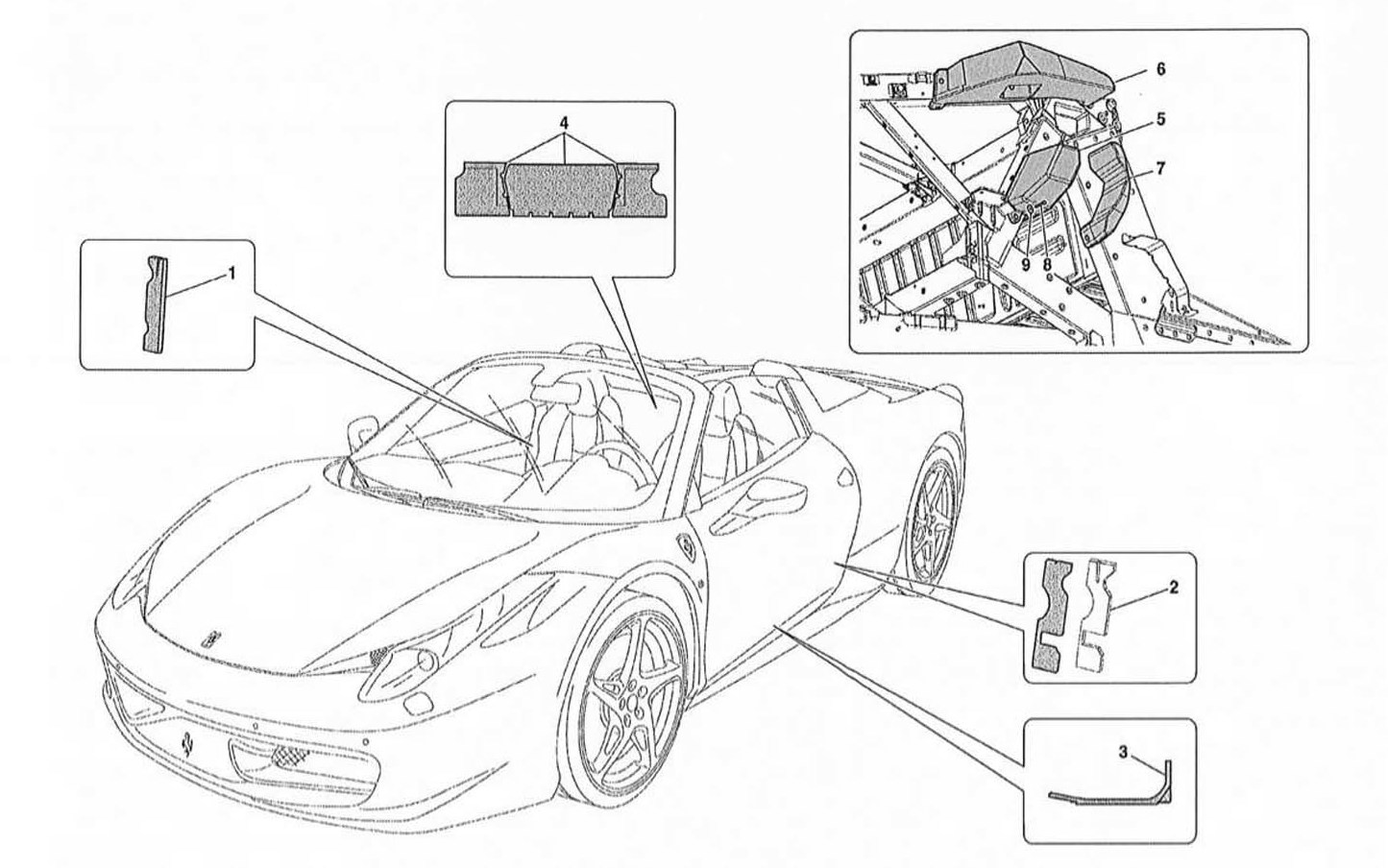

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 83446700 *Qty: 1 RH LATERAL FIREWALL SOUNDPROOFING -Vehicle liftsystem- Call
Location: 2 Prev | Next Part: 83446800 *Qty: 1 LH LATERAL FIREWALL SOUNDPROOFING Call
Location: 3 Prev | Next Part: 84097300 *Qty: 1 PAD FOR LH SILL -Not for RHD- $74.09
Location: 3 Prev | Next Part: 84097500 *Qty: 1 PAD FOR LH SILL -Applicable for RHD- Call
Location: 3 Prev | Next Part: 84097200 *Qty: 1 PAD FOR RH SILL -Not for RHD- Call
Location: 3 Prev | Next Part: 84097400 *Qty: 1 PAD FOR RH SILL -Applicable for RHD- Call
Location: 4 Prev | Next Part: 82854700 *Qty: 1 LH REAR FIREWALL INSULATION $44.05
Location: 4 Prev | Next Part: 82667600 *Qty: 1 RH REAR FIREWALL INSULATION $44.05
Location: 4 Prev | Next Part: 82667800 *Qty: 1 FIREWALL HATCH INSULATION $73.43
Location: 5 Prev | Next Part: 84907600 *Qty: 1 FOAM ELEMENT 1 FOR CRASH BOX-Not for version with lifter--Applicable for USA Call
Location: 6 Prev | Next Part: 84907700 *Qty: 1 FOAM ELEMENT 2 FOR CRASH BOX -Applicable for USA Call
Location: 7 Prev | Next Part: 84907800 *Qty: 1 FOAM ELEMENT 3 FOR CRASH BOX -Applicable for USA Call
Location: 8 Prev | Next Part: 10903024 *Qty: 3 SCREW -Applicable for USA $0.90
Location: 9 Prev | Next Part: 12648978 *Qty: 6 WASHER -Applicable for USA $0.90

* Quantity shown indicates the number of pieces used in the diagram.
