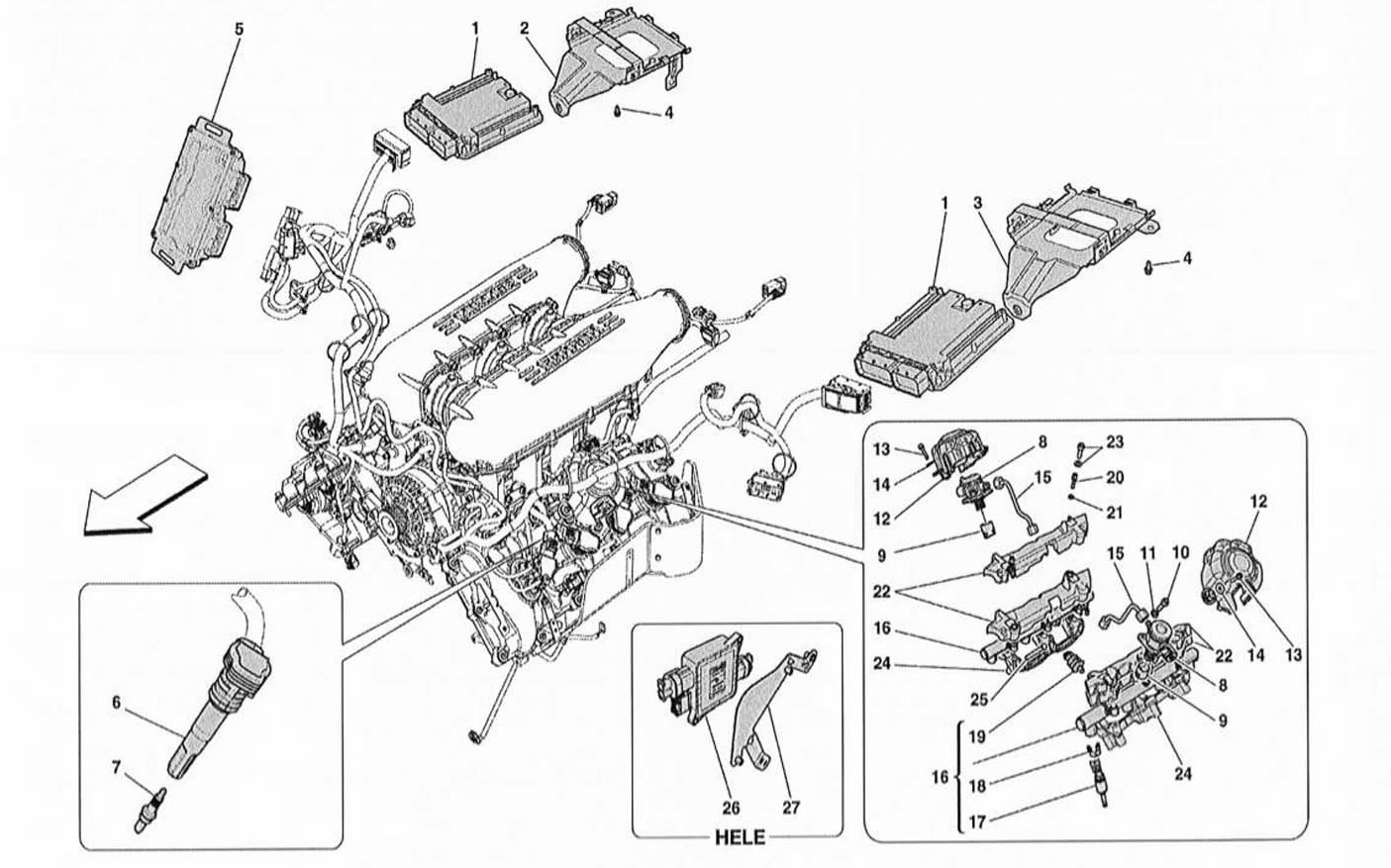

INJECTION DEVICE - IGNITION

Go to Split View

INJECTION DEVICE - IGNITION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 238263 *Qty: 2 IGNITION ECU -Unprogrammed- $3,251.56
Location: 2 Prev | Next Part: 261838 *Qty: 1 RH BRACKET $101.34
Location: 3 Prev | Next Part: 261839 *Qty: 1 LH BRACKET $101.34
Location: 4 Prev | Next Part: 231616 *Qty: 6 SCREW $0.90
Location: 5 Prev | Next Part: 262550 *Qty: 1 IONISING KNOCK SENSOR CONTROL UNIT -Unprogrammed- $1,497.74
Location: 6 Prev | Next Part: 248406 *Qty: 8 IGNITION COIL $203.36
Location: 7 Prev | Next Part: 254771 *Qty: 8 SPARK PLUG $43.30
Location: 8 Prev | Next Part: 252704 *Qty: 2 FUEL PUMP Call
Location: 9 Prev | Next Part: 212797 *Qty: 2 CUP $74.47
Location: 10 Prev | Next Part: 14305334 *Qty: 4 SCREW -M6X 20- $0.90
Location: 11 Prev | Next Part: 12639724 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 247537 *Qty: 2 SOUNDPROOFING COVER $102.82
Location: 13 Prev | Next Part: 231621 *Qty: 4 SCREW -M6 X 30- $0.90
Location: 14 Prev | Next Part: 12647701 *Qty: 4 WASHER $0.90
Location: 15 Prev | Next Part: 247674 *Qty: 2 PIPE $228.36
Location: 16 Prev | Next Part: 250777 *Qty: 2 COMPL INJECTOR PIPE $3,904.46
Location: 17 Prev | Next Part: 250776 *Qty: 4 ELECTRO-INJECTOR -Pressure sensor side- -Supplied together with COMPL. INJECTION PIPE pos.16- -No longer supplied- Call
Location: 17 Prev | Next Part: 250775 *Qty: 4 ELECTRO-INJECTOR -Opposite pressure sensor side- -Supplied together with COMPL. INJECTION PIPE pos.16- -No longer supplied- Call
Location: 18 Prev | Next Part: 231926 *Qty: 8 CLIP-Supplied together with COMPL INJECTION PIPE pos.16--No longer supplied- $7.81
Location: 19 Prev | Next Part: 247694 *Qty: 2 PRESSURE SENSOR -Supplied together with COMPL. INJECTION PIPE pos.16--No longer supplied- Call
Location: 20 Prev | Next Part: 214412 *Qty: 4 STUD BOLT $13.79
Location: 21 Prev | Next Part: 11194374 *Qty: 4 WASHER $0.90
Location: 22 Prev | Next Part: 256322 *Qty: 2 INJECTOR COVER $88.12
Location: 23 Prev | Next Part: 231618 *Qty: 4 SCREW-M6X 20- $0.90
Location: 24 Prev | Next Part: 239946 *Qty: 2 FUEL RAIL MOUNTING $129.81
Location: 25 Prev | Next Part: 231624 *Qty: 12 SCREW -M6 X 45- $0.90
Location: 26 Prev | Next Part: 264935 *Qty: 1 FUEL PUMP CONTROLLER -Applicable for HELE- $477.29
Location: 27 Prev | Next Part: 278268 *Qty: 1 ECU MOUNTING BRACKET -Applicable for HELE- Call

* Quantity shown indicates the number of pieces used in the diagram.
