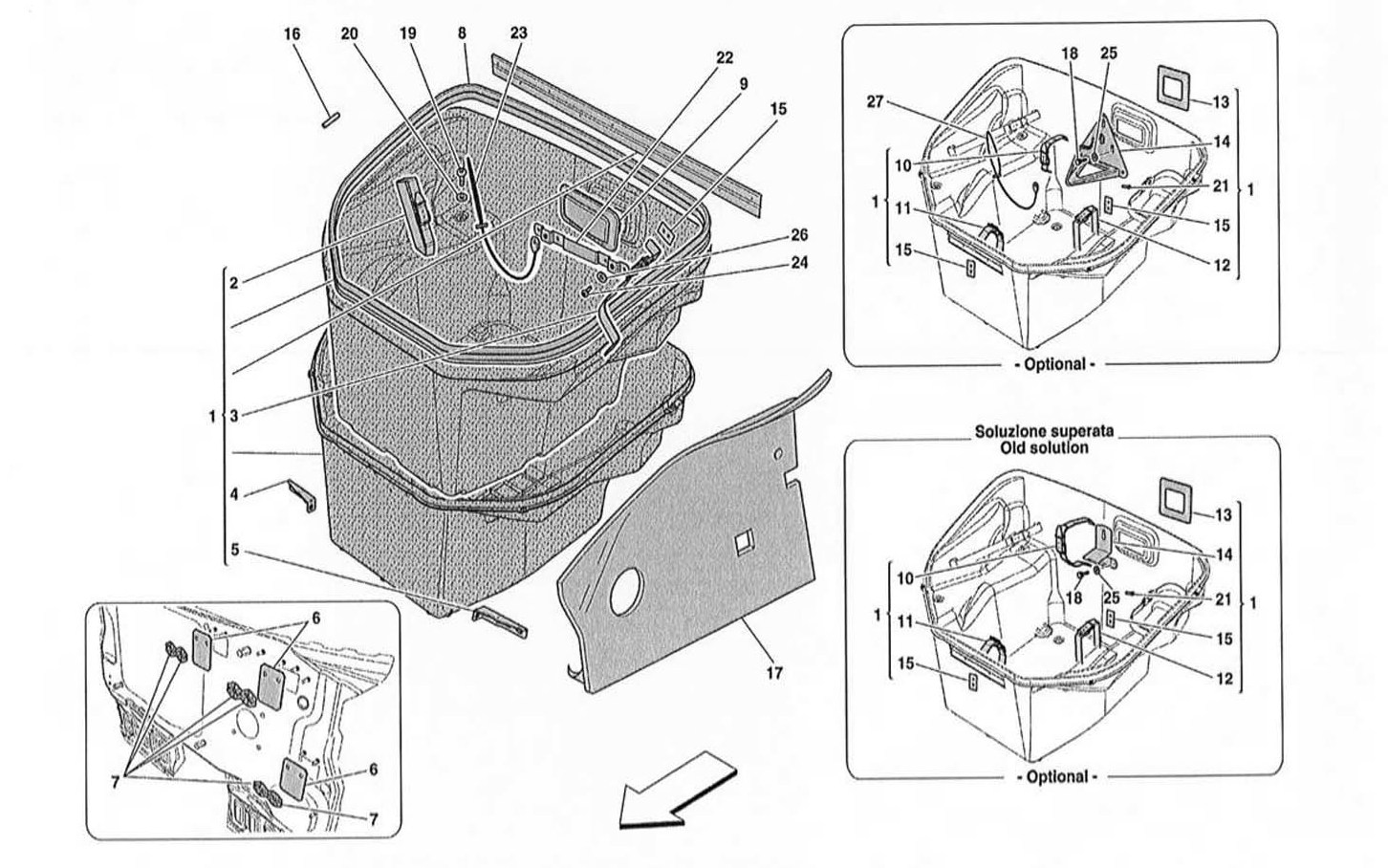

FRONT COMPARTMENT TRIMS

Go to Split View

FRONT COMPARTMENT TRIMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 81364800 *Qty: 1 COMPLETE LUGGAGE COMPARTMENT TUB -Not for USA Call
Location: 1 Prev | Next Part: 83171700 *Qty: 1 COMPLETE LUGGAGE COMPARTMENT TUB -Applicable for USA $2,187.93
Location: 1 Prev | Next Part: 829103 *Qty: 1 COMPLETE LUGGAGE COMPARTMENT TUB -Alcantara- -Not for USA Call
Location: 1 Prev | Next Part: 831709 *Qty: 1 COMPLETE LUGGAGE COMPARTMENT TUB -Alcantara- -Applicable for USA Call
Location: 1 Prev | Next Part: 82758600 *Qty: 1 COMPLETE LUGGAGE COMPARTMENT TUB -Optional Space Saver Spare Wheel- -Not for USA $3,603.38
Location: 1 Prev | Next Part: 83170500 *Qty: 1 COMPLETE LUGGAGE COMPARTMENT TUB -Optional Space Saver Spare Wheel- -Applicable for USA $3,603.38
Location: 1 Prev | Next Part: 830471 *Qty: 1 COMPLETE LUGGAGE COMPARTMENT TUB -Alcantara- -Optional Space Saver Spare Wheel--Not for USA Call
Location: 1 Prev | Next Part: 831713 *Qty: 1 COMPLETE LUGGAGE COMPARTMENT TUB -Alcantara- -Optional Space Saver Spare Wheel--Applicable for USA Call
Location: 2 Prev | Next Part: 81365200 *Qty: 1 COMPLETE TOOL KIT STRAP $116.23
Location: 3 Prev | Next Part: 81365100 *Qty: 1 RETAINER STRAP $116.23
Location: 4 Prev | Next Part: 82626600 *Qty: 1 RH BRACKET -Not for Optional space saver spare wheel- Call
Location: 5 Prev | Next Part: 82626700 *Qty: 1 LH BRACKET -Not for Optional space saver spare wheel- Call
Location: 6 Prev | Next Part: 82390300 *Qty: 3 VENTILATION FLAP $2.07
Location: 7 Prev | Next Part: 67315400 *Qty: 6 WASHER $0.90
Location: 8 Prev | Next Part: 81366000 *Qty: 1 LUGGAGE COMPARTMENT SEAL $183.19
Location: 9 Prev | Next Part: 239455 *Qty: 1 LUGGAGE COMPARTMENT LIGHT $22.07
Location: 10 Prev | Next Part: 82758500 *Qty: 1 UPPER RETAINER STRAP FOR SPACE SAVER SPARE WHEEL -Optional Space Saver Spare Wheel- -Not for USA $70.36
Location: 10 Prev | Next Part: 83559200 *Qty: 1 UPPER RETAINER STRAP FOR SPACE SAVER SPARE WHEEL -Optional Space Saver Spare Wheel- -Not for USA $56.95
Location: 10 Prev | Next Part: 83559200 *Qty: 1 UPPER RETAINER STRAP FOR SPACE SAVER SPARE WHEEL -Optional Space Saver Spare Wheel- -Applicable for USA $56.95
Location: 11 Prev | Next Part: 82758400 *Qty: 1 LOWER RETAINER STRAP FOR SPACE SAVER SPARE WHEEL -Optional Space Saver Spare Wheei- $70.36
Location: 12 Prev | Next Part: 82758300 *Qty: 1 TOOLKIT BAG FASTENER STRAP -Optional Space Saver Spare Wheel- $70.36
Location: 13 Prev | Next Part: 82758200 *Qty: 1 BRACKET REINFORCEMENT -Optional Space Saver Spare Wheel- $569.63
Location: 14 Prev | Next Part: 82758700 *Qty: 1 HINGED BRACKET -Optional Space Saver Spare Wheel- -Not for USA $113.92
Location: 14 Prev | Next Part: 83559000 *Qty: 1 HINGED BRACKET -Optional Space Saver Spare Wheel- -Not for USA $101.70
Location: 14 Prev | Next Part: 83559000 *Qty: 1 HINGED BRACKET -Optional Space Saver Spare Wheel- -Applicable for USA $101.70
Location: 15 Prev | Next Part: 81516000 *Qty: 5 PLATE -8 for Optional Space Saver Spare Wheel- $71.19
Location: 16 Prev | Next Part: 83212600 *Qty: 1 STUFFER FOR LUGGAGE COMPARTMENT SEAL $8.04
Location: 17 Prev | Next Part: 65774400 *Qty: 1 LH FRONT OUTER INSULATION -Not for USA $223.82
Location: 18 Prev | Next Part: 65744100 *Qty: 2 THREADED PIN -Not for USA $17.43
Location: 18 Prev | Next Part: 82965600 *Qty: 1 THREADED PIN -Not for USA $7.34
Location: 18 Prev | Next Part: 83559100 *Qty: 3 THREADED PIN -Not for USA $81.36
Location: 18 Prev | Next Part: 83559100 *Qty: 3 THREADED PIN -Applicable for USA $81.36
Location: 19 Prev | Next Part: 65933500 *Qty: 4 SCREW -M6X 15- $2.18
Location: 20 Prev | Next Part: 83072500 *Qty: 4 GASKET $3.01
Location: 21 Prev | Next Part: 14415690 *Qty: 16 RIVET $1.20
Location: 22 Prev | Next Part: 83615800 *Qty: 1 BRACKET FOR SPACE SAVER SPARE WHEEL -Optional Space Saver Spare Wheel- $55.53
Location: 23 Prev | Next Part: 83606300 *Qty: 1 SPACE SAVER SPARE WHEEL RETAINER CABLE -Optional Space Saver Spare Wheel- $97.55
Location: 24 Prev | Next Part: 68176500 *Qty: 2 SCREW -M5 X 12- -Optional Space Saver Spare Wheel- -No longer supplied- -Replaced by 262934- $0.90
Location: 24 Prev | Next Part: 262934 *Qty: 2 SCREW -Optional Space Saver Spare Wheel- $0.90
Location: 25 Prev | Next Part: 14447078 *Qty: 2 WASHER -Optional Space Saver Spare Wheel- $0.90
Location: 25 Prev | Next Part: 12624178 *Qty: 2 WASHER -Optional Space Saver Spare Wheel- $0.90
Location: 26 Prev | Next Part: 12624178 *Qty: 2 WASHER -Optional Space Saver Spare Wheel- $0.90
Location: 27 Prev | Next Part: 83606300 *Qty: 1 SPACE SAVER SPARE WHEEL RETAINER CABLE -Applicable from Ass. No. 106394- $97.55

* Quantity shown indicates the number of pieces used in the diagram.
