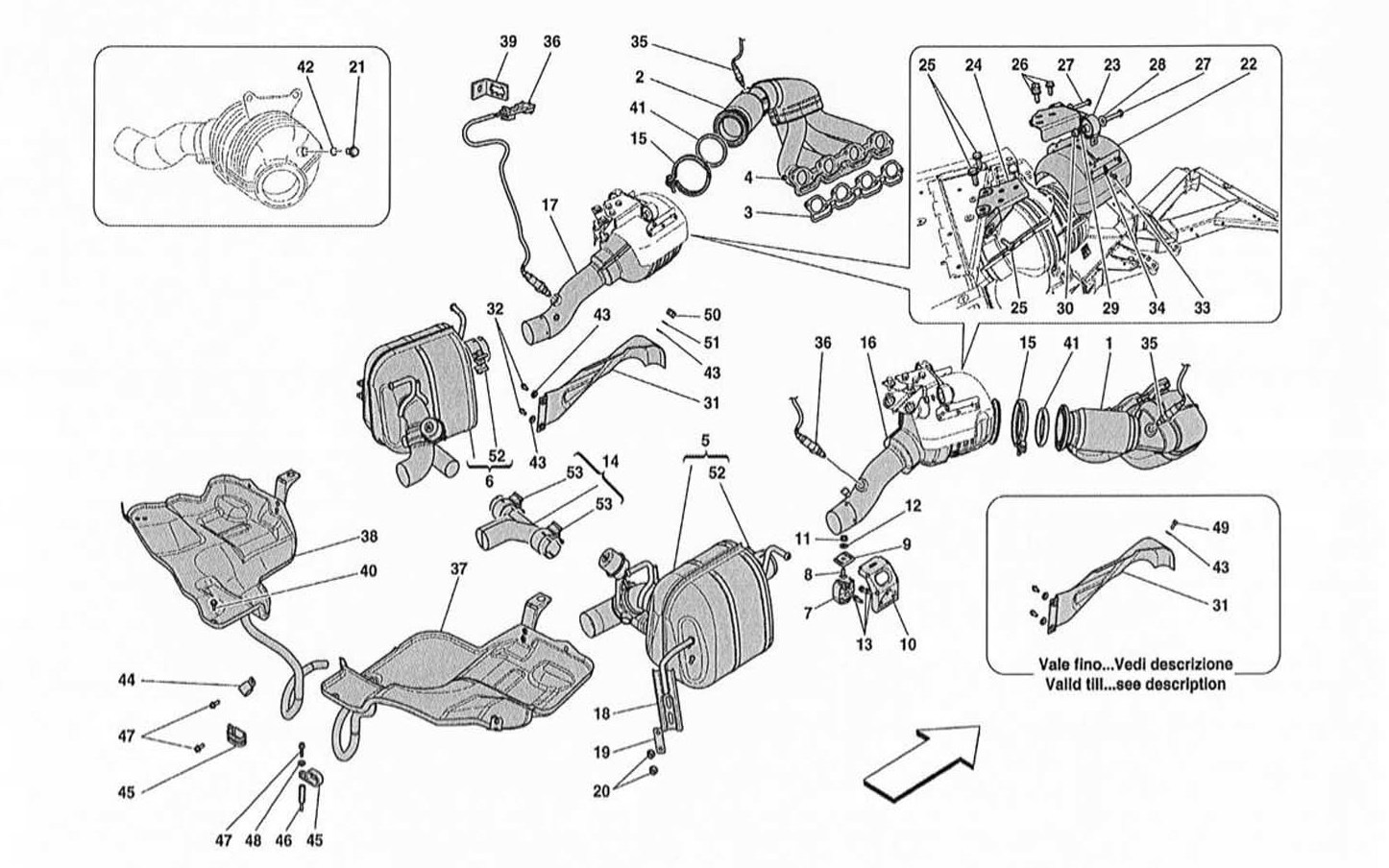

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 279322 *Qty: 1 COMPL. RH EXHAUST MANIFOLD -No longer supplied- -Replaced by 279322- $3,750.96
Location: 1 Prev | Next Part: 279322 *Qty: 1 COMPL. RH EXHAUST MANIFOLD $3,750.96
Location: 2 Prev | Next Part: 279323 *Qty: 1 COMPL. LH EXHAUST MANIFOLD -No longer supplied- -Replaced by 279323- $3,750.96
Location: 2 Prev | Next Part: 279323 *Qty: 1 COMPL. LH EXHAUST MANIFOLD $3,750.96
Location: 3 Prev | Next Part: 268256 *Qty: 2 GASKET $26.23
Location: 4 Prev | Next Part: 210971 *Qty: 16 NUT $2.28
Location: 5 Prev | Next Part: 274957 *Qty: 1 REAR RH SILENCER $2,543.59
Location: 6 Prev | Next Part: 274959 *Qty: 1 REAR LH SILENCER $2,543.59
Location: 7 Prev | Next Part: 239798 *Qty: 6 FLEXIBLE SILENCER MOUNTING BUSH $70.57
Location: 8 Prev | Next Part: 250222 *Qty: 6 SQUARE HEADED SCREW -No longer supplied- -Replaced by 283425- $3.86
Location: 8 Prev | Next Part: 283425 *Qty: 6 SQUARE HEADED SCREW Call
Location: 9 Prev | Next Part: 240598 *Qty: 6 PLATE $15.52
Location: 10 Prev | Next Part: 252764 *Qty: 4 SILENCER MOUNTING BRACKET $31.36
Location: 10 Prev | Next Part: 252765 *Qty: 2 OUTER REAR SILENCER BRACKET $38.80
Location: 11 Prev | Next Part: 14059214 *Qty: 6 NUT $0.90
Location: 12 Prev | Next Part: 12620474 *Qty: 6 WASHER $0.90
Location: 12 Prev | Next Part: 13578405 *Qty: 4 WASHER $1.22
Location: 13 Prev | Next Part: 11585024 *Qty: 18 SCREW -M5X14- $0.90
Location: 14 Prev | Next Part: 258108 *Qty: 1 CENTRAL OUTLET PIPE $262.22
Location: 15 Prev | Next Part: 256884 *Qty: 2 RING CLAMP $52.54
Location: 16 Prev | Next Part: 261686 *Qty: 1 RH CATALYTIC CONVERTER $9,815.90
Location: 17 Prev | Next Part: 261687 *Qty: 1 LH CATALYTIC CONVERTER $9,815.90
Location: 18 Prev | Next Part: 253857 *Qty: 1 RH SILENCER BRACKET $62.68
Location: 18 Prev | Next Part: 253858 *Qty: 1 LH SILENCER BRACKET $62.68
Location: 19 Prev | Next Part: 240597 *Qty: 2 PLATE $11.63
Location: 20 Prev | Next Part: 14059311 *Qty: 4 NUT $0.90
Location: 21 Prev | Next Part: 110860 *Qty: 2 THREADED PLUG Call
Location: 22 Prev | Next Part: 263588 *Qty: 1 RH CATALYTIC CONVERTER SHIELD $164.81
Location: 22 Prev | Next Part: 263589 *Qty: 1 LH CATALYTIC CONVERTER SHIELD $164.81
Location: 23 Prev | Next Part: 260561 *Qty: 1 RH BRACKET COMPL. WITH BUSHES $179.77
Location: 23 Prev | Next Part: 260562 *Qty: 1 LH BRACKET COMPL WITH BUSHES $179.77
Location: 24 Prev | Next Part: 260559 *Qty: 1 RH CATALYTIC CONVERTER BRACKET $97.39
Location: 24 Prev | Next Part: 260560 *Qty: 1 LH CATALYTIC CONVERTER BRACKET $97.39
Location: 25 Prev | Next Part: 11628126 *Qty: 8 SCREW Call
Location: 26 Prev | Next Part: 11627826 *Qty: 6 SCREW Call
Location: 27 Prev | Next Part: 16044321 *Qty: 4 SCREW $0.90
Location: 28 Prev | Next Part: 12601374 *Qty: 8 WASHER $0.90
Location: 29 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 30 Prev | Next Part: 14059311 *Qty: 4 NUT $0.90
Location: 31 Prev | Next Part: 267332 *Qty: 1 SHIELD $152.75
Location: 32 Prev | Next Part: 231620 *Qty: 2 SCREW -M6 X 20- $0.90
Location: 33 Prev | Next Part: 14304021 *Qty: 4 SCREW $0.90
Location: 34 Prev | Next Part: 14446624 *Qty: 4 WASHER $0.90
Location: 35 Prev | Next Part: 217447 *Qty: 2 FRONT OXYGEN SENSOR $227.00
Location: 36 Prev | Next Part: 180915 *Qty: 2 REAR OXYGEN SENSOR $175.00
Location: 37 Prev | Next Part: 271707 *Qty: 1 RH SILENCER SHIELD -Applicable up to Ass. No. 103617- Call
Location: 37 Prev | Next Part: 283920 *Qty: 1 RH SILENCER SHIELD -Applicable from Ass. No. 103618- Call
Location: 38 Prev | Next Part: 271708 *Qty: 1 LH SILENCER SHIELD-Applicable up to Ass. No. 103617- Call
Location: 38 Prev | Next Part: 283919 *Qty: 1 LH SILENCER SHIELD-Applicable from Ass. No. 103618- $55.52
Location: 39 Prev | Next Part: 178366 *Qty: 2 CONNECTOR FASTENER BRACKET -No longer supplied- -Replaced by 185408- $2.36
Location: 39 Prev | Next Part: 185408 *Qty: 2 CONNECTOR FASTENER BRACKET $3.29
Location: 40 Prev | Next Part: 11625824 *Qty: 2 SCREW $0.90
Location: 41 Prev | Next Part: 257360 *Qty: 2 GASKET $39.29
Location: 42 Prev | Next Part: 10298460 *Qty: 2 GASKET $0.90
Location: 43 Prev | Next Part: 12647704 *Qty: 3 WASHER $0.90
Location: 44 Prev | Next Part: 264409 *Qty: 1 BRACKET WITH SHEATH $4.36
Location: 45 Prev | Next Part: 263901 *Qty: 2 BRACKET WITH SHEATH $7.25
Location: 46 Prev | Next Part: 182363 *Qty: 1 STUD BOLT $26.23
Location: 47 Prev | Next Part: 248334 *Qty: 3 SCREW $0.90
Location: 48 Prev | Next Part: 12620477 *Qty: 1 WASHER $0.90
Location: 49 Prev | Next Part: 231620 *Qty: 1 SCREW -M6 X 20- -Applicable up to Ass. No. 104675- $0.90
Location: 50 Prev | Next Part: 15896214 *Qty: 1 NUT -Applicable from Ass. No. 104676- $0.90
Location: 51 Prev | Next Part: 12601274 *Qty: 1 WASHER -Applicable from Ass. No. 104676- $0.90
Location: 52 Prev | Next Part: 185307 *Qty: 2 RING CLAMP $18.12
Location: 53 Prev | Next Part: 292091 *Qty: 2 RING CLAMP $38.09

* Quantity shown indicates the number of pieces used in the diagram.
