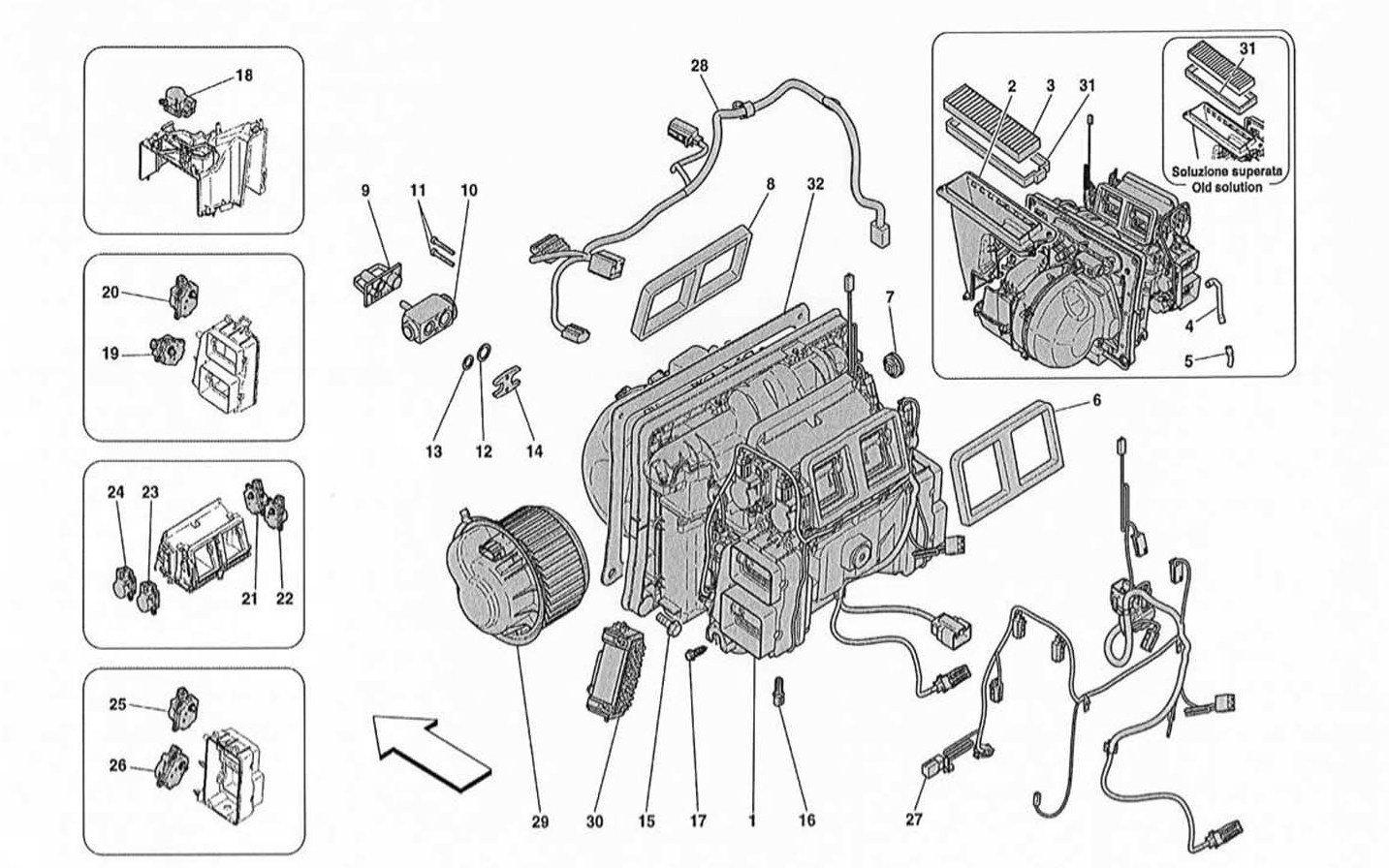

EVAPORATOR UNIT

Go to Split View

EVAPORATOR UNIT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 83856800 *Qty: 1 COMPLETE EVAPORATOR $4,808.51
Location: 2 Prev | Next Part: 83594700 *Qty: 1 MOBILE DUCT-Not for RHD- $125.13
Location: 2 Prev | Next Part: 84085600 *Qty: 1 MOBILE DUCT -Applicable for RHD- Call
Location: 3 Prev | Next Part: 82295100 *Qty: 1 ANTI-POLLEN FILTER $67.87
Location: 4 Prev | Next Part: 83244100 *Qty: 1 UPPER DRAIN PIPE -Not for RHD- $29.39
Location: 4 Prev | Next Part: 83953500 *Qty: 1 UPPER DRAIN PIPE -Applicable for RHD- Call
Location: 5 Prev | Next Part: 67935700 *Qty: 1 LOWER DRAIN PIPE -Not for RHD- $16.41
Location: 5 Prev | Next Part: 83304600 *Qty: 1 LOWER DRAIN PIPE -Applicable for RHD- $30.12
Location: 6 Prev | Next Part: 82046800 *Qty: 1 FRONT FILLER FOAM $227.62
Location: 7 Prev | Next Part: 68389800 *Qty: 0 RUBBER PAD $8.50
Location: 8 Prev | Next Part: 82046600 *Qty: 1 DEFROSTER DUCT FILLER FOAM $212.94
Location: 9 Prev | Next Part: 82049600 *Qty: 1 CAP -No longer supplied- Call
Location: 10 Prev | Next Part: 82073600 *Qty: 1 TXV BLOCK $519.14
Location: 11 Prev | Next Part: 82073600 *Qty: 2 SCREW $519.14
Location: 12 Prev | Next Part: 82073600 *Qty: 1 O-RING $519.14
Location: 13 Prev | Next Part: 82073600 *Qty: 1 O-RING $519.14
Location: 14 Prev | Next Part: 82073600 *Qty: 1 PLATE $519.14
Location: 15 Prev | Next Part: 16287127 *Qty: 4 SCREW $0.90
Location: 16 Prev | Next Part: 68390100 *Qty: 1 AIR SENSOR $15.58
Location: 17 Prev | Next Part: 62771900 *Qty: 3 SCREW $0.90
Location: 18 Prev | Next Part: 264869 *Qty: 1 LIN BUS RECIRCULATION ACTUATOR $199.15
Location: 19 Prev | Next Part: 82047300 *Qty: 1 ACTUATOR $205.28
Location: 20 Prev | Next Part: 82047400 *Qty: 1 ACTUATOR $205.28
Location: 21 Prev | Next Part: 82047500 *Qty: 1 ACTUATOR $205.28
Location: 22 Prev | Next Part: 82047600 *Qty: 1 ACTUATOR $205.28
Location: 23 Prev | Next Part: 82047700 *Qty: 1 ACTUATOR $225.91
Location: 24 Prev | Next Part: 82047900 *Qty: 1 ACTUATOR $205.28
Location: 25 Prev | Next Part: 82048100 *Qty: 1 ACTUATOR $205.28
Location: 26 Prev | Next Part: 82048200 *Qty: 1 ACTUATOR $205.28
Location: 27 Prev | Next Part: 280369 *Qty: 1 AC WIRING HARNESS -Passenger compartment side- -Not for HELE- $1,028.77
Location: 27 Prev | Next Part: 280369 *Qty: 1 AC WIRING HARNESS -Passenger compartment side- -Applicable for HELE- $1,028.77
Location: 28 Prev | Next Part: 264879 *Qty: 1 AC WIRING HARNESS -Engine side- $327.55
Location: 29 Prev | Next Part: 264880 *Qty: 1 FAN $904.02
Location: 30 Prev | Next Part: 264881 *Qty: 1 SPEED REGULATOR $458.33
Location: 31 Prev | Next Part: 83081700 *Qty: 1 DYNAMIC INTAKE FILLER FOAM Call
Location: 32 Prev | Next Part: 83982800 *Qty: 1 GASKET $39.28

* Quantity shown indicates the number of pieces used in the diagram.
