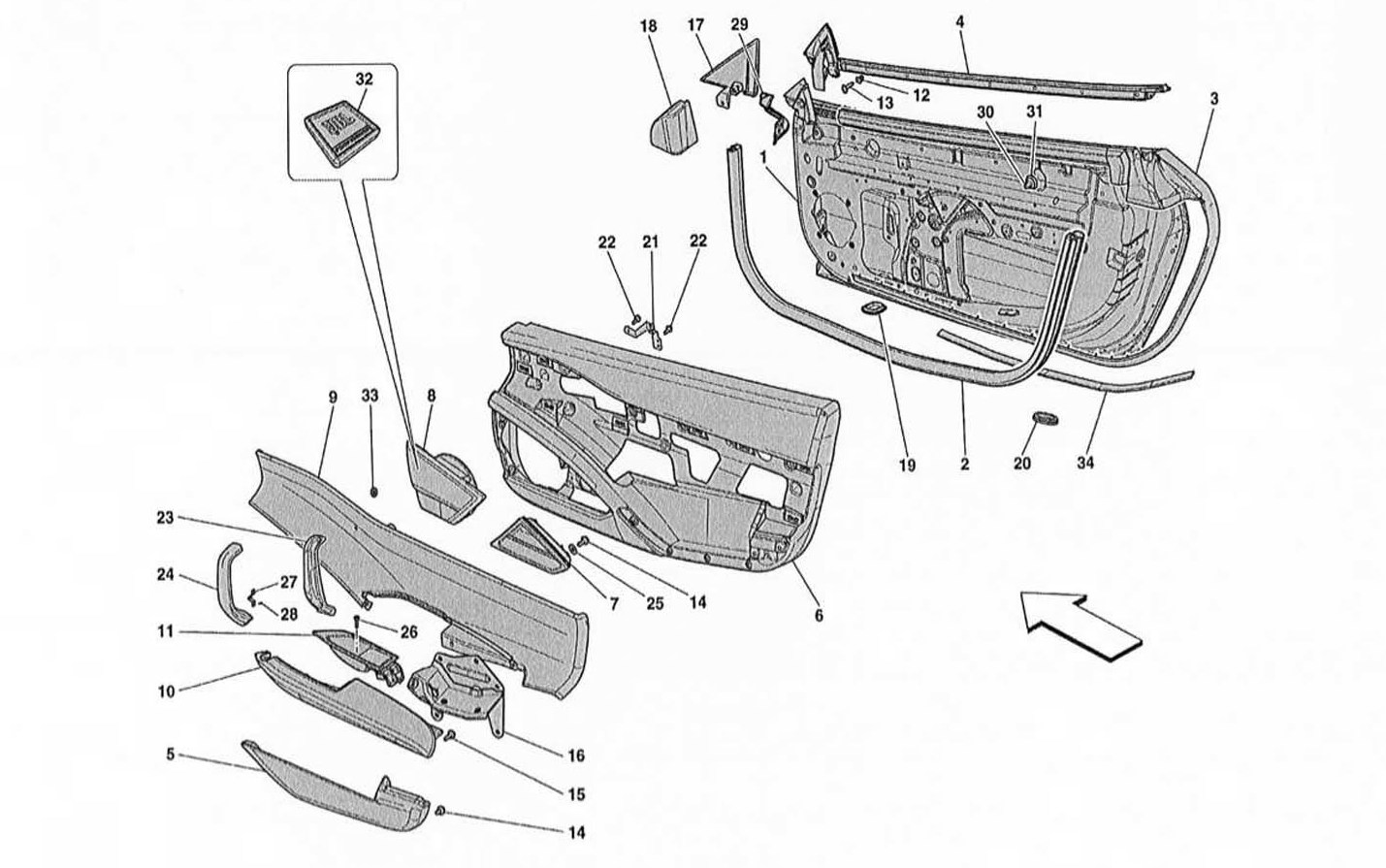

DOORS - FRAMEWORK AND COVERINGS

Go to Split View

DOORS - FRAMEWORK AND COVERINGS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 83886311 *Qty: 1 COMPL. RH DOOR STRUCTURE -Not for USA $7,690.93
Location: 1 Prev | Next Part: 83903711 *Qty: 1 COMPL. RH DOOR STRUCTURE -Applicable for USA $7,112.54
Location: 1 Prev | Next Part: 83964411 *Qty: 1 COMPL. RH DOOR STRUCTURE -Applicable for RHD- Call
Location: 1 Prev | Next Part: 83886411 *Qty: 1 COMPL. LH DOOR STRUCTURE -Not for USA $7,690.93
Location: 1 Prev | Next Part: 83904011 *Qty: 1 COMPL. LH DOOR STRUCTURE -Applicable for USA $7,112.54
Location: 1 Prev | Next Part: 83964511 *Qty: 1 COMPL. LH DOOR STRUCTURE -Applicable for RHD- Call
Location: 2 Prev | Next Part: 83987400 *Qty: 2 LOWER SEAL -Applicable up to Ass. No. 103245- -Applicable until depletion- $175.36
Location: 2 Prev | Next Part: 83987400 *Qty: 2 LOWER SEAL -Applicable from Ass. No. 103246- -Applicable after depletion of 82243600- $175.36
Location: 3 Prev | Next Part: 84685200 *Qty: 1 RH DOOR INNER PERIMETER SEAL -Not for USA $312.00
Location: 3 Prev | Next Part: 83903500 *Qty: 1 RH DOOR INNER PERIMETER SEAL -Applicable for USA $662.95
Location: 3 Prev | Next Part: 84685100 *Qty: 1 LH DOOR INNER PERIMETER SEAL -Not for USA $312.00
Location: 3 Prev | Next Part: 83903600 *Qty: 1 LH DOOR INNER PERIMETER SEAL -Applicable for USA $662.95
Location: 4 Prev | Next Part: 81361200 *Qty: 1 RH DOOR OUTER PERIMETER SEAL $461.16
Location: 4 Prev | Next Part: 81361400 *Qty: 1 LH DOOR OUTER PERIMETER SEAL $461.16
Location: 5 Prev | Next Part: 825979 *Qty: 1 COMPL. RH DOOR POCKET -Leather- -STC1- -STC2- Call
Location: 5 Prev | Next Part: 825981 *Qty: 1 COMPL. LH DOOR POCKET -Leather- -STC1- -STC2- Call
Location: 6 Prev | Next Part: 826436 *Qty: 1 COMPL. RH DOOR TRIM MOULDING -Leather- -STC1- -STC2- Call
Location: 6 Prev | Next Part: 826439 *Qty: 1 COMPL. LH DOOR TRIM MOULDING -Leather- -STC1- -STC2- Call
Location: 7 Prev | Next Part: 818905 *Qty: 1 COMPL. RH DOOR ODDMENTS STORAGE POCKET -Alcantara- -STC1- -STC2- Call
Location: 7 Prev | Next Part: 818942 *Qty: 1 COMPL. LH DOOR ODDMENTS STORAGE POCKET -Alcantara- -STC1- -STC2- Call
Location: 8 Prev | Next Part: 814883 *Qty: 1 RH WOOFER GRILLE -See colour grid for associating leather colour with paintwork colour- Call
Location: 8 Prev | Next Part: 825058 *Qty: 1 COMPLETE RH 200 WOOFER GRILLE -See colour grid for associating leather colour with paintwork colour- -High power HI-FI- -Does not include JBL logo Call
Location: 8 Prev | Next Part: 814884 *Qty: 1 LH WOOFER GRILLE -See colour grid for associating leather colour with paintwork colour- Call
Location: 8 Prev | Next Part: 825059 *Qty: 1 COMPLETE LH 200 WOOFER GRILLE -See colour grid for associating leather colour with paintwork colour- -High power HI-FI- -Does not include JBL logo Call
Location: 9 Prev | Next Part: 818913 *Qty: 1 COMPL. RH DOOR PANEL -See colour grid for associating leather colour with paintwork colour- -Not for RHD- Call
Location: 9 Prev | Next Part: 831355 *Qty: 1 COMPL. RH DOOR PANEL -See colour grid for associating leather colour with paintwork colour--Applicable for RHD- Call
Location: 9 Prev | Next Part: 830571 *Qty: 1 COMPL. RH DOOR PANEL -Alcantara- -Not for RHD- Call
Location: 9 Prev | Next Part: 835625 *Qty: 1 COMPL. RH DOOR PANEL -Alcantara- -Applicable for RHD- Call
Location: 9 Prev | Next Part: 82990100 *Qty: 1 COMPL. RH DOOR PANEL -Carbon- -Not for RHD- $3,302.49
Location: 9 Prev | Next Part: 83562400 *Qty: 1 COMPL. RH DOOR PANEL -Carbon- -Applicable for RHD- $3,158.02
Location: 9 Prev | Next Part: 84453300 *Qty: 1 COMPL. RH DOOR PANEL -Alutex- -Not for RHD- Call
Location: 9 Prev | Next Part: 84453700 *Qty: 1 COMPL. RH DOOR PANEL -Alutex- -Applicable for RHD- Call
Location: 9 Prev | Next Part: 818950 *Qty: 1 COMPL. LH DOOR PANEL -See colour grid for associating leather colour with paintwork colour- -Not for RHD- Call
Location: 9 Prev | Next Part: 831368 *Qty: 1 COMPL. LH DOOR PANEL -See colour grid for associating leather colour with paintwork colour--Applicable for RHD- Call
Location: 9 Prev | Next Part: 830573 *Qty: 1 COMPL. LH DOOR PANEL -Alcantara- -Not for RHD- Call
Location: 9 Prev | Next Part: 835617 *Qty: 1 COMPL. LH DOOR PANEL -Alcantara- -Applicable for RHD- Call
Location: 9 Prev | Next Part: 82990000 *Qty: 1 COMPL. LH DOOR PANEL -Carbon- -Not for RHD- $3,302.49
Location: 9 Prev | Next Part: 83561800 *Qty: 1 COMPL. LH DOOR PANEL -Carbon- -Applicable for RHD- $3,302.49
Location: 9 Prev | Next Part: 84453500 *Qty: 1 COMPL. LH DOOR PANEL -Alutex- -Not for RHD- Call
Location: 9 Prev | Next Part: 84453900 *Qty: 1 COMPL. LH DOOR PANEL -Alutex- -Applicable for RHD- Call
Location: 10 Prev | Next Part: 814877 *Qty: 1 RH ARMREST -Leather- -STC1- -STC2- -Not for RHD- Call
Location: 10 Prev | Next Part: 831370 *Qty: 1 RH ARMREST -Leather- -STC1- -STC2- -Applicable for RHD- Call
Location: 10 Prev | Next Part: 829399 *Qty: 1 RH ARMREST -Alcantara- -STC1- -STC2- -Not for RHD- Call
Location: 10 Prev | Next Part: 835629 *Qty: 1 RH ARMREST -Alcantara- -STC1- -STC2- -Applicable for RHD- Call
Location: 10 Prev | Next Part: 818954 *Qty: 1 LH ARMREST -Leather- -STC1 - -STC2- -Not for RHD- Call
Location: 10 Prev | Next Part: 831373 *Qty: 1 LH ARMREST -Leather- -STC1- -STC2- -Applicable for RHD- Call
Location: 10 Prev | Next Part: 829401 *Qty: 1 LH ARMREST -Alcantara- -STC1- -STC2- -Not for RHD- Call
Location: 10 Prev | Next Part: 835622 *Qty: 1 LH ARMREST -Alcantara- -STC1- -STC2- -Applicable for RHD Call
Location: 11 Prev | Next Part: 83020600 *Qty: 1 COMPL. RH DOOR HANDLE $329.59
Location: 11 Prev | Next Part: 83020500 *Qty: 1 COMPL. LH DOOR HANDLE $329.59
Location: 12 Prev | Next Part: 14115885 *Qty: 14 BLOCK $0.90
Location: 13 Prev | Next Part: 15689801 *Qty: 14 SCREW $0.90
Location: 14 Prev | Next Part: 10444624 *Qty: 12 SCREW $0.90
Location: 14 Prev | Next Part: 14303024 *Qty: 2 SCREW $1.13
Location: 15 Prev | Next Part: 169814 *Qty: 6 SCREW -Not for version in carbon fibre- $1.81
Location: 15 Prev | Next Part: 64460500 *Qty: 6 SCREW -For carbon version- $1.53
Location: 15 Prev | Next Part: 68176500 *Qty: 4 SCREW-M5X 12- $0.90
Location: 16 Prev | Next Part: 82646700 *Qty: 1 COMPL. RH ARMREST BRACKET -Not for RHD- $123.58
Location: 16 Prev | Next Part: 83120800 *Qty: 1 COMPL. RH ARMREST BRACKET -Applicable for RHD- Call
Location: 16 Prev | Next Part: 82646800 *Qty: 1 COMPL. LH ARMREST BRACKET -Not for RHD- Call
Location: 16 Prev | Next Part: 83120900 *Qty: 1 COMPL. LH ARMREST BRACKET -Applicable for RHD- Call
Location: 17 Prev | Next Part: 81486300 *Qty: 1 RH DOOR CORNER TRIANGLE $137.84
Location: 17 Prev | Next Part: 81486500 *Qty: 1 LH DOOR CORNER TRIANGLE $137.84
Location: 18 Prev | Next Part: 84312100 *Qty: 1 RH DOOR INNER CORNER TRIANGLE TRIM Call
Location: 18 Prev | Next Part: 84312200 *Qty: 1 LH DOOR INNER CORNER TRIANGLE TRIM Call
Location: 19 Prev | Next Part: 67935100 *Qty: 2 CAP FOR SLOT $3.78
Location: 20 Prev | Next Part: 63965800 *Qty: 2 CAP FOR UNDERTANK SHIELD $7.46
Location: 21 Prev | Next Part: 82671700 *Qty: 1 RH TRIM FASTENER BRACKET $14.68
Location: 21 Prev | Next Part: 82671800 *Qty: 1 LH TRIM FASTENER BRACKET $14.68
Location: 22 Prev | Next Part: 16284934 *Qty: 6 SCREW Call
Location: 23 Prev | Next Part: 84981300 *Qty: 1 DOOR HANDLE STRUCTURE -Not for RHD- Call
Location: 23 Prev | Next Part: 84981500 *Qty: 1 DOOR HANDLE STRUCTURE -Applicable for RHD- Call
Location: 24 Prev | Next Part: 827313 *Qty: 1 DOOR HANDLE TRIM -Leather- -Not for RHD- Call
Location: 24 Prev | Next Part: 830215 *Qty: 1 DOOR HANDLE TRIM -Leather- -Applicable for RHD- Call
Location: 25 Prev | Next Part: 13506607 *Qty: 12 WASHER $0.90
Location: 26 Prev | Next Part: 13311177 *Qty: 2 SCREW Call
Location: 27 Prev | Next Part: 68594300 *Qty: 2 CLIP $3.05
Location: 28 Prev | Next Part: 64214100 *Qty: 4 SCREW $0.90
Location: 29 Prev | Next Part: 84455900 *Qty: 1 RH DOOR COSMETIC SEAL $41.26
Location: 29 Prev | Next Part: 84456000 *Qty: 1 LH DOOR COSMETIC SEAL $41.26
Location: 30 Prev | Next Part: 82672700 *Qty: 4 CLIP $1.15
Location: 31 Prev | Next Part: 65841100 *Qty: 4 WASHER $1.44
Location: 32 Prev | Next Part: 83198200 *Qty: 2 JBL LOGO -High power HI-FI- $29.37
Location: 33 Prev | Next Part: 12647727 *Qty: 6 WASHER $0.90
Location: 34 Prev | Next Part: 84820700 *Qty: 2 ADHESIVE STRIP Call

* Quantity shown indicates the number of pieces used in the diagram.
