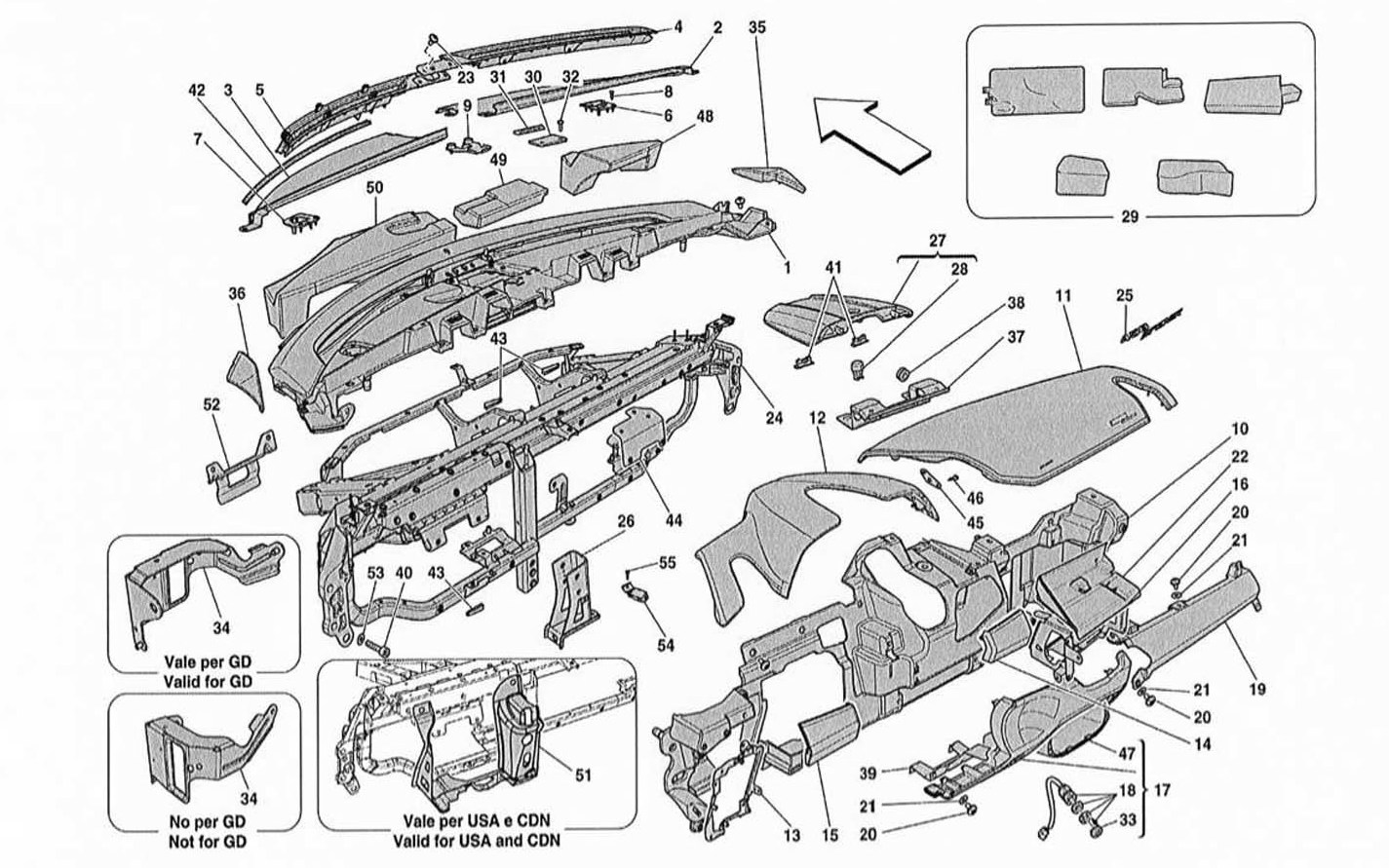

DASHBOARD

Go to Split View

DASHBOARD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 825095 *Qty: 1 COMPL. FRONT DASHBOARD SUBFRAME -Leather- -STC1- -STC2- Call
Location: 2 Prev | Next Part: 82511500 *Qty: 1 COMPL. RH GRILLE -Not for RHD- $209.75
Location: 2 Prev | Next Part: 83250500 *Qty: 1 COMPL. RH GRILLE -Applicable for RHD- Call
Location: 3 Prev | Next Part: 82511600 *Qty: 1 COMPL. LH GRILLE -Not for RHD- $209.75
Location: 3 Prev | Next Part: 82971900 *Qty: 1 COMPL. LH GRILLE -Applicable for RHD- $209.75
Location: 4 Prev | Next Part: 82437000 *Qty: 1 COMPL. RH DEFROSTER SEMI-SURROUND $110.16
Location: - Prev | Next Part: *Qty: 0 Call
Location: 5 Prev | Next Part: 82541000 *Qty: 1 COMPL. LH DEFROSTER SEMI-SURROUND $110.16
Location: 6 Prev | Next Part: 82539000 *Qty: 2 ADAPTOR FOR TWEETER -Standard- Call
Location: 7 Prev | Next Part: 82539400 *Qty: 2 ADAPTOR FOR TWEETER -Optional Becker Audio- $6.47
Location: 8 Prev | Next Part: 65212000 *Qty: 6 SCREW $1.38
Location: 9 Prev | Next Part: 82512300 *Qty: 1 GPS ANTENNA BRACKET $39.66
Location: 10 Prev | Next Part: 82509900 *Qty: 1 COMPLETE LOWER DASHBOARD SECTION -Not for RHD- $1,204.39
Location: 10 Prev | Next Part: 82761100 *Qty: 1 COMPLETE LOWER DASHBOARD SECTION -Applicable for RHD- Call
Location: 11 Prev | Next Part: 824930 *Qty: 1 COMPLETE UPPER DASHBOARD SECTION -Leather- -STC1- -STC2- -Not for RHD- Call
Location: 11 Prev | Next Part: 829570 *Qty: 1 COMPLETE UPPER DASHBOARD SECTION -Leather- -STC1- -STC2- -Applicable for RHD- Call
Location: 12 Prev | Next Part: 825107 *Qty: 1 COMPLETE BINNACLE -Leather- -STC1- -STC2- -Not for RHD- Call
Location: 12 Prev | Next Part: 827854 *Qty: 1 COMPLETE BINNACLE -Leather- -STC1- -STC2- -Applicable for RHD- Call
Location: 13 Prev | Next Part: 82512900 *Qty: 1 COMPL. BODY COMPUTER BRACKET -Not for RHD- $108.96
Location: 13 Prev | Next Part: 82785500 *Qty: 1 COMPL. BODY COMPUTER BRACKET -Applicable for RHD- Call
Location: 14 Prev | Next Part: 82050300 *Qty: 1 RH SATELLITE CONNECTOR $127.43
Location: 14 Prev | Next Part: 82989800 *Qty: 1 RH SATELLITE CONNECTOR -Carbon- $1,237.22
Location: 14 Prev | Next Part: 84457300 *Qty: 1 RH SATELLITE CONNECTOR -Alutex- Call
Location: 15 Prev | Next Part: 82050400 *Qty: 1 LH SATELLITE CONNECTOR $135.52
Location: 15 Prev | Next Part: 82989900 *Qty: 1 LH SATELLITE CONNECTOR -Carbon- $1,237.22
Location: 15 Prev | Next Part: 84457500 *Qty: 1 LH SATELLITE CONNECTOR -Alutex- Call
Location: 16 Prev | Next Part: 81499100 *Qty: 1 RADIO NIT BRACKET -Not for RHD- $79.39
Location: 16 Prev | Next Part: 82872000 *Qty: 1 RADIO NIT BRACKET -Applicable for RHD- Call
Location: 17 Prev | Next Part: 825847 *Qty: 1 LOWER CENTRE PANEL -Leather- -Applicable for electric steering column- -STC1- -STC2- -Not for RHD- Call
Location: 17 Prev | Next Part: 845488 *Qty: 1 LOWER CENTRE PANEL -Leather- -Applicable for manual steering column- -STC1- -STC2- -Not for RHD- Call
Location: 17 Prev | Next Part: 827642 *Qty: 1 LOWER CENTRE PANEL -Leather- -STC1- -STC2- -Applicable for RHD- Call
Location: 18 Prev | Next Part: 236847 *Qty: 1 TEMPERATURE SENSOR $99.41
Location: 19 Prev | Next Part: 82511100 *Qty: 1 CENTRE RH SATELLITE CONNECTOR -Not for RHD- $487.58
Location: 19 Prev | Next Part: 82785200 *Qty: 1 CENTRE LH SATELLITE CONNECTOR -Applicable for RHD- Call
Location: 19 Prev | Next Part: 82724600 *Qty: 1 CENTRE RH SATELLITE CONNECTOR -Carbon- -Not for RHD- $3,313.55
Location: 19 Prev | Next Part: 83329100 *Qty: 1 CENTRE LH SATELLITE CONNECTOR -Carbon- -Applicable for RHD- Call
Location: 19 Prev | Next Part: 84457100 *Qty: 1 CENTRE RH SATELLITE CONNECTOR -Alutex- -Not for RHD- Call
Location: 19 Prev | Next Part: 84458300 *Qty: 1 CENTRE LH SATELLITE CONNECTOR -Alutex- -Applicable for RHD- Call
Location: 20 Prev | Next Part: 169814 *Qty: 13 SCREW $1.81
Location: 21 Prev | Next Part: 12637801 *Qty: 15 WASHER Superseded
Location: 22 Prev | Next Part: 82971400 *Qty: 1 GLOVE COMPARTMENT TRAY -Not for RHD- $113.84
Location: 22 Prev | Next Part: 82875100 *Qty: 1 GLOVE COMPARTMENT TRAY -Applicable for RHD- Call
Location: 23 Prev | Next Part: 169814 *Qty: 2 SCREW $1.81
Location: 24 Prev | Next Part: 84303100 *Qty: 1 COMPL CROSS MEMBER Call
Location: 25 Prev | Next Part: 84558800 *Qty: 1 DASHBOARD SPIDER BADGE $117.48
Location: 26 Prev | Next Part: 83913600 *Qty: 1 BRACKET FASTENING CROSS MEMBER TO TUNNEL -Not for RHD- Call
Location: 26 Prev | Next Part: 82915700 *Qty: 1 BRACKET FASTENING CROSS MEMBER TO TUNNEL -Applicable for RHD- Call
Location: 27 Prev | Next Part: 82748600 *Qty: 1 SUN SENSOR COVER -Hi-Fi- $301.36
Location: 27 Prev | Next Part: 83375800 *Qty: 1 SUN SENSOR COVER -No Hi-Fi- Call
Location: 28 Prev | Next Part: 236871 *Qty: 1 SUN SENSOR $55.72
Location: 29 Prev | Next Part: 83005300 *Qty: 1 PULER UNDER STRUCTURE -720 X 210 X 40- Call
Location: 29 Prev | Next Part: 82912600 *Qty: 1 PULER UNDER STRUCTURE -400 X 170 X 60- -Applicable for RHD- Call
Location: 29 Prev | Next Part: 82913000 *Qty: 1 PULER UNDER STRUCTURE -230 X 120 X 60- -Applicable for RHD- Call
Location: 29 Prev | Next Part: 82913100 *Qty: 1 PULER UNDER STRUCTURE -160 X 120 X 60- -Applicable for RHD- Call
Location: 29 Prev | Next Part: 82967100 *Qty: 1 PULER UNDER STRUCTURE -360 X 120 X 60- -Applicable for RHD- Call
Location: 30 Prev | Next Part: 82549000 *Qty: 1 RH GRILLE RETAINER BRACKET $8.83
Location: 31 Prev | Next Part: 82549200 *Qty: 1 RUBBER PAD $3.99
Location: 32 Prev | Next Part: 68176200 *Qty: 2 SCREW -No longer supplied- -Replaced by 65212000- $1.33
Location: 32 Prev | Next Part: 65212000 *Qty: 2 SCREW $1.38
Location: 33 Prev | Next Part: 808863 *Qty: 1 TEMPERATURE SENSOR COVER GRILLE -Leather- Call
Location: 34 Prev | Next Part: 82104800 *Qty: 1 RH SATELLITE MOUNTING BRACKET -Not for RHD- Call
Location: 34 Prev | Next Part: 82810100 *Qty: 1 RH SATELLITE MOUNTING BRACKET -Applicable for RHD- Call
Location: 35 Prev | Next Part: 840031 *Qty: 1 LOWER RH PILLAR COVER Call
Location: 36 Prev | Next Part: 840032 *Qty: 1 LOWER LH PILLAR COVER Call
Location: 37 Prev | Next Part: 82508100 *Qty: 1 CENTRE BRACKET $27.90
Location: 38 Prev | Next Part: 10396380 *Qty: 2 GROMMET $0.90
Location: 39 Prev | Next Part: 82532400 *Qty: 2 FASTENER BRACKET FOR PANEL BODY $26.44
Location: 40 Prev | Next Part: 84030800 *Qty: 4 SCREW -Not for RHD- Call
Location: 40 Prev | Next Part: 82908600 *Qty: 4 SCREW -Applicable for RHD- $7.61
Location: 41 Prev | Next Part: 68700200 *Qty: 2 CLIP $7.18
Location: 42 Prev | Next Part: 69135100 *Qty: 2 GASKET $34.18
Location: 43 Prev | Next Part: 83332100 *Qty: 5 GASKET Call
Location: 44 Prev | Next Part: 83453000 *Qty: 1 NIT BRACE BRACKET -Not for RHD- Call
Location: 44 Prev | Next Part: 83689700 *Qty: 1 NIT BRACE BRACKET -Applicable for RHD- Call
Location: 45 Prev | Next Part: 82650100 *Qty: 1 BRACKET Call
Location: 46 Prev | Next Part: 13273811 *Qty: 2 SCREW $0.90
Location: 47 Prev | Next Part: 81877000 *Qty: 1 HEATER CONTROL MOUNT $73.43
Location: 48 Prev | Next Part: 84709200 *Qty: 1 RH PULER-Not for RHD- $35.69
Location: 49 Prev | Next Part: 84709100 *Qty: 1 CENTRAL PULER -Not for RHD- $26.19
Location: 50 Prev | Next Part: 84709000 *Qty: 1 LH PULER-Not for RHD- $100.97
Location: 51 Prev | Next Part: 84991600 *Qty: 1 KNEE IMPACT BRACKET -Applicable for mechanical steering column- -Applicable for USA Call
Location: 51 Prev | Next Part: 84991600 *Qty: 1 KNEE IMPACT BRACKET -Applicable for electric steering column- -Applicable for USA Call
Location: 52 Prev | Next Part: 84573100 *Qty: 1 MANUAL STEERING COLUMN ARRESTER BRACKET Call
Location: 53 Prev | Next Part: 12626224 *Qty: 0 WASHER $0.90
Location: 54 Prev | Next Part: 83139000 *Qty: 1 SPLITTER MOUNTING BRACKET -Applicable for J- Call
Location: 55 Prev | Next Part: 16286024 *Qty: 1 SCREW -Applicable for J- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
