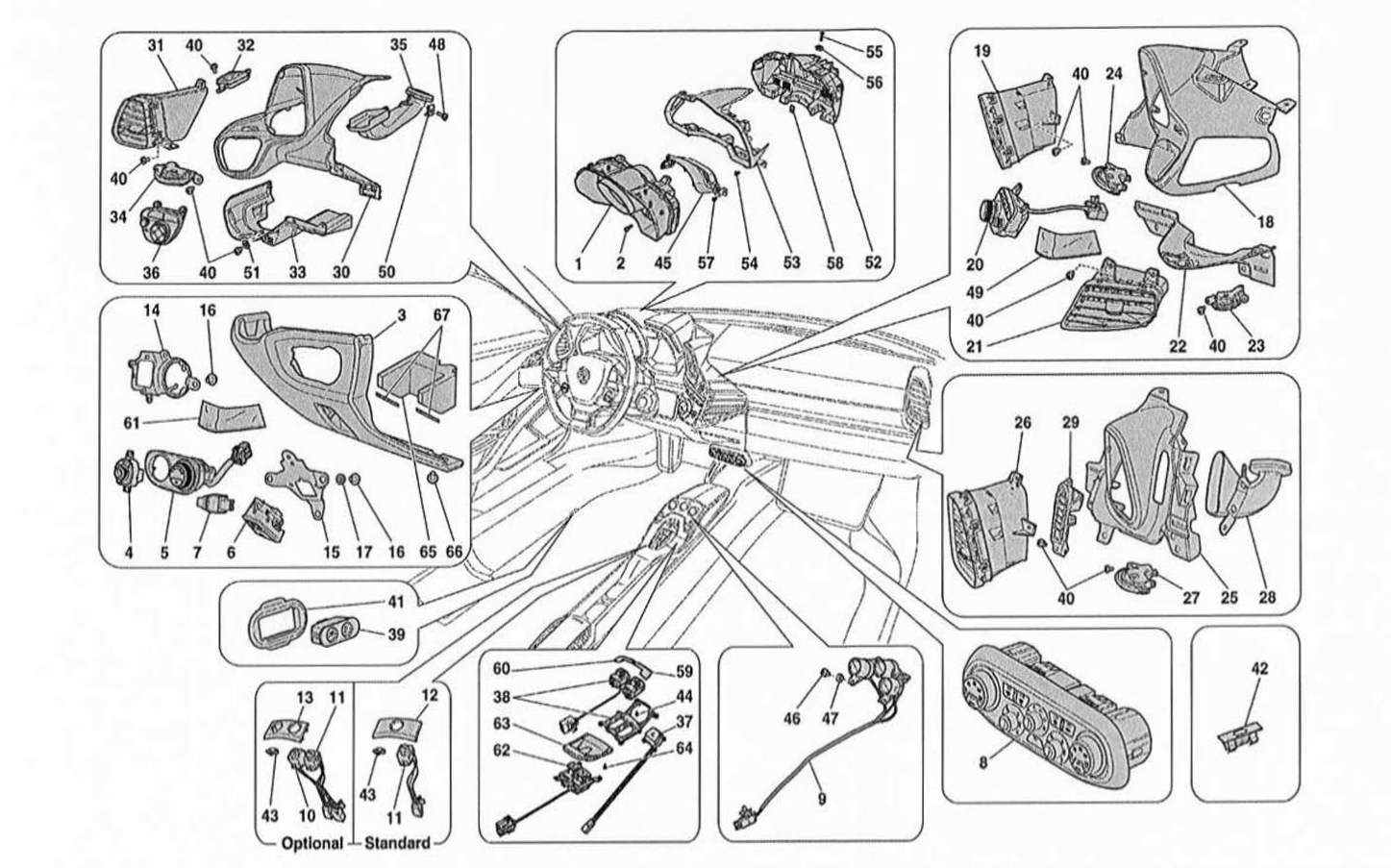

DASHBOARD AND TUNNEL INSTRUMENTS

Go to Split View

DASHBOARD AND TUNNEL INSTRUMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 273655 *Qty: 1 COMPLETE INSTRUMENT -Black dial face- -Not carbon- -Not for USA- Call
Location: 1 Prev | Next Part: 273675 *Qty: 1 COMPLETE INSTRUMENT -Black dial face- -Not carbon- -Applicable for USA- Call
Location: 1 Prev | Next Part: 273652 *Qty: 1 COMPLETE INSTRUMENT -Red dial face- -Not carbon- -Not for USA- Call
Location: 1 Prev | Next Part: 273672 *Qty: 1 COMPLETE INSTRUMENT -Red dial face- -Not carbon- -Applicable for USA- Call
Location: 1 Prev | Next Part: 273653 *Qty: 1 COMPLETE INSTRUMENT -Yellow dial face- -Not carbon- -Not for USA- Call
Location: 1 Prev | Next Part: 273673 *Qty: 1 COMPLETE INSTRUMENT -Yellow dial face- -Not carbon- -Applicable for USA- Call
Location: 1 Prev | Next Part: 273654 *Qty: 1 COMPLETE INSTRUMENT -White dial face- -Not carbon- -Not for USA- Call
Location: 1 Prev | Next Part: 273674 *Qty: 1 COMPLETE INSTRUMENT -White dial face- -Not carbon- -Applicable for USA- Call
Location: 1 Prev | Next Part: 273659 *Qty: 1 COMPLETE INSTRUMENT -Carbon- -Black background- -Not for USA- Call
Location: 1 Prev | Next Part: 273679 *Qty: 1 COMPLETE INSTRUMENT -Carbon- -Black background- -Applicable for USA- Call
Location: 1 Prev | Next Part: 273656 *Qty: 1 COMPLETE INSTRUMENT -Carbon- -Red background- -Not for USA- Call
Location: 1 Prev | Next Part: 273676 *Qty: 1 COMPLETE INSTRUMENT -Carbon- -Red background- -Applicable for USA- Call
Location: 1 Prev | Next Part: 273657 *Qty: 1 COMPLETE INSTRUMENT -Carbon- -Yellow background- -Not for USA- Call
Location: 1 Prev | Next Part: 273677 *Qty: 1 COMPLETE INSTRUMENT -Carbon- -Yellow background- -Applicable for USA- Call
Location: 1 Prev | Next Part: 273658 *Qty: 1 COMPLETE INSTRUMENT -Carbon- -White background- -Not for USA- Call
Location: 1 Prev | Next Part: 273678 *Qty: 1 COMPLETE INSTRUMENT -Carbon- -White background- -Applicable for USA- Call
Location: 2 Prev | Next Part: 65366700 *Qty: 2 SCREW-M5X 12- $1.26
Location: 2 Prev | Next Part: 169815 *Qty: 2 SCREW -M5 X 20- $2.21
Location: 3 Prev | Next Part: 825380 *Qty: 1 LOWER LH PANEL -Leather- -Applicable for electric steering column- -STC1- -STC2- -Not for RHD- Call
Location: 3 Prev | Next Part: 845399 *Qty: 1 LOWER LH PANEL -Leather- -Applicable for manual steering column- -STC1- -STC2- -Not for RHD- Call
Location: 3 Prev | Next Part: 828155 *Qty: 1 LOWER LH PANEL -Leather- -STC1- -STC2- -Applicable for RHD- Call
Location: 4 Prev | Next Part: 263013 *Qty: 1 EXTERNAL REAR VIEW MIRROR CONTROL -Standard- $283.89
Location: 4 Prev | Next Part: 259909 *Qty: 1 EXTERNAL REAR VIEW MIRROR CONTROL -Applicable for folding electrochromic mirrors- $283.89
Location: 5 Prev | Next Part: 834489 *Qty: 1 LIGHTS AND REAR FOG LIGHT SWITCH -Plastic in interior leather trim colour- -Not applicable for Korea- -Not for RHD- Call
Location: 5 Prev | Next Part: 835766 *Qty: 1 LIGHTS AND REAR FOG LIGHT SWITCH -Plastic in interior leather trim colour- -Applicable for RHD Call
Location: 5 Prev | Next Part: 851023 *Qty: 1 LIGHTS AND REAR FOG LIGHT SWITCH -Plastic in interior leather trim colour- -Applicable for Korea- Call
Location: 6 Prev | Next Part: 820259 *Qty: 1 EBP BUTTON WITH AUTOPARK DISABLE -Plastic in interior leather trim colour- Call
Location: 7 Prev | Next Part: 215272 *Qty: 1 STEERING COLUMN ADJUSTMENT CONTROL $75.00
Location: 7 Prev | Next Part: 193862 *Qty: 1 STEERING COLUMN ADJUSTMENT CONTROL -For Full Electric seats- $74.67
Location: 8 Prev | Next Part: 83830500 *Qty: 1 AC CONTROL PANEL -With Centigrade scale- -Not for USA $3,278.37
Location: 8 Prev | Next Part: 84049200 *Qty: 1 AC CONTROL PANEL -With Centigrade scale- -Applicable for USA Call
Location: 9 Prev | Next Part: 82745000 *Qty: 1 GEARBOX CONTROLS -Not for USA $494.39
Location: 9 Prev | Next Part: 83045000 *Qty: 1 GEARBOX CONTROLS -Applicable for USA $501.88
Location: 10 Prev | Next Part: 246568 *Qty: 1 VEHICLE LIFT CONTROL $102.82
Location: 11 Prev | Next Part: 246570 *Qty: 1 GLOVE COMPARTMENT RELEASE BUTTON $104.87
Location: 12 Prev | Next Part: 814677 *Qty: 1 GLOVE COMPARTMENT RELEASE BUTTON SURROUND -Plastic in interior leather trim colour- Call
Location: 13 Prev | Next Part: 814682 *Qty: 1 SURROUND FOR GLOVE COMPARTMENT RELEASE BUTTON AND VEHICLE LIFT CONTROL -Plastic in interior leather trim colour- Call
Location: 14 Prev | Next Part: 82888300 *Qty: 1 LIGHT SELECTOR FASTENER BRACKET -Not for RHD- $24.97
Location: 14 Prev | Next Part: 82816000 *Qty: 1 LIGHT SELECTOR FASTENER BRACKET -Applicable for RHD- Call
Location: 15 Prev | Next Part: 83739700 *Qty: 1 BUTTON FASTENER BRACKET $19.10
Location: 16 Prev | Next Part: 65212000 *Qty: 7 SCREW $1.38
Location: 17 Prev | Next Part: 12637801 *Qty: 3 WASHER Superseded
Location: 18 Prev | Next Part: 82510900 *Qty: 1 CENTRAL VENT TRIM -Not for RHD- $713.09
Location: 18 Prev | Next Part: 82808900 *Qty: 1 CENTRAL VENT TRIM -Applicable for RHD- $864.72
Location: 18 Prev | Next Part: 82989500 *Qty: 1 CENTRAL VENT TRIM -Carbon- -Not for RHD- $4,540.58
Location: 18 Prev | Next Part: 83328100 *Qty: 1 CENTRAL VENT TRIM -Carbon- -Applicable for RHD- Call
Location: 18 Prev | Next Part: 84459300 *Qty: 1 CENTRAL VENT TRIM -Alutex- -Not for RHD- Call
Location: 18 Prev | Next Part: 84460900 *Qty: 1 CENTRAL VENT TRIM -Alutex- -Applicable for RHD- Call
Location: 19 Prev | Next Part: 81496800 *Qty: 1 RH VENT $153.72
Location: 20 Prev | Next Part: 254294 *Qty: 1 NAVIGATOR CONTROLS $1,392.55
Location: 21 Prev | Next Part: 81496900 *Qty: 1 LOWER CENTRAL AIR VENT -Not for RHD- $150.71
Location: 21 Prev | Next Part: 82912300 *Qty: 1 LOWER CENTRAL AIR VENT -Applicable for RHD- $150.57
Location: 22 Prev | Next Part: 82986700 *Qty: 1 LOWER CENTRAL COVER -Not for RHD- $146.87
Location: 22 Prev | Next Part: 82871100 *Qty: 1 LOWER CENTRAL COVER -Applicable for RHD- $283.75
Location: 22 Prev | Next Part: 83264400 *Qty: 1 LOWER CENTRAL COVER -Carbon- -Not for RHD- $755.15
Location: 22 Prev | Next Part: 83328400 *Qty: 1 LOWER CENTRAL COVER -Carbon- -Applicable for RHD- Call
Location: 23 Prev | Next Part: 82893600 *Qty: 1 LOWER CENTRAL AIR VENT CONTROL $155.67
Location: 24 Prev | Next Part: 82893500 *Qty: 1 AIR VENT CONTROL $155.67
Location: 25 Prev | Next Part: 82511300 *Qty: 1 RH VENT TRIM-Not for RHD- $630.28
Location: 25 Prev | Next Part: 82809100 *Qty: 1 RH VENT TRIM -Applicable for RHD- Call
Location: 25 Prev | Next Part: 82989400 *Qty: 1 RH VENT TRIM -Carbon- -Not for RHD- $4,159.31
Location: 25 Prev | Next Part: 83330100 *Qty: 1 RH VENT TRIM -Carbon- -Applicable for RHD- $4,403.23
Location: 25 Prev | Next Part: 84458500 *Qty: 1 RH VENT TRIM -Alutex- -Not for RHD- Call
Location: 25 Prev | Next Part: 84460100 *Qty: 1 RH VENT TRIM -Alutex- -Applicable for RHD- Call
Location: 26 Prev | Next Part: 81496800 *Qty: 1 RH VENT $153.72
Location: 27 Prev | Next Part: 82893500 *Qty: 1 AIR VENT CONTROL $155.67
Location: 28 Prev | Next Part: 81981100 *Qty: 1 RH LATERAL AIR DUCT -Not for RHD- $80.49
Location: 28 Prev | Next Part: 82809300 *Qty: 1 RH LATERAL AIR DUCT -Applicable for RHD- Call
Location: 29 Prev | Next Part: 81981000 *Qty: 1 RH LATERAL AIR DUCT GRILLE -Not for RHD- $49.93
Location: 29 Prev | Next Part: 82809600 *Qty: 1 RH LATERAL AIR DUCT GRILLE -Applicable for RHD- Call
Location: 30 Prev | Next Part: 81970100 *Qty: 1 LH VENT TRIM-Not for RHD- $703.51
Location: 30 Prev | Next Part: 82807900 *Qty: 1 LH VENT TRIM -Applicable for RHD- $792.00
Location: 30 Prev | Next Part: 82989300 *Qty: 1 LH VENT TRIM -Carbon- -Not for RHD- $4,403.23
Location: 30 Prev | Next Part: 83328700 *Qty: 1 LH VENT TRIM -Carbon- -Applicable for RHD- Call
Location: 30 Prev | Next Part: 84458700 *Qty: 1 LH VENT TRIM -Alutex- -Not for RHD- Call
Location: 30 Prev | Next Part: 84460300 *Qty: 1 LH VENT TRIM -Alutex- -Applicable for RHD- Call
Location: 31 Prev | Next Part: 81495400 *Qty: 1 LH VENT $150.55
Location: 32 Prev | Next Part: 81968300 *Qty: 1 LH LATERAL AIR DUCT GRILLE -Not for RHD- $45.53
Location: 32 Prev | Next Part: 82808400 *Qty: 1 LH LATERAL AIR DUCT GRILLE -Applicable for RHD- Call
Location: 33 Prev | Next Part: 82986300 *Qty: 1 LOWER LH COVER -Not for RHD- $237.18
Location: 33 Prev | Next Part: 83264200 *Qty: 1 LOWER LH COVER -Carbon- -Not for RHD- $1,910.40
Location: 33 Prev | Next Part: 84333100 *Qty: 1 LOWER LH COVER -Alutex- -Not for RHD- Call
Location: 33 Prev | Next Part: 82808700 *Qty: 1 LOWER RH COVER -Applicable for RHD- $302.03
Location: 33 Prev | Next Part: 83330000 *Qty: 1 LOWER RH COVER -Carbon- -Applicable for RHD- $1,910.40
Location: 33 Prev | Next Part: 84719600 *Qty: 1 LOWER RH COVER -Alutex- -Applicable for RHD- Call
Location: 34 Prev | Next Part: 82893300 *Qty: 1 LH VENT CONTROL -Not for RHD- $155.67
Location: 34 Prev | Next Part: 82911900 *Qty: 1 LH VENT CONTROL -Applicable for RHD- $150.98
Location: 35 Prev | Next Part: 81981200 *Qty: 1 LH LATERAL AIR DUCT -Not for RHD- $80.49
Location: 35 Prev | Next Part: 82808100 *Qty: 1 LH LATERAL AIR DUCT -Applicable for RHD- Call
Location: 36 Prev | Next Part: 253025 *Qty: 1 DISPLAY MODE AND CRUISE CONTROL CONTROLS -Not for RHD- $1,188.02
Location: 36 Prev | Next Part: 262397 *Qty: 1 DI SPLAY MODE AND CRUISE CONTROL CONTROLS -Applicable for RHD- $1,262.94
Location: 36 Prev | Next Part: 261194 *Qty: 1 DI SPLAY MODE SELECTOR -Not for RHD- Call
Location: 36 Prev | Next Part: 262624 *Qty: 1 DlSPLAY MODE SELECTOR -Applicable for RHD- $1,164.07
Location: 37 Prev | Next Part: 246860 *Qty: 1 HAZARD WARNING LIGHT BUTTON $141.70
Location: 38 Prev | Next Part: 82765000 *Qty: 1 COMPLETE POWER WINDOW CONTROLS $388.02
Location: 39 Prev | Next Part: 832520 *Qty: 1 LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS -Plastic in interior leather trim colour- Call
Location: 40 Prev | Next Part: 81912400 *Qty: 34 SCREW $0.90
Location: 40 Prev | Next Part: 14418131 *Qty: 28 SCREW -Fastening satellite pods in carbon and alutex- $0.90
Location: 40 Prev | Next Part: 15957077 *Qty: 4 SCREW -Fastening satellite pods in carbon and alutex- $0.90
Location: 41 Prev | Next Part: 827638 *Qty: 1 SURROUND -Plastic in interior leather trim colour- Call
Location: 42 Prev | Next Part: 68700200 *Qty: 27 CLIP $7.18
Location: 43 Prev | Next Part: 83585100 *Qty: 4 CLIP $0.90
Location: 44 Prev | Next Part: 14418924 *Qty: 6 SCREW $0.90
Location: 45 Prev | Next Part: 81497800 *Qty: 1 COMPL. SUN VISOR Call
Location: 46 Prev | Next Part: 14418924 *Qty: 6 SCREW -Not for carbon version- $0.90
Location: 46 Prev | Next Part: 15957077 *Qty: 6 SCREW -Carbon and alutex version- $0.90
Location: - Prev | Next Part: *Qty: 0 Call
Location: 47 Prev | Next Part: 127493 *Qty: 6 WASHER -Not for carbon version- Superseded
Location: 47 Prev | Next Part: 12638124 *Qty: 6 WASHER -Not for carbon version- $0.90
Location: 47 Prev | Next Part: 13579001 *Qty: 6 WASHER -Carbon and alutex version- $0.90
Location: 48 Prev | Next Part: 64460500 *Qty: 2 SCREW $1.53
Location: 49 Prev | Next Part: 179309 *Qty: 1 ADHESIVE FOAM RUBBER $5.54
Location: 50 Prev | Next Part: 68700800 *Qty: 2 CLIP $1.31
Location: 51 Prev | Next Part: 13506607 *Qty: 34 WASHER -Fastening satellite pods in carbon and alutex- $0.90
Location: 52 Prev | Next Part: 82517900 *Qty: 1 COMPLETE INSTRUMENT MOUNTING Call
Location: 53 Prev | Next Part: 81875700 *Qty: 1 INSTRUMENT SURROUND Call
Location: 54 Prev | Next Part: 65212000 *Qty: 6 SCREW $1.38
Location: 55 Prev | Next Part: 68176500 *Qty: 1 SCREW -M5X 12- $0.90
Location: 56 Prev | Next Part: 13577701 *Qty: 1 WASHER $0.90
Location: 57 Prev | Next Part: 65212000 *Qty: 3 SCREW $1.38
Location: 58 Prev | Next Part: 66927700 *Qty: 3 BRACKET WITH COLLAR $1.44
Location: 59 Prev | Next Part: 247883 *Qty: 1 RH POWER WINDOW SWITCH $58.30
Location: 60 Prev | Next Part: 247885 *Qty: 1 LH POWER WINDOW SWITCH $65.97
Location: 61 Prev | Next Part: 179309 *Qty: 1 ADHESIVE FOAM RUBBER $5.54
Location: 62 Prev | Next Part: 70002520 *Qty: 1 ROOF/POWER REAR SCREEN CONTROL $440.58
Location: 63 Prev | Next Part: 84208700 *Qty: 1 SURROUND FOR POWER REAR SCREEN AND ROOF CONTROL $154.21
Location: 64 Prev | Next Part: 14418924 *Qty: 3 SCREW $0.90
Location: 65 Prev | Next Part: 83162700 *Qty: 1 IMPACT ABSORBER -Applicable for USA $18.36
Location: 66 Prev | Next Part: 15689801 *Qty: 2 SCREW -Applicable for USA $0.90
Location: 67 Prev | Next Part: 83028300 *Qty: 2 FOAM -Applicable for USA $1.91

* Quantity shown indicates the number of pieces used in the diagram.
