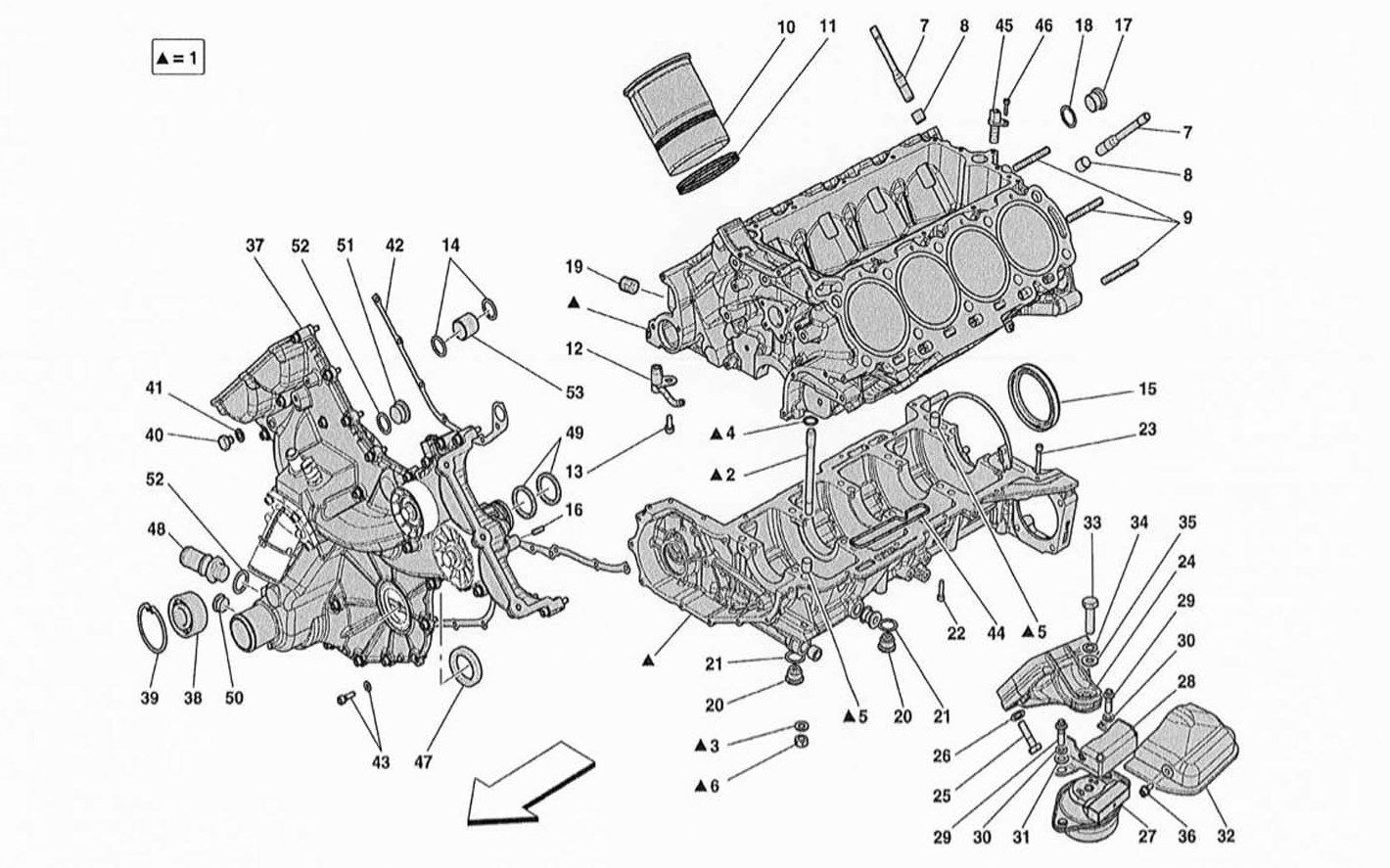

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 278162 *Qty: 1 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY -Applicable for EU GS Call
Location: 1 Prev | Next Part: 281495 *Qty: 1 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY -Not for EU GS $11,112.42
Location: 2 Prev | Next Part: 236261 *Qty: 10 STUD BOLT -M12 X 1.75- -Shank M10 X 1.25- $10.35
Location: 2 Prev | Next Part: 236262 *Qty: 10 STUD BOLT -M12 X 1.75- -Shank M10 X 1.25- $10.46
Location: 3 Prev | Next Part: 178348 *Qty: 20 WASHER $0.92
Location: 4 Prev | Next Part: 134704 *Qty: 20 GASKET $0.90
Location: 5 Prev | Next Part: 176421 *Qty: 2 ALIGNMENT DOWEL $5.06
Location: 6 Prev | Next Part: 133988 *Qty: 20 NUT $0.90
Location: 7 Prev | Next Part: 217968 *Qty: 20 STUD BOLT $8.02
Location: 8 Prev | Next Part: 185360 *Qty: 4 ALIGNMENT DOWEL $3.50
Location: 9 Prev | Next Part: 13546934 *Qty: 4 STUD BOLT -Shaft length 50 mm- $2.12
Location: 9 Prev | Next Part: 13547034 *Qty: 3 STUD BOLT -Shaft length 55 mm- $2.71
Location: 10 Prev | Next Part: 243339 *Qty: 8 CYLINDER SLEEVE $472.89
Location: 11 Prev | Next Part: 186251 *Qty: 24 O-RING $3.11
Location: 12 Prev | Next Part: 236813 *Qty: 8 COMPL. PISTON COOLING NOZZLE $15.32
Location: 13 Prev | Next Part: 262413 *Qty: 8 SCREW $1.22
Location: 14 Prev | Next Part: 14454681 *Qty: 2 O-RING $0.90
Location: 15 Prev | Next Part: 240214 *Qty: 1 GASKET $63.40
Location: 16 Prev | Next Part: 175611 *Qty: 2 ALIGNMENT DOWEL $2.07
Location: 17 Prev | Next Part: 10304511 *Qty: 1 CAP $2.78
Location: 18 Prev | Next Part: 10263460 *Qty: 1 GASKET Superseded
Location: 19 Prev | Next Part: 14325340 *Qty: 1 CAP $9.94
Location: 20 Prev | Next Part: 104280 *Qty: 2 MAGNETIC PLUG $6.54
Location: 21 Prev | Next Part: 10261860 *Qty: 2 GASKET $0.90
Location: 22 Prev | Next Part: 231620 *Qty: 11 SCREW -M6 X 20- $0.90
Location: 23 Prev | Next Part: 231623 *Qty: 2 SCREW $0.90
Location: 24 Prev | Next Part: 255568 *Qty: 1 RH ENGINE STRUT $216.45
Location: 24 Prev | Next Part: 255569 *Qty: 1 LH ENGINE STRUT $216.45
Location: 25 Prev | Next Part: 11307034 *Qty: 8 SCREW $1.06
Location: 26 Prev | Next Part: 11190574 *Qty: 8 WASHER $0.90
Location: 27 Prev | Next Part: 259757 *Qty: 1 LH FLEXIBLE ENGINE MOUNTING BUSH $454.88
Location: 27 Prev | Next Part: 259756 *Qty: 1 RH FLEXIBLE ENGINE MOUNTING BUSH $454.88
Location: 28 Prev | Next Part: 278028 *Qty: 1 LH BUSH TRAVEL LIMITER BRACKET Call
Location: 28 Prev | Next Part: 278027 *Qty: 1 RH BUSH TRAVEL LIMITER BRACKET Call
Location: 29 Prev | Next Part: 243841 *Qty: 6 SCREW $2.02
Location: 30 Prev | Next Part: 127497 *Qty: 6 WASHER $0.90
Location: 31 Prev | Next Part: 14496624 *Qty: 6 WASHER $0.90
Location: 32 Prev | Next Part: 260084 *Qty: 2 ENGINE MOUNTING BUSH HEAT SHIELD $65.37
Location: 33 Prev | Next Part: 11599534 *Qty: 2 SCREW $2.63
Location: 34 Prev | Next Part: 127498 *Qty: 2 WASHER $0.90
Location: 35 Prev | Next Part: 10738021 *Qty: 2 WASHER $1.67
Location: 36 Prev | Next Part: 231616 *Qty: 4 SCREW $0.90
Location: 37 Prev | Next Part: 261440 *Qty: 1 FRONT COMPL. CRANKCASE COVER $2,326.96
Location: 38 Prev | Next Part: 247049 *Qty: 1 BEARING $57.33
Location: 39 Prev | Next Part: 11060276 *Qty: 1 SEEGERRING $0.90
Location: 40 Prev | Next Part: 187718 *Qty: 2 BLEED PLUG $6.59
Location: 41 Prev | Next Part: 10284460 *Qty: 2 GASKET $0.90
Location: 42 Prev | Next Part: 253102 *Qty: 1 FRONT COVER GASKET $62.22
Location: 43 Prev | Next Part: 231617 *Qty: 11 SCREW -M6X 18- $0.90
Location: 43 Prev | Next Part: 231619 *Qty: 4 SCREW -M6 X 22- $0.90
Location: 43 Prev | Next Part: 231620 *Qty: 3 SCREW -M6 X 20- $0.90
Location: 43 Prev | Next Part: 231621 *Qty: 1 SCREW -M6 X 30- $0.90
Location: 43 Prev | Next Part: 231622 *Qty: 8 SCREW -M6X35- $0.90
Location: 43 Prev | Next Part: 231624 *Qty: 1 SCREW -M6X45- $0.90
Location: 43 Prev | Next Part: 231625 *Qty: 3 SCREW -M6 X 50- $0.90
Location: 43 Prev | Next Part: 231626 *Qty: 1 SCREW -M6 X 70- $1.08
Location: 44 Prev | Next Part: 236143 *Qty: 2 GASKET $7.79
Location: 45 Prev | Next Part: 249747 *Qty: 1 RPM SENSOR $114.01
Location: 46 Prev | Next Part: 231618 *Qty: 1 SCREW -M6 X 20- $0.90
Location: 47 Prev | Next Part: 245884 *Qty: 1 CRANKSHAFT SEAL $40.88
Location: 48 Prev | Next Part: 253787 *Qty: 1 CONNECTOR $265.67
Location: 49 Prev | Next Part: 183010 *Qty: 2 GASKET $1.84
Location: 50 Prev | Next Part: 223405 *Qty: 1 CAP $7.12
Location: 51 Prev | Next Part: 193885 *Qty: 1 CAP $4.45
Location: 52 Prev | Next Part: 10263460 *Qty: 2 GASKET Superseded
Location: 53 Prev | Next Part: 239437 *Qty: 1 WATER INLET BUSH Call

* Quantity shown indicates the number of pieces used in the diagram.
