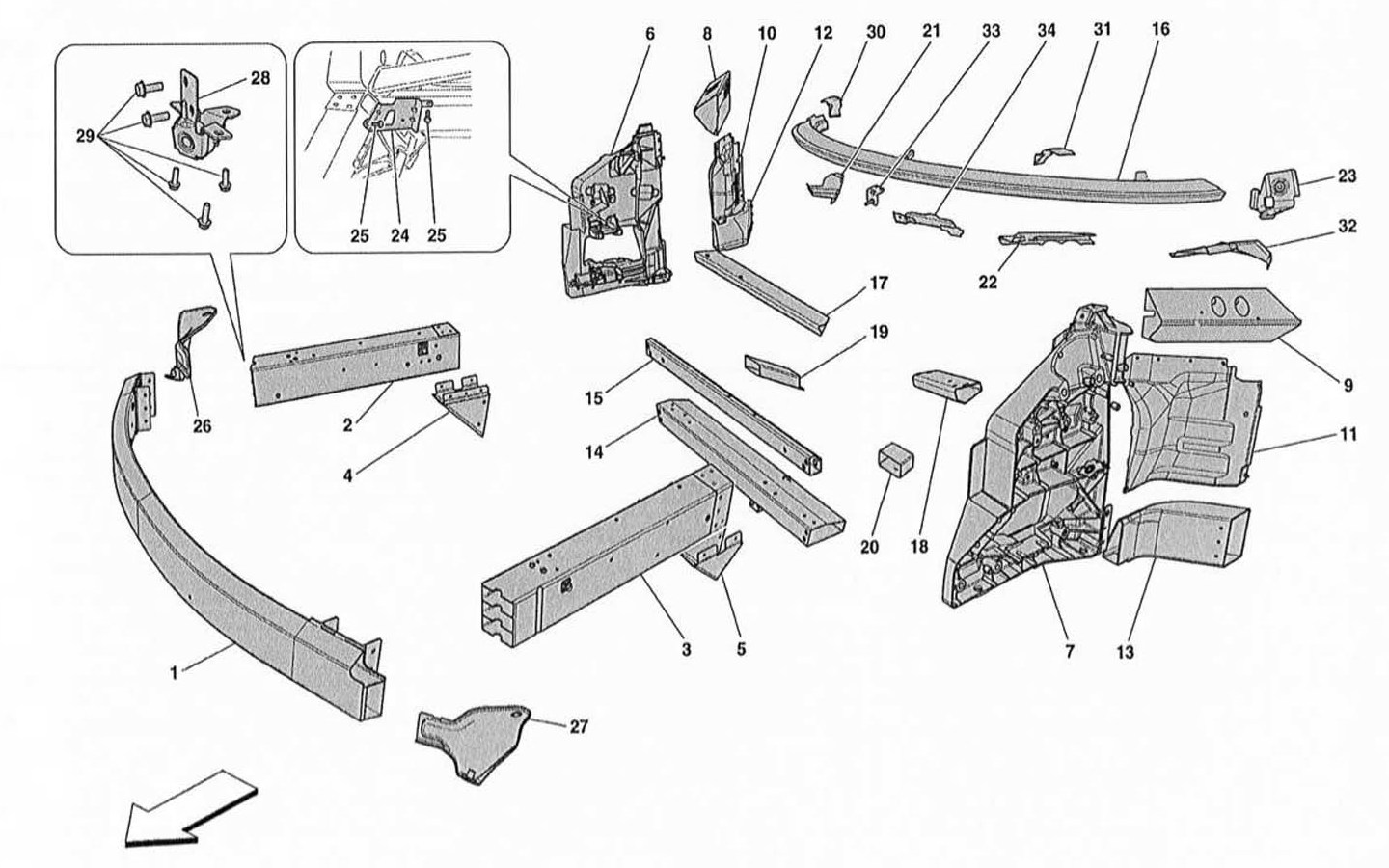

CHASSIS – STRUCTURE AND FRONT ELEMENTS AND PANELS

Go to Split View

CHASSIS – STRUCTURE AND FRONT ELEMENTS AND PANELS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 271978 *Qty: 1 FRONT CROSS MEMBER -Not available for sale- -Not for USA Call
Location: 1 Prev | Next Part: 277902 *Qty: 1 FRONT CROSS MEMBER -Not available for sale- -Applicable for USA Call
Location: 2 Prev | Next Part: 266098 *Qty: 1 FRONT RH STRUT -Not available for sale- -Not for RHD- Call
Location: 2 Prev | Next Part: 266330 *Qty: 1 FRONT RH STRUT -Not available for sale- -Applicable for RHD- Call
Location: 3 Prev | Next Part: 249940 *Qty: 1 FRONT LH STRUT -Not available for sale- -Not for RHD- Call
Location: 3 Prev | Next Part: 263944 *Qty: 1 FRONT LH STRUT -Not available for sale- -Applicable for RHD- $1,174.89
Location: 4 Prev | Next Part: 244142 *Qty: 1 ANGULAR BRACE FOR RH STRUT Call
Location: 5 Prev | Next Part: 244141 *Qty: 1 ANGULAR BRACE FOR LH STRUT Call
Location: 6 Prev | Next Part: 285538 *Qty: 1 FRONT RH SHOCK TOWER -Not available for sale- Call
Location: 7 Prev | Next Part: 285537 *Qty: 1 FRONT LH SHOCK TOWER -Not available for sale- Call
Location: 8 Prev | Next Part: 270833 *Qty: 1 RH UPPER FRONT DIAGONAL BRACE -Not available for sale- Call
Location: 9 Prev | Next Part: 270834 *Qty: 1 LH UPPER FRONT DIAGONAL BRACE -Not available for sale- Call
Location: 10 Prev | Next Part: 271965 *Qty: 1 RH WHEEL BAY COVER -Not available for sale- -Not for RHD- Call
Location: 10 Prev | Next Part: 274064 *Qty: 1 RH WHEEL BAY COVER -Not available for sale- -Applicable for RHD- Call
Location: 11 Prev | Next Part: 271964 *Qty: 1 LH WHEEL BAY COVER -Not available for sale- -Not for RHD- Call
Location: 11 Prev | Next Part: 274063 *Qty: 1 LH WHEEL BAY COVER -Not available for sale- -Applicable for RHD- Call
Location: 12 Prev | Next Part: 257921 *Qty: 1 FRONT RH TORQUE BOX -Not available for sale- Call
Location: 13 Prev | Next Part: 257920 *Qty: 1 FRONT LH TORQUE BOX -Not available for sale- Call
Location: 14 Prev | Next Part: 283974 *Qty: 1 LOWER FRONT SUSPENSION CROSS MEMBER -Not available for sale- -Not for RHD- Call
Location: 14 Prev | Next Part: 283975 *Qty: 1 LOWER FRONT SUSPENSION CROSS MEMBER -Not available for sale- -Applicable for RHD- Call
Location: 15 Prev | Next Part: 265057 *Qty: 1 CASTING LINK CROSS MEMBER -Not available for sale- -Not for RHD- Call
Location: 15 Prev | Next Part: 265280 *Qty: 1 CASTING LINK CROSS MEMBER -Not available for sale- -Applicable for RHD- Call
Location: 16 Prev | Next Part: 270813 *Qty: 1 WINDSCREEN VALENCE PANEL CROSS MEMBER -Not for RHD- Call
Location: 16 Prev | Next Part: 275629 *Qty: 1 WINDSCREEN VALENCE PANEL CROSS MEMBER -Applicable for RHD- Call
Location: 17 Prev | Next Part: 274766 *Qty: 1 UPPER RH DIAGONAL BRACE -Not for RHD- Call
Location: 17 Prev | Next Part: 275594 *Qty: 1 UPPER RH DIAGONAL BRACE -Applicable for RHD- Call
Location: 18 Prev | Next Part: 274762 *Qty: 1 UPPER LH DIAGONAL BRACE -Not for RHD- Call
Location: 18 Prev | Next Part: 275593 *Qty: 1 UPPER LH DIAGONAL BRACE -Applicable for RHD- Call
Location: 19 Prev | Next Part: 265064 *Qty: 1 LOWER RH DIAGONAL BRACE Call
Location: 20 Prev | Next Part: 265063 *Qty: 1 LOWER LH DIAGONAL BRACE Call
Location: 21 Prev | Next Part: 270836 *Qty: 1 RH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE Call
Location: 22 Prev | Next Part: 270835 *Qty: 1 LH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE Call
Location: 23 Prev | Next Part: 272197 *Qty: 1 WINDSCREEN WIPER BRACKET -Not for RHD- Call
Location: 23 Prev | Next Part: 274091 *Qty: 1 WINDSCREEN WIPER BRACKET -Applicable for RHD- Call
Location: 24 Prev | Next Part: 81738700 *Qty: 1 RH LUGGAGE COMPARTMENT TUB BRACKET $30.85
Location: 24 Prev | Next Part: 81738900 *Qty: 1 LH LUGGAGE COMPARTMENT TUB BRACKET $30.85
Location: 25 Prev | Next Part: 16287224 *Qty: 4 SCREW-M8X 25- Superseded
Location: 26 Prev | Next Part: 82981900 *Qty: 1 RH RADIATOR FASTENER BRACKET $61.68
Location: 27 Prev | Next Part: 82982000 *Qty: 1 LH RADIATOR FASTENER BRACKET $61.68
Location: 28 Prev | Next Part: 266096 *Qty: 1 COMPL. TOW HOOK $293.76
Location: 29 Prev | Next Part: 16287234 *Qty: 5 SCREW $0.90
Location: 30 Prev | Next Part: 270832 *Qty: 1 RH WINDSCREEN VALENCE PANEL FASTENER BRACKET Call
Location: 31 Prev | Next Part: 270831 *Qty: 1 LH WINDSCREEN VALENCE PANEL FASTENER BRACKET Call
Location: 32 Prev | Next Part: 83754000 *Qty: 1 LH UNDERWINDSCREEN BOX ELEMENT Call
Location: 32 Prev | Next Part: 83754100 *Qty: 1 RH UNDERWINDSCREEN BOX ELEMENT Call
Location: 33 Prev | Next Part: 272192 *Qty: 1 BRAKE FLUID RESERVOIR BRACKET -Not for RHD- Call
Location: 34 Prev | Next Part: 274093 *Qty: 1 BRAKE FLUID RESERVOIR BRACKET -Applicable for RHD- Call

* Quantity shown indicates the number of pieces used in the diagram.
