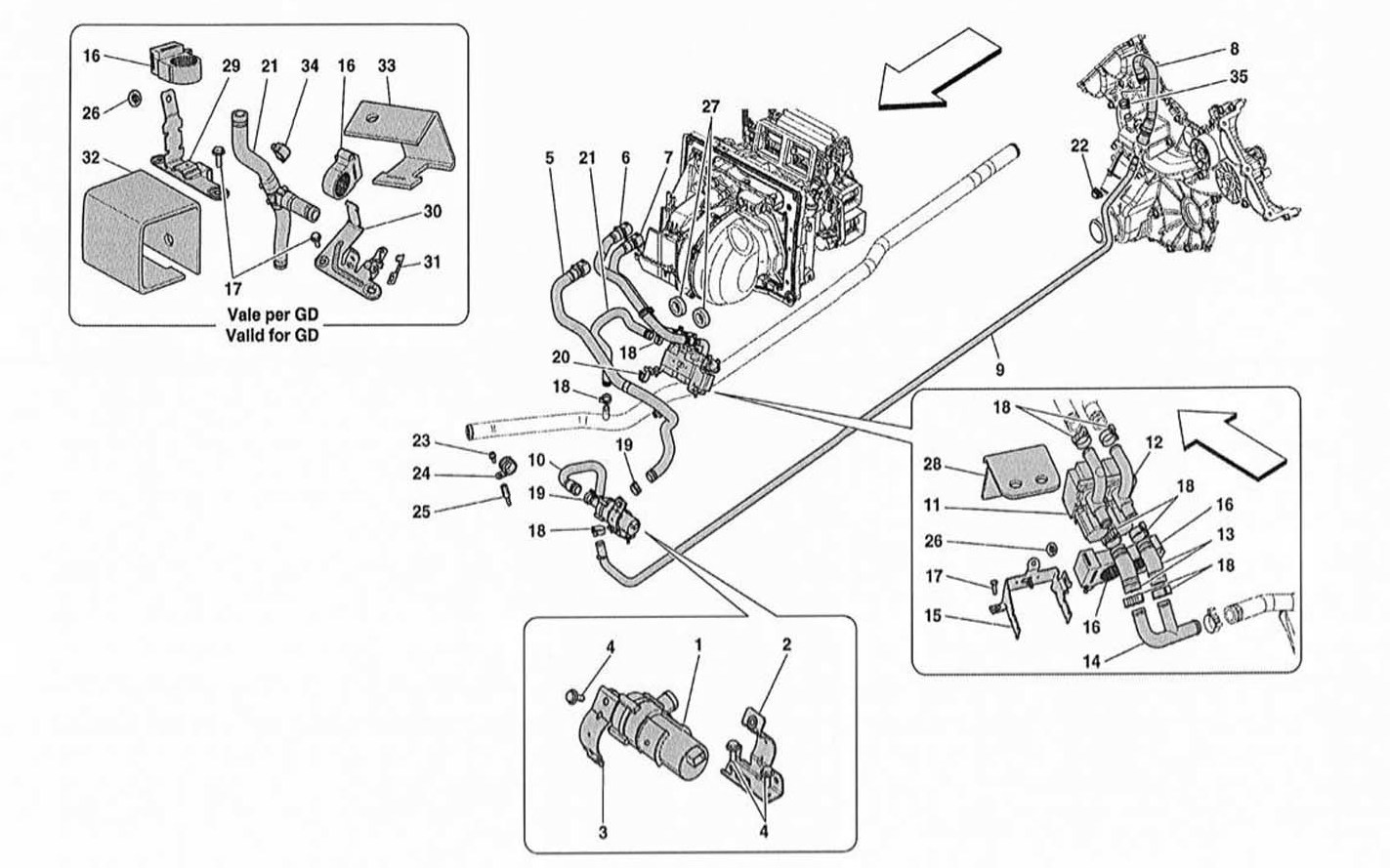

AC SYSTEM-WATER

Go to Split View

AC SYSTEM-WATER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65460300 *Qty: 1 WATER RECIRCULATION PUMP $270.53
Location: 2 Prev | Next Part: 82328900 *Qty: 1 BRACKET $41.95
Location: 3 Prev | Next Part: 82329400 *Qty: 1 CURVED BRACKET $22.47
Location: 4 Prev | Next Part: 11625624 *Qty: 3 SCREW $0.97
Location: 5 Prev | Next Part: 82302800 *Qty: 1 CONNECTOR PIPE -Not for RHD- $101.86
Location: 5 Prev | Next Part: 82887100 *Qty: 1 CONNECTOR PIPE -Applicable for RHD- $200.43
Location: 6 Prev | Next Part: 82761900 *Qty: 1 RH TGK VALVE CONNECTOR PIPE -Not for RHD- $119.86
Location: 6 Prev | Next Part: 82887200 *Qty: 1 RH TGK VALVE CONNECTOR PIPE -Applicable for RHD- Call
Location: 7 Prev | Next Part: 82302700 *Qty: 1 LH TGK VALVE CONNECTOR PIPE -Not for RHD- $71.93
Location: 7 Prev | Next Part: 82887300 *Qty: 1 LH TGK VALVE CONNECTOR PIPE -Applicable for RHD- Call
Location: 8 Prev | Next Part: 82890500 *Qty: 1 RUBBER PIPE $332.34
Location: 9 Prev | Next Part: 82890600 *Qty: 1 AC UNDERBODY PIPE $178.43
Location: 10 Prev | Next Part: 82887000 *Qty: 1 CONNECTOR PIPE $49.95
Location: 11 Prev | Next Part: 67444900 *Qty: 1 LH CYLINDER BANK TGK VALVE $235.21
Location: 12 Prev | Next Part: 67635900 *Qty: 1 RH CYLINDER BANK TGK VALVE $234.27
Location: 13 Prev | Next Part: 82302900 *Qty: 2 CONNECTOR PIPE $53.93
Location: 14 Prev | Next Part: 247947 *Qty: 1 RIGID TGK VALVE OUTLET PIPE $72.63
Location: 15 Prev | Next Part: 82328500 *Qty: 1 BRACKET $29.98
Location: 16 Prev | Next Part: 174623 *Qty: 2 PLUG $12.72
Location: 17 Prev | Next Part: 11625824 *Qty: 2 SCREW-Not for RHD- $0.90
Location: 17 Prev | Next Part: 11625824 *Qty: 2 SCREW -Applicable for RHD- $0.90
Location: 18 Prev | Next Part: 13126770 *Qty: 9 COLLAR -No longer supplied- -Replaced by 10860270- $1.39
Location: 18 Prev | Next Part: 10860270 *Qty: 9 COLLAR Call
Location: 19 Prev | Next Part: 13127770 *Qty: 2 COLLAR -Applicable until depletion- $1.51
Location: 19 Prev | Next Part: 10860370 *Qty: 2 COLLAR -Applicable after depletion of 13127770- $2.04
Location: 20 Prev | Next Part: 270085 *Qty: 1 CLIP Call
Location: 21 Prev | Next Part: 82944600 *Qty: 1 CONNECTOR PIPE -Not for RHD- $45.53
Location: 21 Prev | Next Part: 82887400 *Qty: 1 CONNECTOR PIPE -Applicable for RHD- Call
Location: 22 Prev | Next Part: 263232 *Qty: 1 CLIP Call
Location: 23 Prev | Next Part: 231616 *Qty: 1 SCREW $0.90
Location: 24 Prev | Next Part: 10441890 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 25 Prev | Next Part: 178772 *Qty: 1 SPACER STUD $10.67
Location: 26 Prev | Next Part: 175871 *Qty: 1 CLIP $0.90
Location: 27 Prev | Next Part: 83444200 *Qty: 2 DRIP BAFFLE RING $4.41
Location: 28 Prev | Next Part: 83560800 *Qty: 1 GUARD Call
Location: 29 Prev | Next Part: 83413300 *Qty: 1 RH TGK VALVE MOUNTING BRACKET -Applicable for RHD- Call
Location: 30 Prev | Next Part: 84058400 *Qty: 1 LH TGK VALVE MOUNTING BRACKET -Applicable for RHD- Call
Location: 31 Prev | Next Part: 162606 *Qty: 1 CUP-Applicable for RHD- $1.06
Location: 32 Prev | Next Part: 83689500 *Qty: 1 WATER PIPE RUBBER GUARD -Applicable for RHD- Call
Location: 33 Prev | Next Part: 83689600 *Qty: 1 WATER PIPE RUBBER GUARD -Applicable for RHD- Call
Location: 34 Prev | Next Part: 231214 *Qty: 1 CLIP-Applicable for RHD- Call
Location: 35 Prev | Next Part: 10441890 *Qty: 1 BRACKET WITH SHEATH $0.90

* Quantity shown indicates the number of pieces used in the diagram.
