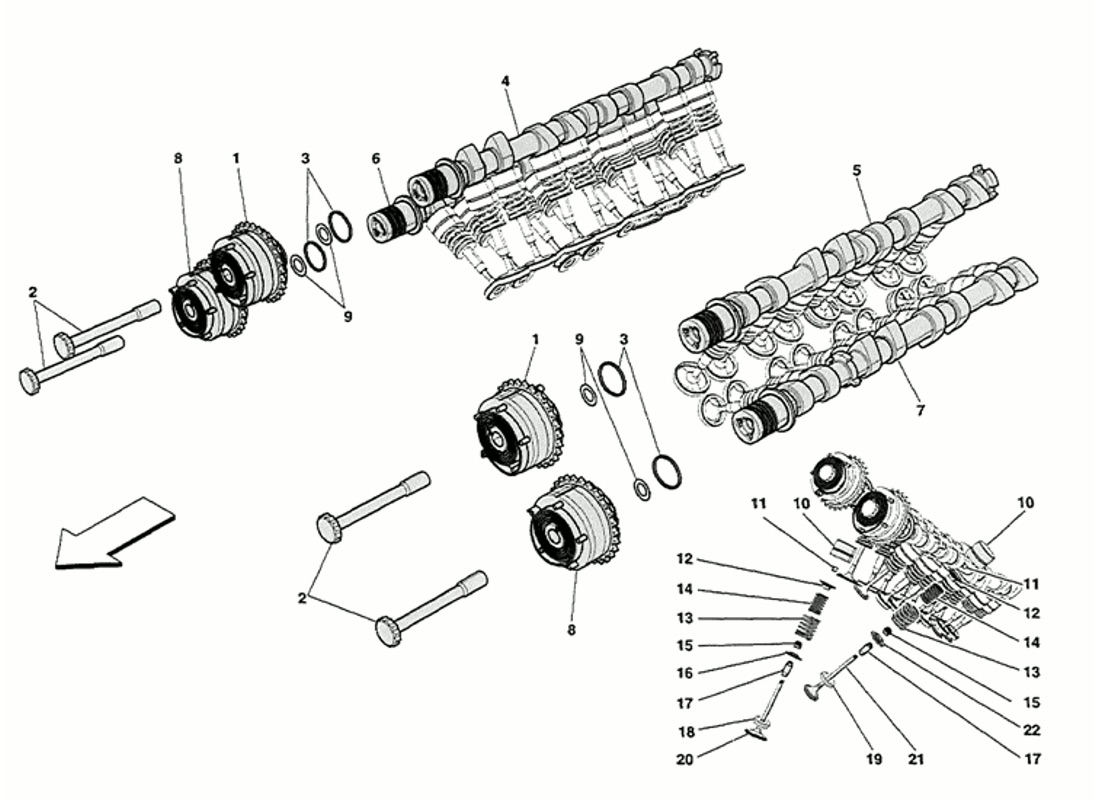

TIMING -TAPPETS

Go to Split View

TIMING -TAPPETS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 241906 *Qty: 2 INDUCTION PHASE VARIATOR $517.61
Location: 2 Prev | Next Part: 254892 *Qty: 4 SCREW FOR VARIATOR M14X1.5 L.109 $17.30
Location: 3 Prev | Next Part: 246965 *Qty: 12 SEAL RING $11.83
Location: 4 Prev | Next Part: 299524 *Qty: 1 ALBERO DISTRIBUZIONE ASPIRAZIONE DX. Call
Location: 5 Prev | Next Part: 299525 *Qty: 1 ALBERO DISTRIBUZIONE ASPIRAZIONE SX. Call
Location: 6 Prev | Next Part: 298426 *Qty: 1 ALBERO DISTRIBUZIONE SCARICO DX. Call
Location: 7 Prev | Next Part: 298427 *Qty: 1 ALBERO DISTRIBUZIONE SCARICO SX. Call
Location: 8 Prev | Next Part: 248020 *Qty: 2 EXH VARIABLE VALVE TIMING ADJUSTER $519.82
Location: 9 Prev | Next Part: 240559 *Qty: 4 DIAMOND COATED WASHER $11.78
Location: 10 Prev | Next Part: 255431 *Qty: 32 HYDRAULIC TAPPET D.35 $50.17
Location: 11 Prev | Next Part: 179763 *Qty: 64 COTTER FOR VALVE SPRING $0.93
Location: 12 Prev | Next Part: 237390 *Qty: 32 UPPER STOP CAP $10.29
Location: 13 Prev | Next Part: 238640 *Qty: 32 EXTERNAL VALVE RETURN SPRING $14.30
Location: 14 Prev | Next Part: 238641 *Qty: 32 INTERNAL VALVE RETURN SPRING $10.20
Location: 15 Prev | Next Part: 221473 *Qty: 32 VALVE OIL SEAL $1.50
Location: 16 Prev | Next Part: 242574 *Qty: 16 LOWER CUP $11.52
Location: 17 Prev | Next Part: 6213498 *Qty: 32 INTAKE AND EXHAUST VALVE GUIDE $2.05
Location: 18 Prev | Next Part: 6222847 *Qty: 16 INTAKE VALVE SEAT $9.80
Location: 19 Prev | Next Part: 6222848 *Qty: 16 EXHAUST VALVE SEAT $10.53
Location: 20 Prev | Next Part: 291638 *Qty: 16 INTAKE VALVE Call
Location: 21 Prev | Next Part: 198582 *Qty: 16 EXHAUST VALVE $40.20
Location: 22 Prev | Next Part: 303526 *Qty: 16 PIATTELLOINFERIORE MOLLE VALVOLE -Lato scarico- Call

* Quantity shown indicates the number of pieces used in the diagram.
