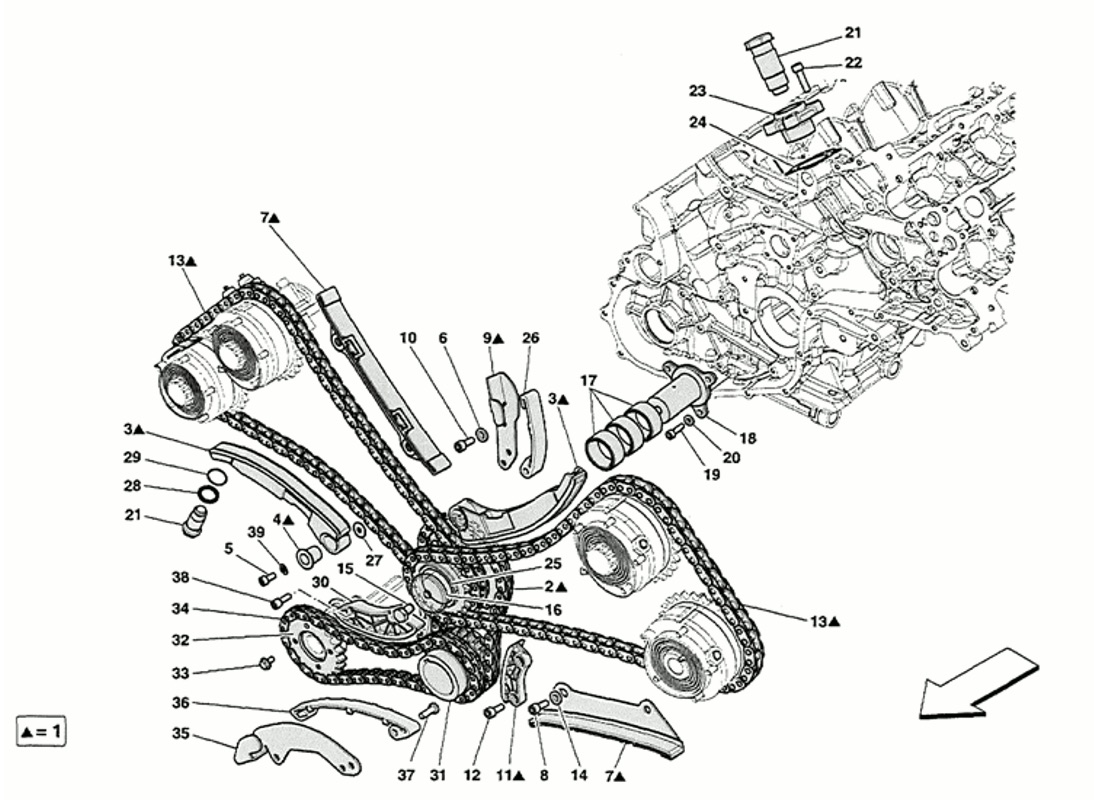

TIMING - CONTROLS

Go to Split View

TIMING - CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 284514 *Qty: 1 COMPLESSIVO COMANDO DISTRIBUZIONE E POMPE Call
Location: 2 Prev | Next Part: 175286 *Qty: 1 TRANSMISSION CHAIN 23 X 236 X 48 $47.01
Location: 3 Prev | Next Part: 186184 *Qty: 2 MOBILE GUIDE SHOE $95.68
Location: 4 Prev | Next Part: 175303 *Qty: 2 BUSHING FOR TIMING SHOE $13.43
Location: 5 Prev | Next Part: 14306424 *Qty: 2 SCREW M 8X25 $0.90
Location: 6 Prev | Next Part: 12647624 *Qty: 2 WASHER D. 6.45-16X2 $0.90
Location: 7 Prev | Next Part: 186185 *Qty: 2 FIXED TENSIONER CPL $61.55
Location: 8 Prev | Next Part: 14306224 *Qty: 4 SCREW M 8X16 $0.90
Location: 9 Prev | Next Part: 186159 *Qty: 1 GUIDE SHOE SUPPORT CPL $31.45
Location: 10 Prev | Next Part: 282392 *Qty: 2 SCREW -M6 X14- Call
Location: 11 Prev | Next Part: 186181 *Qty: 1 FIXED TENSION SHOE $25.14
Location: 12 Prev | Next Part: 282397 *Qty: 2 SCREW -M6 X 25- Call
Location: 13 Prev | Next Part: 193616 *Qty: 2 TIMING CONTROL CHAIN $79.01
Location: 14 Prev | Next Part: 163759 *Qty: 4 ROSETTA LAVOR.D. 8 -20 X2 $15.71
Location: 15 Prev | Next Part: 16043124 *Qty: 1 SCREW $0.90
Location: 16 Prev | Next Part: 194262 *Qty: 1 SHOULDER FOR TIMING GUIDE SHOE $39.87
Location: 17 Prev | Next Part: 175282 *Qty: 3 ROLLER BEARING CAGE 28X35X16 $11.40
Location: 18 Prev | Next Part: 212970 *Qty: 1 ROLLER BEARING CAGE MOUNT SUPPORT $156.85
Location: 19 Prev | Next Part: 14304224 *Qty: 4 SCREW M 5X16 $0.90
Location: 20 Prev | Next Part: 11181574 *Qty: 4 WASHER D. 5.3-1 $0.90
Location: 21 Prev | Next Part: 197880 *Qty: 2 HYDRAULIC TIGHTENER $153.88
Location: 22 Prev | Next Part: 231619 *Qty: 4 SCREW M6X22 $0.90
Location: 23 Prev | Next Part: 190060 *Qty: 1 BUSHING FOR TIGHTENER $43.17
Location: 24 Prev | Next Part: 247147 *Qty: 1 GASKET $2.64
Location: 25 Prev | Next Part: 193565 *Qty: 1 TRANSMISSION TOOTHED WHEEL Z.21-2 $130.31
Location: 26 Prev | Next Part: 196683 *Qty: 1 CHAIN TIGHTENER GUIDE SHOE $47.09
Location: 27 Prev | Next Part: 175306 *Qty: 2 SHOULDER FOR TIMING GUIDE SHOE $5.06
Location: 28 Prev | Next Part: 190171 *Qty: 1 SHIM FOR HYDRAULIC TENSIONER $8.02
Location: 29 Prev | Next Part: 192069 *Qty: 1 O.R. GASKET TIPO OR D. 26X $0.90
Location: 30 Prev | Next Part: 249844 *Qty: 1 FIXED SHOED $110.51
Location: 31 Prev | Next Part: 291034 *Qty: 1 RUOTA DENTATA ALBERO MOTORE Call
Location: 32 Prev | Next Part: 255815 *Qty: 1 PUMP DRIVE GEAR Z.24 $125.68
Location: 33 Prev | Next Part: 255780 *Qty: 4 SCREW 5X9 $1.55
Location: 34 Prev | Next Part: 253294 *Qty: 1 TIMING CHAIN 23 X 236 X 62 $1,067.88
Location: 35 Prev | Next Part: 253293 *Qty: 1 MOUNTING $68.51
Location: 36 Prev | Next Part: 272014 *Qty: 1 PATTINO MOBILE Call
Location: 37 Prev | Next Part: 282392 *Qty: 2 SCREW -M6 X14- Call
Location: 38 Prev | Next Part: 282396 *Qty: 2 SCREW-M6X22- Call
Location: 39 Prev | Next Part: 255527 *Qty: 1 WASHER D=8.1X12.7X2 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
