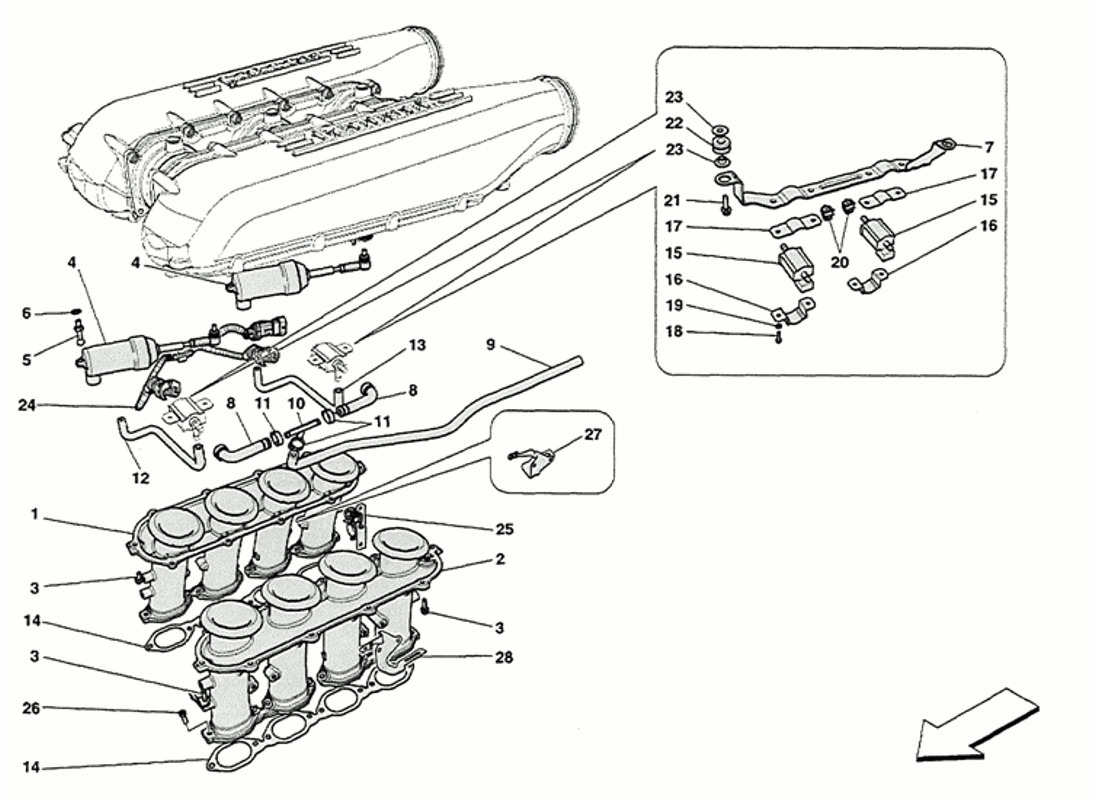

SUCTION MANIFOLD

Go to Split View

SUCTION MANIFOLD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 305954 *Qty: 1 COLLETTORE DI ASPIRAZIONE DX. Call
Location: 2 Prev | Next Part: 305957 *Qty: 1 COLLETTORE DI ASPIRAZIONE SX. Call
Location: 3 Prev | Next Part: 231620 *Qty: 20 SCREW M6X25 $0.90
Location: 4 Prev | Next Part: 258761 *Qty: 2 PNEUMATIC ACTUATOR CPL $782.30
Location: 5 Prev | Next Part: 255925 *Qty: 2 PERNO Call
Location: 6 Prev | Next Part: 12601274 *Qty: 2 CRINKLE WASHERS $0.90
Location: 7 Prev | Next Part: 279780 *Qty: 1 STAFFA ELETTROVALVOLA Call
Location: 8 Prev | Next Part: 253745 *Qty: 2 PIPE FROM CONNECTOR TO SOLENOID $90.06
Location: 9 Prev | Next Part: 253743 *Qty: 1 PIPE $181.42
Location: 10 Prev | Next Part: 194017 *Qty: 1 RACCORDO 3 VIE $42.28
Location: 11 Prev | Next Part: 10716170 *Qty: 5 COLLARE Call
Location: 11 Prev | Next Part: 10716370 *Qty: 5 COLLAR D. 18.0 $1.17
Location: 12 Prev | Next Part: 260521 *Qty: 1 FRONT PIPE $101.70
Location: 13 Prev | Next Part: 260520 *Qty: 1 REAR PIPE $123.49
Location: 14 Prev | Next Part: 253103 *Qty: 2 MANIFOLD GASKET $12.55
Location: 15 Prev | Next Part: 178309 *Qty: 2 SOLENOID VALVE $91.24
Location: 16 Prev | Next Part: 260073 *Qty: 2 UPPER RETAINER BRACKET $55.95
Location: 17 Prev | Next Part: 260072 *Qty: 2 STAFFA CHIUSURAINFERIORE Call
Location: 18 Prev | Next Part: 10977724 *Qty: 4 SCREW M 5X14 $0.90
Location: 19 Prev | Next Part: 12637824 *Qty: 4 WASHER D. 5.45-11X1 $0.90
Location: 20 Prev | Next Part: 67579900 *Qty: 2 MOLLETTA LYS-FUSION 07118.88 $0.90
Location: 21 Prev | Next Part: 231620 *Qty: 2 SCREW M6X25 $0.90
Location: 22 Prev | Next Part: 177576 *Qty: 2 CABLE GROMMET $2.71
Location: 23 Prev | Next Part: 183898 *Qty: 4 BUSHING $3.69
Location: 24 Prev | Next Part: 259822 *Qty: 1 BRIGLIA COLLEGAMENTOELETTROVALVOLE Call
Location: 25 Prev | Next Part: 256060 *Qty: 1 STAFFA FISSAGGIO TUBIIDROGUIDA Call
Location: 26 Prev | Next Part: 295356 *Qty: 16 SCREW Call
Location: 27 Prev | Next Part: 259167 *Qty: 1 STAFFA Call
Location: 28 Prev | Next Part: 259165 *Qty: 1 STAFFA Call

* Quantity shown indicates the number of pieces used in the diagram.
