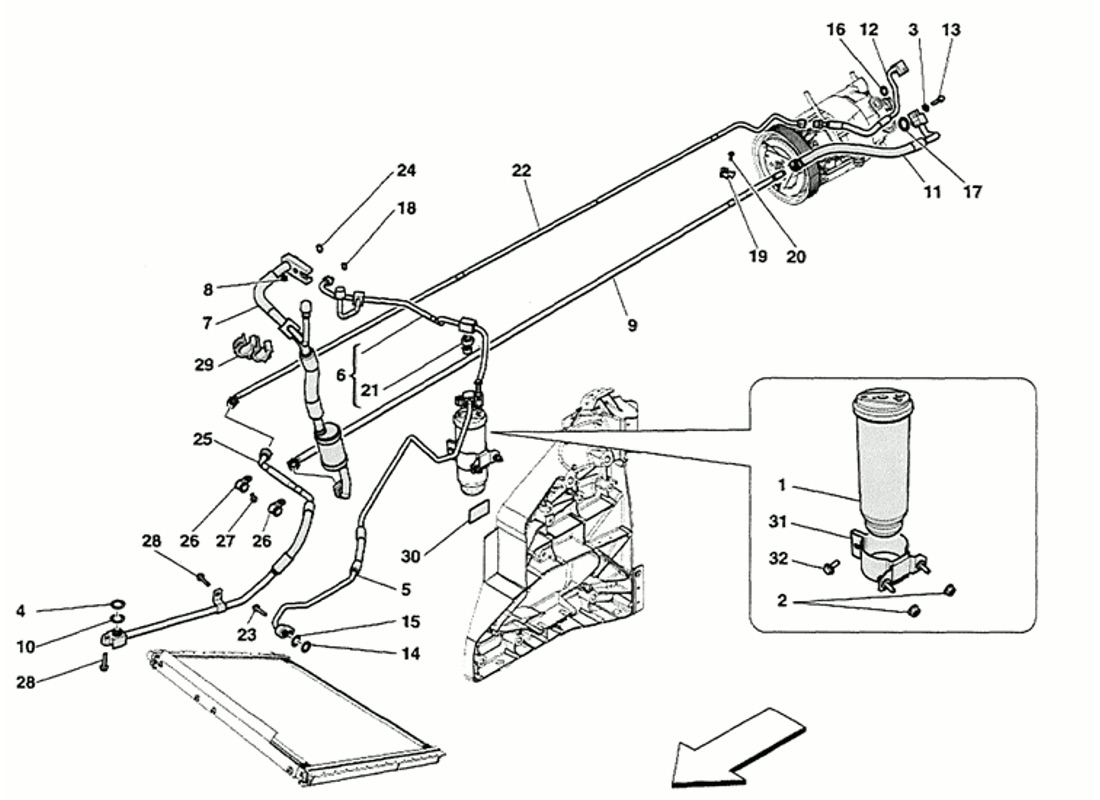

HVAC SYSTEM – FREON

Go to Split View

HVAC SYSTEM – FREON

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67085100 *Qty: 1 A/C FILTER DRYER $84.49
Location: 2 Prev | Next Part: 14040611 *Qty: 2 NUT $0.90
Location: 3 Prev | Next Part: 11198074 *Qty: 1 WASHER D. 8.5-15X1.8 $0.90
Location: 4 Prev | Next Part: 68392700 *Qty: 1 O-RING 0691177 $2.05
Location: 5 Prev | Next Part: 82924000 *Qty: 1 PIPE CONDENSER TO DEHYDRATOR $250.23
Location: 6 Prev | Next Part: 85075800 *Qty: 1 FILTER PIPE - HVAC $494.60
Location: 7 Prev | Next Part: 83193900 *Qty: 1 HVAC PIPE-UNDERFLOOR $501.28
Location: 8 Prev | Next Part: 14040711 *Qty: 1 NUT FOR GLASS GUIDE ASSEMBLY $0.90
Location: 9 Prev | Next Part: 83194000 *Qty: 1 GAS RETURN PIPE $238.83
Location: 10 Prev | Next Part: 66309700 *Qty: 1 O-RING 069862 $8.23
Location: 11 Prev | Next Part: 82890400 *Qty: 1 PIPE FROM UNDER FLOOR $295.11
Location: 12 Prev | Next Part: 83330500 *Qty: 1 PIPE FROM COMPRESSOR $238.57
Location: 13 Prev | Next Part: 14306724 *Qty: 1 SCREW M 8X40 $0.90
Location: 14 Prev | Next Part: 68392100 *Qty: 1 O-RING 069861 $4.04
Location: 15 Prev | Next Part: 68392000 *Qty: 1 O-RING 0691154 $4.04
Location: 16 Prev | Next Part: 67085400 *Qty: 1 $18.72
Location: 17 Prev | Next Part: 67085300 *Qty: 1 $18.72
Location: 18 Prev | Next Part: 82068300 *Qty: 1 O.R. GASKET $30.97
Location: 19 Prev | Next Part: 82949000 *Qty: 1 BRACKET $12.25
Location: 20 Prev | Next Part: 11612726 *Qty: 0 SCREW M6X22 $0.94
Location: 21 Prev | Next Part: 80552400 *Qty: 0 PRESSURE TRANSDUCER $96.79
Location: 22 Prev | Next Part: 82913700 *Qty: 1 GAS DELIVERY PIPE TO CONDENSER $184.42
Location: 23 Prev | Next Part: 13837017 *Qty: 2 SCREW M6X30 $4.99
Location: 24 Prev | Next Part: 82068100 *Qty: 1 O.R. GASKET Call
Location: 25 Prev | Next Part: 82913600 *Qty: 1 GAS DELIVERY PIPE TO CONDENSER $249.67
Location: 26 Prev | Next Part: 10441490 *Qty: 2 RETAINING CLAMP $0.90
Location: 27 Prev | Next Part: 231616 *Qty: 2 SCREW CEI ROND. M6X14 $0.90
Location: 28 Prev | Next Part: 13837017 *Qty: 2 SCREW M6X30 $4.99
Location: 29 Prev | Next Part: 82329900 *Qty: 2 CLIP ) $1.31
Location: 30 Prev | Next Part: 255515 *Qty: 1 PLUG 80X50MM SP.5MM $2.13
Location: 31 Prev | Next Part: 82155900 *Qty: 1 STAFFA FILTRO DISIDRATATORE Call
Location: 32 Prev | Next Part: 11625824 *Qty: 1 SCREW M 6X 18 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
