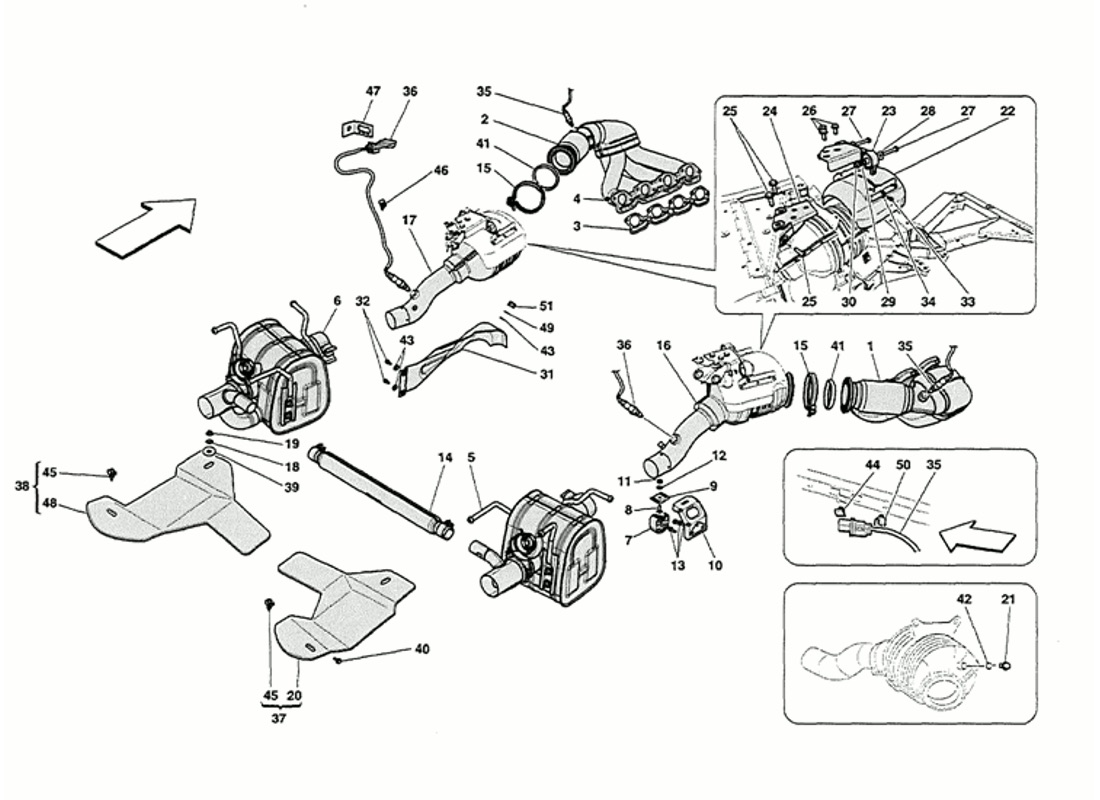

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 279322 *Qty: 1 RH EXHAUST MANIFOLD $3,637.29
Location: 2 Prev | Next Part: 279323 *Qty: 1 LH EXHAUST MANIFOLD $3,637.29
Location: 3 Prev | Next Part: 268256 *Qty: 2 GASKET $25.44
Location: 4 Prev | Next Part: 210971 *Qty: 16 NUT $2.21
Location: 5 Prev | Next Part: 301127 *Qty: 1 REAR MUFFLER ? DX Call
Location: 6 Prev | Next Part: 301128 *Qty: 1 REAR MUFFLER ? SX Call
Location: 7 Prev | Next Part: 239798 *Qty: 6 BUFFER FOR EXHAUST SUPPORT $68.43
Location: 8 Prev | Next Part: 283425 *Qty: 6 SCREW TESTA QUADRA Call
Location: 9 Prev | Next Part: 240598 *Qty: 6 PLATE $15.05
Location: 10 Prev | Next Part: 303053 *Qty: 2 STAFFA POSTERIORE ESTEKNA SILENZIATORE Call
Location: 10 Prev | Next Part: 303052 *Qty: 4 STAFFA SUPPORTO SILENZIATORE Call
Location: 11 Prev | Next Part: 14059214 *Qty: 6 NUT M6 $0.90
Location: 12 Prev | Next Part: 12620474 *Qty: 6 WASHER $0.90
Location: 12 Prev | Next Part: 13578405 *Qty: 4 WASHER D.8.15-36X2.5 $1.18
Location: 13 Prev | Next Part: 11585024 *Qty: 18 SCREW M6X20 $0.90
Location: 14 Prev | Next Part: 301129 *Qty: 1 HOSE COLLEGAMENTO SILENZIATORI Call
Location: 15 Prev | Next Part: 256884 *Qty: 2 RING CLAMP $50.95
Location: 16 Prev | Next Part: 261686 *Qty: 1 RH CATALYTIC CONVERTER $9,815.90
Location: 17 Prev | Next Part: 261687 *Qty: 1 LH CATALYTIC CONVERTER $9,815.90
Location: 18 Prev | Next Part: 12620474 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 14059214 *Qty: 1 NUT M6 $0.90
Location: 20 Prev | Next Part: 281762 *Qty: 1 RIPARO DX. Call
Location: 21 Prev | Next Part: 110860 *Qty: 2 PLUG M 12X1.25X8 Call
Location: 22 Prev | Next Part: 263588 *Qty: 1 RH CATALYTIC CONVERTER SHIELD $159.81
Location: 22 Prev | Next Part: 263589 *Qty: 1 LH CATALYTIC CONVERTER SHIELD $159.81
Location: 23 Prev | Next Part: 300591 *Qty: 1 STAFFA DX. CPL. DI TAMPONI Call
Location: 23 Prev | Next Part: 300592 *Qty: 1 STAFFA SX. CPL. DI TAMPONI Call
Location: 24 Prev | Next Part: 300595 *Qty: 1 STAFFA CATALIZZATORE DX. Call
Location: 24 Prev | Next Part: 300596 *Qty: 1 STAFFA CATALIZZATORE SX. Call
Location: 25 Prev | Next Part: 11628126 *Qty: 8 SCREW M8 X 25 Call
Location: 26 Prev | Next Part: 11627826 *Qty: 6 SCREW M8 X 18 Call
Location: 27 Prev | Next Part: 16044321 *Qty: 4 BOLT X 8X55 $0.90
Location: 28 Prev | Next Part: 12601374 *Qty: 8 WASHER D. 8,40-15X $0.90
Location: 29 Prev | Next Part: 12601374 *Qty: 4 WASHER D. 8,40-15X $0.90
Location: 30 Prev | Next Part: 14059311 *Qty: 4 NUT W/FLANGE M8 $0.90
Location: 31 Prev | Next Part: 267332 *Qty: 1 SHIELD $148.12
Location: 32 Prev | Next Part: 231620 *Qty: 2 SCREW M6X25 $0.90
Location: 33 Prev | Next Part: 14304021 *Qty: 4 SCREW M 5X10 $0.90
Location: 34 Prev | Next Part: 14446624 *Qty: 4 WASHER D. 5.5 -12X1 $0.90
Location: 35 Prev | Next Part: 217447 *Qty: 2 FRONT LAMBDA FEELER $220.12
Location: 36 Prev | Next Part: 180915 *Qty: 2 REAR O2 SENSOR (SEE NOTES) $175.00
Location: 37 Prev | Next Part: 283920 *Qty: 1 RIPARO DX. CPL. Call
Location: 38 Prev | Next Part: 283919 *Qty: 1 SILENCER HEAT SHIELD LH $53.84
Location: 39 Prev | Next Part: 13578405 *Qty: 4 WASHER D.8.15-36X2.5 $1.18
Location: 40 Prev | Next Part: 11625824 *Qty: 2 SCREW M 6X 18 $0.90
Location: 41 Prev | Next Part: 257360 *Qty: 2 GASKET $38.10
Location: 42 Prev | Next Part: 10298460 *Qty: 2 WASHER/COPPER D. 12-18X1.5 $0.90
Location: 43 Prev | Next Part: 12647704 *Qty: 3 ROSETTA TRANC. D.6.4 X 21 X $0.90
Location: 44 Prev | Next Part: 291283 *Qty: 2 CLIP Call
Location: 45 Prev | Next Part: 191904 *Qty: 2 CLIP D.13 $0.90
Location: 46 Prev | Next Part: 10441290 *Qty: 2 RETAINING CLAMP $0.90
Location: 47 Prev | Next Part: 185408 *Qty: 2 CONNECTOR FIXING BRACKET $17.95
Location: 48 Prev | Next Part: 281761 *Qty: 1 RIPARO SX. Call
Location: 49 Prev | Next Part: 12601274 *Qty: 1 CRINKLE WASHERS $0.90
Location: 50 Prev | Next Part: 199589 *Qty: 2 CLIP Call
Location: 51 Prev | Next Part: 15896214 *Qty: 1 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
