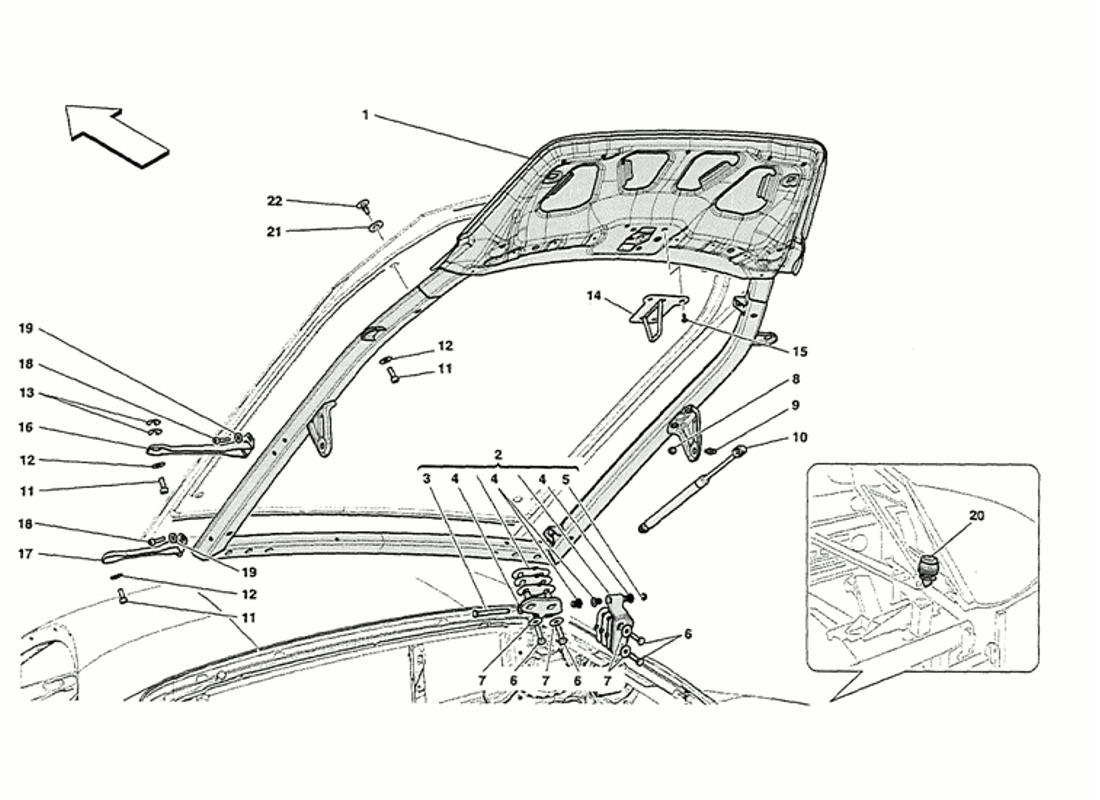

ENGINE BONNET

Go to Split View

ENGINE BONNET

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 85288011 *Qty: 1 BONNET REAR Call
Location: 2 Prev | Next Part: 81429200 *Qty: 1 RH ENGINE COMPARTMENT LID HINGE $300.22
Location: 2 Prev | Next Part: 81429300 *Qty: 1 LH ENGINE COMPARTMENT LID HINGE $300.22
Location: 3 Prev | Next Part: 81429000 *Qty: 2 HINGE PIN $14.68
Location: 4 Prev | Next Part: 62825300 *Qty: 8 HINGE BUSHING $36.28
Location: 5 Prev | Next Part: 16160976 *Qty: 2 SNAP RING $0.90
Location: 6 Prev | Next Part: 16043734 *Qty: 8 SCREW M 8X28 $3.73
Location: 7 Prev | Next Part: 12642001 *Qty: 8 WASHER D. 8.45-25X1 $0.90
Location: 8 Prev | Next Part: 13046224 *Qty: 2 NUT M8 $0.90
Location: 9 Prev | Next Part: 65939900 *Qty: 2 BONNET SUPPORT PIN $4.11
Location: 10 Prev | Next Part: 85390000 *Qty: 2 GAS STRUT Call
Location: 11 Prev | Next Part: 14304624 *Qty: 10 VITE TCEI M 5X 14 $0.90
Location: 12 Prev | Next Part: 11181674 *Qty: 10 ROSETTA CONICA ELASTICA D 5.3X $0.90
Location: 13 Prev | Next Part: 12643727 *Qty: 20 SPACER Call
Location: 14 Prev | Next Part: 81429600 *Qty: 1 LOCK STRIKER $47.00
Location: 15 Prev | Next Part: 65864100 *Qty: 3 SCREW M 6X15 $1.90
Location: 16 Prev | Next Part: 82807000 *Qty: 2 CENTER BRACKET $29.39
Location: 17 Prev | Next Part: 82806900 *Qty: 1 UPPER RH BRACKET $29.39
Location: 17 Prev | Next Part: 82813700 *Qty: 1 UPPER LH BRACKET $29.39
Location: 18 Prev | Next Part: 66207700 *Qty: 8 SCREW M5X15 $3.25
Location: 19 Prev | Next Part: 12637878 *Qty: 8 WASHER D. 5.45-11X1 $0.90
Location: 20 Prev | Next Part: 67161800 *Qty: 2 ANTIVIBRATION PAD $7.44
Location: 21 Prev | Next Part: 84879800 *Qty: 4 GUARNIZIONE Call
Location: 22 Prev | Next Part: 67509600 *Qty: 4 REAR GLASS HOLD DOWN SCREW $37.13

* Quantity shown indicates the number of pieces used in the diagram.
