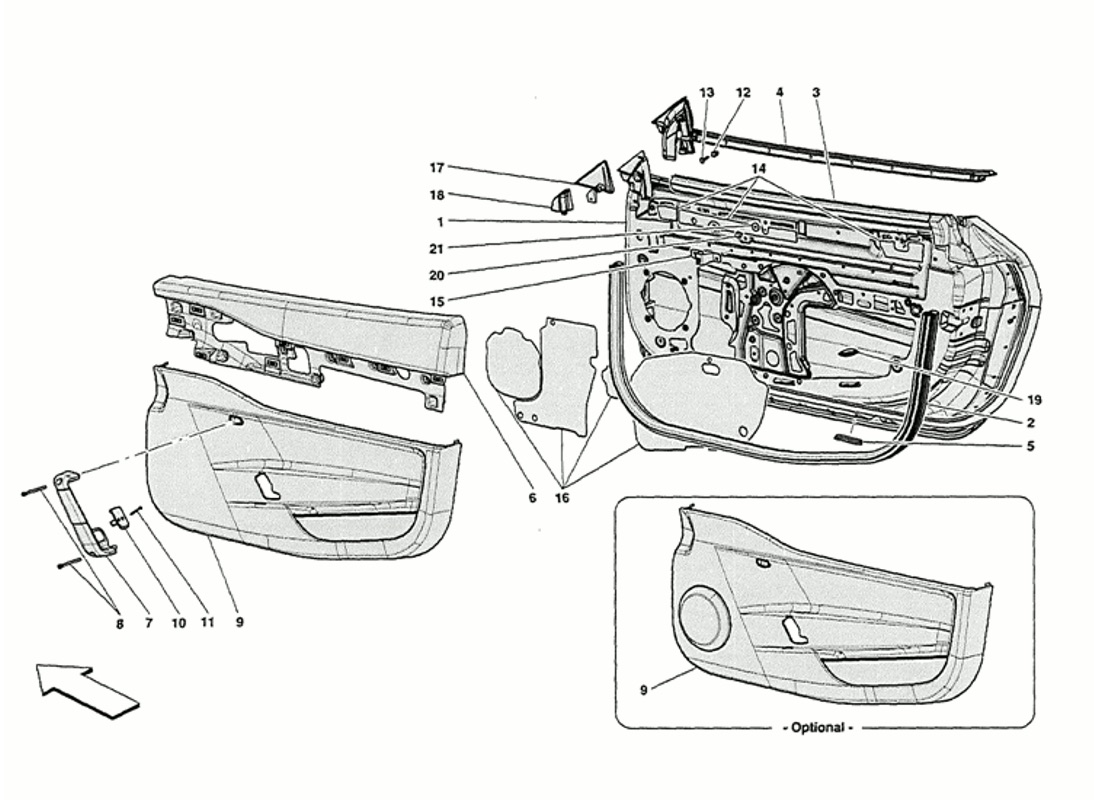

DOORS - FRAMEWORK AND COVERINGS

Go to Split View

DOORS - FRAMEWORK AND COVERINGS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 84682711 *Qty: 1 STRUTTURA PORTA DX. CPL. Call
Location: 1 Prev | Next Part: 84682511 *Qty: 1 STRUTTURA PORTA SX. CPL. Call
Location: 2 Prev | Next Part: 83987400 *Qty: 2 LOWER SEAL $175.36
Location: 3 Prev | Next Part: 84685200 *Qty: 1 RH DOOR INNER EDGE SEAL $312.00
Location: 3 Prev | Next Part: 84685100 *Qty: 1 LH DOOR INNER PERIMETER SEAL $312.00
Location: 4 Prev | Next Part: 81361200 *Qty: 1 RH DOOR OUTER EDGE SEAL $461.16
Location: 4 Prev | Next Part: 81361400 *Qty: 1 LH DOOR OUTER EDGE SEAL $461.16
Location: 5 Prev | Next Part: 63965800 *Qty: 2 PLUG $7.46
Location: 6 Prev | Next Part: 855843- *Qty: 1 FINIZIONE PORTA DX. CPL. -Alcantara- Call
Location: 6 Prev | Next Part: 857595- *Qty: 1 FINIZIONE PORTA DX. CPL. -Leather- Call
Location: 6 Prev | Next Part: 855877- *Qty: 1 FINIZIONE PORTA SX. CPL. -Alcantara- Call
Location: 6 Prev | Next Part: 857600.. *Qty: 1 FINIZIONE PORTA SX. CPL. -Leather- Call
Location: 7 Prev | Next Part: 854078.. *Qty: 1 MA2STIGLIA TIRAPORTA CPL. DX. -Alcantara- Call
Location: 7 Prev | Next Part: 857593- *Qty: 1 MANIGLIA TIRAPORTA CPL. DX. -Leather- Call
Location: 7 Prev | Next Part: 854242.. *Qty: 1 MANIGLIA TIRAPORTA CPL. SX. -Alcantara- Call
Location: 7 Prev | Next Part: 857598- *Qty: 1 MANIGLIA TIRAPORTA CPL. SX. -Leather- Call
Location: 8 Prev | Next Part: 85757300 *Qty: 4 SCREW-M6X78- Call
Location: 9 Prev | Next Part: 85408200 *Qty: 1 PANNELLO PORTA DX. CPL. Call
Location: 9 Prev | Next Part: 85573100 *Qty: 1 PANNELLO PORTA DX. CPL. -Versione radio e navigatore- Call
Location: 9 Prev | Next Part: 85408000 *Qty: 1 PANNELLO PORTA SX. CPL. Call
Location: 9 Prev | Next Part: 85574100 *Qty: 1 PANNELLO PORTA SX. CPL. -Versione radio e navigatore- Call
Location: 10 Prev | Next Part: 85587600 *Qty: 1 DOOR HANDLE DX. Call
Location: 10 Prev | Next Part: 85589200 *Qty: 1 DOOR HANDLE SX. Call
Location: 11 Prev | Next Part: 67660400 *Qty: 4 SCREW FOR HANDLE $103.59
Location: 12 Prev | Next Part: 14115885 *Qty: 14 BLOCK $0.90
Location: 13 Prev | Next Part: 15689801 *Qty: 14 SCREW D. 4.2X19 $0.90
Location: 14 Prev | Next Part: 85705300 *Qty: 1 TELINA DX. RIPARO ACQUA UPPER Call
Location: 14 Prev | Next Part: 85705400 *Qty: 1 TELINA SX. RIPARO ACQUA UPPER Call
Location: 15 Prev | Next Part: 85704900 *Qty: 1 STAFFA FISSAGGIO MANIGLIA DX. Call
Location: 15 Prev | Next Part: 85705100 *Qty: 1 STAFFA FISSAGGIO MANIGLIA SX. Call
Location: 16 Prev | Next Part: 86000000 *Qty: 1 TELINA DX. RIPARO ACQUA LOWER Call
Location: 16 Prev | Next Part: 86002700 *Qty: 1 TELINA SX. RIPARO ACQUA LOWER Call
Location: 17 Prev | Next Part: 81486300 *Qty: 1 RH DOOR CORNER TRIANGLE $137.84
Location: 17 Prev | Next Part: 81486500 *Qty: 1 LH DOOR CORNER TRIANGLE $137.84
Location: 18 Prev | Next Part: 84312100 *Qty: 1 RH INTERNAL MIRROR TRIM Call
Location: 18 Prev | Next Part: 84312200 *Qty: 1 LH DOOR INNER CORNER TRIANGLE Call
Location: 19 Prev | Next Part: 85154200 *Qty: 2 TAPPO PERASOLA Call
Location: 20 Prev | Next Part: 82672700 *Qty: 6 RETAINING CLIP $1.15
Location: 21 Prev | Next Part: 65841100 *Qty: 6 WASHER 6.5X22X2.5 $1.44

* Quantity shown indicates the number of pieces used in the diagram.
