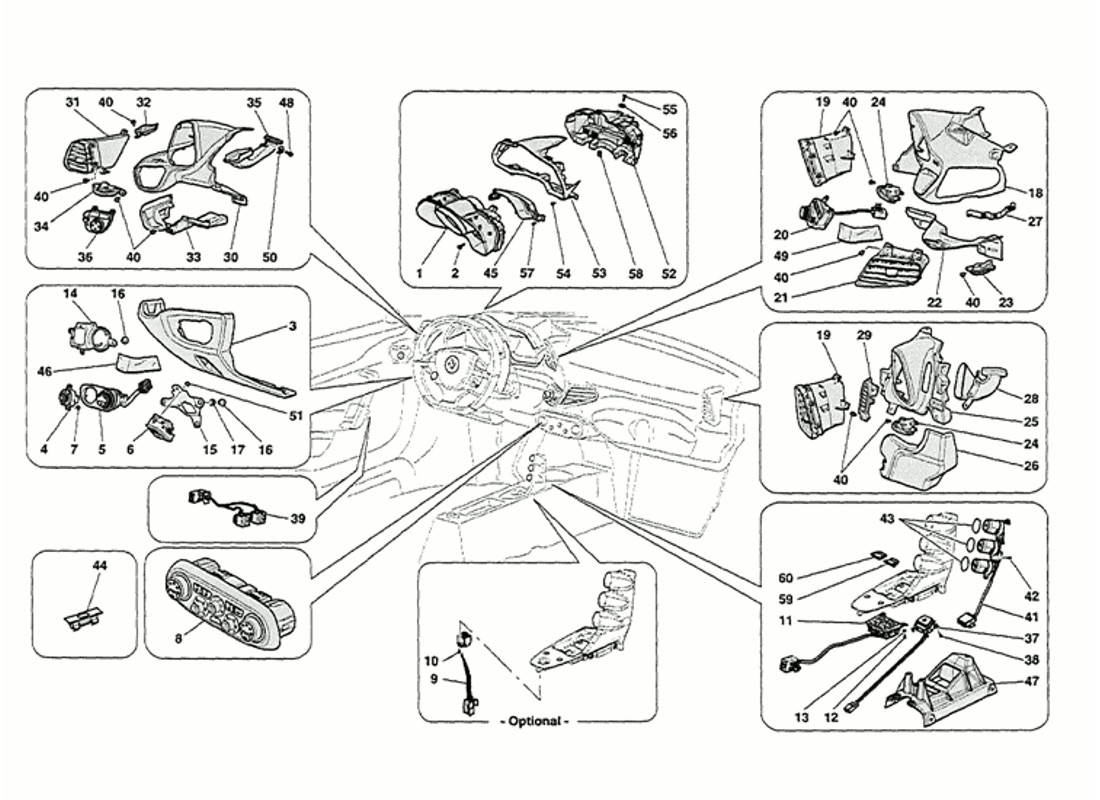

DASHBOARD AND TUNNEL INSTRUMENTS

Go to Split View

DASHBOARD AND TUNNEL INSTRUMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 295903 *Qty: 1 STRUMENTO COMPLETO -Fondo bianco- Call
Location: 1 Prev | Next Part: 295902 *Qty: 1 STRUMENTO COMPLETO -Fondo giallo- Call
Location: 1 Prev | Next Part: 295904 *Qty: 1 STRUMENTO COMPLETO -Fondo nero- Call
Location: 1 Prev | Next Part: 295901 *Qty: 1 STRUMENTO COMPLETO -Fondo rosso- Call
Location: 2 Prev | Next Part: 65366700 *Qty: 2 SCREW M 5X12 $1.26
Location: 2 Prev | Next Part: 169815 *Qty: 2 SCREW M5X20 $2.14
Location: 3 Prev | Next Part: 85543600 *Qty: 1 PANNELLO LOWER SX. Call
Location: 3 Prev | Next Part: 857812.. *Qty: 1 PANNELLO LOWER SX. -Leather- Call
Location: 4 Prev | Next Part: 301720 *Qty: 1 COMANDO SPECCHI ESTERNI -Vale per specchi elettrocromici abbattibili- Call
Location: 4 Prev | Next Part: 301721 *Qty: 1 COMANDO SPECCHIESTERNI -Standard- Call
Location: 5 Prev | Next Part: 862631.. *Qty: 1 COMANDO LUCIE RETRONEBBIA -Plastica color pelle intemo vettura- Call
Location: 6 Prev | Next Part: 820259.. *Qty: 1 INTERRUTTORE EBP CON DISABILITAZIONE AUTOPARK -Plastica color pelle intemo vettura- Call
Location: 7 Prev | Next Part: 15902501 *Qty: 2 VITE AUTOF.TBIC D. 3,5X 6,5 TIPO AB Call
Location: 8 Prev | Next Part: 85545800 *Qty: 1 PLANCETTA COMANDO A.C. Call
Location: 9 Prev | Next Part: 246568 *Qty: 1 VEHICLE LIFT CONTROL $99.70
Location: 10 Prev | Next Part: 14418031 *Qty: 2 VITE TCEI M 3X 8 $0.90
Location: 11 Prev | Next Part: 293193 *Qty: 1 COMANDO COMPLETO WINDOW Call
Location: 12 Prev | Next Part: 14418031 *Qty: 4 VITE TCEI M 3X 8 $0.90
Location: 13 Prev | Next Part: 13579001 *Qty: 4 WASHER D.4.15-9X0.5 $0.90
Location: 14 Prev | Next Part: 82888300 *Qty: 1 LIGHT SELECTOR FASTENER BRACKET $24.97
Location: 15 Prev | Next Part: 83739700 *Qty: 1 BUTTON FASTENER BRACKET $19.10
Location: 16 Prev | Next Part: 65212000 *Qty: 7 SCREW $1.38
Location: 17 Prev | Next Part: 12637801 *Qty: 3 WASHER D. 5.4-11X1 (SUP) Superseded
Location: 18 Prev | Next Part: 85541400 *Qty: 1 SATELLITE CENTRALE CPL. Call
Location: 18 Prev | Next Part: 82989500 *Qty: 1 CENTRAL VENT TRIM -Carbon- $4,540.58
Location: 19 Prev | Next Part: 85542500 *Qty: 2 BOCCHETTA ARIA DX. Call
Location: 20 Prev | Next Part: 298664 *Qty: 1 COMANDO NAVIGATORE -Versione radio e navigatore- Call
Location: 21 Prev | Next Part: 85541800 *Qty: 1 BOCCHETTA ARIA CENTRALE LOWER Call
Location: 22 Prev | Next Part: 85541900 *Qty: 1 COPERCHIO LOWER CENTRALE Call
Location: 22 Prev | Next Part: 85548100 *Qty: 1 COPERCHIO LOWER CENTRALE -Versione radio e navigatore- Call
Location: 23 Prev | Next Part: 82893600 *Qty: 1 LOWER CENTRAL AIR VENT CONTROL $155.67
Location: 24 Prev | Next Part: 82893500 *Qty: 2 RH VENT CONTROL $155.67
Location: 25 Prev | Next Part: 82989400 *Qty: 1 RH VENT TRIM -Carbon- $4,159.31
Location: 26 Prev | Next Part: 85543800 *Qty: 1 PANNELLO LOWER DX. Call
Location: 26 Prev | Next Part: 857814.. *Qty: 1 PANNELLO LOWER DX. -Leather- Call
Location: 27 Prev | Next Part: 85624100 *Qty: 1 STAFFA Call
Location: 28 Prev | Next Part: 81981100 *Qty: 1 RH LATERAL AIR DUCT $80.49
Location: 29 Prev | Next Part: 81981000 *Qty: 1 RH LATERAL AIR DUCT GRILLE $49.93
Location: 30 Prev | Next Part: 82989300 *Qty: 1 LH VENT TRIM -Carbon- $4,403.23
Location: 31 Prev | Next Part: 85540900 *Qty: 1 BOCCHETTA ARIA SX. Call
Location: 32 Prev | Next Part: 81968300 *Qty: 1 LH LATERAL AIR DUCT GRILLE $45.53
Location: 33 Prev | Next Part: 82986300 *Qty: 1 LOWER LH COVER $237.18
Location: 33 Prev | Next Part: 85552600 *Qty: 1 COPERCHIO LOWER SX. -Versione plancia in pelle- Call
Location: 34 Prev | Next Part: 82893300 *Qty: 1 DRIVERS SIDE A/C VENT CONTROL $155.67
Location: 35 Prev | Next Part: 81981200 *Qty: 1 LH LATERAL AIR DUCT $80.49
Location: 36 Prev | Next Part: 298663 *Qty: 1 COMANDO MODE DISPLAY Call
Location: 36 Prev | Next Part: 298662 *Qty: 1 COMANDO MODE DISPLAY E CRUISE CONTROL Call
Location: 37 Prev | Next Part: 246860 *Qty: 1 HAZARD WARNING LIGHT BUTTON $137.41
Location: 38 Prev | Next Part: 14418131 *Qty: 4 SCREW M 3X10 $0.90
Location: 39 Prev | Next Part: 298816 *Qty: 1 COMANDO SBLOCCO BAULE E SPORTELLO BENZINA Call
Location: 40 Prev | Next Part: 14418131 *Qty: 28 SCREW M 3X10 $0.90
Location: 41 Prev | Next Part: 302234 *Qty: 1 COMANDI CAMBIO Call
Location: 42 Prev | Next Part: 14417924 *Qty: 5 SCREW M3X 6 Superseded
Location: 43 Prev | Next Part: 121903 *Qty: 3 GASKET D. 23.81X2.62 $0.99
Location: 44 Prev | Next Part: 68700200 *Qty: 27 MOLLETTA PER FISAGGI A SCATTO $7.18
Location: 45 Prev | Next Part: 814978.. *Qty: 1 TENDINA CPL. -Leather- Call
Location: 46 Prev | Next Part: 179309 *Qty: 1 ADHESIVE SPONGE 100MM X 50MM $5.38
Location: 47 Prev | Next Part: 85714600 *Qty: 1 STAFFA SUPPORTO MOSTRINA Call
Location: 48 Prev | Next Part: 64460500 *Qty: 2 SCREW $1.53
Location: 49 Prev | Next Part: 179309 *Qty: 1 ADHESIVE SPONGE 100MM X 50MM $5.38
Location: 50 Prev | Next Part: 68700800 *Qty: 2 DASHBOARD RETAINING CLIP $1.31
Location: 51 Prev | Next Part: 65752800 *Qty: 3 SCREW M 4X10 $2.87
Location: 52 Prev | Next Part: 82517900 *Qty: 1 SUPPORTO STRUMENTO COMPLETO Call
Location: 53 Prev | Next Part: 81875700 *Qty: 1 CORNICE INTERNA + ESTERNA Call
Location: 54 Prev | Next Part: 65212000 *Qty: 6 SCREW $1.38
Location: 55 Prev | Next Part: 68176500 *Qty: 1 SCREW M5X20 $0.90
Location: 56 Prev | Next Part: 13577701 *Qty: 1 WASHER D. 5.15-15X1.2 $0.90
Location: 57 Prev | Next Part: 65212000 *Qty: 3 SCREW $1.38
Location: 58 Prev | Next Part: 66927700 *Qty: 3 BRACKET $1.44
Location: 59 Prev | Next Part: 302236 *Qty: 1 INTERRUTTO RE ALZACRISTALLO DX. Call
Location: 60 Prev | Next Part: 302237 *Qty: 1 INTERRUTTORE ALZACRISTALLO SX. Call

* Quantity shown indicates the number of pieces used in the diagram.
