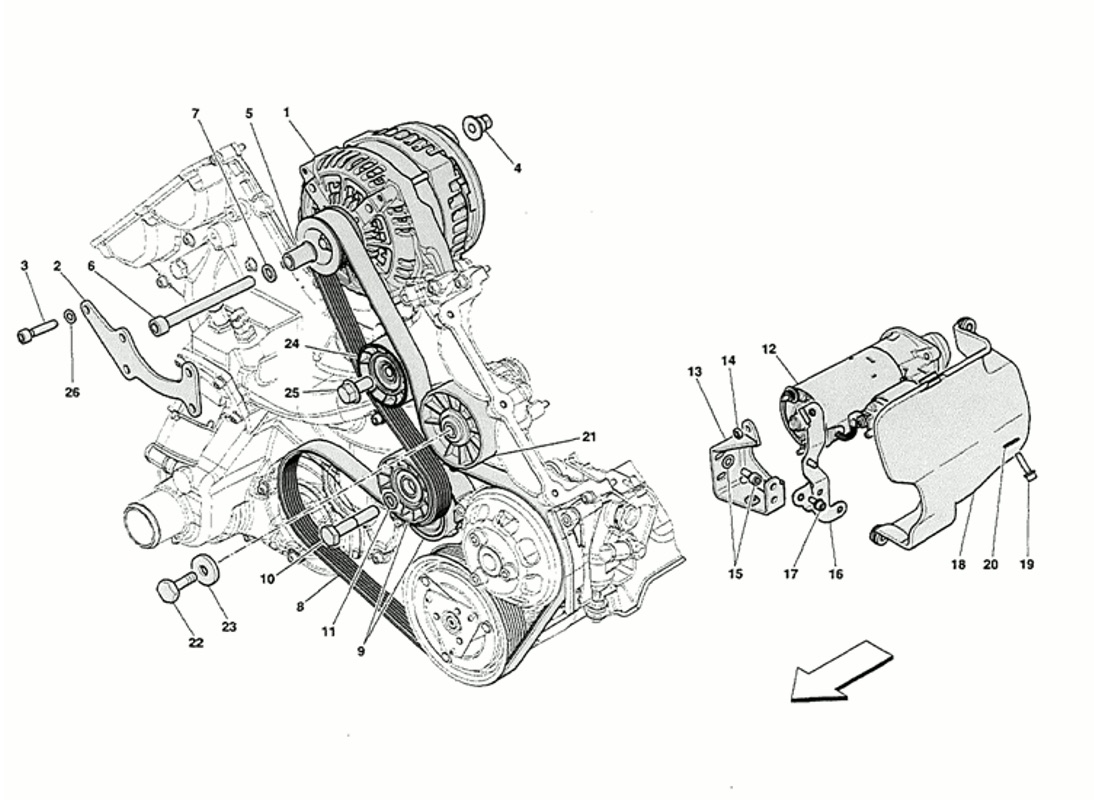

CURRENT GENERATOR - STARTING MOTOR

Go to Split View

CURRENT GENERATOR - STARTING MOTOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 301402 *Qty: 1 ALTERNATORE Call
Location: 2 Prev | Next Part: 253092 *Qty: 1 ALTERNATOR BRACE BRACKET $14.97
Location: 3 Prev | Next Part: 231620 *Qty: 3 SCREW M6X25 $0.90
Location: 4 Prev | Next Part: 257217 *Qty: 1 THREADED BUSHING -On RH head.- $17.37
Location: 4 Prev | Next Part: 257220 *Qty: 1 THREADED BUSHING -On LH head.- Call
Location: 5 Prev | Next Part: 247088 *Qty: 2 BUSHING D.10.2 16.5 X 25 $8.29
Location: 6 Prev | Next Part: 14308724 *Qty: 1 SCREW M 10X1,25X100 $4.83
Location: 6 Prev | Next Part: 14308324 *Qty: 1 SCREW M 10X1.25X 70 (SUP) $2.49
Location: 7 Prev | Next Part: 10569474 *Qty: 2 WASHER D. 10-16X2.5 $0.90
Location: 8 Prev | Next Part: 251220 *Qty: 1 6-RIB CONTROL BELT $64.48
Location: 9 Prev | Next Part: 238587 *Qty: 1 BELT TENSIONER Superseded
Location: 10 Prev | Next Part: 268567 *Qty: 1 SCREW M8X60 Call
Location: 11 Prev | Next Part: 11193874 *Qty: 1 WASHER D. 8.4X1 $0.90
Location: 12 Prev | Next Part: 248743 *Qty: 1 STARTER MOTOR $1,678.10
Location: 13 Prev | Next Part: 277661 *Qty: 1 STARTER MOTOR MOUNTING BRACKET $76.36
Location: 14 Prev | Next Part: 14040611 *Qty: 2 NUT $0.90
Location: 15 Prev | Next Part: 248471 *Qty: 2 SCREW M8X20 $1.47
Location: 16 Prev | Next Part: 260062 *Qty: 1 SHIELD FASTENER BRACKET $19.48
Location: 17 Prev | Next Part: 231616 *Qty: 2 SCREW CEI ROND. M6X14 $0.90
Location: 18 Prev | Next Part: 259433 *Qty: 1 HEAT SHIELD $152.81
Location: 19 Prev | Next Part: 231620 *Qty: 2 SCREW M6X25 $0.90
Location: 19 Prev | Next Part: 231621 *Qty: 1 SCREW M6X30 $0.90
Location: 20 Prev | Next Part: 12643724 *Qty: 3 WASHER D. 6,45-18X1 $0.90
Location: 21 Prev | Next Part: 227894 *Qty: 1 BELT TIGHTENING PULLEY $83.74
Location: 22 Prev | Next Part: 11343821 *Qty: 1 BOLT M 10X1.25X50 $0.90
Location: 23 Prev | Next Part: 10569474 *Qty: 1 WASHER D. 10-16X2.5 $0.90
Location: 24 Prev | Next Part: 238590 *Qty: 1 MULE PULLEY $44.94
Location: 25 Prev | Next Part: 260886 *Qty: 1 SCREW M 10X 1.5X20 $5.17
Location: 26 Prev | Next Part: 13550224 *Qty: 5 WASHER D. 6.15-13X1 $1.33

* Quantity shown indicates the number of pieces used in the diagram.
