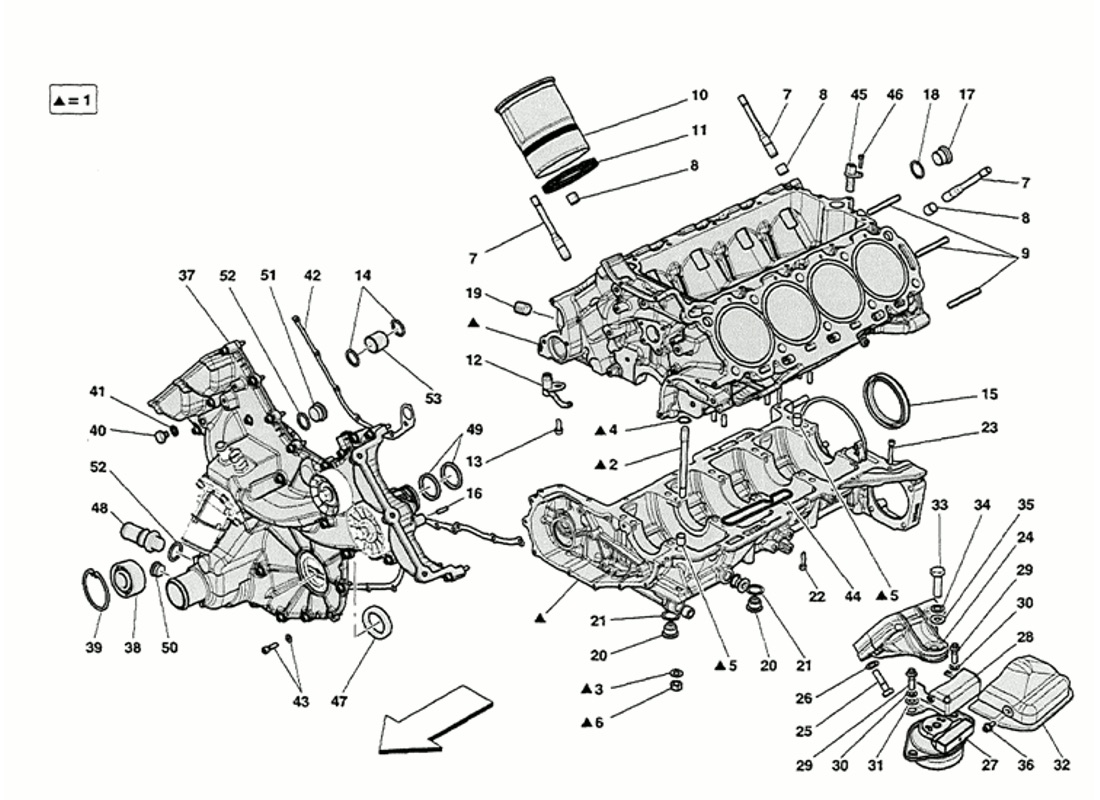

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 278162 *Qty: 1 ASSEMBLATO BASAMENTO SOTTOBASAMENTO -Lead free- Call
Location: 2 Prev | Next Part: 236261 *Qty: 10 STUD BOLT M12X1.75 GAMBO M10X1.25 $10.68
Location: 2 Prev | Next Part: 236262 *Qty: 10 STUD BOLT M12X1.75 GAMBO M10X1.25 $10.46
Location: 3 Prev | Next Part: 178348 *Qty: 20 WASHER D.10.2-20X2.4 $0.95
Location: 4 Prev | Next Part: 134704 *Qty: 20 O RING $0.90
Location: 5 Prev | Next Part: 176421 *Qty: 2 CENTERING DOWEL D.14,5X16 $5.22
Location: 6 Prev | Next Part: 133988 *Qty: 20 NUT M 10X1.25X8 $0.90
Location: 7 Prev | Next Part: 217968 *Qty: 20 BOLT M 14X2 GAMBO M 11 $8.27
Location: 8 Prev | Next Part: 185360 *Qty: 4 CENTERING DOWEL D.16X15 $3.61
Location: 9 Prev | Next Part: 13546934 *Qty: 4 STUD M 10X1.25X20 $1.94
Location: 9 Prev | Next Part: 13547034 *Qty: 3 STUD M 10X1.25X20 $11.05
Location: 10 Prev | Next Part: 243339 *Qty: 8 CYLINDER LINER $487.67
Location: 11 Prev | Next Part: 186251 *Qty: 24 CYLINDER LINER GASKET $3.21
Location: 12 Prev | Next Part: 262417 *Qty: 8 UGELLO RAFFREDDAMENTO PISTONE CPL. Call
Location: 13 Prev | Next Part: 262413 *Qty: 8 SCREW M4X10 $1.26
Location: 14 Prev | Next Part: 14454681 *Qty: 2 OR GASKET D.37.82X1.78 $0.93
Location: 15 Prev | Next Part: 240214 *Qty: 1 REAR MAIN SEAL D.80-100X10 $65.38
Location: 16 Prev | Next Part: 175611 *Qty: 2 CENTERING DOWEL $2.14
Location: 17 Prev | Next Part: 10304511 *Qty: 1 THREADED PLUG CIL. M22X1.5X14 $2.87
Location: 18 Prev | Next Part: 10263460 *Qty: 1 WASHER/COPPER D. 22-28X1.5 Superseded
Location: 19 Prev | Next Part: 14325340 *Qty: 2 TAPPO FILETT.CONICA D. 22X1.5 $10.25
Location: 20 Prev | Next Part: 104280 *Qty: 2 PLUG/THREADED M 22X1.5 $6.75
Location: 21 Prev | Next Part: 10261860 *Qty: 2 WASHER/COPPER $0.90
Location: 22 Prev | Next Part: 231620 *Qty: 11 SCREW M6X25 $0.90
Location: 23 Prev | Next Part: 231623 *Qty: 2 SCREW M6X40 $0.90
Location: 24 Prev | Next Part: 255568 *Qty: 1 RH ENGINE STRUT $223.21
Location: 24 Prev | Next Part: 255569 *Qty: 1 LH ENGINE STRUT $223.21
Location: 25 Prev | Next Part: 11307034 *Qty: 8 SCREW M 10X1.25X 40 $1.09
Location: 26 Prev | Next Part: 11190574 *Qty: 8 WASHER D. 10.5X2 $0.90
Location: 27 Prev | Next Part: 296230 *Qty: 1 TAMPONE ELASTICO SUPPORTO MOTORE DX. Call
Location: 27 Prev | Next Part: 296231 *Qty: 1 TAMPONE ELASTICO SUPPORTO MOTORE SX. Call
Location: 28 Prev | Next Part: 263593 *Qty: 1 RH BUSH TRAVEL LIMITER BRACKET $113.09
Location: 28 Prev | Next Part: 263594 *Qty: 1 LH BUSH TRAVEL LIMITER BRACKET $113.09
Location: 29 Prev | Next Part: 243841 *Qty: 6 SCREW TORX M10X1.25X30 $2.08
Location: 30 Prev | Next Part: 127497 *Qty: 6 WASHER D. 10-18.1X1.8 $0.90
Location: 31 Prev | Next Part: 14496624 *Qty: 6 WASHER D. 10.50-21X2 $0.90
Location: 32 Prev | Next Part: 260084 *Qty: 2 ENGINE MOUNTING BUSH HEAT SHIELD $67.41
Location: 33 Prev | Next Part: 11599534 *Qty: 2 SCREW M 12X1.75X 45 $2.71
Location: 34 Prev | Next Part: 127498 *Qty: 2 WASHER D. 12-21.1X2.1 $0.90
Location: 35 Prev | Next Part: 10738021 *Qty: 2 WASHER.D. 12,20-24X 5 $1.72
Location: 36 Prev | Next Part: 231616 *Qty: 4 SCREW CEI ROND. M6X14 $0.90
Location: 37 Prev | Next Part: 261440 *Qty: 1 FRONT CRANKCASE COVER CPL $2,399.68
Location: 38 Prev | Next Part: 247049 *Qty: 1 BEARING $59.12
Location: 39 Prev | Next Part: 11060276 *Qty: 1 SNAP RING D.47 $0.90
Location: 40 Prev | Next Part: 187718 *Qty: 2 BLEEDER PLUG M10X1.25X10 C $6.79
Location: 41 Prev | Next Part: 10284460 *Qty: 2 GASKET 27649- $0.90
Location: 42 Prev | Next Part: 253102 *Qty: 1 FRONT COVER GASKET $64.16
Location: 43 Prev | Next Part: 231617 *Qty: 11 SCREW ROND.. M6X18 $0.90
Location: 43 Prev | Next Part: 231619 *Qty: 4 SCREW M6X22 $0.90
Location: 43 Prev | Next Part: 231620 *Qty: 3 SCREW M6X25 $0.90
Location: 43 Prev | Next Part: 231621 *Qty: 1 SCREW M6X30 $0.90
Location: 43 Prev | Next Part: 231622 *Qty: 8 SCREW M6X35 $0.90
Location: 43 Prev | Next Part: 231624 *Qty: 1 SCREW M6X45 $0.90
Location: 43 Prev | Next Part: 231625 *Qty: 3 SCREW M6X50 $0.90
Location: 43 Prev | Next Part: 231626 *Qty: 1 SCREW M6X70 $1.11
Location: 44 Prev | Next Part: 236143 *Qty: 2 GASKET $8.03
Location: 45 Prev | Next Part: 249747 *Qty: 1 ROTATIONAL SPEED SENSOR $117.58
Location: 46 Prev | Next Part: 231618 *Qty: 1 SCREW ROND.. M6X20 $0.90
Location: 47 Prev | Next Part: 245884 *Qty: 1 CRANKSHAFT SEAL D.48-65-8/9 $42.16
Location: 48 Prev | Next Part: 253787 *Qty: 1 CONNECTOR M22X1,5 D.20 $273.97
Location: 49 Prev | Next Part: 183010 *Qty: 2 GASKET D. 32.93 $1.90
Location: 50 Prev | Next Part: 223405 *Qty: 1 CAP $7.34
Location: 51 Prev | Next Part: 193885 *Qty: 1 TAPPO M 22X1.5 $4.59
Location: 52 Prev | Next Part: 10263460 *Qty: 2 WASHER/COPPER D. 22-28X1.5 Superseded
Location: 53 Prev | Next Part: 239437 *Qty: 1 BUSHINGINGRESSO ACQUA Call

* Quantity shown indicates the number of pieces used in the diagram.
