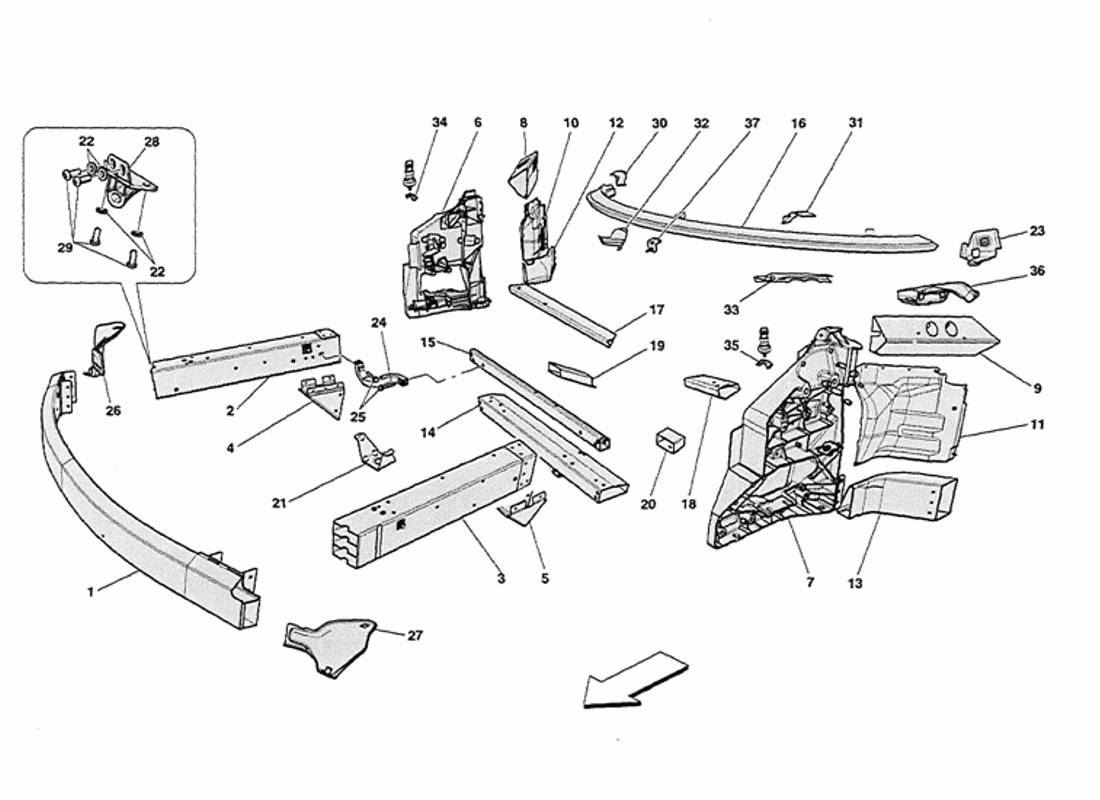

CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS

Go to Split View

CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 302339 *Qty: 1 TRAVERSA FRONT -Restricted - Not available for sale- Call
Location: 2 Prev | Next Part: 300557 *Qty: 1 PUNTONE FRONT DX. -Restricted - Not available for sale- Call
Location: 3 Prev | Next Part: 300556 *Qty: 1 PUNTONE FRONT SX. -Restricted - Not available for sale- Call
Location: 4 Prev | Next Part: 244142 *Qty: 1 RINFORZO ANGOLARE SU PUNTONE DX. Call
Location: 5 Prev | Next Part: 244141 *Qty: 1 RINFORZO ANGOLARE SU PUNTONE SX. Call
Location: 6 Prev | Next Part: 294051 *Qty: 1 SHOCK TOWER FRONT DX. -Restricted - Not available for sale- Call
Location: 7 Prev | Next Part: 294050 *Qty: 1 SHOCK TOWER FRONT SX. -Restricted - Not available for sale- Call
Location: 8 Prev | Next Part: 270833 *Qty: 1 DIAGONALE FRONT UPPER DX. -Restricted - Not available for sale- Call
Location: 9 Prev | Next Part: 270834 *Qty: 1 DIAGONALE FRONT UPPER SX. -Restricted - Not available for sale- Call
Location: 10 Prev | Next Part: 271965 *Qty: 1 CHIUSURA DX. VANO RUOTA-Restricted - Not available for sale- Call
Location: 11 Prev | Next Part: 271964 *Qty: 1 CHIUSURA SX. VANO RUOTA -Restricted - Not available for sale- Call
Location: 12 Prev | Next Part: 300760 *Qty: 1 TORQUE BOX FRONT DX. -Restricted - Not available for sale- Call
Location: 13 Prev | Next Part: 257920 *Qty: 1 TORQUE BOX FRONT SX. -Restricted - Not available for sale- Call
Location: 14 Prev | Next Part: 307740 *Qty: 1 TRAVERSA LOWER SOSPENSIONE FRONT -Restricted - Not available for sale- Call
Location: 15 Prev | Next Part: 291489 *Qty: 1 TRAVERSA COLLEGAMENTO FUSIONI -Restricted - Not available for sale- Call
Location: 16 Prev | Next Part: 270813 *Qty: 1 TRAVERSA PARABREZZA CURVANO Call
Location: 17 Prev | Next Part: 283057 *Qty: 1 DIAGONALE UPPER DX. Call
Location: 18 Prev | Next Part: 283056 *Qty: 1 DIAGONALE UPPER SX. Call
Location: 19 Prev | Next Part: 284x99 *Qty: 1 DIAGONALE LOWER DX. Call
Location: 20 Prev | Next Part: 284477 *Qty: 1 DIAGONALE LOWER SX. Call
Location: 21 Prev | Next Part: 265090 *Qty: 2 BRACKET $36.86
Location: 22 Prev | Next Part: 290236 *Qty: 4 SPACER Call
Location: 23 Prev | Next Part: 272197 *Qty: 1 LH WINDSCREEN WIPER BRACKET Call
Location: 24 Prev | Next Part: 84652800 *Qty: 1 STAFFA VASCA BAGAGLI DX. Call
Location: 24 Prev | Next Part: 84652700 *Qty: 1 STAFFA VASCA BAGAGLI SX. Call
Location: 25 Prev | Next Part: 16287721 *Qty: 4 SCREW Call
Location: 26 Prev | Next Part: 84641900 *Qty: 1 STAFFA DX. FISSAGGIO RADIATORE Call
Location: 27 Prev | Next Part: 84641800 *Qty: 1 STAFFA SX. FISSAGGIO RADIATORE Call
Location: 28 Prev | Next Part: 290233 *Qty: 1 COMPL. TOW HOOK $284.82
Location: 29 Prev | Next Part: 85633900 *Qty: 4 SCREW Call
Location: 30 Prev | Next Part: 270832 *Qty: 1 RH WINDSCREEN PANEL BRACKET Call
Location: 31 Prev | Next Part: 270831 *Qty: 1 LH WINDSCREEN PANEL BRACKET Call
Location: 32 Prev | Next Part: 270836 *Qty: 1 CHIUSURA DIAGONALE A CURVANO DX. Call
Location: 33 Prev | Next Part: 270835 *Qty: 1 CHIUSURA DIAGONALE A CURVANO SX. Call
Location: 34 Prev | Next Part: 279453 *Qty: 1 STAFFA FRONT DX. ACCELEROMETRO Call
Location: 35 Prev | Next Part: 279381 *Qty: 1 LH FRONT ACCELEROMETER BRACKET $15.66
Location: 36 Prev | Next Part: 84827700 *Qty: 1 SCATOLAMENTO SOTTOPARABREZZA DX. Call
Location: 36 Prev | Next Part: 84827600 *Qty: 1 SCATOLAMENTO SOTTOPARABREZZA SX. Call
Location: 37 Prev | Next Part: 272192 *Qty: 1 STAFFA SERBATOIO OLIO FRENI Call

* Quantity shown indicates the number of pieces used in the diagram.
