BRAKE SERVO SYSTEM

Go to Split View

BRAKE SERVO SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 244010 *Qty: 1 BRAKE SERVO CPL WITH PUMP $588.40
Location: 2 Prev | Next Part: 12601374 *Qty: 4 WASHER D. 8,40-15X $0.90
Location: 3 Prev | Next Part: 12578211 *Qty: 4 NUT E AUTOFR.M 8 $0.90
Location: 4 Prev | Next Part: 250733 *Qty: 1 CLIP $1.20
Location: 5 Prev | Next Part: 259047 *Qty: 1 BRAKE FLUID RESERVOIR $49.74
Location: 6 Prev | Next Part: 238606 *Qty: 1 RUBBER PIPE D. 7.5-14.5X XXX $26.21
Location: 7 Prev | Next Part: 238607 *Qty: 1 RUBBER PIPE D. 7.5-14.5X XXX $24.71
Location: 8 Prev | Next Part: 14040611 *Qty: 2 NUT $0.90
Location: 9 Prev | Next Part: 293099 *Qty: 1 HOSE CON VALVOLA KAISER Call
Location: 10 Prev | Next Part: 262205 *Qty: 1 CONNECTOR PIPE $50.23
Location: 11 Prev | Next Part: 13432070 *Qty: 5 SCREW COLLAR D.15.7 $0.90
Location: 12 Prev | Next Part: 262432 *Qty: 1 UNDERFLOOR PIPE $94.01
Location: 13 Prev | Next Part: 263409 *Qty: 1 FRONT VACUUM PIPE CPL $51.80
Location: 13 Prev | Next Part: 273670 *Qty: 1 FRONT VACUUM PIPE CPL. S&S GSX Call
Location: 14 Prev | Next Part: 268340 *Qty: 1 STAFFETTA Call
Location: 15 Prev | Next Part: 140130 *Qty: 2 CLAMP D. 10 $0.90

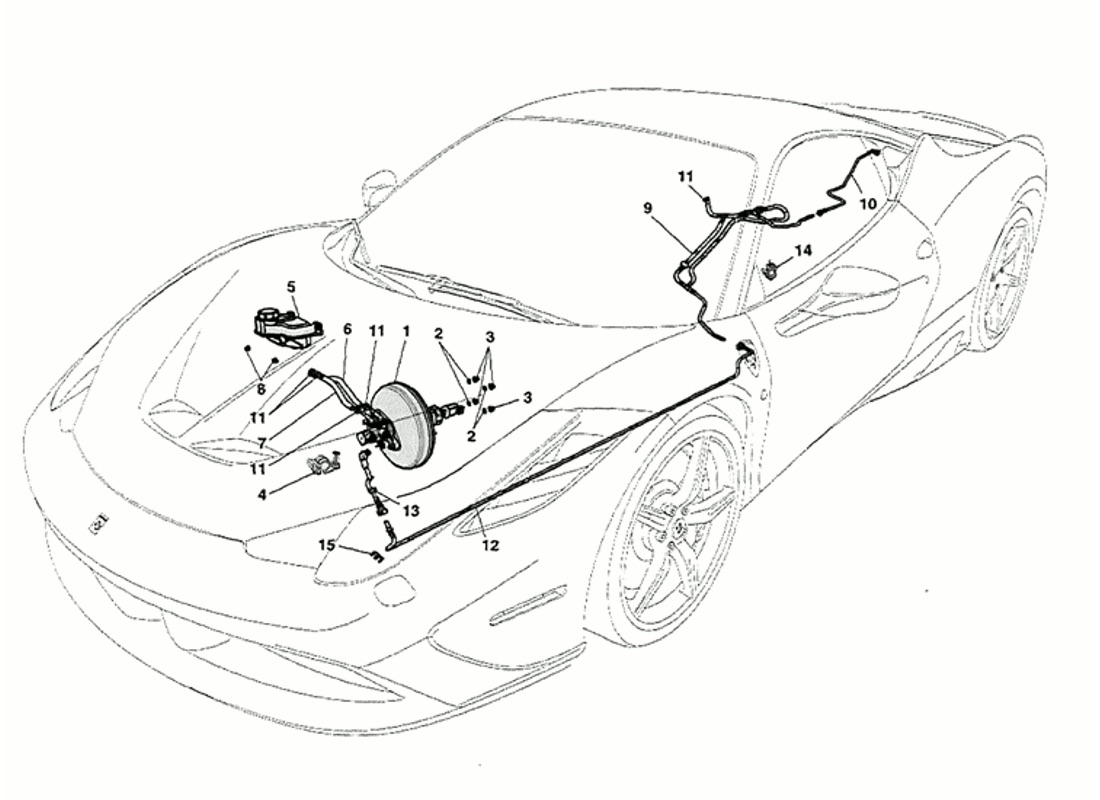

* Quantity shown indicates the number of pieces used in the diagram.
