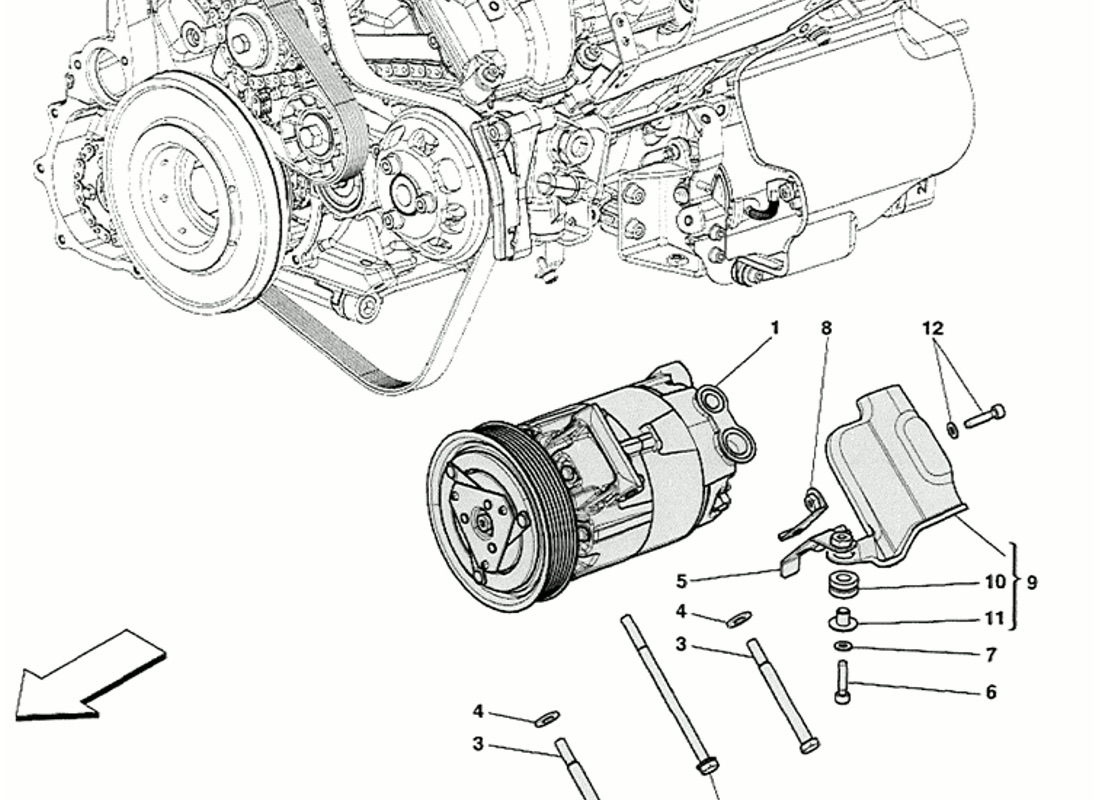

AIR CONDITIONING COMPRESSOR

Go to Split View

AIR CONDITIONING COMPRESSOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 267146 *Qty: 1 AC COMPRESSOR Call
Location: 2 Prev | Next Part: 16045824 *Qty: 1 SCREW M8X130 $3.00
Location: 3 Prev | Next Part: 16045024 *Qty: 2 BOLT $0.99
Location: 4 Prev | Next Part: 11193874 *Qty: 2 WASHER D. 8.4X1 $0.90
Location: 5 Prev | Next Part: 254072 *Qty: 1 SHIELD MOUNTING BRACKET $12.92
Location: 6 Prev | Next Part: 252462 *Qty: 1 CALIBRATED SCREW M8X1.25X90 $15.32
Location: 7 Prev | Next Part: 11186374 *Qty: 1 WASHER D. 10-20X2 $1.44
Location: 8 Prev | Next Part: 259775 *Qty: 1 REAR SHIELD MOUNTING BRACKET $15.88
Location: 9 Prev | Next Part: 270175 *Qty: 1 HEAT SHIELD $176.23
Location: 10 Prev | Next Part: 259653 *Qty: 2 GROMMET D8.6 X 3.5 $3.10
Location: 11 Prev | Next Part: 264681 *Qty: 2 SPACER Call
Location: 12 Prev | Next Part: 231620 *Qty: 2 SCREW M6X25 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
