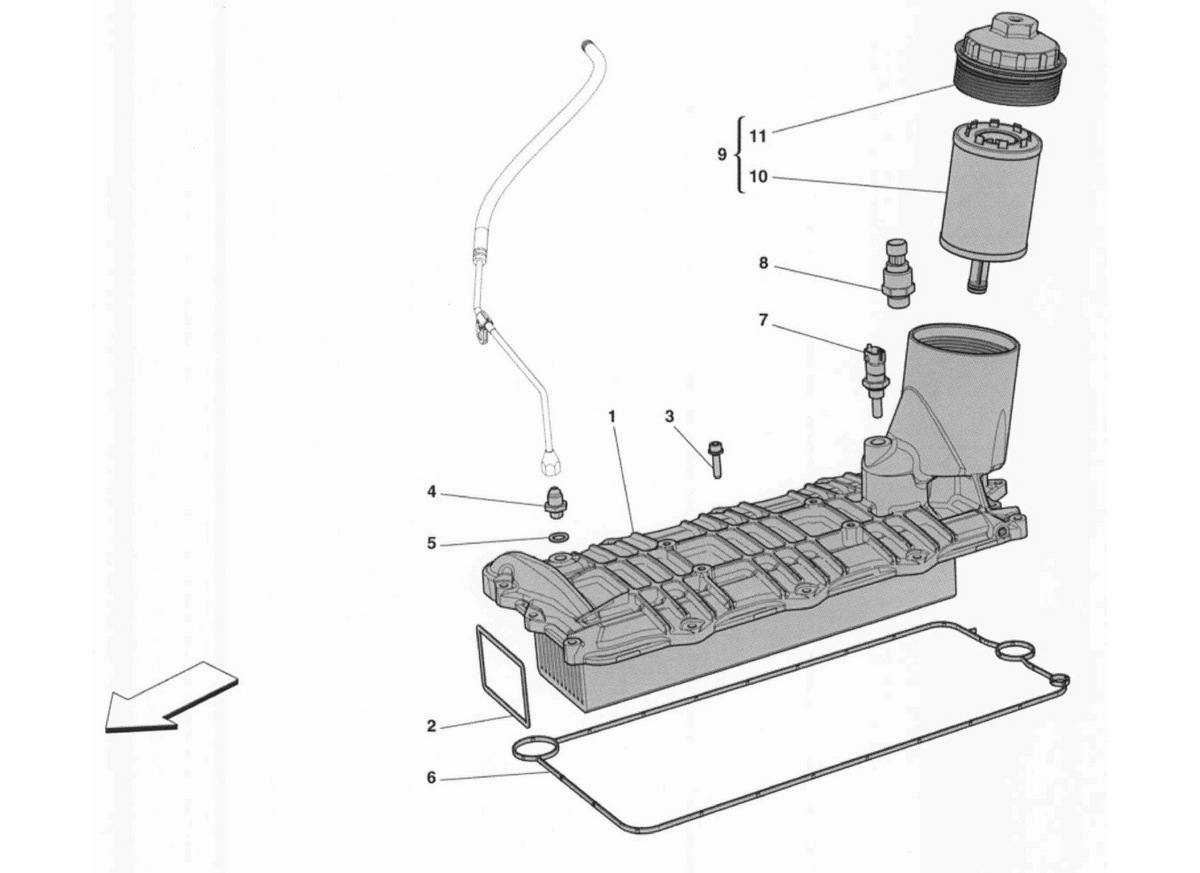

OIL/WATER HEAT EXCHANGER AND FILTER

Go to Split View

OIL/WATER HEAT EXCHANGER AND FILTER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 267810 *Qty: 1 SCAMBIATORE CALORE ACQUA OLIO $2,443.49
Location: 2 Prev | Next Part: 253104 *Qty: 1 GASKET TRA SCAMBIATORE E BASAMENTO $3.49
Location: 3 Prev | Next Part: 231621 *Qty: 5 SCREW -M6 X 30- $0.90
Location: 3 Prev | Next Part: 231620 *Qty: 10 SCREW-M6X25- $0.90
Location: 4 Prev | Next Part: 192327 *Qty: 1 RACCORDO PER SFIATO VAPORI ACQUA $5.03
Location: 5 Prev | Next Part: 10284460 *Qty: 1 GASKET $0.90
Location: 6 Prev | Next Part: 267811 *Qty: 1 GASKET $78.33
Location: 7 Prev | Next Part: 180137 *Qty: 1 SENSORE TEMPERATURA $30.49
Location: 8 Prev | Next Part: 201207 *Qty: 1 TRASMETnTORE DI PRESSIONE $248.28
Location: 9 Prev | Next Part: 290877 *Qty: 1 FILTRO OLIO CPL. Call
Location: 10 Prev | Next Part: 294661 *Qty: 1 CARTUCCIA FILTRO OLIO Call
Location: 11 Prev | Next Part: 286244 *Qty: 1 TAPPO FILTRO OLIO $160.92

* Quantity shown indicates the number of pieces used in the diagram.
