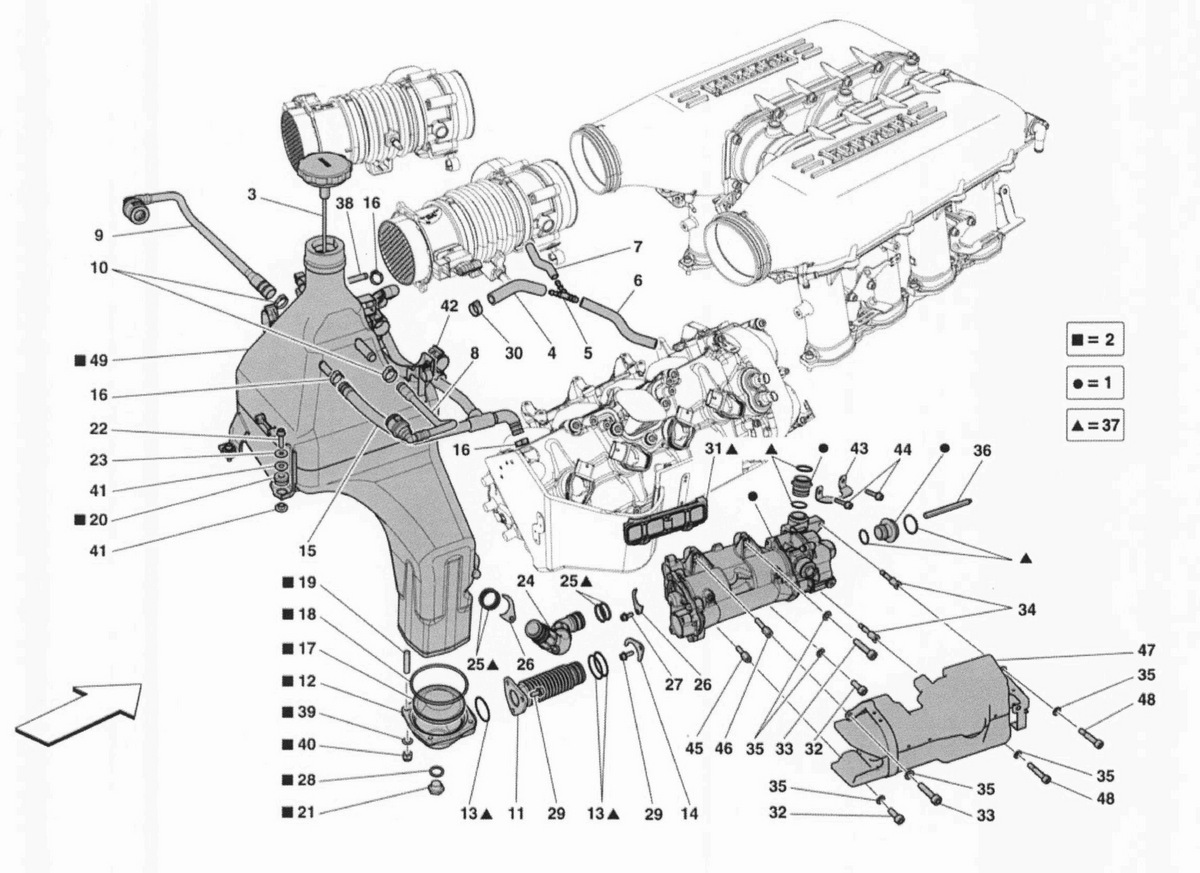

OIL LUBRICATION SYSTEM: TANK AND PUMP

Go to Split View

OIL LUBRICATION SYSTEM: TANK AND PUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 252029 *Qty: 1 POMPA OLIO CPL. $3,625.51
Location: 2 Prev | Next Part: 274261 *Qty: 1 SERBATOIO OLIO CPL. Call
Location: 3 Prev | Next Part: 237937 *Qty: 1 TAPPO COMPLETO $314.62
Location: 4 Prev | Next Part: 176179 *Qty: 1 RUBBER HOSE DA SERBATOIO A RACCORDO Call
Location: 5 Prev | Next Part: 258855 *Qty: 1 RACCORDO A TRE VIE $58.01
Location: 6 Prev | Next Part: 165608 *Qty: 1 RUBBER HOSE DA RACCORDO A COLLETTORE LATO DX. $2.83
Location: 7 Prev | Next Part: 141235 *Qty: 1 RUBBER HOSE $11.02
Location: 8 Prev | Next Part: 272687 *Qty: 1 HOSE ASPIRAZIONE DX. $70.36
Location: 9 Prev | Next Part: 272688 *Qty: 1 HOSE ASPIRAZIONE SX. $49.54
Location: 10 Prev | Next Part: 13432070 *Qty: 2 COLLARE -D. 15.7- $0.90
Location: 11 Prev | Next Part: 287204 *Qty: 1 HOSE CON FLANGIA $398.57
Location: 12 Prev | Next Part: 255176 *Qty: 1 PESCANTE $175.73
Location: 13 Prev | Next Part: 153628 *Qty: 1 GASKET -Arriva anche con il kit 271893 rif. 37- $0.90
Location: 13 Prev | Next Part: 104212 *Qty: 2 GASKET -Arriva anche con il Mt 271893 rif. 37- $1.39
Location: 14 Prev | Next Part: 239453 *Qty: 1 FORCELLINO $7.50
Location: 15 Prev | Next Part: 281311 *Qty: 1 HOSE SFIATO VAPORI OHO Call
Location: 16 Prev | Next Part: 13432070 *Qty: 2 COLLARE -D. 15.7- -Lato teste- $0.90
Location: 16 Prev | Next Part: 13431970 *Qty: 1 COLLARE -Lato serbatoio- $1.26
Location: 17 Prev | Next Part: 100332 *Qty: 1 FILTRO ASPIRAZIONE OLIO $80.11
Location: 18 Prev | Next Part: 125521 *Qty: 1 GASKET $21.14
Location: 19 Prev | Next Part: 11500524 *Qty: 4 STUD $0.90
Location: 20 Prev | Next Part: 177576 *Qty: 4 ANELLO PASSAFILO $2.80
Location: 21 Prev | Next Part: 10300711 *Qty: 1 TAPPO Superseded
Location: 22 Prev | Next Part: 231620 *Qty: 4 SCREW-M6X25- $0.90
Location: 23 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 253909 *Qty: 1 HOSE RECUPERO OLIO $343.66
Location: 25 Prev | Next Part: 121903 *Qty: 4 GASKET -Arriva anche con il Mt 271893 rif. 37- $1.02
Location: 26 Prev | Next Part: 239452 *Qty: 2 FORCELLINO $7.50
Location: 27 Prev | Next Part: 231616 *Qty: 2 SCREW-M6X14- $0.90
Location: 28 Prev | Next Part: 10257060 *Qty: 1 GASKET $0.90
Location: 29 Prev | Next Part: 231616 *Qty: 4 SCREW-M6X14- $0.90
Location: 30 Prev | Next Part: 171406 *Qty: 1 COLLARE PER MANICOTTO $1.02
Location: 31 Prev | Next Part: 275528 *Qty: 1 FILTRO GASKET POMPE Call
Location: 32 Prev | Next Part: 14306421 *Qty: 2 SCREW-M8X20- Superseded
Location: 33 Prev | Next Part: 14306621 *Qty: 2 SCREW-M8X35- $0.90
Location: 34 Prev | Next Part: 292495 *Qty: 2 COLONNETTA CALIBRATA Call
Location: 35 Prev | Next Part: 11198074 *Qty: 6 WASHER $0.90
Location: 36 Prev | Next Part: 247044 *Qty: 1 BARRA ESAGONALE COMANDO POMPA OLIO $23.65
Location: 37 Prev | Next Part: 271893 *Qty: 1 KIT GUARNIZIONI POMPA OLIO $96.37
Location: 38 Prev | Next Part: 117715 *Qty: 1 RACCORDO FILETTATO -Valid for serbatoio olio cpl. 269663 rif. 2- $5.65
Location: 39 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 40 Prev | Next Part: 102948 *Qty: 4 NUT $0.90
Location: 41 Prev | Next Part: 183898 *Qty: 8 BOCCOLA FLANGIATA $3.80
Location: 42 Prev | Next Part: 255546 *Qty: 1 MOLLETTA $2.64
Location: 43 Prev | Next Part: 263347 *Qty: 1 STAFFA Call
Location: 44 Prev | Next Part: 248334 *Qty: 2 SCREW $0.90
Location: 45 Prev | Next Part: 293409 *Qty: 1 COLONNETTA Call
Location: 46 Prev | Next Part: 293410 *Qty: 1 COLONNETTA Call
Location: 47 Prev | Next Part: 299989 *Qty: 1 PARATIA ANTICALORE POMPA OLIO Call
Location: 48 Prev | Next Part: 231617 *Qty: 2 SCREW -M6 X18- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
