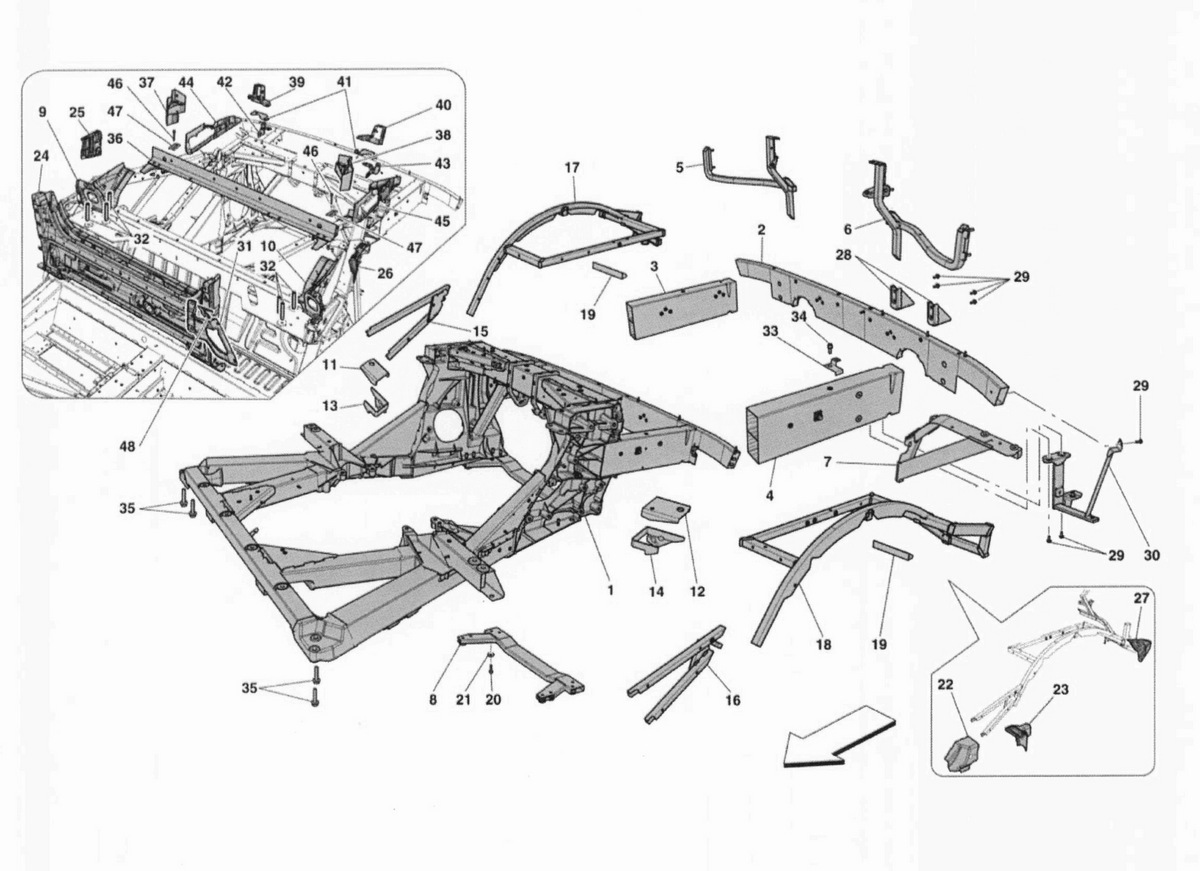

FRAME - REAR ELEMENTS STRUCTURES AND PLATES

Go to Split View

FRAME - REAR ELEMENTS STRUCTURES AND PLATES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 985316134 *Qty: 1 TELAIETTO POSTERIORE -Restricted item. Not available for sale.- Call
Location: 2 Prev | Next Part: 297876 *Qty: 1 TRAVERSA POSTERIORE ATTACCO PARAURTI -Restricted item. Not available for sale.- Call
Location: 3 Prev | Next Part: 295233 *Qty: 1 PUNTONE POSTERIORE DX. -Restricted item. Not available for sale.- Call
Location: 4 Prev | Next Part: 295231 *Qty: 1 PUNTONE POSTERIORE SX. -Restricted item. Not available for sale.- Call
Location: 5 Prev | Next Part: 84630500 *Qty: 1 TRALICCIO POSTERIORE RADIATORE DX. -Restricted item. Not available for sale.- Call
Location: 6 Prev | Next Part: 84630400 *Qty: 1 TRALICCIO POSTERIORE RADIATORE SX. -Restricted item. Not available for sale.- Call
Location: 7 Prev | Next Part: 85536000 *Qty: 1 STAFFA SOSTEGNO FIANCATA DX. -Restricted item. Not available for sale.- Call
Location: 7 Prev | Next Part: 85536100 *Qty: 1 STAFFA SOSTEGNO FIANCATA SX. -Restricted item. Not available for sale.- Call
Location: 8 Prev | Next Part: 270599 *Qty: 1 TRAVERSA LOWER SUPPORTO CAMBIO Call
Location: 9 Prev | Next Part: 83229400 *Qty: 1 RIPORTO ANTERIORE VASCA CAPOTE DX. Call
Location: 10 Prev | Next Part: 83229500 *Qty: 1 RIPORTO ANTERIORE VASCA CAPOTE SX. Call
Location: 11 Prev | Next Part: 82572600 *Qty: 1 STAFFA SUPPORTO TRALICCI UPPER DX. Call
Location: 12 Prev | Next Part: 82572700 *Qty: 1 STAFFA SUPPORTO TRALICCI UPPER SX. Call
Location: 13 Prev | Next Part: 260696 *Qty: 1 STAFFA SUPPORTO TRALICCI LOWER DX. Call
Location: 14 Prev | Next Part: 260695 *Qty: 1 STAFFA SUPPORTO TRALICCI LOWER SX. Call
Location: 15 Prev | Next Part: 84042200 *Qty: 1 TRALICCIO FIANCATA ANT. DX. Call
Location: 16 Prev | Next Part: 84042600 *Qty: 1 TRALICCIO FIANCATA ANT. SX. Call
Location: 17 Prev | Next Part: -0 *Qty: 1 -0 Call
Location: 17 Prev | Next Part: 85537300 *Qty: 1 TRALICCIO FIANCATA POST. DX. Call
Location: 18 Prev | Next Part: 85537200 *Qty: 1 TRALICCIO FIANCATA POST. SX. Call
Location: 19 Prev | Next Part: 81952000 *Qty: 1 ANGOLARE PER STAFFA SOSTEGNO FIANCATA Call
Location: 20 Prev | Next Part: 14308234 *Qty: 10 SCREW -Valid until exhaustion- Call
Location: 20 Prev | Next Part: 101632 *Qty: 10 SCREW -Valid after exhaustion of 14308234- $12.28
Location: 21 Prev | Next Part: 12626024 *Qty: 10 WASHER Call
Location: 22 Prev | Next Part: 81287800 *Qty: 1 STAFFA ANTERIORE LOWER PARAFANGO DX. Call
Location: 22 Prev | Next Part: 81288800 *Qty: 1 STAFFA ANTERIORE LOWER PARAFANGO SX. Call
Location: 23 Prev | Next Part: 81518100 *Qty: 1 STAFFA POSTERIORE LOWER PARAFANGO DX. Call
Location: 23 Prev | Next Part: 81518200 *Qty: 1 STAFFA POSTERIORE LOWER PARAFANGO SX. Call
Location: 24 Prev | Next Part: 82140800 *Qty: 1 VASCA LUNOTTO SCENDENTE Call
Location: 25 Prev | Next Part: 83499100 *Qty: 1 STAFFA SOSTEGNO RIPARO LATERALE FIANCHETTO DX. Call
Location: 26 Prev | Next Part: 83499300 *Qty: 1 STAFFA SOSTEGNO RIPARO LATERALE FIANCHETTO SX. Call
Location: 27 Prev | Next Part: 81582600 *Qty: 1 STAFFA FIANCATA POSTERIORE DX. Call
Location: 27 Prev | Next Part: 81582700 *Qty: 1 STAFFA FIANCATA POSTERIORE SX. Call
Location: 28 Prev | Next Part: 85701900 *Qty: 1 STAFFA FISSAGGIO SCIVOLO CENTRALE Call
Location: 29 Prev | Next Part: 11625824 *Qty: 10 SCREW -M6 X 18- $0.90
Location: 30 Prev | Next Part: 85641900 *Qty: 1 TRALICCIO LATERALE DX. FISSAGGIO PARAURTI Call
Location: 30 Prev | Next Part: 85642200 *Qty: 1 TRALICCIO LATERALE SX. FISSAGGIO PARAURTI Call
Location: 31 Prev | Next Part: 83959000 *Qty: 1 RINFORZO COLLEGAMENTO MONTANTE DX. Call
Location: 31 Prev | Next Part: 83959100 *Qty: 1 RINFORZO COLLEGAMENTO MONTANTE SX. Call
Location: 32 Prev | Next Part: 13791321 *Qty: 1 SCREW Call
Location: 33 Prev | Next Part: 302293 *Qty: 1 STAFFA SOSTEGNO TUBI Call
Location: 34 Prev | Next Part: 231617 *Qty: 1 SCREW -M6 X 18- $0.90
Location: 35 Prev | Next Part: 239965 *Qty: 1 SCREW $25.16
Location: 36 Prev | Next Part: 82149000 *Qty: 1 TRAVERSA POSTERIORE VASCA TETTO Call
Location: 37 Prev | Next Part: 83739000 *Qty: 1 ESTRUSO VERTICALE DX. Call
Location: 38 Prev | Next Part: 83739100 *Qty: 1 ESTRUSO VERTICALE SX. Call
Location: 39 Prev | Next Part: 83330300 *Qty: 1 STAFFA BUFFER COFANO DX. Call
Location: 40 Prev | Next Part: 83458500 *Qty: 1 STAFFA BUFFER COFANO SX. Call
Location: 41 Prev | Next Part: 83458600 *Qty: 1 SPACER PER STAFFA BUFFER Call
Location: 42 Prev | Next Part: 84249300 *Qty: 1 STAFFA COLLEGAMENTO BUFFER DX. Call
Location: 43 Prev | Next Part: 84249500 *Qty: 1 STAFFA COLLEGAMENTO BUFFER SX. Call
Location: 44 Prev | Next Part: 83189900 *Qty: 1 STAFFA SUPPORTO POSTERIORE DX. Call
Location: 45 Prev | Next Part: 83190200 *Qty: 1 STAFFA SUPPORTO POSTERIORE SX. Call
Location: 46 Prev | Next Part: 231630 *Qty: 4 SCREW $1.25
Location: 47 Prev | Next Part: 85584100 *Qty: 4 SHIM Call
Location: 48 Prev | Next Part: 84446700 *Qty: 2 SHIM -Sp. 0.5 mm- Call
Location: 48 Prev | Next Part: 84615100 *Qty: 2 SHIM -Sp. 1 mm- Call
Location: 48 Prev | Next Part: 84615400 *Qty: 2 SHIM -Sp. 1.5 mm- Call
Location: 49 Prev | Next Part: -0 *Qty: 1 -0 Call

* Quantity shown indicates the number of pieces used in the diagram.
