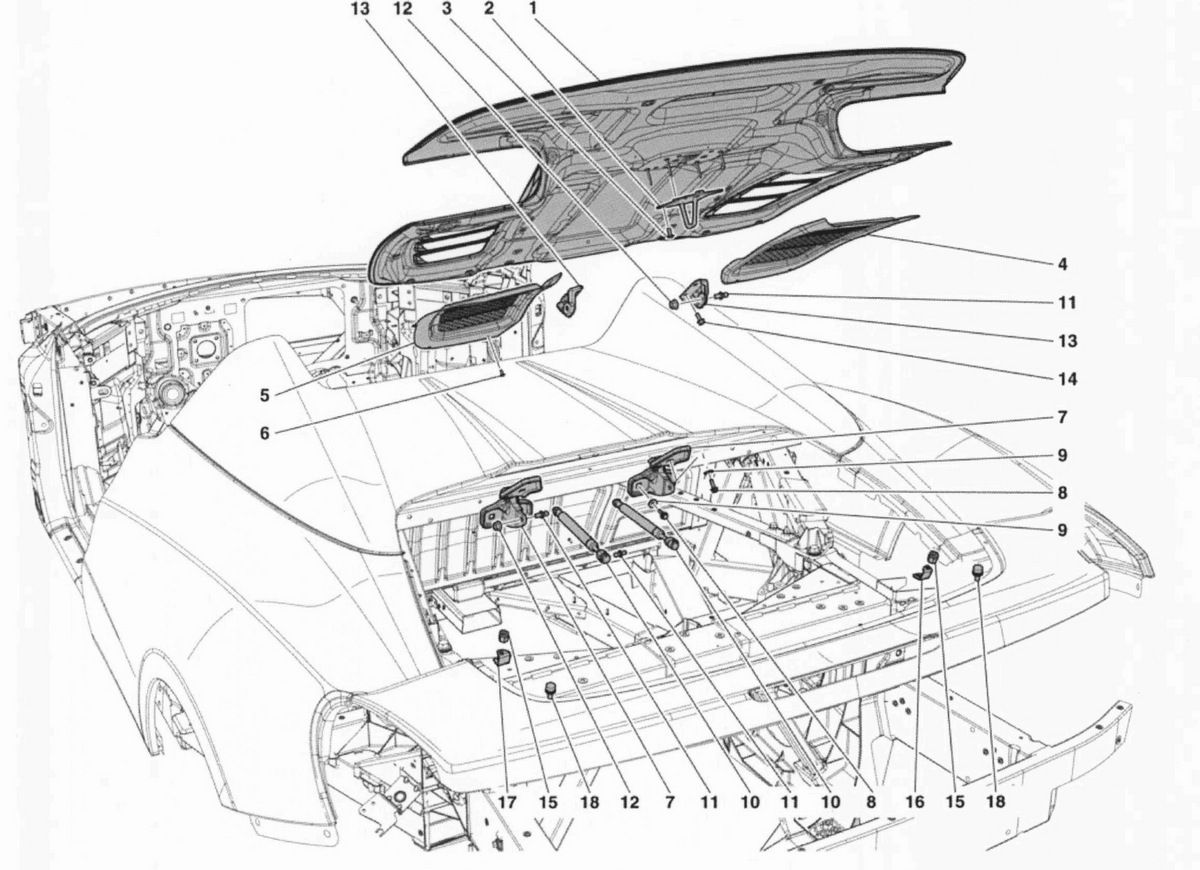

ENGINE BONNET

Go to Split View

ENGINE BONNET

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 82160711 *Qty: 1 REAR BONNET -Not for USA. CDN- Call
Location: 1 Prev | Next Part: 84419811 *Qty: 1 REAR BONNET -Valid for antenna satellite- -Valid for USA. CDN- $7,196.14
Location: 2 Prev | Next Part: 83467200 *Qty: 1 SCONTRINO SERRATURA $51.84
Location: 3 Prev | Next Part: 65864100 *Qty: 4 SCREW $1.90
Location: 4 Prev | Next Part: 83908700 *Qty: 1 GRIGLIA DX. COFANO MOTORE $207.46
Location: 5 Prev | Next Part: 83908900 *Qty: 1 GRIGLIA SX. COFANO MOTORE $207.46
Location: 6 Prev | Next Part: 65752800 *Qty: 10 SCREW -M4 X 10- $2.87
Location: 7 Prev | Next Part: 83967600 *Qty: 2 BONNET HINGE CPL. $271.69
Location: 8 Prev | Next Part: 16286124 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: 12647021 *Qty: 6 WASHER $0.90
Location: 10 Prev | Next Part: 84650400 *Qty: 2 GAS STRUT $47.68
Location: 11 Prev | Next Part: 67251200 *Qty: 4 STUD $3.09
Location: 12 Prev | Next Part: 14040711 *Qty: 4 NUT $0.90
Location: 13 Prev | Next Part: 84476100 *Qty: 2 STAFFA Call
Location: 14 Prev | Next Part: 16286024 *Qty: 4 SCREW $0.90
Location: 15 Prev | Next Part: 84749000 *Qty: 2 BUFFER SPOILER $7.93
Location: 16 Prev | Next Part: 84690600 *Qty: 1 STAFFA DX. Call
Location: 17 Prev | Next Part: -0 *Qty: 1 -0 Call
Location: 17 Prev | Next Part: 84686900 *Qty: 1 STAFFA SX. Call
Location: 18 Prev | Next Part: 85164700 *Qty: 2 BUFFER Call
Location: 19 Prev | Next Part: -0 *Qty: 1 -0 Call

* Quantity shown indicates the number of pieces used in the diagram.
