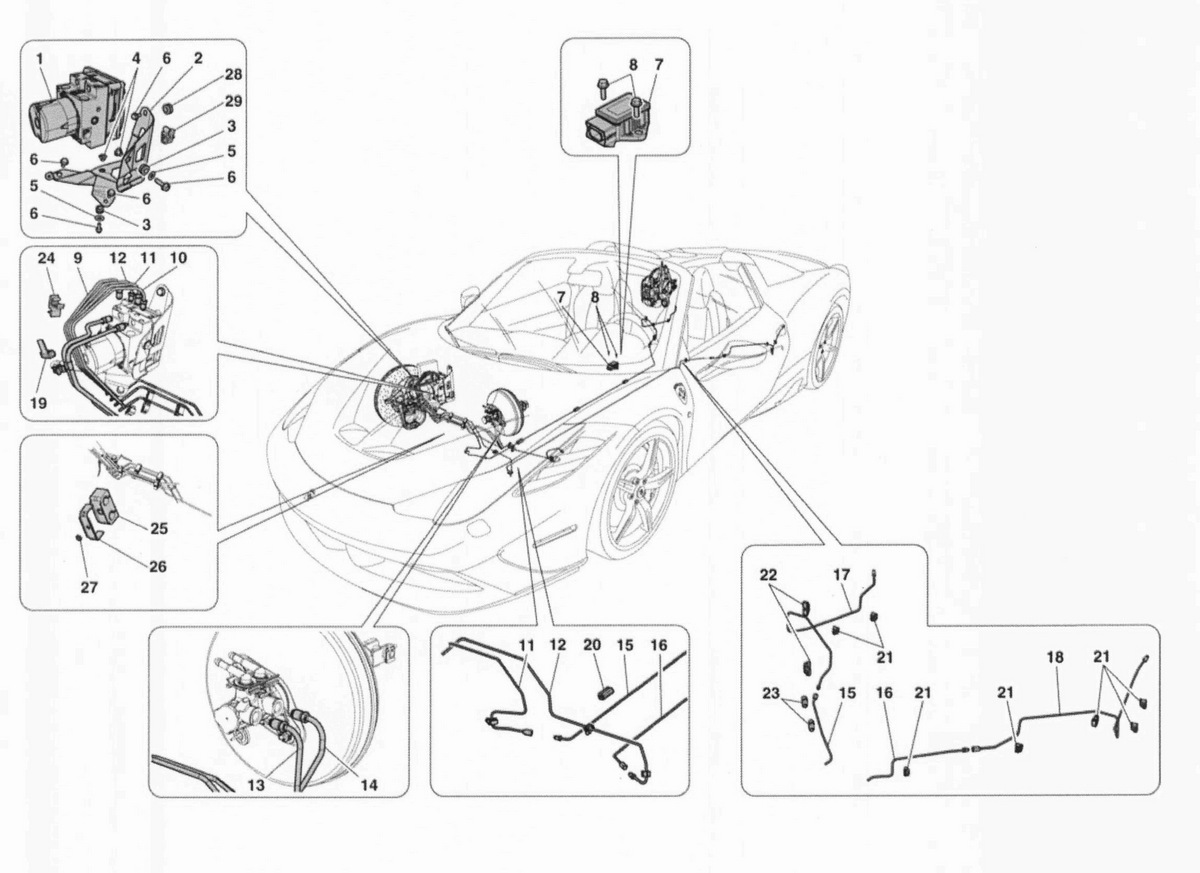

BRAKING SYSTEM

Go to Split View

BRAKING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 296431 1 GRUPPOIDRAULICO Unavailable
2 275573 1 STAFFA Unavailable
3 246864 3 ANELLO PASSAFILO $4.38
4 246917 3 DISTANZIALE $8.14
5 12625221 3 WASHER Superseded
6 16287224 3 SCREW -M8 X16- Superseded
6 16287224 3 SCREW-M8X16- Superseded
7 206070 1 SENSORE DI IMBARDATA $329.09
8 16286124 2 SCREW Unavailable
9 263877 1 HOSE FRENO ANTERIORE DX. $65.91
10 263876 1 HOSE FRENO ANTERIORE SX. $93.24
11 295939 1 HOSE FRENO POSTERIORE DX. Unavailable
12 295940 1 HOSE FRENO POSTERIORE SX. Unavailable
13 279894 1 HOSE FRENO POMPA ANTERIORE CENTRALINA Unavailable
14 262401 1 HOSE FRENO POMPA POSTERIORE CENTRALINA $531.25
15 295938 1 HOSE FRENO POSTERIORE DX. SOTTOPIANALE Unavailable
16 295937 1 HOSE FRENO POSTERIORE SX. SOTTOPIANALE Unavailable
17 263892 1 HOSE FRENO POSTERIORE DX. SOTTOTELAIO POSTERIORE $53.82
18 263893 1 HOSE FRENO POSTERIORE SX. SOTTOTELAIO POSTERIORE $52.54
19 254195 1 MOLLETTA $1.73
20 262737 7 GOMMOTTO $6.33
21 249650 7 MOLLETTA Unavailable
22 249649 2 MOLLETTA $1.02
23 169476 2 MOLLETTA $3.51
24 268893 2 MOLLETTA $2.33
25 278412 3 GOGNA 2 TUBI $11.35
26 279844 3 PIASTRINO CONTENIMENTO $5.20
27 67315400 3 RONDELLA $0.90
28 232869 3 BUFFER $38.33

* Quantity shown indicates the number of pieces used in the diagram.
